Single end tenoners

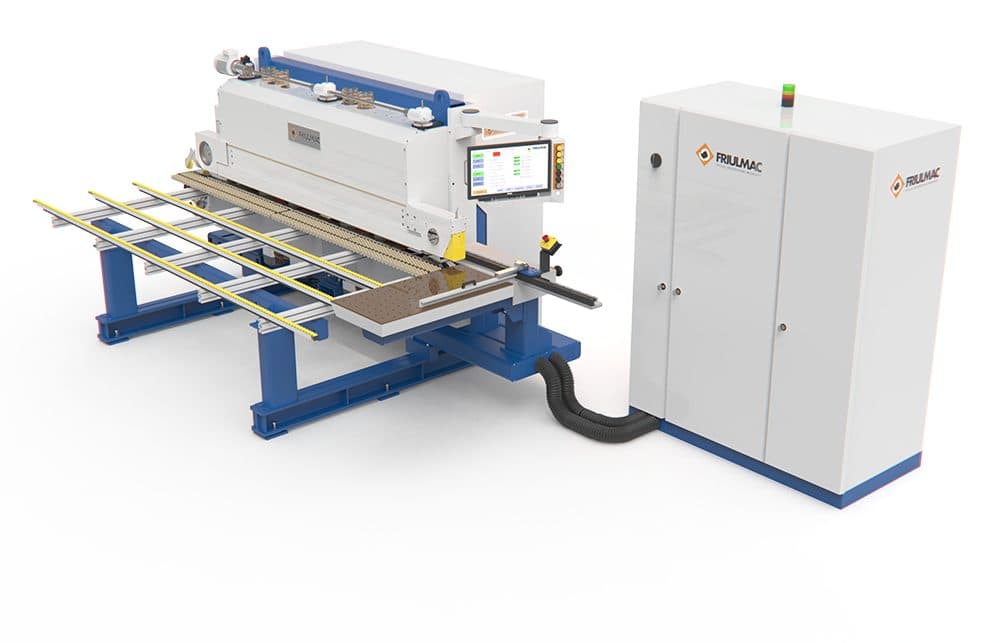

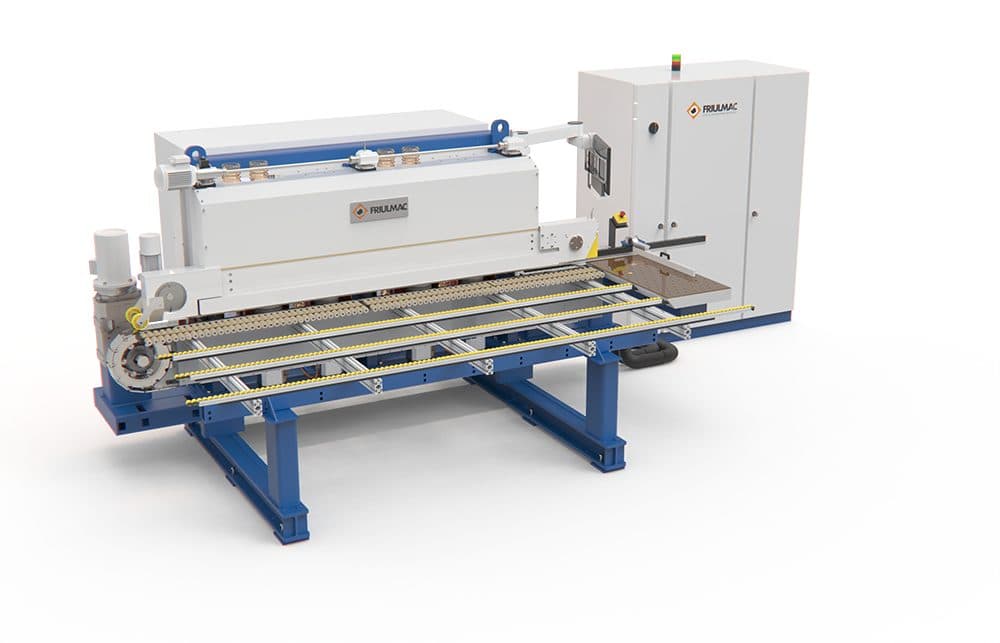

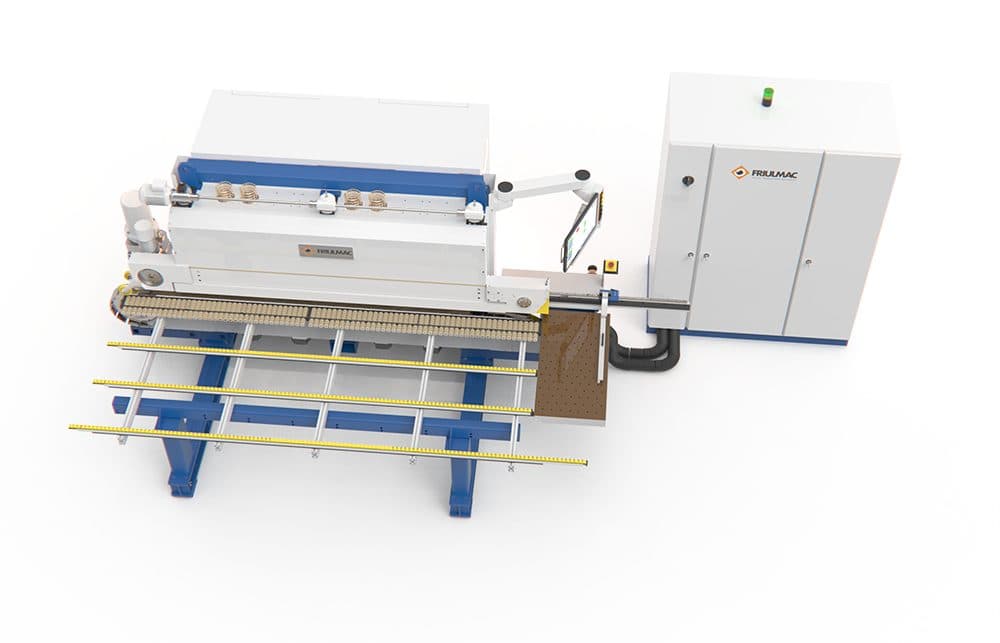

The FLEXIMAT series has been designed to cope with a wide variety of products in the field of fixtures, furniture and panel processing, ranking at the top of the category for sturdiness and reliability. Equipped with work-piece return systems or integrated in automatic processing lines, it represents the most flexible solution for both small or large production requirements.

• Squaring, profiling, moulding and sanding: all in a single monolateral machine to grant you the maximum production flexibility.

Principal characteristics

• Iron Casting working Unit support columns and gliding slides
• Feeding chain built of hard casting steel components connected by steel pins mounted on long-life sealed and lubricated bearings
• Top pressure system with independent pneumatic pulleys
• Broad working units selection for each kind of demand.

Working Dimensions

• Length (Min/Max): 900/1500mm (35-7/16″ / 59-1/16″)
• Width (Min): 250mm (9-13/16″)
• Thickness (Max): 30mm ( 1-3/16″)
• Current Voltage: 460V 3PH

The FLEXIMAT series has been designed to cope with a wide variety of products in the field of fixtures, furniture and panel processing, ranking at the top of the category for sturdiness and reliability. Equipped with work-piece return systems or integrated in automatic processing lines, it represents the most flexible solution for both small or large production requirements.

• Independent electronic fence mounted on FLEXIMAT movable side, positioned by rack
• Motorized top pressure system
• Motorized tracks for work-piece automatic exit
• Electrical to US code
• Sound safety cover
• Fan compressor group for carrying systems
• Lubricating automatic pump and guide in bakelite cloth for chain support
• Control board air-cooling system
• Modem for internet teleservice
• DIRECT DRIVEN PROFILING UNIT “J-30” 8 kw
• BELT SANDING UNIT FOR PROFILED EDGES “S-7”
• DISC SANDING UNIT “S-1”
