Lock miter machine
Easy controls, easy setup, easy changes: easy lock miter joints.

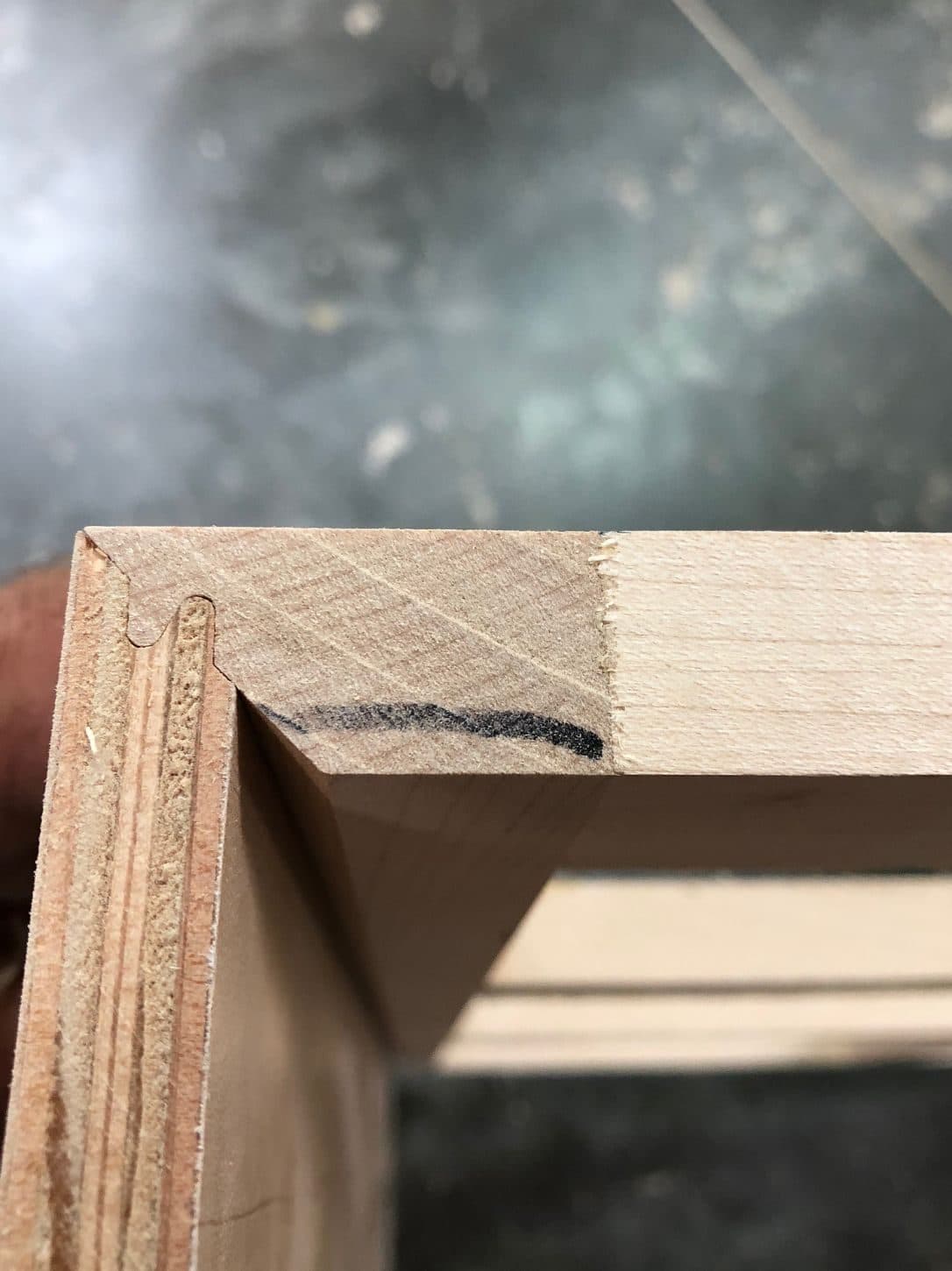

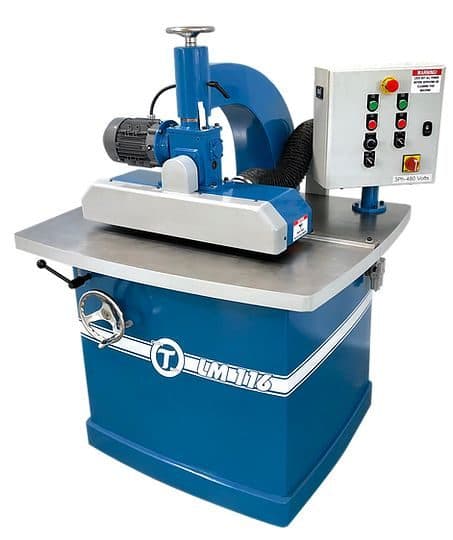

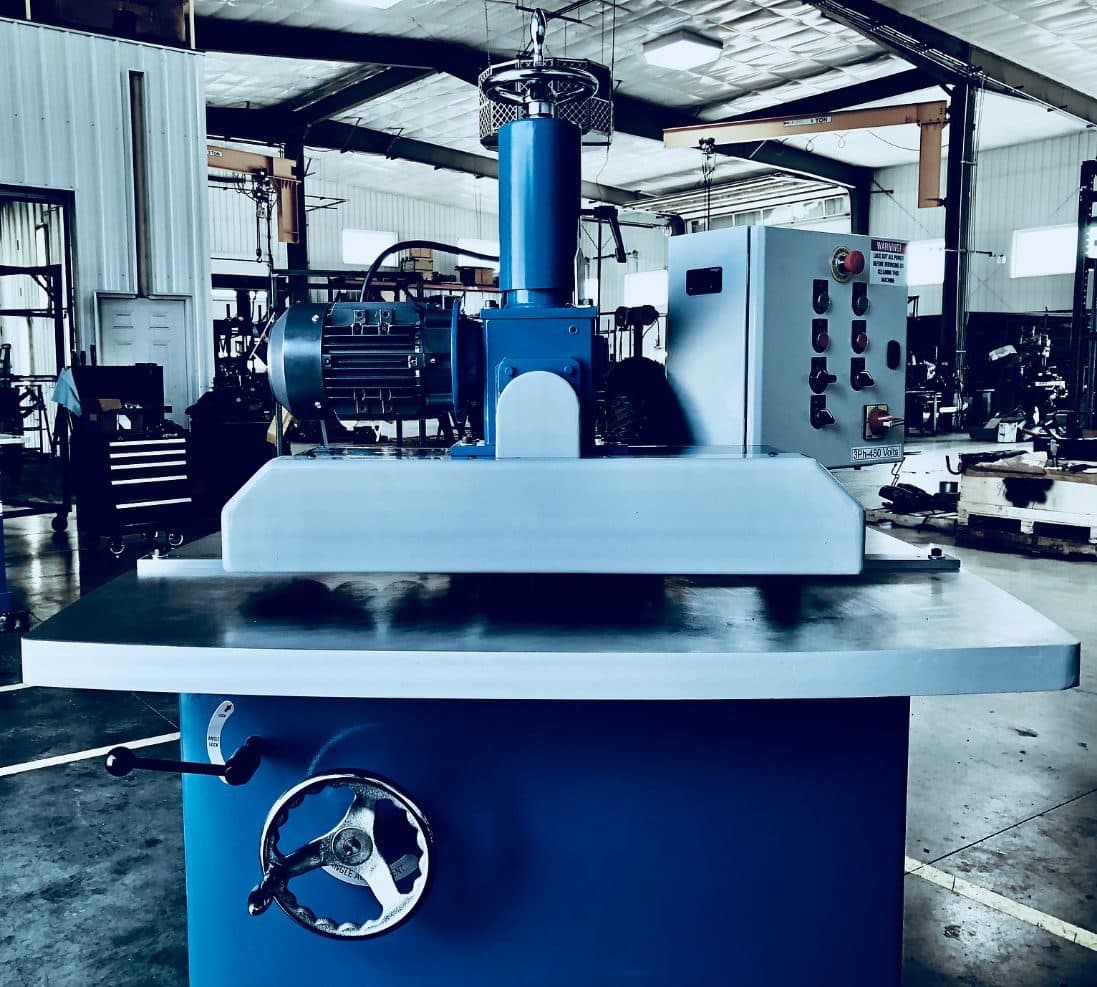

The Circle T Model LM116 is uniquely designed to produce an extremely precise lock miter joint. Customers use it for face-frame cabinetry, beams, pillar and column wrapping, box newel posts, solid surface, and more.
Product overview
Save Time
- A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle
- No more downtime setting up and changing out your shaper
- No more running pieces on their side
- Less gluing and clamping time
Applications
The LM116 EASY lock miter machine handles a wide range of applications, including:
- Face Frame to Box
- Nose-On Shelf
- Tapered Leg
- Custom Shapes
- Lazy Susan
- Stair Treads
- Cabinet Corner (Bump Up)
Specifications
Application specifications
- Maximum Material Thickness: 1″
- Minimum Material Thickness: 1/2″
- Minimum Material Width: 1-1/4″
- Minimum Material Width (2-Sided): 2″
- Minimum Material Length: 12″
- Capable of Machining Angles from 90 to 30 Degrees (Finish Angle)
Drive package specifications
- Spindle Motor: 5 HP
- Feed Motor: 0.5 HP
- Spindle Diameter: 1-1/4″
- Spindle Speed: 8,200 RPM

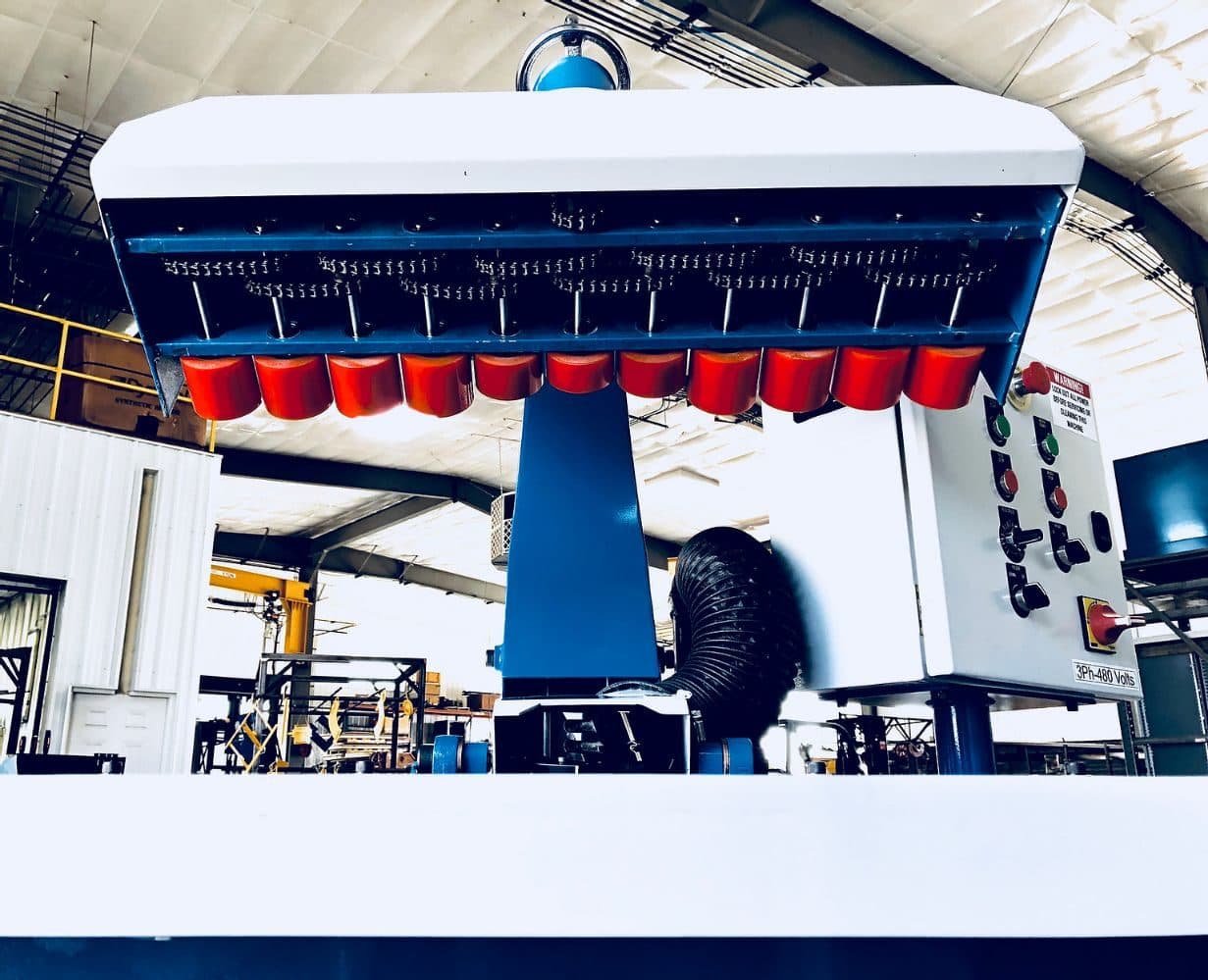

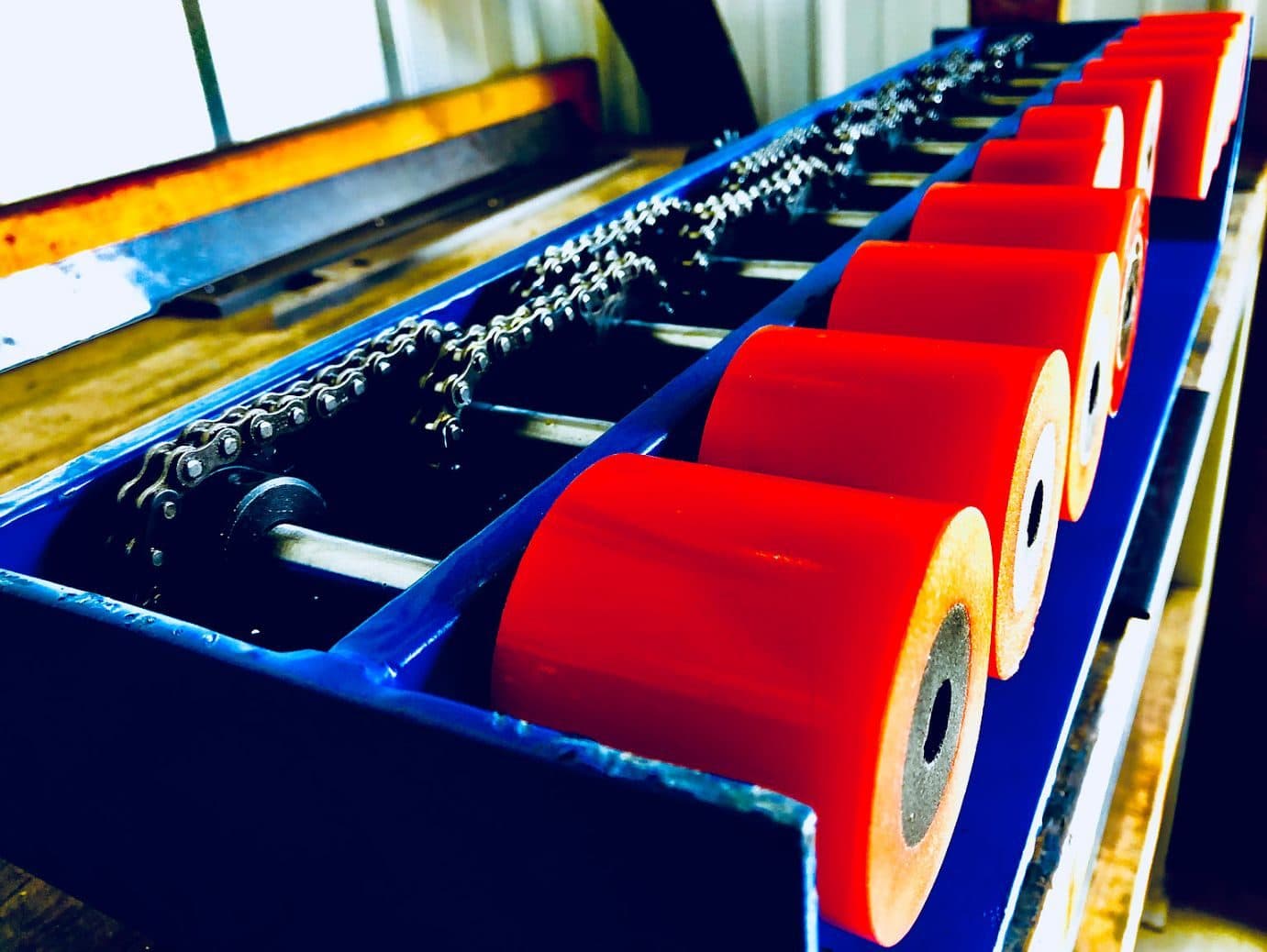

- Variable Speed 11-Roll Positive Grip Feeder
Utility requirements
- Dust Collection Requirements: 670 CFM, 4″ Outlet
- Pneumatic Requirements: 100 PSI.5 CFM
- 25 AMP Disconnect at 480V 3phase
Dimension specifications
- Table Size: 40″ x 47″
- Footprint: 42″L x 54″W x 60″H
- Shipping Dimensions 67″L x 48″W x 79″H
Shipping weight: 1,900 lbs
Net weight: 1,600 lbs
