Year End Machinery Sale 2021!

Reading Time: 7 minutes

Available for immediate delivery to take advantage of section 179…

Located in Grand Rapids, Michigan, and available to see in operation via web meeting or in person.

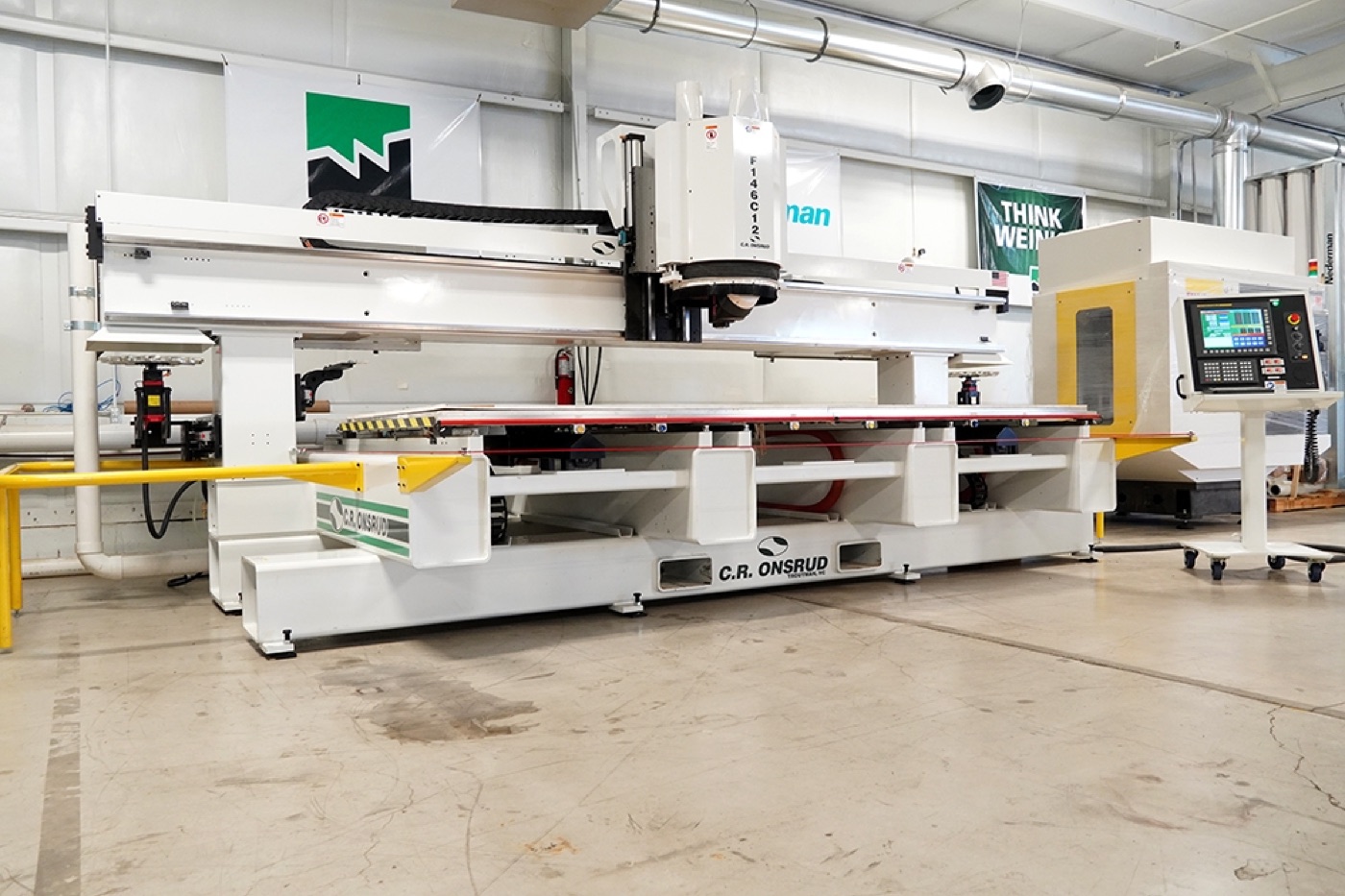

C.R ONSRUD MODEL F146C12 “Super Duty Series” CNC ROUTER -SOLD

  • Designed, engineered, & manufactured in the USA, utilizing Finite Element Analysis
  • Fabricated base consisting of heavy steel construction, bridge, and vertical supports
  • All structural components are stress relieved utilizing thermal heat treatment.
  • Fixed bridge design with twin moving tables allows for up to 3100 IPM programmable feed rates.
  • Twin table option can allow tables to function as two independent work surfaces or operated in tandem as one single table
  • High precision ball-screw drive for all axis movements.
  • Table(s) include pressure-sensitive safety stop “edge switch” on front and rear.
  • In addition, a 360-degree emergency stop cable surrounds the machine. Industrial machine control system with high-speed full 3D capability (multi-axis interpolation)

    CALL FOR PRICE  – MORE INFO

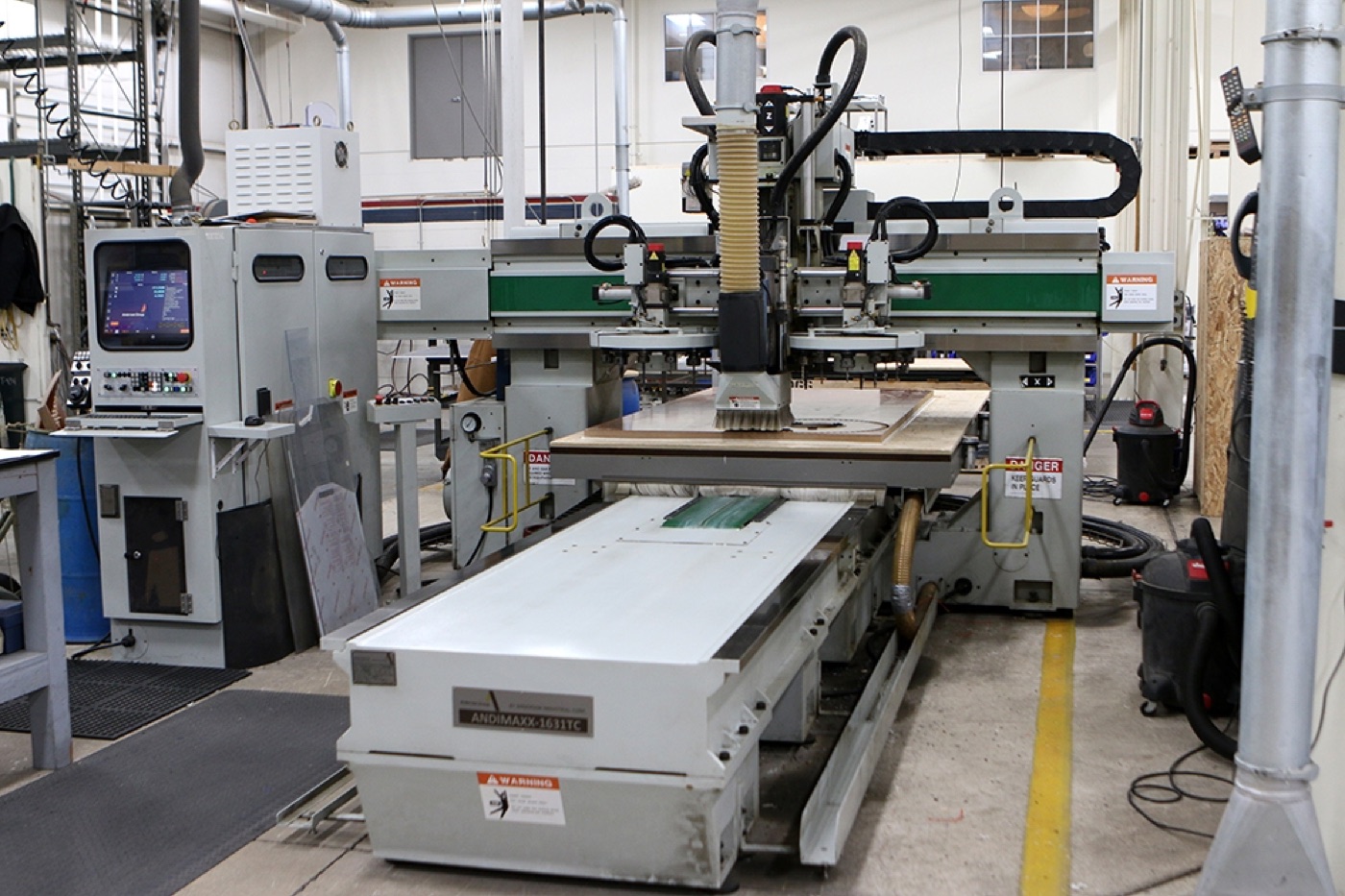

2017 Anderson ANDI ANDIMAXX-1631TC  -SOLD

Fixed Bridge (moving table) type machine equipped with 1 (one) 18 HP 4-pole air-cooled router spindle, with grease lubricated ceramic bearings, DUAL 12-Position Automatic Tool Changing Systems, with tool length touch probe. The spindle motor is powered by an electronic AC inverter drive system with dynamic spindle braking. Full Torque is achieved at 9,000 RPM & Full HP is achieved at 12,000 RPM. The Automatic Tool Changer Carousel, with Steel Tool Holder Clips, is mounted on the spindle carriage, next to the Router Spindle, for fast & efficient tool changes. X & Y axes are constructed of massive, heavy duty welded steel construction with multiple reinforcements to increase strength and absorb vibration. Z-axis spindle carriage is a specially designed Meehanite casting for high strength and inherent vibration dampening characteristics with a pneumatic counterbalance system for smooth and accurate operation. Hardened & Precision GROUND Rectangular Boxway guide-ways, with recirculating roller bearings, are provided for all primary movements in the X & Y axes. Roller Boxways provide far more metal to metal contact than radius-contact ball guide systems for up to twice the load capacity, one third the elastic deformation, twice the static stiffness, up to 200% longer life, with significantly better dampening of tool induced vibrations. Hardened and precision STAR profiled linear guide way systems with recirculating roller linear bearings are provided for movements in the Z axes. Hardened and precision ground ball screws with anti-backlash ball nuts are provided for all primary movements of the X, Y, & Z axis.

CALL FOR PRICE – MORE INFO

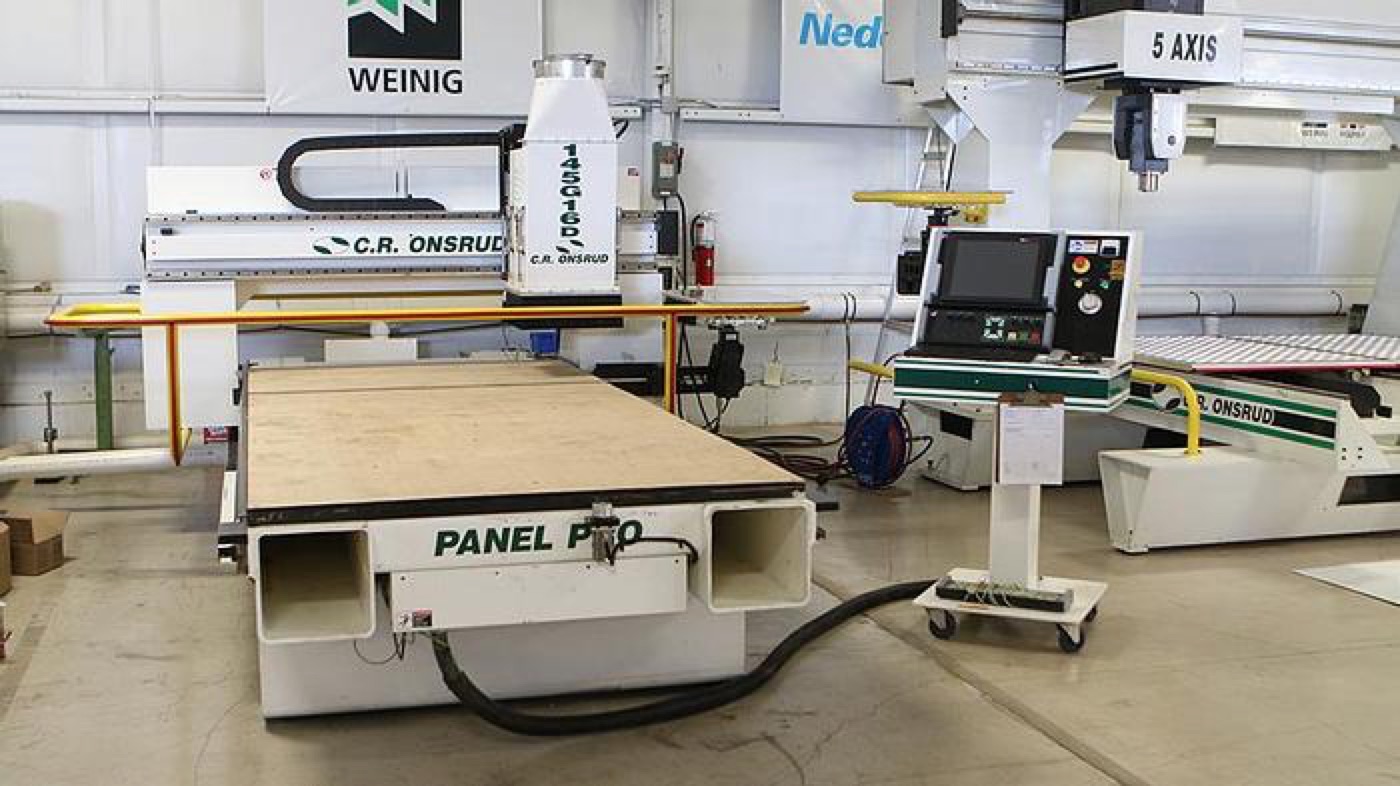

2006 C.R. Onsrud 145G16D- SOLD

C.R. Onsrud 145G12 CNC Router (5×12) 2006 MACHINE OPTIONS INCLUDED –*

HSK-63 Spindle Taper & Tool Changer Adapter*

High Speed – High Production – Encoder Based Digital Brushless AC Servos Larger servos, drives, amps for faster feed rates, heavier cutting, & increased accuracy*

12 Tool – Dynamic Automatic Rotary Tool Changer –

Fully Servo controlled instead of Stepper controlled. The design eliminates misfires & more quickly changes between 12 different tools – (w/2 free HSK-63 tool holders) AND MORE…There will be an additional cost for freight and installation.

CALL FOR PRICE – MORE INFO

2009 C.R. Onsrud 122S25 CNC Router -SOLD

C.R. ONSRUD MODEL 122S18 “Single Table” CNC ROUTER
(122″X74” axis travel) – with: Thick Cast-Iron Fixed Bridge & Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Single Moving Table Design with 3600″ per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 8′ x 24′ footprint, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, 4-Pole, 13.5Kw, 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, 12 TOOL – AUTOMATIC TOOL CHANGER with two (2) HSK tool holders included, SINGLE ALUMINUM TABLE, with full table coverage, functions as a single 122″ x 61″ table, with 2 independently controlled 60” x 60” vacuum zones. Each zone has low vacuum sensing safety shut-off with override capability. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems. All tables include pressure-sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable.

HSK-63 Spindle Taper & Tool Changer Adapter Upgrade – This Upgrade from ISO-30 Taper Spindle & Tool Changers Provides up to 5 Times the clamping force, & allows the use of Router Tooling Weighing up to 2-1/2 Times the weight & measuring up to 2-1/2 Times the diameter
Four Pole Spindle Upgrade – (Doubles the spindle’s internal electrical poles which can up to double the available rotational torque at given horsepower & increases usable horsepower throughout the curve. Spindle does not need to work as hard to do the same work resulting in increased spindle life.
Continuous Production High Speed – High Accuracy Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy
12 Tool – Dynamic Automatic Rotary Tool Changer Upgrade – Upgrade to Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. You may require C-Axis or Aggregate Tool Changer option to hold some larger or non-standard aggregates – (w/2 free HSK-63 tool holders)

CALL FOR PRICE – MORE INFO

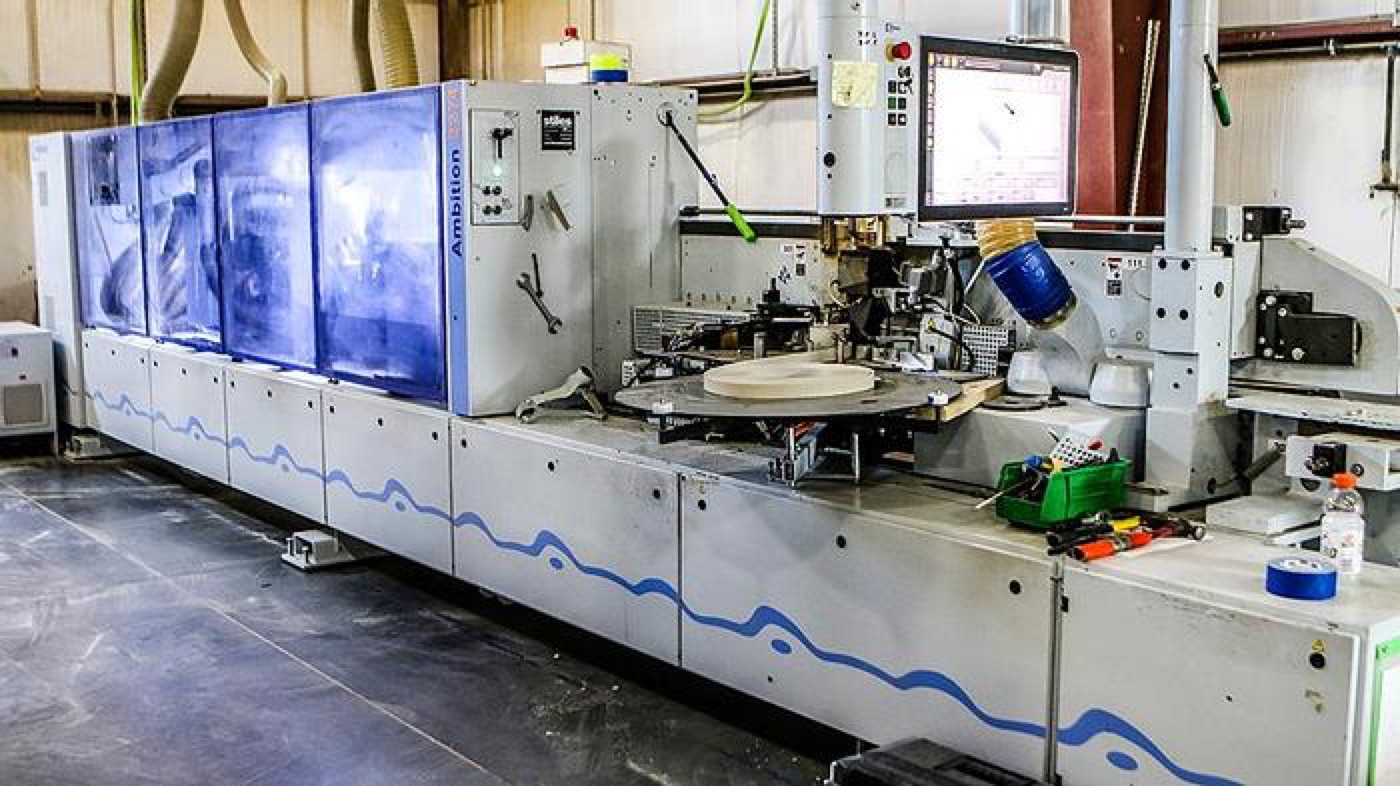

2015 Homag KAL370 Ambition 2274 -SOLD

HOMAG gluing units are the professional solution for fast, friction-locked glue joints. An EVA pre-melt unit comes as standard. The heated glue roller ensures an optimum glue temperature for all workpiece thicknesses and consistently high gluing quality. The magazine height adjustment permits different workpiece thicknesses to be processed with one edge height. If required, the gluing unit can also be equipped for you with a PU pre-melt unit – to enable rapid changeover to a different glue color or to PU.

Machine Specifications

machine length: 8,365 mm (27 1/2 ft)

working height: 950 mm (37 in)

extendable workpiece support: 800 mm (31 in)

variable feed speed: 16 – 20 m/min (52 1/2 – 65 1/2 ft/min)

workpiece overhang: 30 mm (1 1/8 in) operating voltage: 480 V

CALL FOR PRICE – MORE INFO

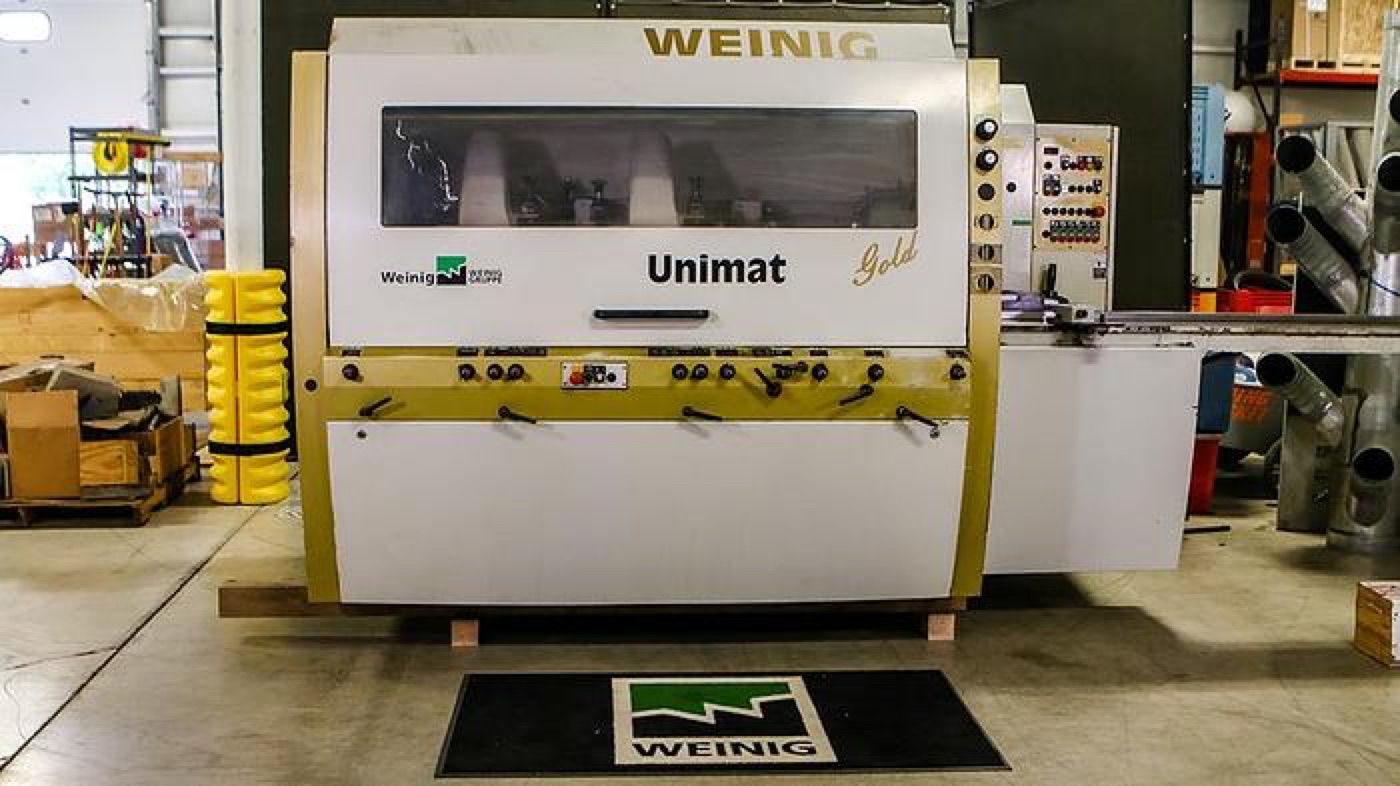

Weinig Unimat Gold 2007 6 Head Moulder – SOLD

Specifications : spindle configuration: 10 HP bottom, 10 HP right, 10 HP left, 15 HP top, 20 HP top, 10 HP bottom; all spindles are 1-1/2″ diameter; 6,800 RPM on all spindles; 5.5 HP inverter controlled variable speed feed 16 to 78 FPM; Cardan drive system; 78″ infeed straightening bed; mechanical digital readouts on all spindles; Digiset readouts on left and top spindles; mechanical readouts on chipbreaker and pressure element of top spindle; pneumatically pressurized feed rollers; (2) powered table rollers in machine bed (one between top spindles and one at outfeed); motorized up/down adjustment of feed beam; chrome table plates; central lubrication point; all spindles equipped with mechanical brakes; manual waxilit pump; sound & safety enclosure.

Weinig Unimat Gold 6 Spindles

US STOCK machine execution as previously delivered

$35,500 – MORE INFO

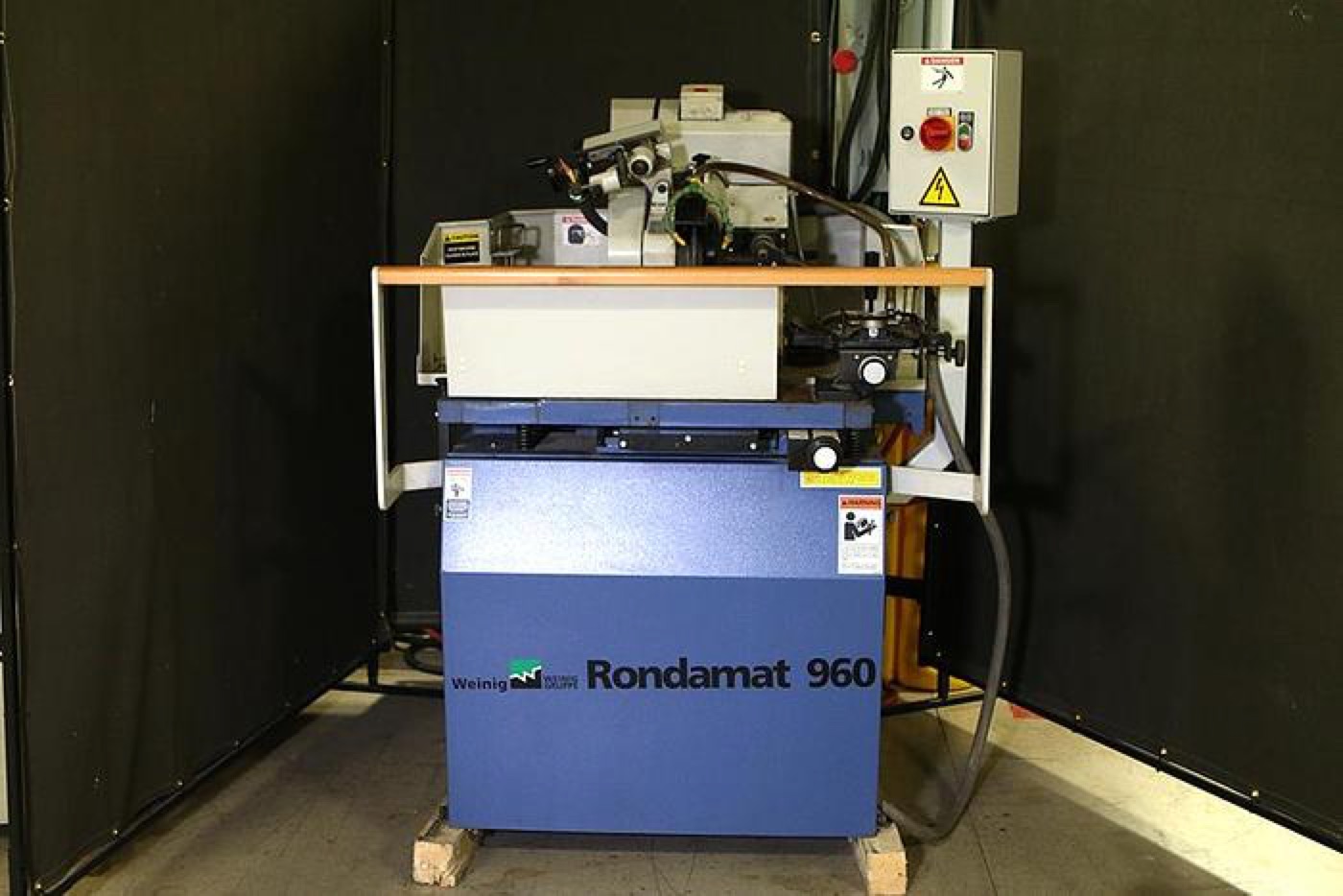

2009 Weinig Rondamat 960 Grinder

2009 Weinig Rondamat 960 Grinder-SOLD



1-used WEINIG RONDAMAT 960 TOOL GRINDER. 9-3/8″ max. arbor length, tool dia. 11-3/4″ max. to 4″ min., grinding wheel speed inverter controlled, with grinding wheel speeds from 1,500 to 3,000 RPM by 1.5 HP motor, hydro-clamping of grinding wheel to arbor, setting gauges for axial constant, axial clearance angle 0-20 degree, onboard diamond wheel dressing, 8-7/8″ max. 6″ min. grinding wheel dia., 13-gal. coolant tank w/ 1.2 HP pump.+

$19,900-MORE INFO

2001 Weinig Rondamat 950 Grinder

2001 Weinig Rondamat 950 Grinder-SOLD



– 9-3/8″ Max. arbor length, tool dia. 9″ max. to 4″ min. 1 and 13/16″ diameter

– Grinding wheel speed inverter controlled; with grinding wheel speeds from 1,500 to 3,000 RPM by 1.5 HP motor.

– Mechanical clamping of grinding wheel to arbor.

– Tool carriage movement with precision linear table bearings, setting gauges for axial constant, axial (side) clearance angle 0° – 20°.

– Onboard diamond wheel dressing, 8-7/8″ max. 6″ min. grinding wheel dia.; 13-gal. coolant tank with 1.2 HP pump.

$8,900-MORE INFO

3D Systems ProJet MJP 2500 Plus

Work envelope:11.6″x8.3″x5.6″

Resolution xyz:800x900x790 DPI 32u Layers

Print speed:1 Lane .26 in/hr 2 Lane .19 in/hr 3 Lane .12 in/hr

Software:3D Sprint

Post processing:MJP EasyClean System

Build materials supported:VisiJet M2 EBK, ENT, RBK, RCL, RWT, M2g CL, DUR, M2R BK, CL, GRY, TN, WT

Connectivity:Network Ready with 10/100/1000 Base Ethernet Interface USB Port

Data files supported:STL, CTL, OBJ, PLY, ZPR, ZBD, AMF, WRL, 3DS, FBX

Machine dimensions lxwxh:44.1″x29.1″x42.1″

Machine weight:465 lbs

Around 800 Print Hours

Cleaning Station

High-resolution plastics, Investment Casting

Biocompatible, ABS & Polypropylene-like

$32,000 – MORE INFO

Thermwood C40 CNC Router-SOLD



  • 460 Volt
  • 3 phase

5′ x 8′ Moving table machine in a front-to-back configuration with a single zone vacuum plenum, and manual material stops around the table perimeter.

Equipped with: (1) 10 HP HSD BT-30 Type, push button (see below upgrade), quick change routing spindle, variable spindle speed from 3,000 – 24,000 RPM.

· Features: High performance closed loop SEIMENS AC Servo motors driving precision ball screws on all axes with feed speeds up to 1,200 IPM on the X- & Y-axis and 600 IPM on the Z-axis; way & ball screw bearings serviced by an automatic lubrication system.

· Controller: THERMWOOD “91000” PC Based, OS2 Control, 3-axis simultaneous motion, hand held programmer with pulse generator, 14″ color monitor, 20.4 GB hard drive, CD ROM drive, 3-1/2″ floppy disk drive, 85-key/101-emulation Qwerty keyboard for data entry, network card, and RS-232 port for PC communications, feed rate & spindle speed override; mounted in an air conditioned Nema rated control cabinet.

$ Call for Pricing
