 We have various used C.R Onsrud Routers for Sale.

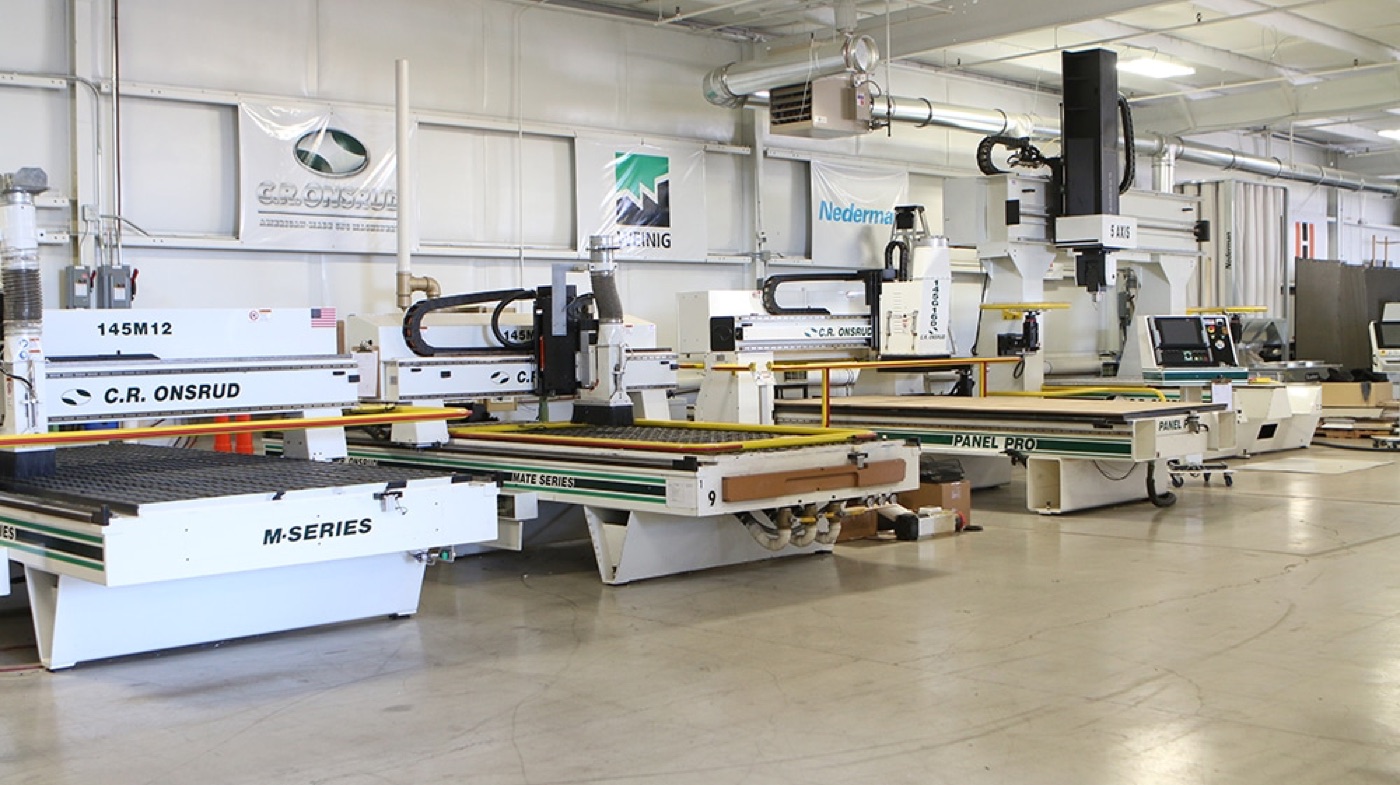

 3 Axis and 5 Axis CNC’s Routers in Inventory

These machines are physically located at Scarlett Inc’s showroom in Grand Rapids MI. Please call to arrange a visit, we are 3.5 minutes from the airport and would be happy to pick you up. Please note that the below description is from the original manufacture spec. For a more detailed description please call James to discuss if this machine will fit your needs. 616.308.9800

Scarlett Machinery is the largest reseller of used, C.R Onsrud equipment in the U.S.A… For a full list of our used equipment CLICK HERE.

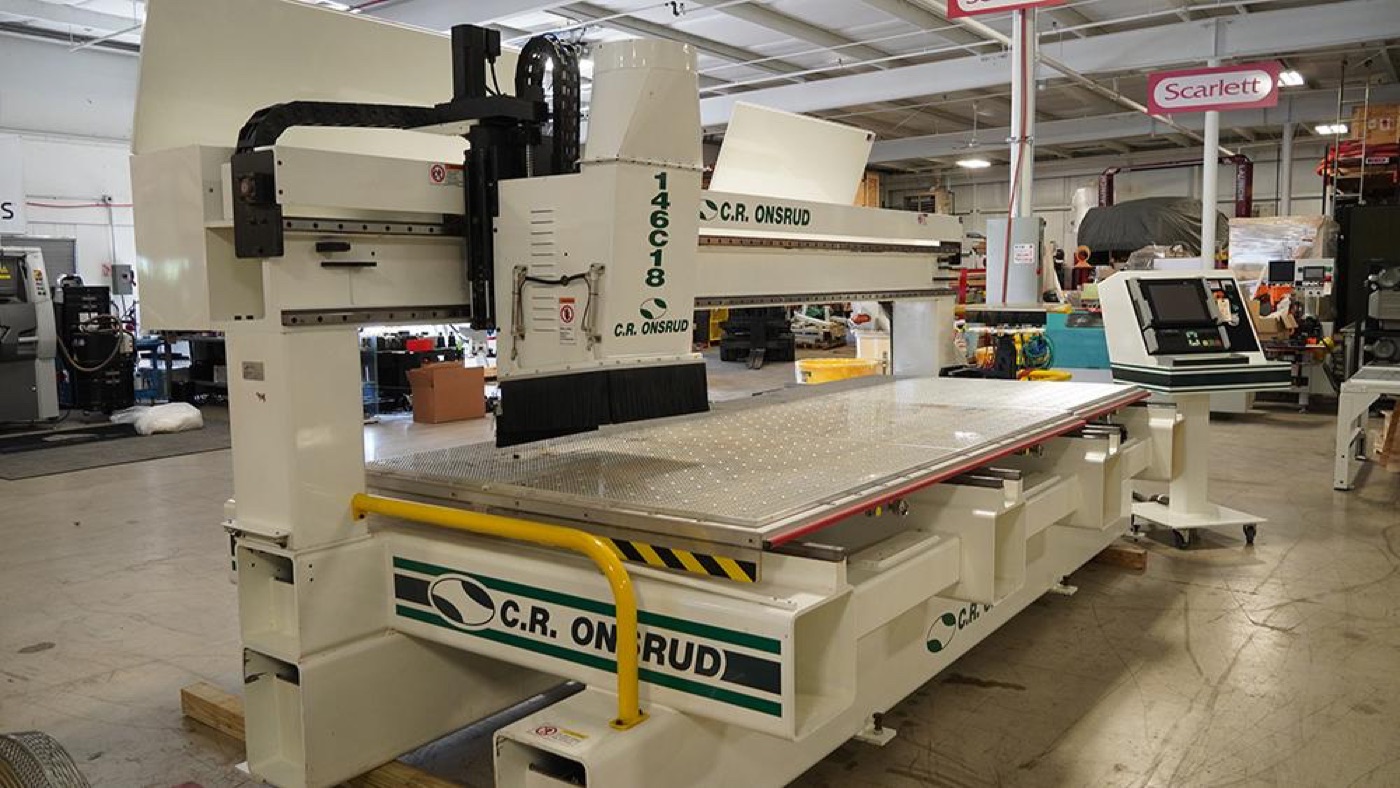

2008 C.R. ONSRUD 146C18  $89,900

18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, 12 position Rotary ATC (tool changer) HSK-63 Spindle Taper Tool Holders

5’ x 12’ Table (61″X146” overall) This is split as 8’ and 4’ tables.

Twin Moving Table Design with 3600″ per minute machining speed, full 3-D capability

14 inches under bridge clearance & 11 inches of Z-axis stroke,

OSAI 10/510i Machine Controller System Upgrade With Integrated PC Interface – OSAI Numerical Control with OSAI “Win-NBI” PC Interface, High-Res touch screen, network capability, plus adds

OSAI Digital Drives & Servos. Provided with 4-port network hub (requires 460V out isolation

10′ x 17′ footprint, precision ball-screw drives for ALL axes, precision linear guideways, centralized lubrication system

We can add a vacuum pump for an additional 10k.

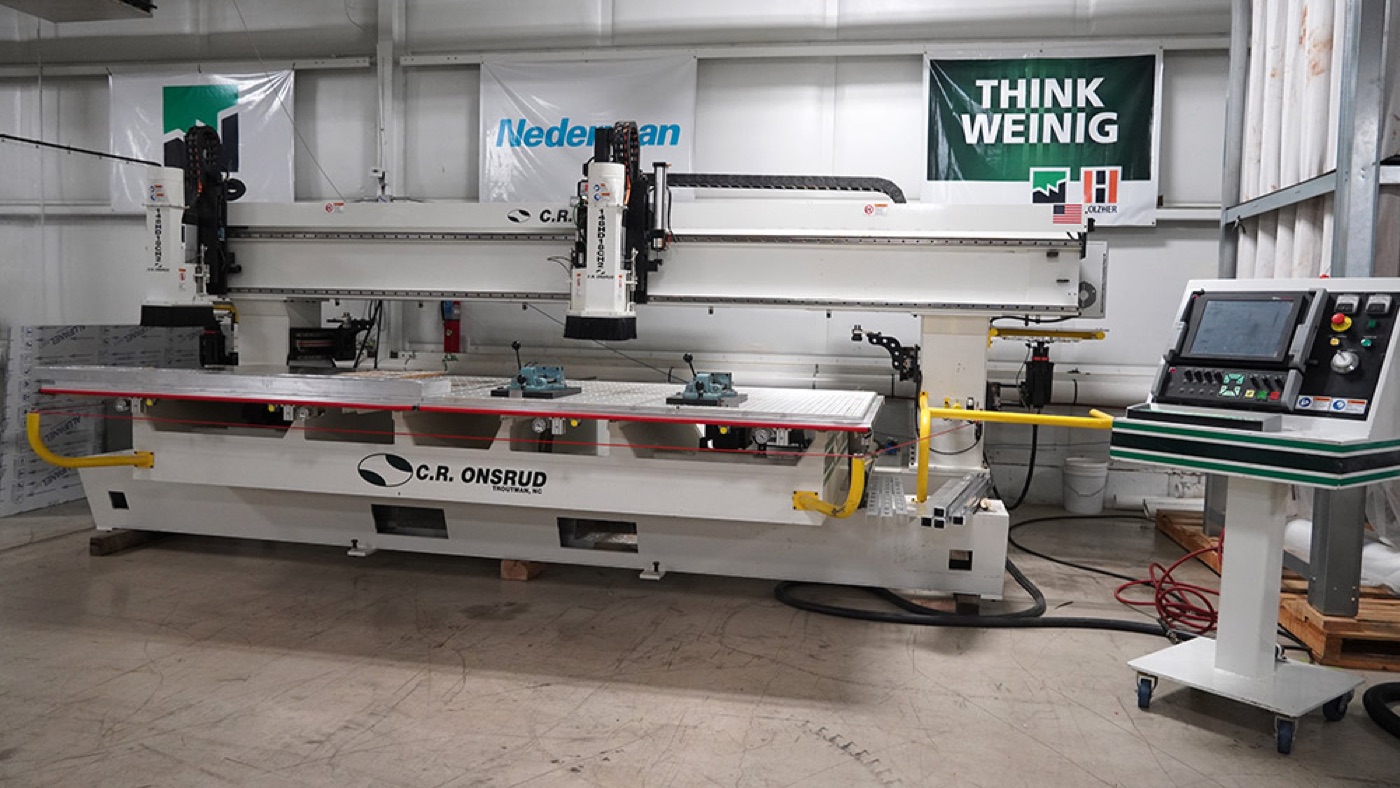

Used C.R. Onsrud Model 148HD18CH2 5’x12′ Twin Head CNC Router

  • C.R. Onsrud Model 148HD18CH2 CNC Router
  • The machine is in production-ready condition! One spindle was just rebuilt!
  • True “Dual Process” Machine (can run separate programs simultaneously)
  • Twin 6’x5′ Aluminum Vacuum Grid Tables
  • Manually Actuated Pneumatically Controlled Vacuum Switch
  • Twin 18HP 24,000 RPM Cutter Heads
  • 14″ Under Bridge Clearance
  • 11″ Z-Axis Stroke
  • Pneumatic Part Positioning Pins
  • Automatic tool changers
  • Two 12-position Tool Changers
  • Hoffmann air conditioning unit
  • Safety cable
  • WinMedia CNC controls
  • 440V 3 phase
  • New in 2015
  • CALL FOR PRICE- Price will vary based on add-ons.

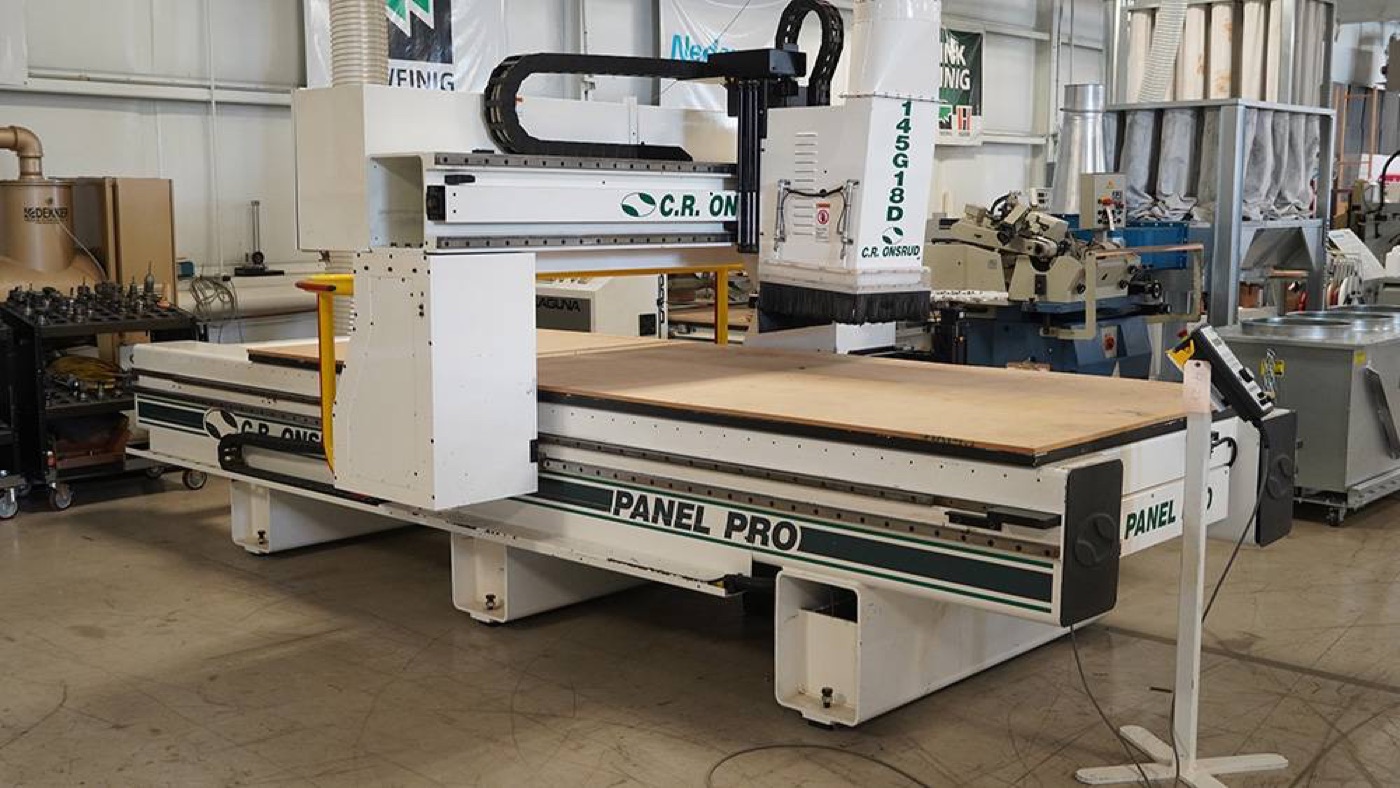

2008 C.R. ONSRUD 145G18 $90,000

C.R. Onsrud 145G18 CNC Router (5×12) 2008 MACHINE OPTIONS INCLUDED –*

HSK-63 Spindle Taper & Tool Changer Adapter

B and R Controller

Centralized manual grease system

High Speed – High Production – Encoder-Based Digital Brushless AC Servos Larger servos, drives, amps for faster feed rates, heavier cutting, & increased accuracy*

12 Tool – Dynamic Automatic Rotary Tool Changer

Fully Servo controlled instead of Stepper controlled.

Used C.R.Onsrud 145M12A CNC Router

Used C.R.Onsrud 145M12A CNC Router

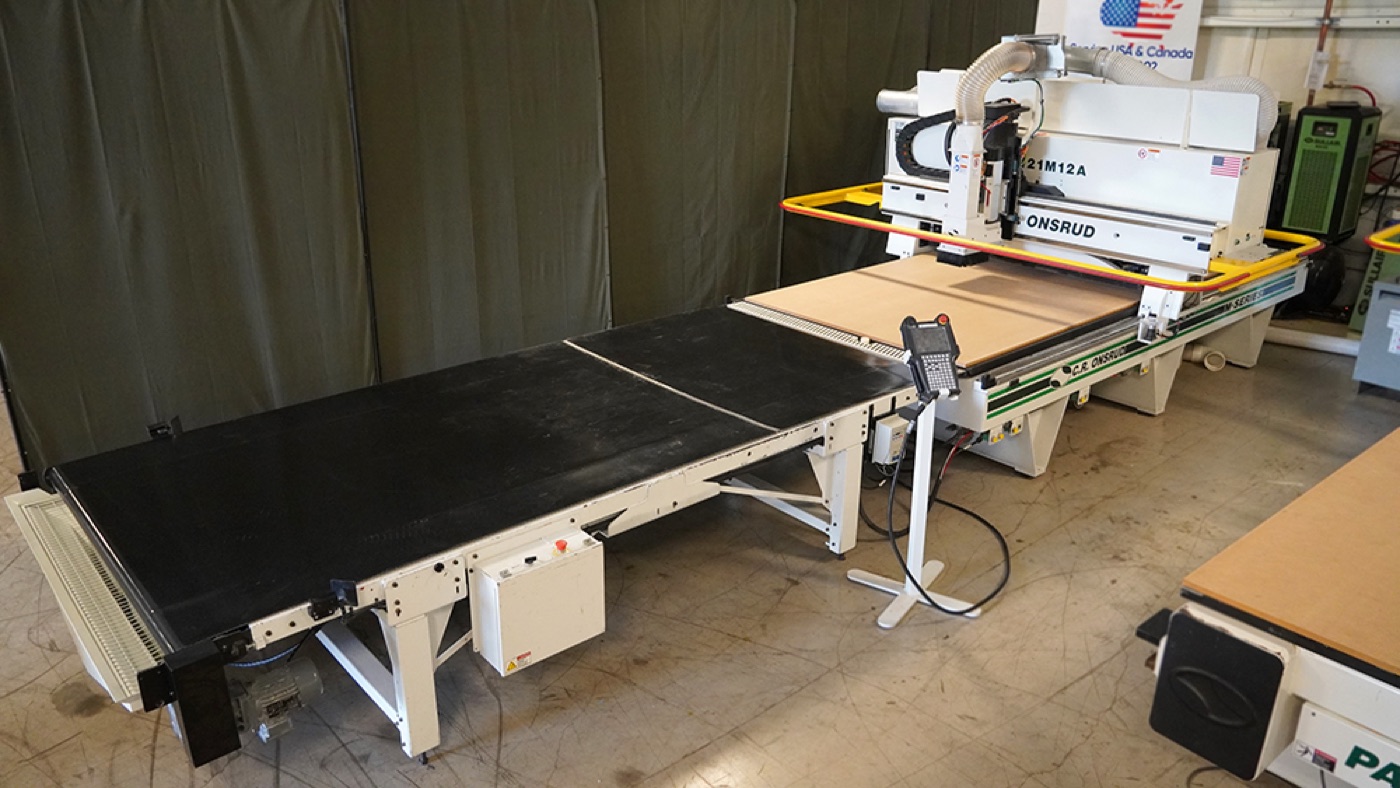

ONE (1) NEW C.R ONSRUD MODEL 121M12A “M Series” CNC ROUTER

Machine Lubrication Systems Options

Standard Manual Greased Lubrication – Bearing Blocks and Ballscrews have standard zirk fittings for easy

application of grease

STANDARD 1 INCLUDED

Dust Extraction System & Stanchion Kits Options

Dust Collection Side Stanchion Kit – (includes flex hose, 2 steel stands, & clamps to connect the provided

dust transition to your collector, above to the left, or above to the right of your moving gantry machine’s

footprint)

STANDARD 1 INCLUDED

Material Handling Options

Automated Nested Sheet Offload System with Integrated Dust Extraction – System removes finished

parts, scrap, and all dust and debris from the machining area in under 25 seconds & adds the “-A” Designation

to the model # of the machine. Includes Material Removal Scraper-Arm system with Integrated 6” Dust

Extraction Hood (recommended 4000 cfm). Material Removal Scraper-Arm uses the same dust collection that

is provided to the main router spindle. Pneumatically controlled table side-guides rise to assure that your

already machined parts & scrap transition smoothly to an offload table & then aid in the positioning of the next

sheet of material along with the included pneumatically controlled pop-up-positioning pin. This systemaccommodates up to a 5×10 sheet, limits the usable Z-clearance to around 2 inches

$150,000

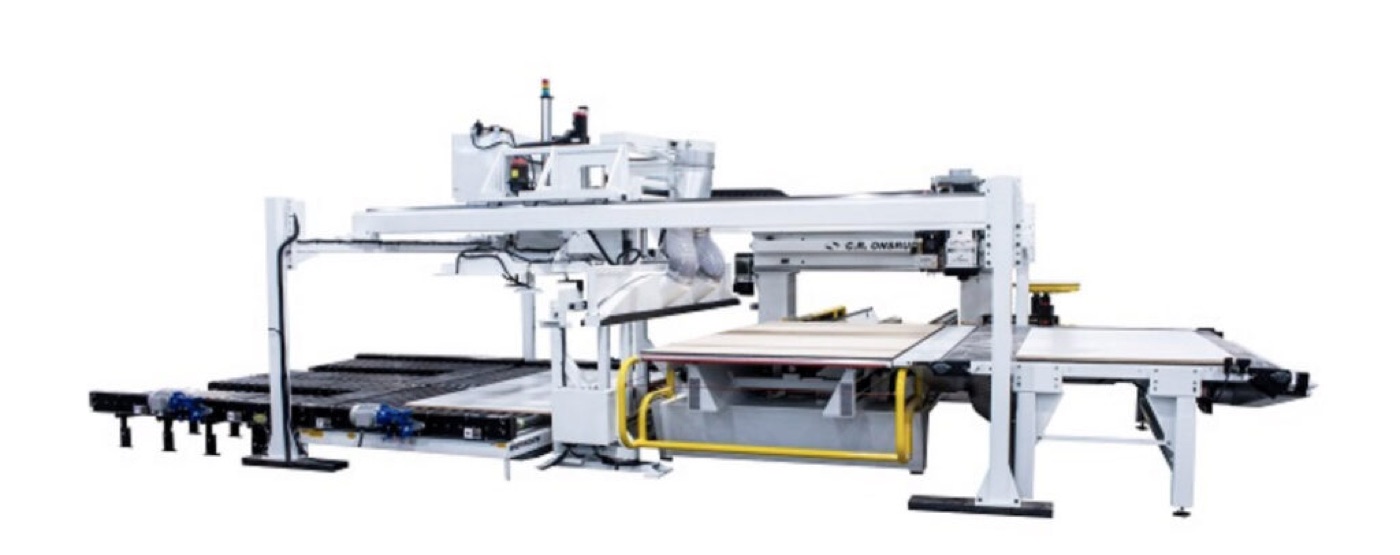

C.R ONSRUD 98RH18A CNC “Roller Hold Down Series” Machining Center (NEW)

C.R ONSRUD MODEL 98RH18A “Roller Hold Down Series” CNC ROUTER with SIDE LOADING AUTOMATION 2023

Manufactured in the USA

Fixed bridge design with a single moving table allows for – up to – 4,000 IPM programmable feed rates and 1G of acceleration.

High-precision ball-screw drive for all axis movements. The table includes a pressure-sensitive safety stop “edge switch” on the front and rear. In addition, a

360-degree emergency stop cable surrounds the machine.

Industrial machine control system with full 3D capability (multi-axis interpolation)

98 – 4×8 – Work Envelope

CR ONSRUD Aluminum Universal Vacuum Table System UPGRADE – Includes 4” intake manifold,

high-capacity vacuum plumbing, high-flow 45mm wide waffle patterns, with Onsrud’s Unique High Flow

Vacuum Inlets, offer maximum vacuum airflow & absolutely minimal airflow restriction for excellent part

holding 11 inches of Z stroke – 11” Z axis stroke and 15” under bridge clearance

8×4 – Flow-Through Spoil Board – LDF table top to be used as replaceable sacrificial spoil board.

$349,000

2020 C.R. ONSRUD 193G24W10 G-SERIES – SOLD



Brand New 0 Hours on this machine.

*Safety Features not shown in pictures (bump bars, etc.)

SPECIFICATIONS

Working Table Length: 193″

Working Table Width: 120″

Distance Between Columns: 123.75″

Spindle Longitudinal Travel (x Axis): 206″

Spindle Cross Travel (y Axis): 141.25″

Spindle Vertical Travel: 17.593″

Spindle To Table Top: 3.771″ – 21.364″

Spindle Speeds: 24,000 Rpm

Spindle Motor: 24 Hp

Power: 460v/3p/60hz/30a

Oad (approximate): 286″ X 204″ X 153″ High

Equipped With:

Fanuc 0i Cnc Control

Tool Storage: 12 Position Rotary

**loaded With Options**

  • Note: Machine Run At Factory For Final Inspection, Packed And Shipped To Customer. Never Installed. 0 Hours. Currently set up at Scarlett Machinery in Grand Rapids, MI.

https://youtu.be/63B45gZXto4

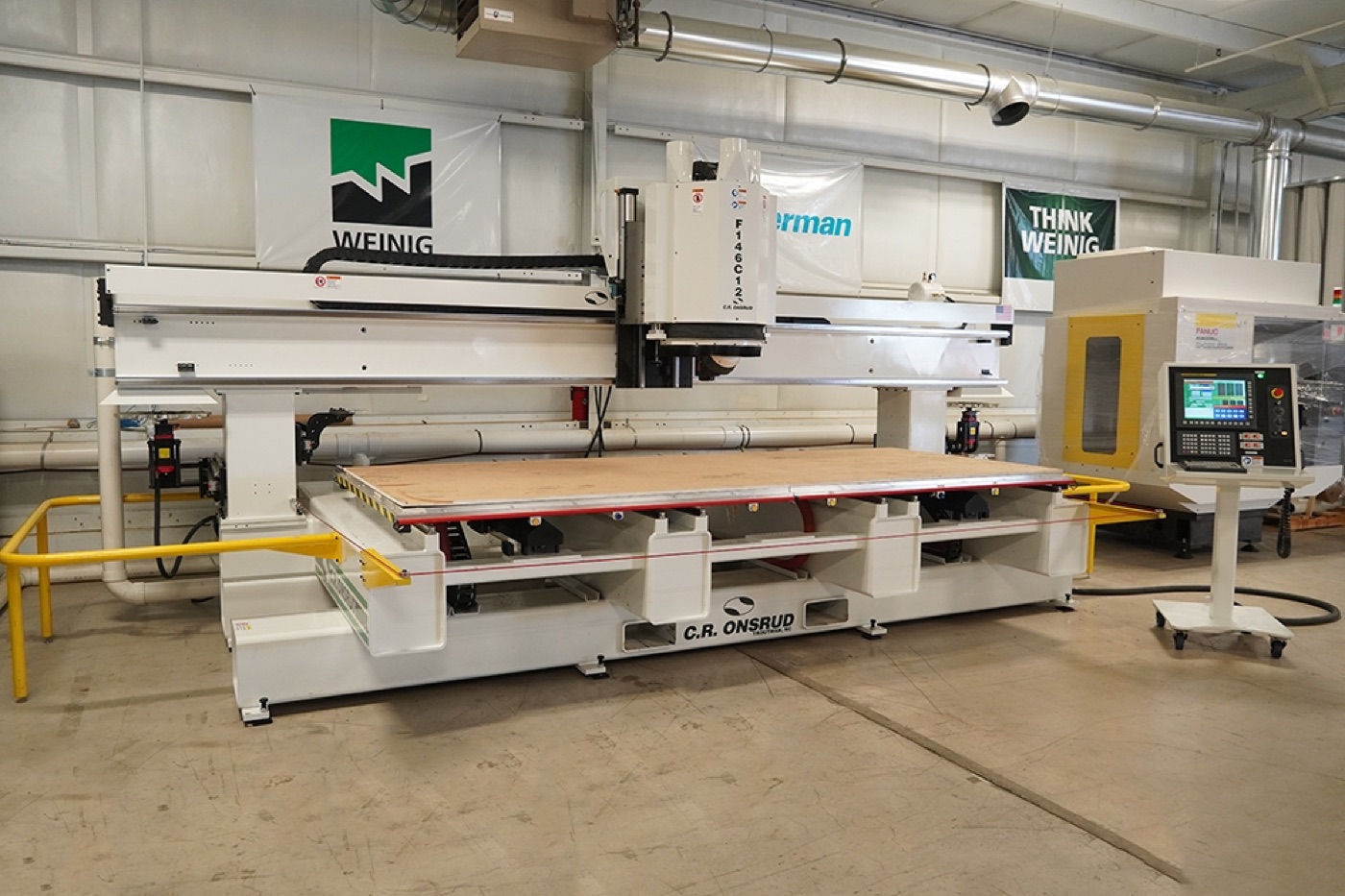

2020 C.R. Onsrud 146C12 5 Axis –SOLD

C.R ONSRUD MODEL F146C12 “Super Duty Series”

CNC ROUTER

  • Designed, engineered, & manufactured in the USA, utilizing Finite Element Analysis
  • Fabricated base consisting of heavy steel construction, bridge, and vertical supports
  • All structural components are stress relieved utilizing thermal heat treatment.
  • Fixed bridge design with twin moving tables allows for up to 3100 IPM programmable feed rates.
  • Twin table option can allow tables to function as two independent work surfaces or operated in tandem as one single table
  • High precision ball-screw drive for all axis movements.
  • Table(s) include pressure sensitive safety stop “edge switch” on front and rear.
  • In addition, a 360-degree emergency stop cable surrounds the machine. Industrial machine control system with high-speed full 3D capability (multi-axis interpolation)

CR ONSRUD Aluminum Universal Vacuum Table System UPGRADE – Includes: 4” intake manifold, high-capacity vacuum plumbing, high-flow 45mm wide waffle patterns, with Onsrud’s Unique High Flow Vacuum Inlets, to offer maximum vacuum airflow & absolutely minimal airflow restriction for excellent part holding. Price Per Square Foot.

High Flow Vacuum Zone – Pneumatic Ball Valve, Actuated via Push Button or PLC Controlled

15-inches of Z stroke – 15.5” Z axis stroke and 18in nose to base table clearance (depending on options equipped )

Table 1 6×5 – Aluminum Vacuum Grid Table – Aluminum standard 30mm center distance grid table enables the conversion from total flow-through vacuum hold-down to pods, pins, fixtures, etc. with higher accuracy part positioning. Includes removable spoilboard that fastens to grid table for use during nested based machining.

Table 2 6×5 – Aluminum Vacuum Grid Table – Aluminum standard 30mm center distance grid table enables the conversion from total flow-through vacuum hold-down to pods, pins, fixtures, etc. with higher accuracy part positioning. Includes removable spoilboard that fastens to grid table for use during nested based machining

FANUC 31i-B5 Machine Controller System Option With Integrated PC Interface –

Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High Res touch screen. Fanuc 31i-B5 is not a PC with a control card but is a dedicated Industrial PLC designed to control CNC motion, for maximum reliability and performance. Includes: Network capability, adds Larger FANUC Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. Adds m-code controlled vacuum zones (if equipped with Vacuum Table Option). Provided with 4-port network hub (requires 460V out isolation transformer). Selecting this option replaces any other standard control system.

5-Axis 12 HP Nutating Spindle – 6-Pole, 12HP – 22,000 RPM Single-Armature 5-Axis Spindle w/HSK-63 Spindle Taper. Nutating head rotates at 50 degree angle to provide space savings. Fully programmable, variable speed, quick-change spindle, capable of routing & drilling, programmable feed rates with override capability. Continuous A-Axis & C-Axis Rotation available in the head (subject to tool length restriction). Includes air booster and accumulator tank for 150psi accumulator tank (from 100psi main).

Chiller for Liquid Cooled Spindle Option – Adds a liquid cooling system & chiller in place of the standard fan & compressed air spindle cooling system. (Recommended when machining mostly non-ferrous metals or when using 20HP spindles or larger)

2-Position-Large Vortex Dust Extraction System – Uniquely Designed Integrated Dust Extraction hood pulls chips away from the spindle’s nose & up a separate chamber & hood that is fully integrated & working with spindle by-pass cooling air to create a venturi-type effect that more effectively removes chips from the machining process. (Appropriately sized dust transition also provided for connecting to your dropped-in flex hose) 8” transition for router head only, standard machines. 12” if drilling block, boring block, retrofit kit, or c-axis is added

Programmable Air Blast – Blows air on tool tip to aid chip or dust evacuation. Can be controlled by M-Code.

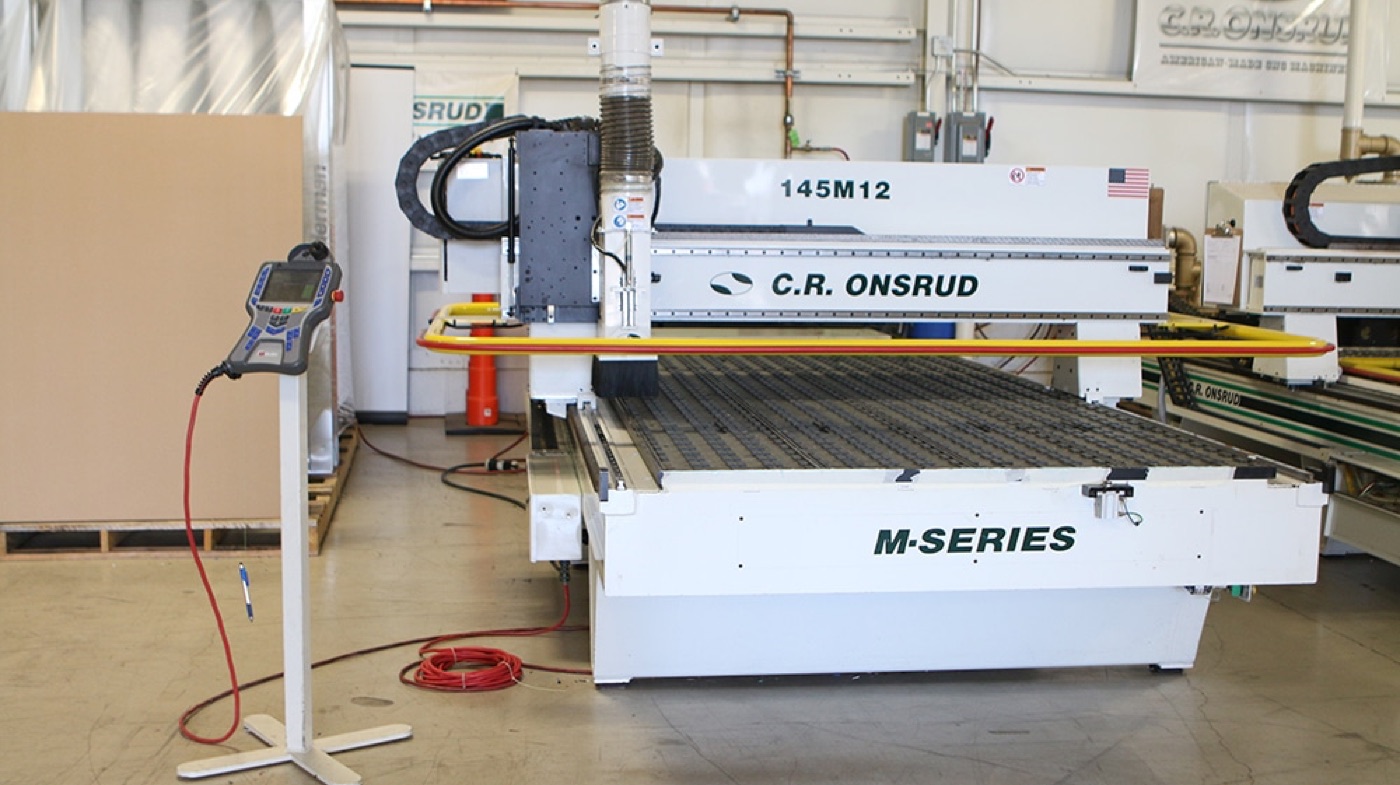

2015 C.R. ONSRUD 145M12 – Call for Price – SOLD

Designed, FEA Engineered, and Manufactured in America, utilizing steel construction.

Dual supported gantry driven on both sides with independent servo motors and drives. This dual channel design enhances accuracy & rigidity.

The moving gantry, fixed table, design allows for up to 2,000 ipm programmable feed rates.

Control system comes standard with full 3D capability (multi-axis interpolation).

Precision linear motion systems on all axes.

Standard with Onsrud Universal High Flow Vacuum Table System suitable for flow-through spoil boards, dedicated fixtures, or easily upgradable for pod systems.

2013 C.R. Onsrud 145M12 CNC Router -Call for Price – SOLD

(1) C.R. Onsrud 145M12 (m series) machine for sale

Designed, FEA Engineered, and Manufactured in America, utilizing steel construction.

Dual supported gantry driven on both sides with independent servo motors and drives. This dual channel design enhances accuracy & rigidity.

Precision linear motion systems on all axes. Standard with Onsrud Universal High Flow Vacuum Table System suitable for flow-through spoil boards.

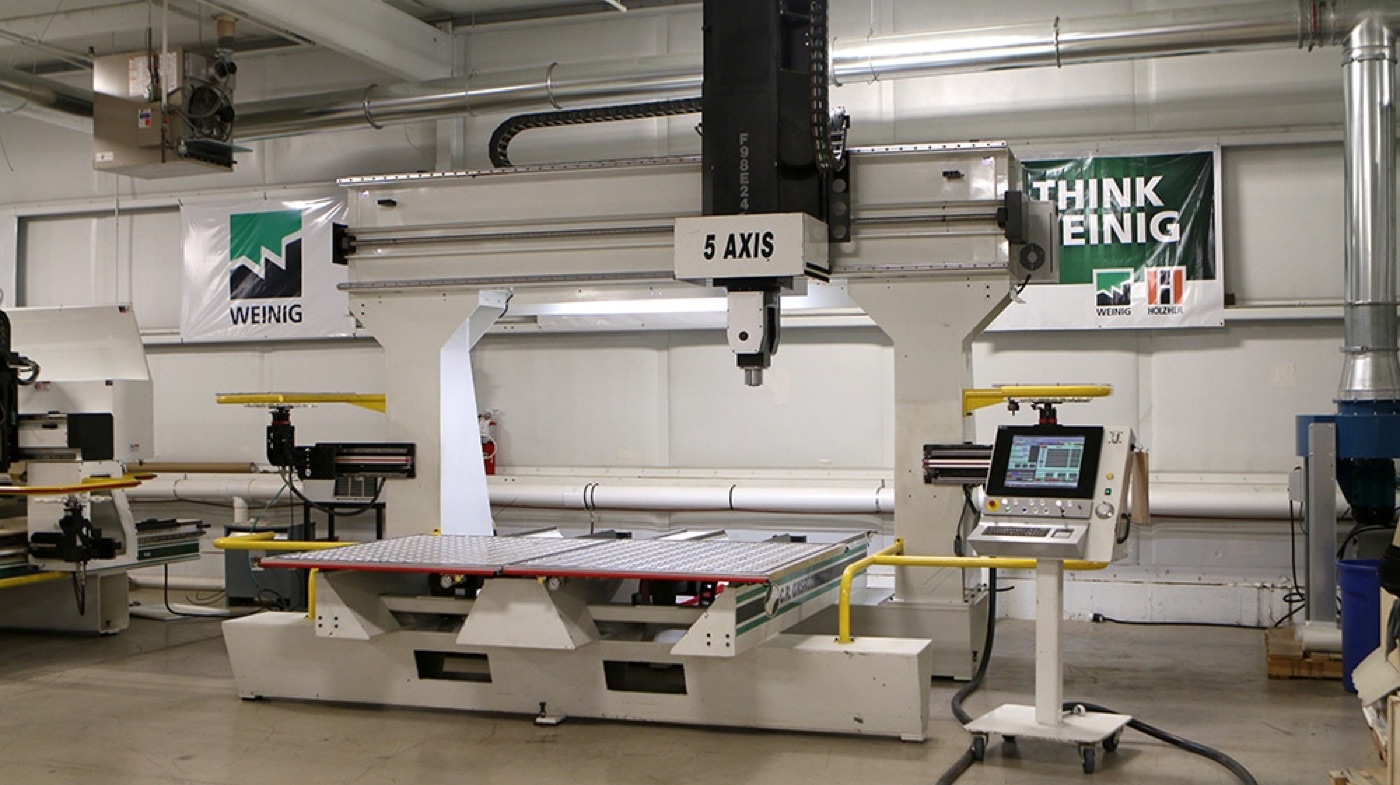

2015 C.R. Onsrud F98E24 5 Axis CNC – SOLD

This twin table used cnc router, manufactured by C.R. Onsrud,can function as dual or an independent table, and it features a 3600 inch per minute machining speed.

Technical Specifications:

  • OSAI PC Open Series 5-Axis CNC/PC Front Controller
  • Twin 4’x5′ Aluminum Tables Function As Independent Tables, Or Single 8’x5′ Table
  • Thick Fixed Bridge & Vertical Supports
  • Machine Plumbed For (2) Vacuums. NO Vacuum Pumps
  • Fully Programmable & Reversible
  • Variable Speed Quick Change Spindle Routing & Drilling
  • A & C-Axis Rotation
  • Thermal Heat Treated Stress Relieved & Normalized Steel Frame Base
  • Twin Moving Table Design With 3600″ Per Minute Machining Speed
  • Full 3-D Capability
  • Precision Drive All Axes
  • Centralized Manual Lubrication System
  • Precision Linear Guide Ways
  • (2) 12 Tool ATC’s
  • 4-Port Ethernet
  • USB, & Serial Ports
  • Miscellaneous HSK Tool Holders

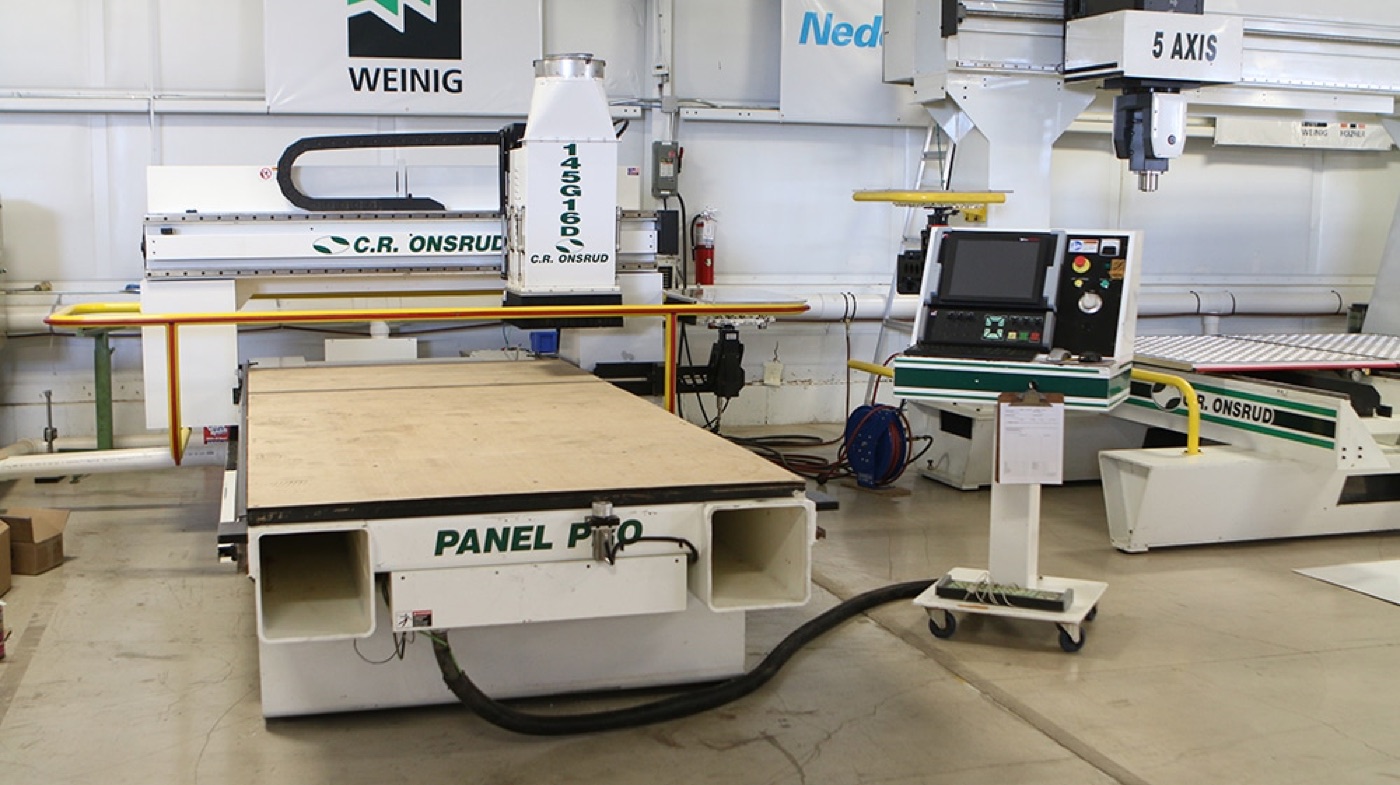

2006 C.R. ONSRUD CNC Router 145G16D – SOLD

C.R. Onsrud 145G12 CNC Router (5×12) 2006 MACHINE OPTIONS INCLUDED –* HSK-63 Spindle Taper & Tool Changer Adapter* High Speed – High Production – Encoder Based Digital Brushless AC Servos Larger servos, drives, amps for faster feed rates, heavier cutting, & increased accuracy* 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled. The design eliminates misfires & more quickly changes between 12 different tools – (w/2 free HSK-63 tool holders) AND MORE…There will be an additional cost for freight and installation. Note: There may be some variances in the above features machine

2012 C.R. ONSRUD 241G120902 CNC Router $120,000 – SOLD

The largest moving gantry CNC router in our line-up is the G Series. This machine is particularly well suited for large, continuous panel and sheet processing operations. This fixed table-moving bridge design saves valuable floor space in your facility, keeps the price down, and still offers the full range of useful options (such as additional tool changers, multi-spindle drilling heads, and more). The incredible throughput and productivity of our G Series design gives you the heavy cutting and high material removal rates you demand – and can easily break down full sheets of 1-1/2″ thick plywood, laminates, veneers, or aluminum plate at super-fast feed rates while operating under continuous duty conditions. We’ve engineered this CNC router to help absorb many of the cutting vibrations normally associated with heavier cutting applications and operations, which eliminates time-stealing inefficiencies – thus high-volume panel processors and cabinetmakers love the flexibility and production capabilities the stout G Series design affords. Additionally, the lower purchase price opens up the benefits of a large table-size-to-cost ratio to a variety of industries, making the G Series moving gantry style CNC machine by C.R. Onsrud the logical choice for high volume manufacturing and reduced start-up costs.

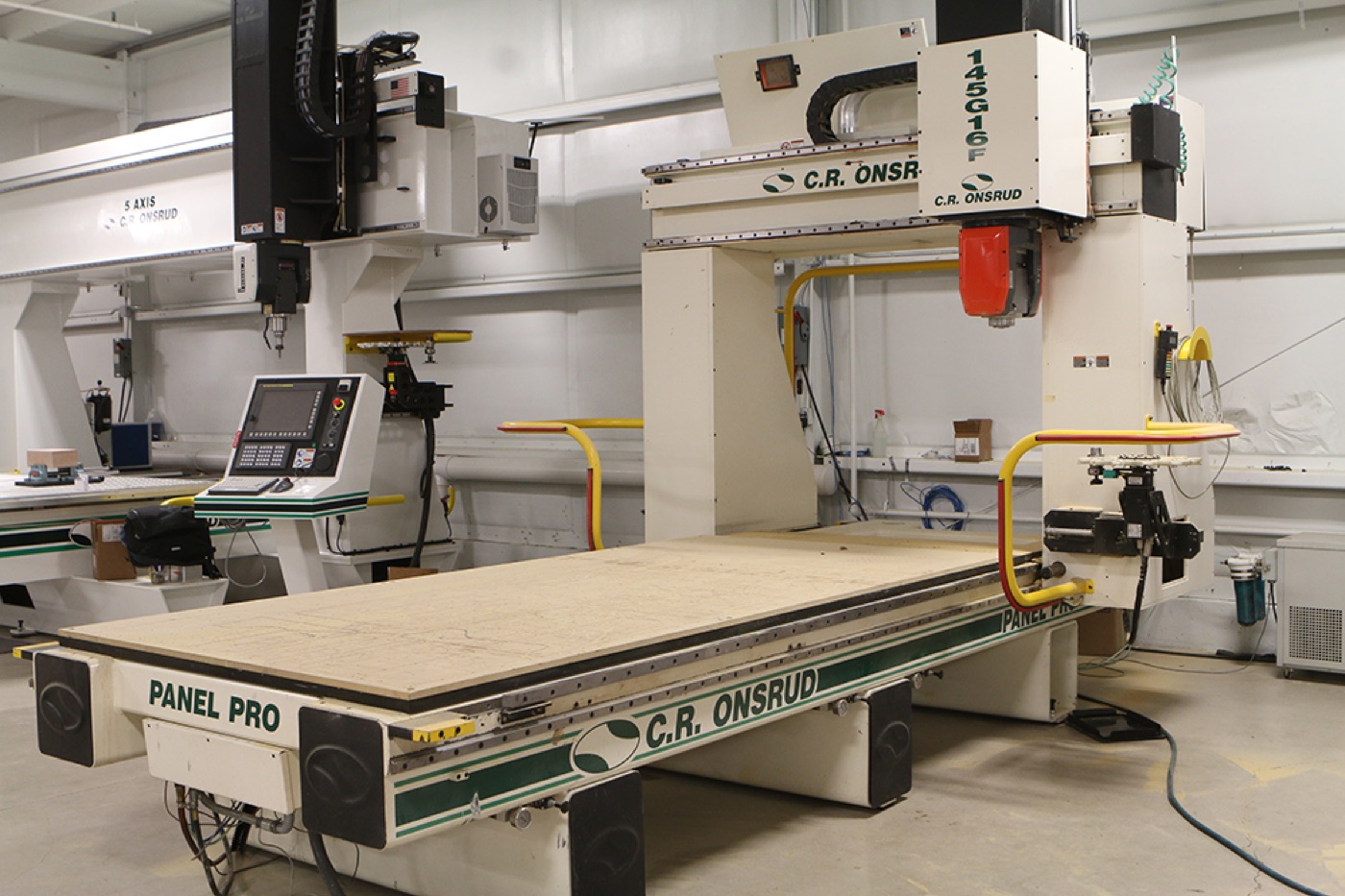

145G15F 5 Axis Gantry, No Vac Pump – List Price $109,900 SOLD

IMG_5632

This CNC Router package included the following items: – 5’ x 12’ table with 36” of Z stroke – OSAI PC Front Series 10/510i System – Controller – 15 HP Spindle Upgrade w/HSK-63 Spindle Taper – Was rebuilt a year ago. – 12 Tool – Dynamic Automatic Rotary Tool Changer – Machine was built in 2003 – Vac Pump Not Included.

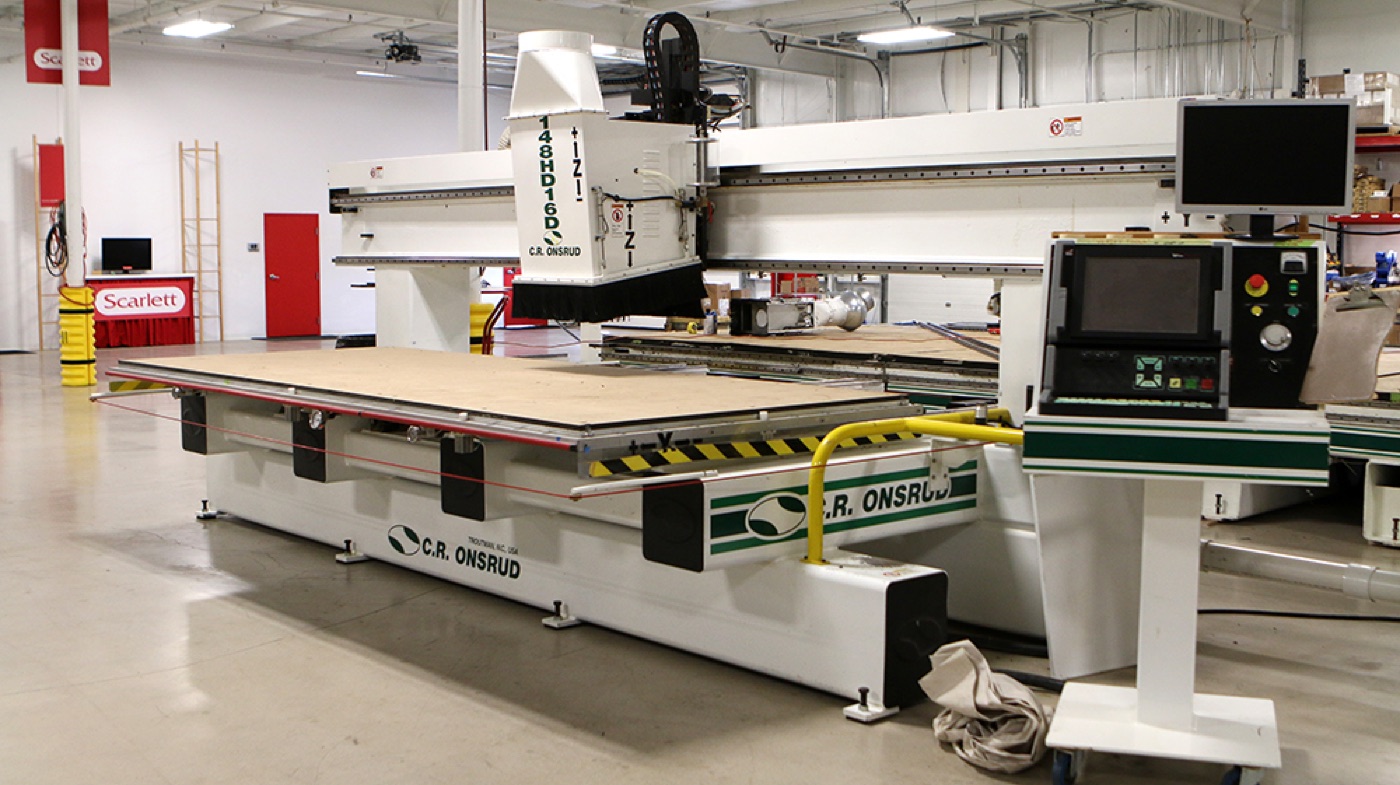

USED C.R. Onsrud Router 148HD16CD- List Price $ 159,900- SOLD

IMG_5555

This CNC Router package included the following items: – 5’ x 12’ table with 5’ x 8’ & 5’ x 4’ split for pendulum processing – OSAI PC Front Series 10/510i System -OSAI PC Front w/High Res touch screen, network capability, PLC Machine Controller, plus adds OSAI Digital Drives, Amps, and Servos – HSD ES988 16 HP Spindle w/HSK-63F Spindle Taper – – 12 position, Servo controlled rotary tool tray – 6 tool holders included – 15 Spindle Boring Block Package – (Multi-Spindle Line & Horizontal Drills) Includes: 11 independently or simultaneously firing vertical spindles to drill up to 6 holes at a time in the X axis or 6 holes at a time in the Y axis (32mm line drilling) + 4 Horizontal spindles for horizontal holes to be drilled on all 4 sides of a work piece – Automatic tool measuring device – C Axis Aggregate Capability – (makes machine fully aggregate capable – for use with or without C-axis Ability below) – C-Axis Ability for Use With Aggregates – (Adds rotational C-axis to Aggregate Tool Changer & Capability) – Stand alone automatic Aggregate Tool Changer – Onsrud / NEMI High-Precision Vacuum Grid Table for use with PODs (pods not included) – SL Laser projection system for easier part placement on the CNC Router table – Decker Vacuum Pump  (40HP)

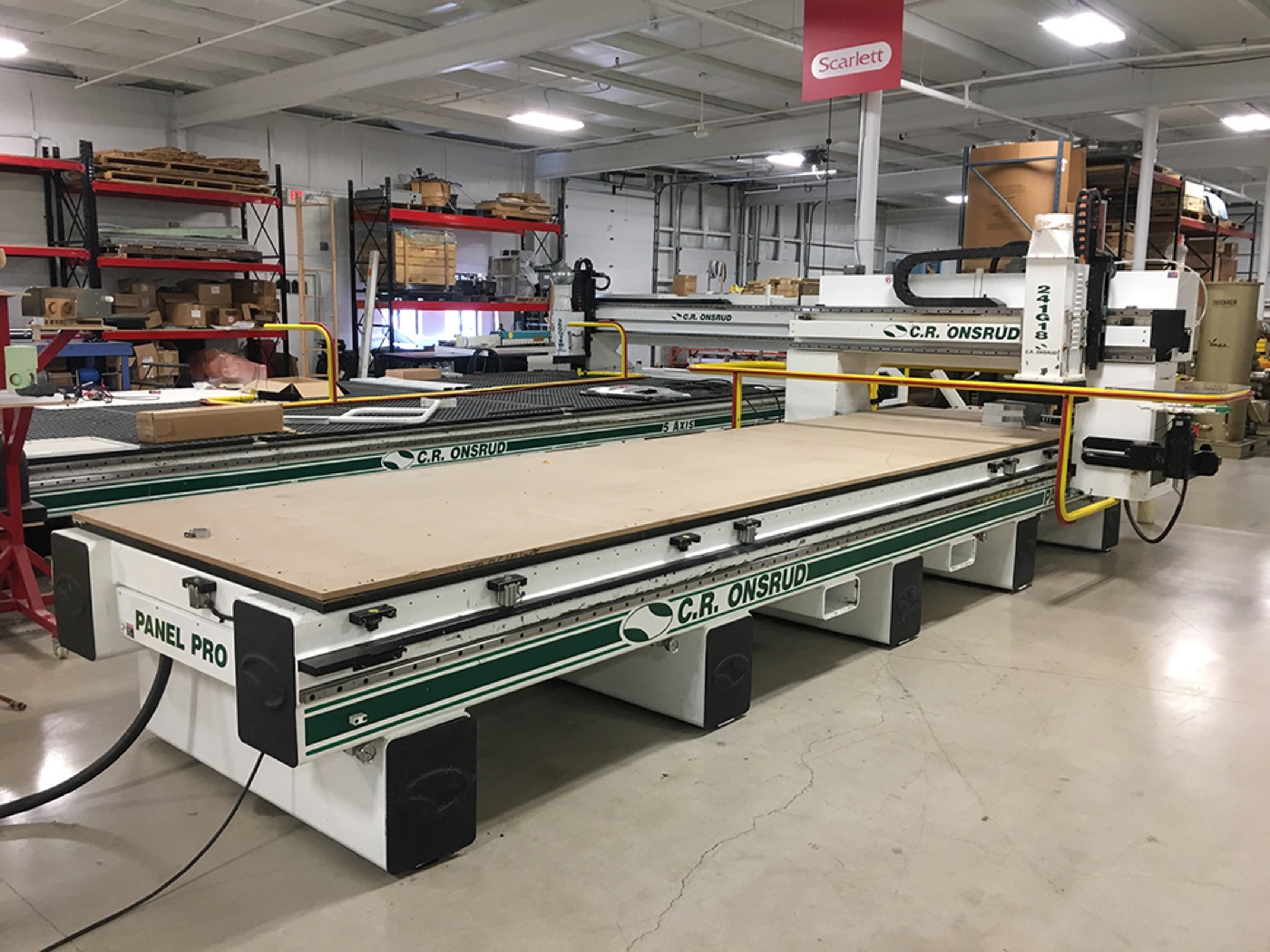

C.R. Onsrud Router 241G18 – List Price $99,900 – SOLD

IMG_3408

This CNC Router package included the following items: SOLD

– 5’ x 20’ Single table which can be split up into two 5’ x 8’ tables for pendulum processing

OSAI PC Front Series 10/510i System – OSAI PC Front w/High Res touch screen, network capability, PLC Machine Controller, plus adds OSAI Digital Drives, Amps, and Servos

18 HP Spindle Upgrade w/HSK-63 Spindle Taper – HSD ES988 Spindle

  • 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled
  • Remote cycle start / stop switch
  • Auto tool length measurement

  A/C for Electric Cabinet

– Pop-Up pins for locating sheets on the table

  • (3) 10 HP Becker Vac Pumps with rack

– Includes installation and training

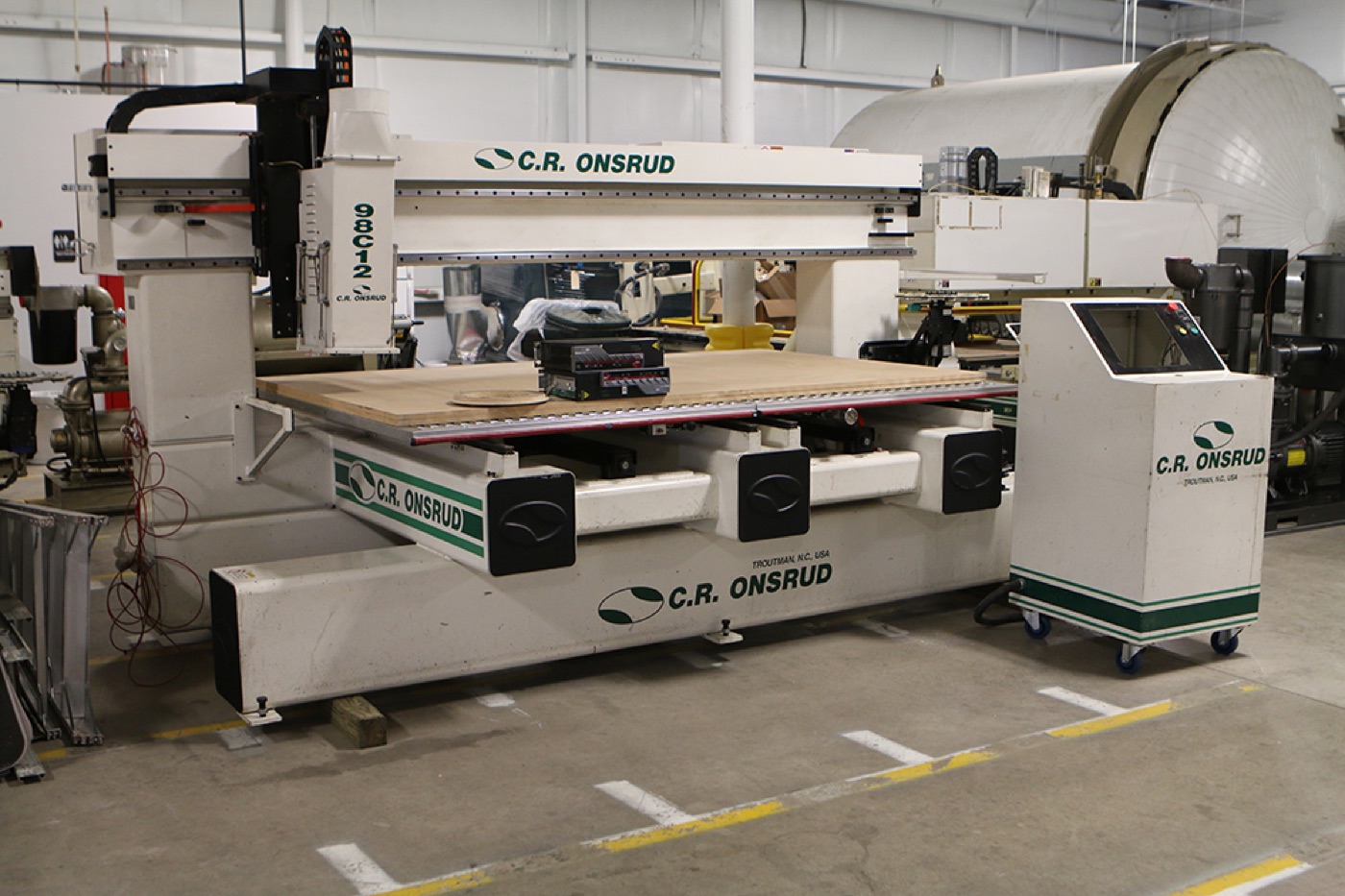

Used C.R Onsrud Router 98C12 – List Price $39,900- SOLD

IMG_5805

61″ X 98″ axis travel, Fixed Bridge, Twin Moving Table Design with 3400″ per minute machining speed, full 3-D capability, 14″ under bridge clearance & 11″ of Z azis stroke, 10′ X 13′ footprint, precision ball-screw drives ALL axes, precision linear guide ways, centralized lubrication system, 12HP fully programmable variable speed quick-change spindle, capable of routing and drilling, programmable feed rates with override capability, 12-tool automatic tool changer. Twin tables function as two independent 61″ X 49″ tables or can also operate in tandem a single 98″ X 61″ table. Includes all switches, valves, gauges, safety interlocks, & vacuum plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for use of pod systems. All tables include pressure sensitive safety stop/emergency stop bars along the front and rear. Onsrud AMC Controller

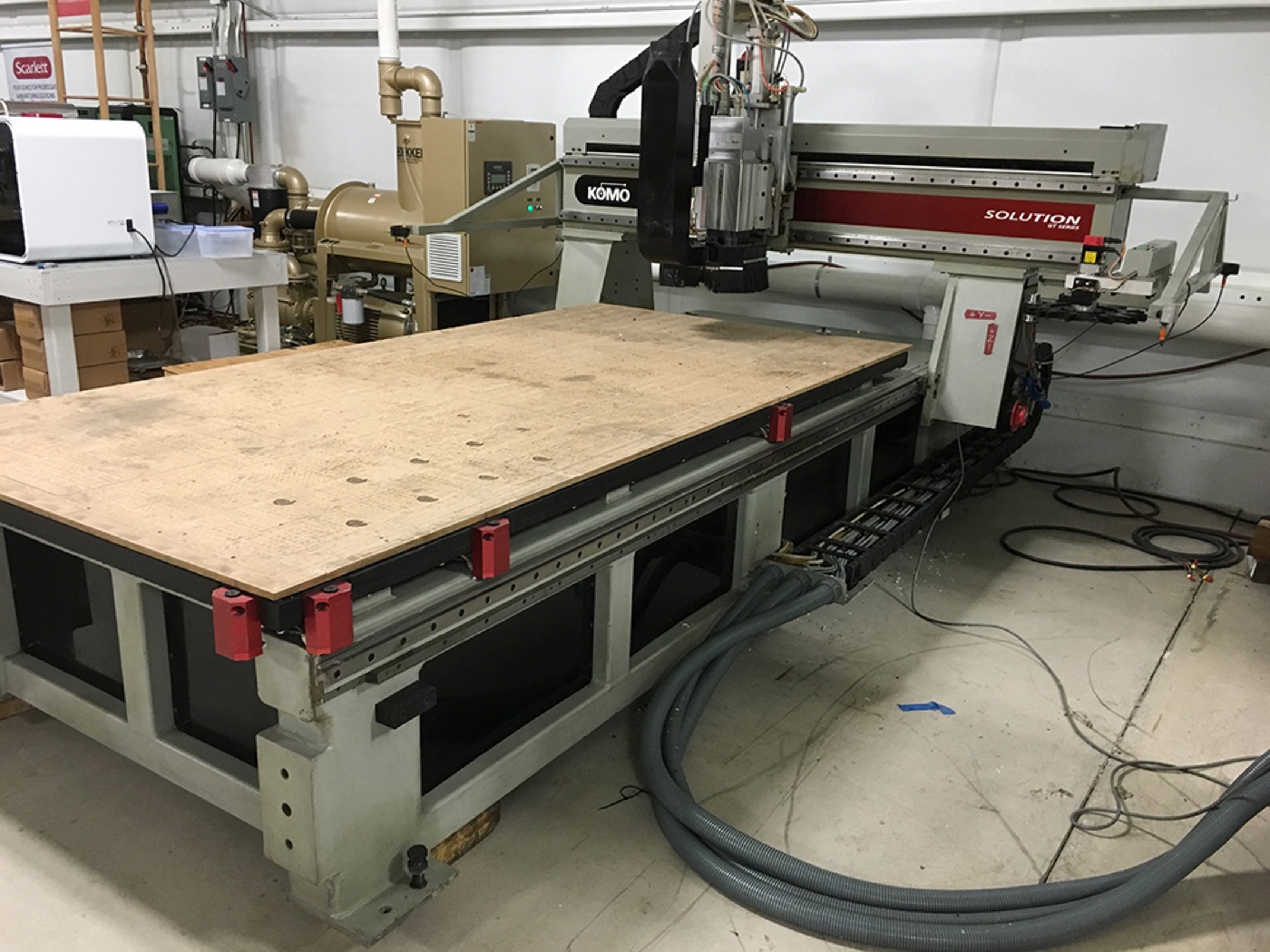

Used Komo 510 Router Solution Gantry Machine – List Price $69,900 – SOLD

IMG_2996

This CNC Router package included the following items: – 5’ x 10’ table – Fanuc Control System ?- 12 HP Spindle Upgrade w/HSK-63 Spindle Taper – Omlat Spindle was rebuilt about 1 year ago. – 12 Tool – Dynamic Automatic Rotary Tool Changer – 25 HP Traveini Vac Pump – 480V, 3 Phase Power – CNC Machine is wired 480V, 3 Phase Power

C.R Onsrud Router 360G18W – Price SOLD

IMG_5801
