Check Out Our Used Woodworking Machinery Inventory!

Reading Time: 4 minutes

Check Out Our Used Woodworking Machinery Inventory!

Ready to Deliver Before the Year End!

screen-shot-2016-12-06-at-4-44-59-pm

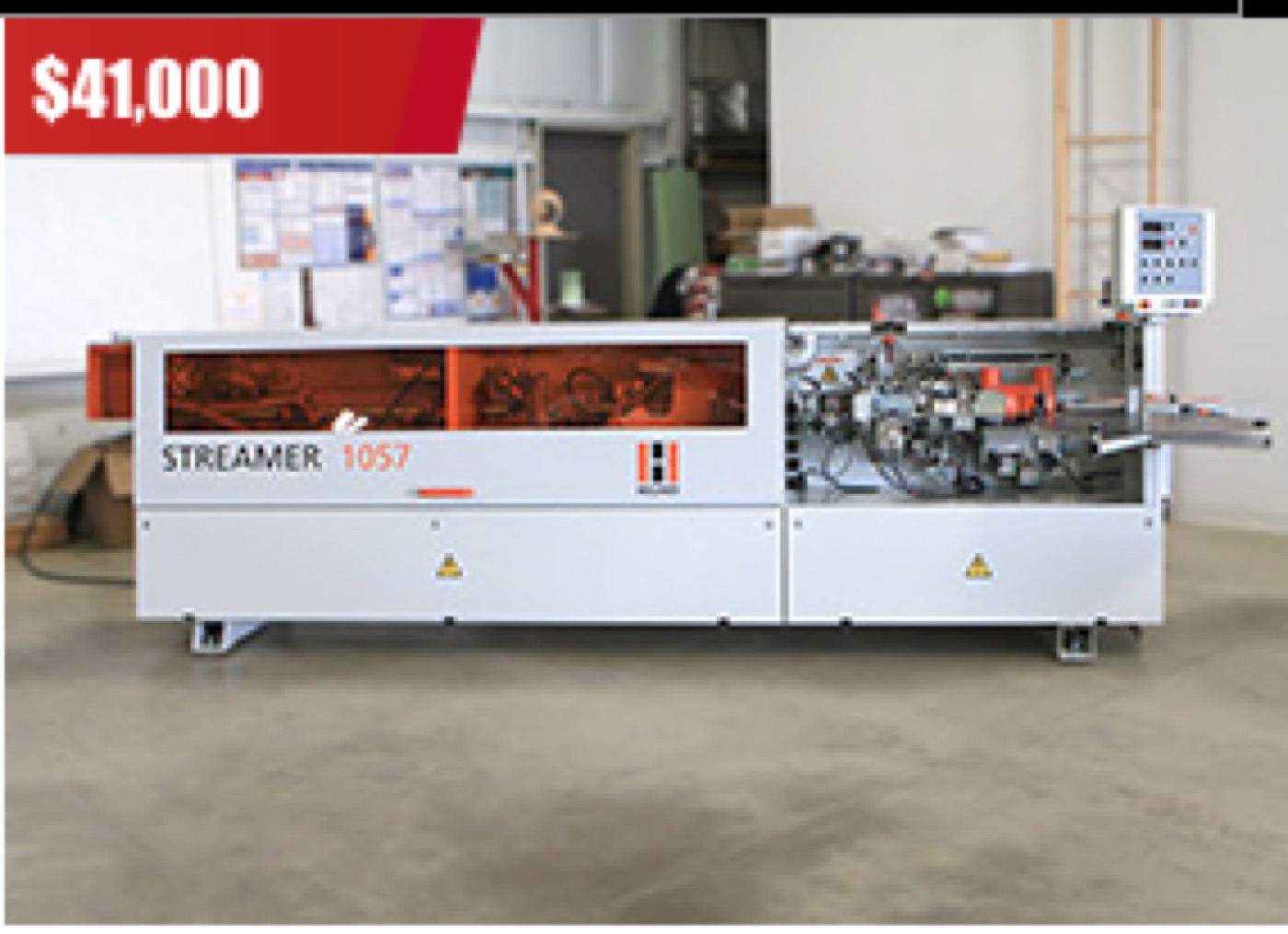

Holzher 1057 STREAMER Edgebander

SOLD

• Pre-Milling (FG201) with diamond tooling

• Magazine for coil and strips (1903)

• GluJet-S with hybrid technology (GJ-201)

• Pressure Section (1912-3)

• 2 Motor End Trimming (1918P)

• Top and Bottom Trimming (FR201)

• Profile Scraping (1929)

• Buffing (1940)

• Manual control panel

• Conveyor speed 10 m/min.

• Edge thickness 0, 4 – 6 mm.

• Panel thickness 6 – 60 mm.

• One (1) centrally located hand-wheel, for raising and lowering of the top

pressure beam.

• Fixed workpiece support at 380 mm

• Manual central lubrication of the transport chain

$41,000

screen-shot-2016-12-06-at-4-46-55-pm

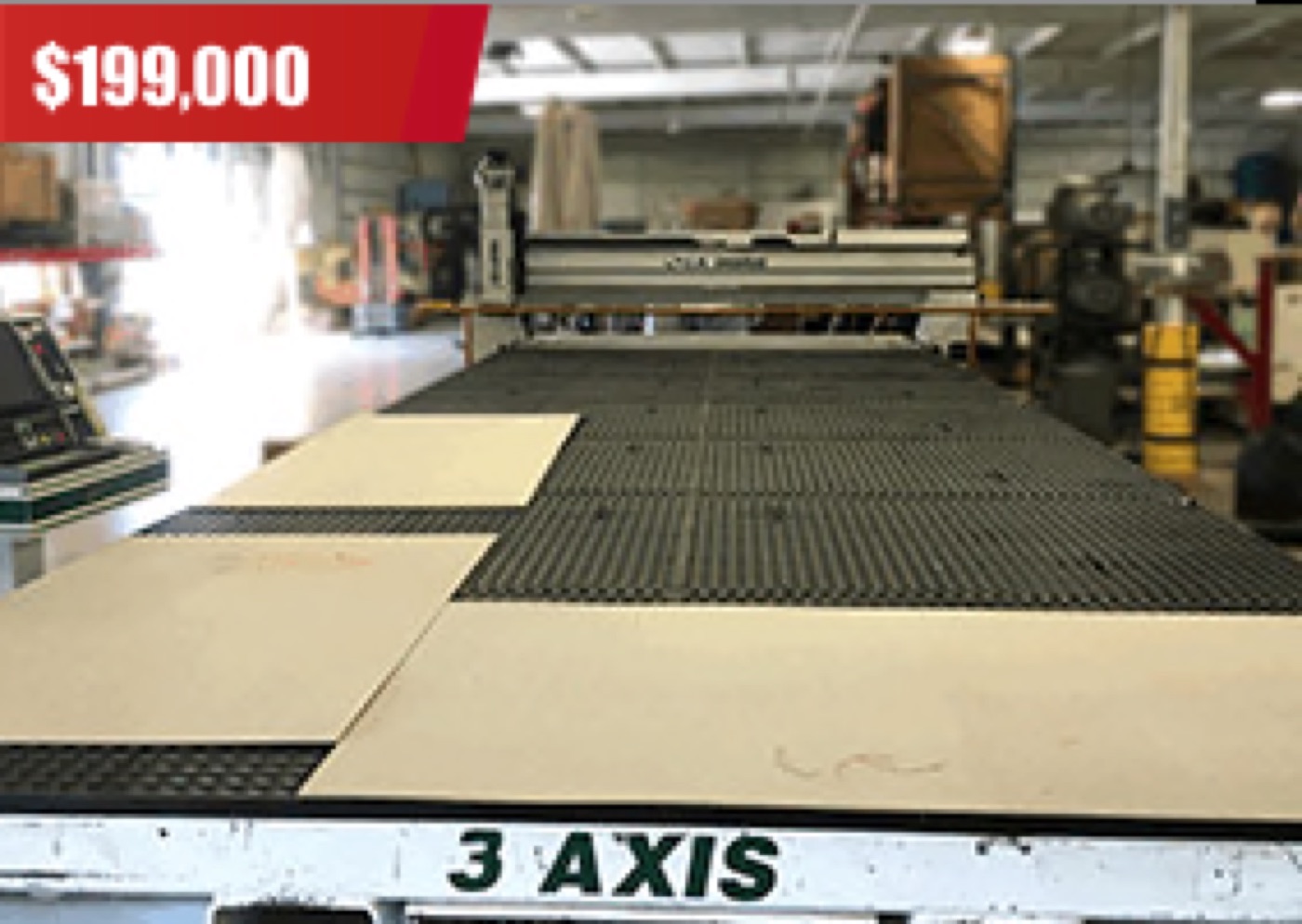

C.R. Onsrud 360G18W CNC Router SOLD

This CNC Router package included the following items:

 12’ wide x 30’ long work envelope

  LARGE CNC

– OSAI PC Front Series 10/510i System – OSAI PC Front w/High Res touch screen, network capability, PLC Machine Controller, plus adds OSAI Digital Drives, Amps, and Servos

– 18 HP Spindle w/HSK-63 Spindle Taper – 24,000 RPM – HSD ES988 Spindle

– 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled

 – Dekker 60 HP Vac Pump

$199,000

screen-shot-2016-12-06-at-4-51-36-pm

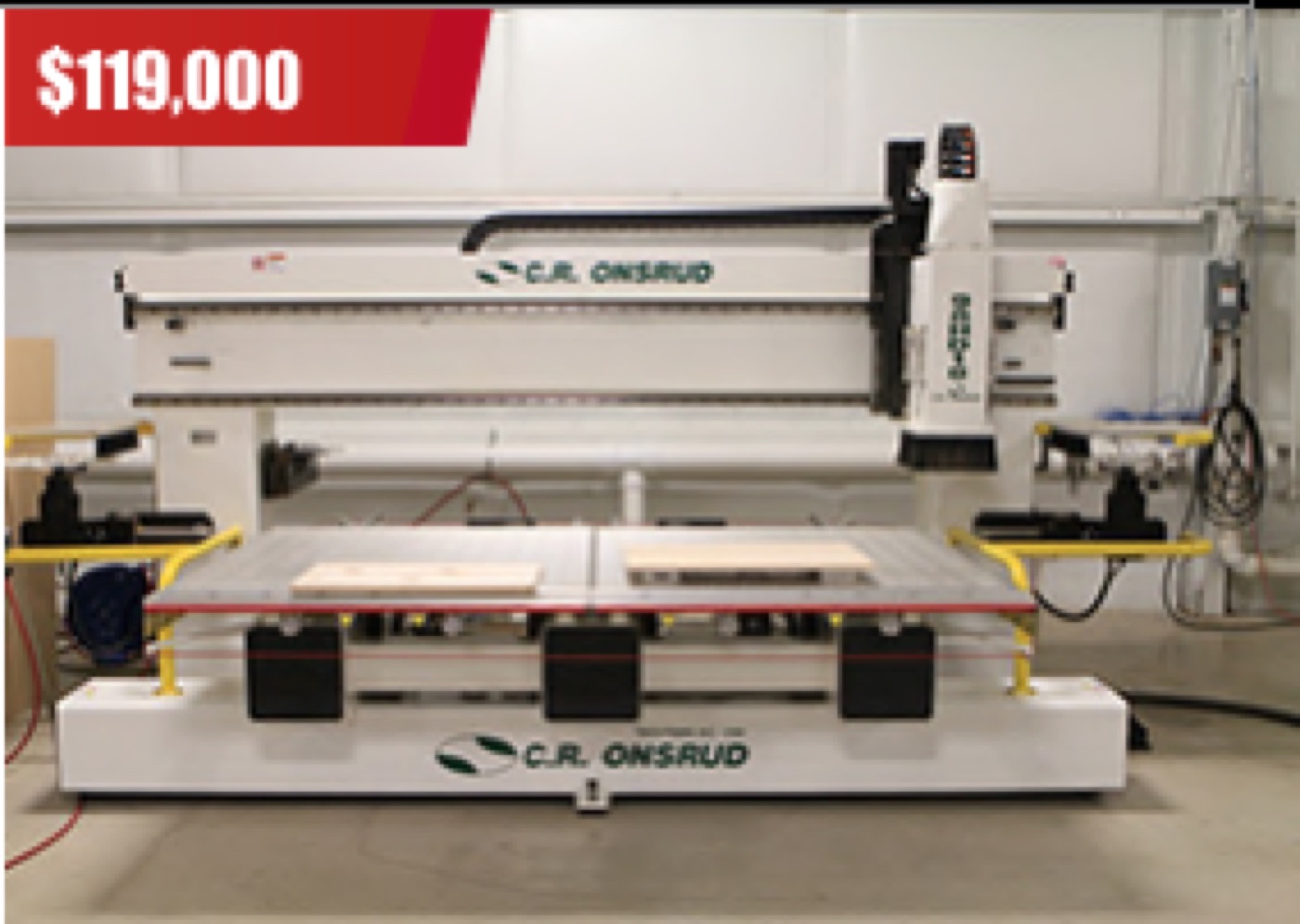

2007 C.R. ONSRUD MODEL 98HD18 “Extreme Duty Series” CNC ROUTER

SOLD

(61″X98” axis travel) – with: Oversized Extra Thick Cast-Iron Fixed Bridge & Oversized Extra Thick Cast

Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 4000″ per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 10′ x 15′ footprint, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, OSAI Series 10/510i controller, 4-Pole 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability. Twin aluminum tables – function as independent 61” x 49” tables.

$119,000



screen-shot-2016-12-06-at-4-51-56-pm

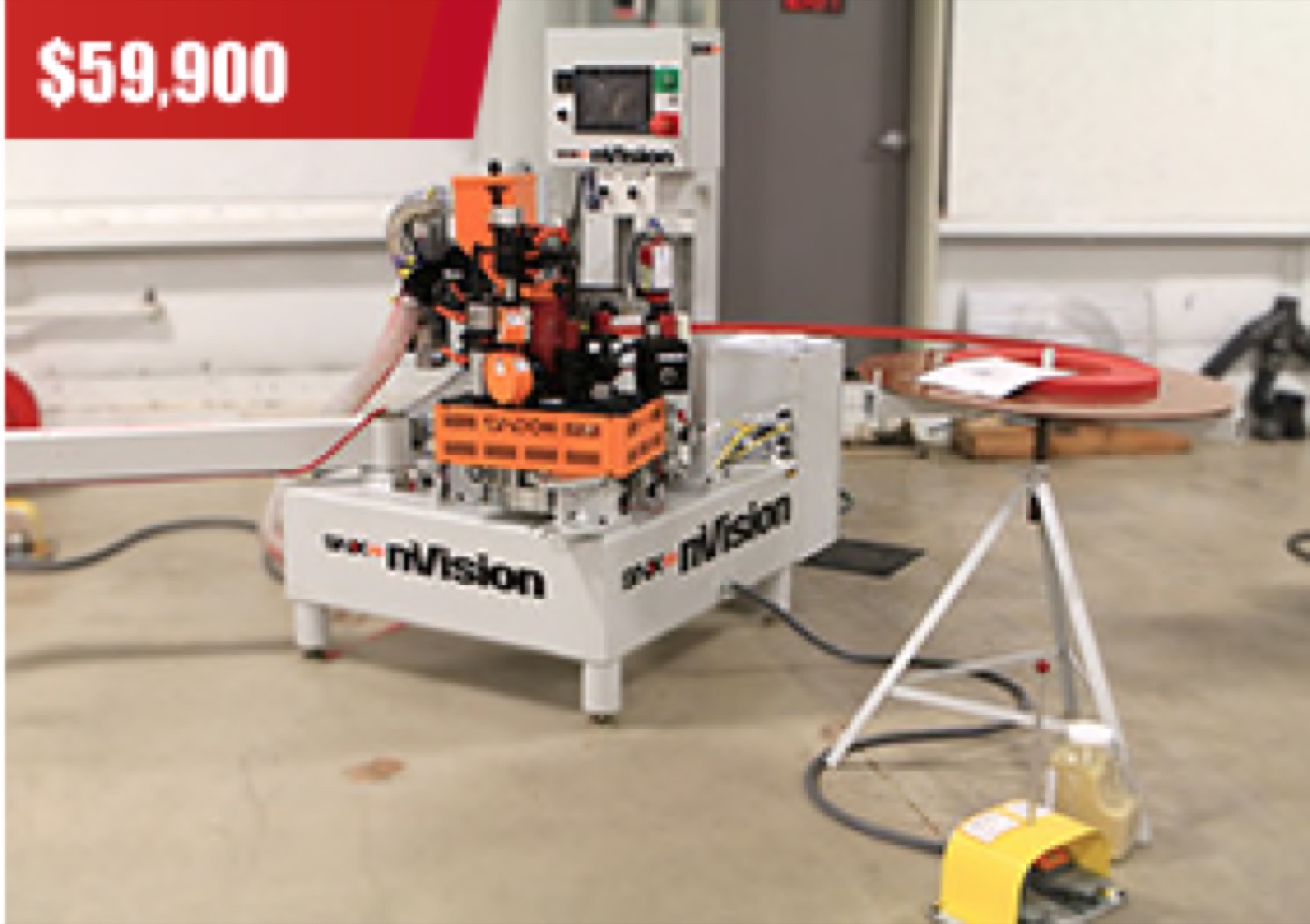

2016 SNX NVision Contour Edgebander

Working Dimensions:

Edge Coil Thickness: 0.5 – 3mm (0.5 thin tape ONLY with proper low temp adhesive)

Work piece min: Diam.150 mm

Work piece max: 2400 x 2400mm

Work piece Thickness: 10 – 60mm

Edgeband Thickness: 0.5mm /.020” to 1 mm for panels up to 60mm thick

2 mm for panels up to 60mm thick

3 mm for panels up to 45mm thick

Minimum Outside Radius: 30 mm (note: based on 1mm thickness of edge tape)

Minimum Inside Radius: 150 mm

Feed (Rotation) Speed: 5 m/min

Air Requirement: 6 bar (90 psi)

Electrical Requirements: 230v, 3ph, 10 amp circuit

$59,000

screen-shot-2016-12-06-at-4-58-25-pm

1999 C.R. ONSRUD MODEL 96C10 CNC ROUTER

SOLD

(– 98″ x 50″ axis travel with 11” of Z-axis travel, (14” bridge clearance)

– 10 HP Colombo variable speed spindle with 8-position automatic tool changer

– ISO-30 type tool holders, (set included)

– (2) 48” x 48” moving tables with integrated vacuum system

– Tables operate independent or as one 96” x 48” table

– Tables designed for use with spoil board or pod type vacuum system

– AMC-4 machine controller by North East Electronics

– Precision ball-screw drives on all axes

– THK precision linear guide ways

– Thick cast iron fixed bridge & cast iron vertical supports

– Stress relieved tube steel horizontal base

– (1) 8″ diameter dust outlet

– Approx. 10′ x 12′ overall footprint x 6-1/2′ tall

screen-shot-2016-12-06-at-4-52-43-pm

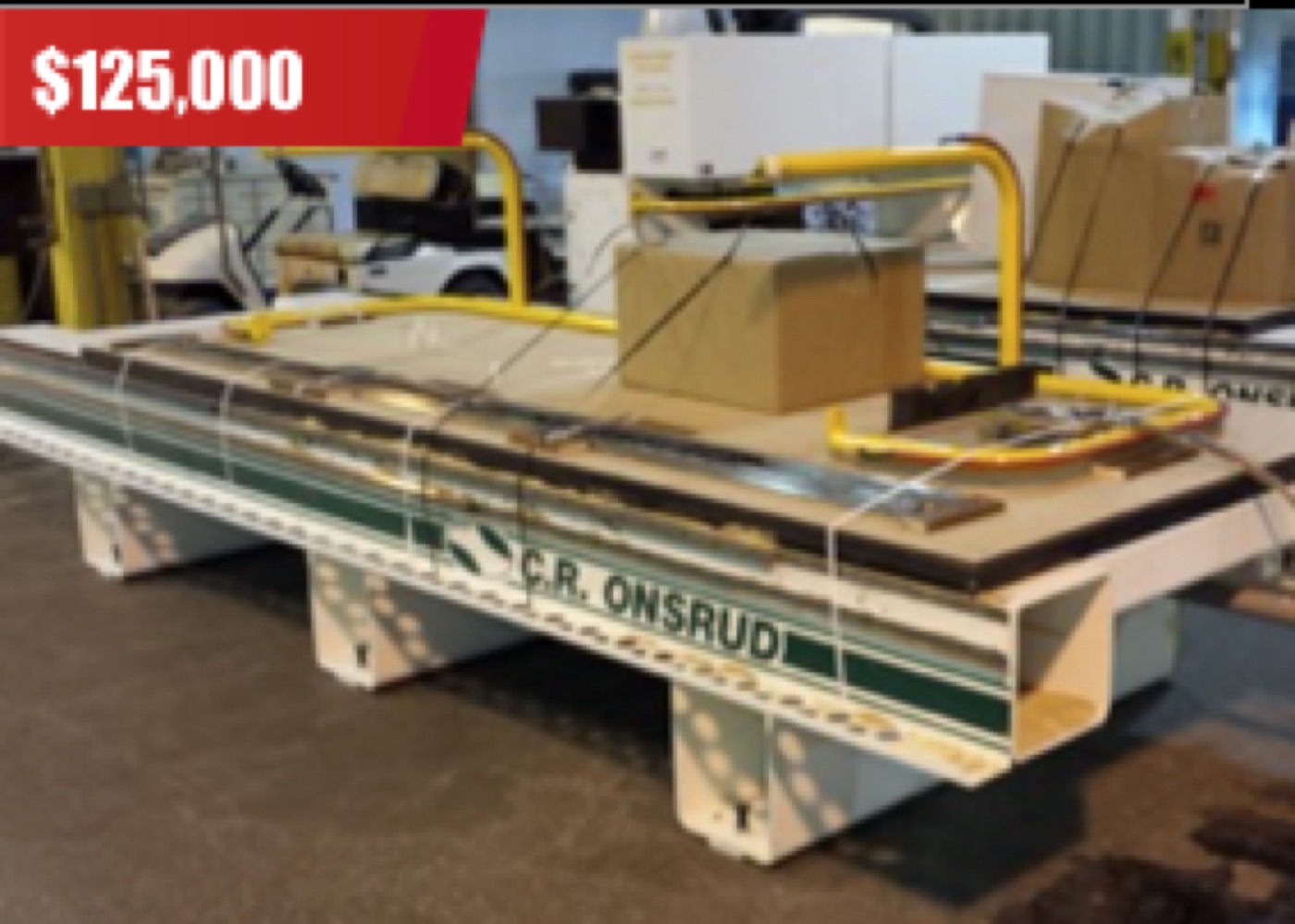

CR Onsrud Model 288G12 Panel Pro Series CNC Router – 2007

SOLD

ONE USED C.R. ONSRUD MODEL 288G12 “Panel Pro Series” CNC ROUTER

(325″X61” axis travel) – with: Oversized Extra Thick Cast-Iron Fixed Bridge & Oversized Extra Thick Cast

Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Moving Gantry, Fixed Table Design with 2000” per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 32′ x 15′ footprint, precision ball-screw drives for Y & Z axes, case-hardened, oversized, precision ground, helical rack & pinion drives for X axis, precision linear guide ways, centralized lubrication system, OSAI Series 10/510i controller, 4-Pole 12.7HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability.

$125,000
