C.R. Onsrud

5-Axis E-Series

If you need serious 5 axis machining capabilities and functionality the C.R. Onsrud 5-Axis E Series CNC machining center offers you a super-fast "No Compromises" platform for your cutting applications. These highly capable machines take your business to the next level in production.

Talk to a machinery expert 616-871-9889

Product overview

Fixed Bridge Design

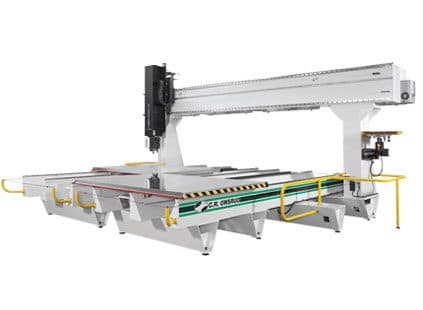

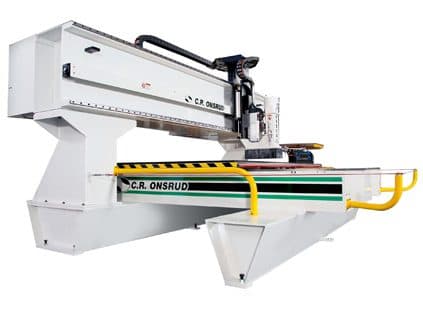

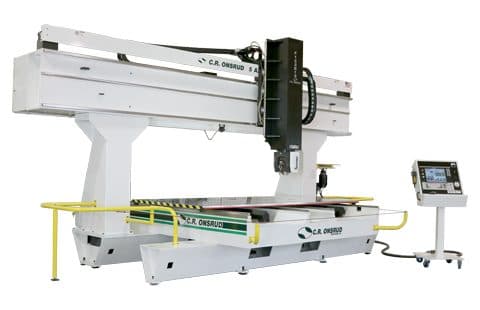

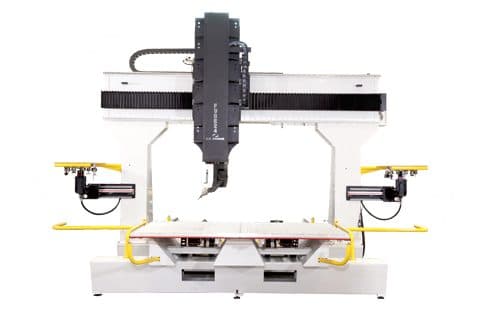

Based on a twin table, fixed bridge design, you won't find a faster, higher performing CNC machine in this class - anywhere. The fixed bridge E Series machine starts with an extremely rigid, welded steel frame, and C.R. Onsrud customizes the features to your specific manufacturing needs and goals. Coupled with a powerful 2-axis articulating spindle, the chips will fly with this precision beast.
Customizable Options

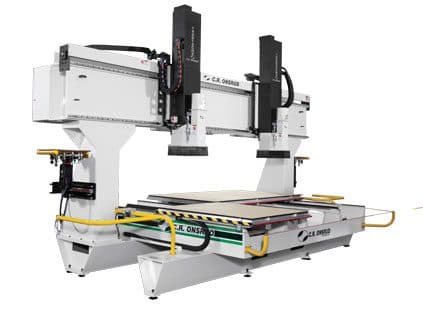

If you need the power of the optional Dual Processing, 5-axis milling / drilling and twin moving tables for continuous operation, the 5-Axis E Series offers you a highly-capable platform packed with the functionality and customizable options to excel in any manufacturing or prototyping environment. Wood, plastics, composites, aluminum and other non-ferrous metals are all easily within the scope of the E Series CNC machining centers, and the 5 axis machining capability expands your horizon with seemingly endless possibilities.

Standard features

4-Pole, reversible, 22,000 RPM High Torque Spindle
HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity
Over 24 Inches of Z-Axis Clearance & 29 inches of Z-Axis stroke standard
Finite Element Analysis used Extensively in the Engineering Process
Thermal Heat Treated, Stress Relieved, & Normalized One-Piece Steel Machine Base
Std. 12 Position, Aggregate Ready, Dynamic Automatic Rotary Tool Changer
Twin Tables Can Operate Locked Together or Independently for Pendulum Processing
Compact Design Saves Valuable Shop Floor Space
Intelligent Design Allows for Easy Loading and Unloading
C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
Independently Controlled Vacuum Zones for Each Table
Comes Equipped with Choice of Flow Through or Dedicated Spoil Board
Industry leading FANUC CNC Controller with Integrated Touch Screen PC
4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
Full 3D capability, Helical Interpolation, and Simultaneous 5-Axis Motion Standard
And many more options or accessories

Accessories

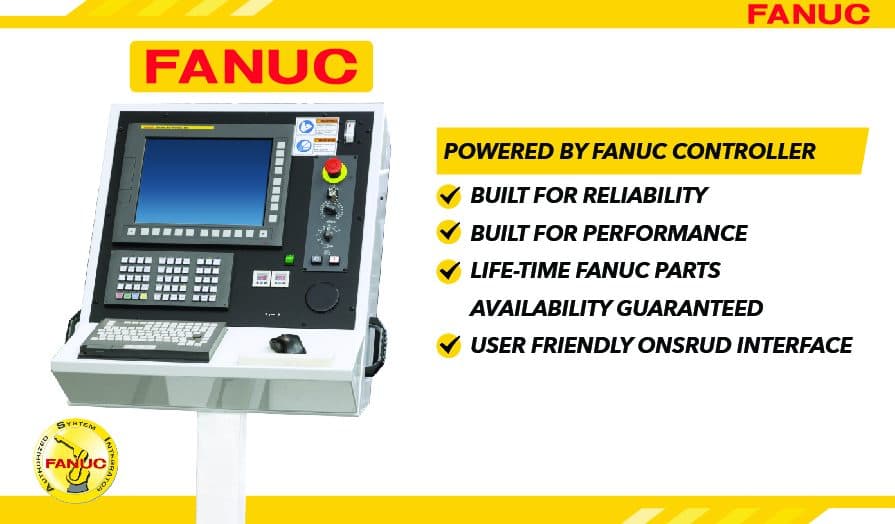

FANUC Controller

Specifications

Model	F74E	F98E	F122E	F148E	F194E	F244E	F290E
Number of Axes	5+	5+	5+	5+	5+	5+	5+
Table Size	60” X 72”	60” X 96”	60” X 120”	60” X 144”	60″ X 194″	60″ x 120″	60″ x 144″
Z Clearance	27-39-51″	27-39-51″	27-39-51″	27-39-51″	27-39-51″	27-39-51″	27-39-51″
X-Axis Travel	82”	82”	82”	82”	82”	82”	82”
Y-Axis Travel	138”	162”	186”	210”	234”	338”	378”
Z-Axis Travel	29-41-53”	29-41-53”	29-41-53”	29-41-53”	29-41-53”	29-41-53”	29-41-53”
Approx. Footprint	12′ X 18′	12’ X 20’	12’ X 21’	12’ X 23’	12’ X 28’	13’ X 33.5′	12’ X 37’
Machining Speed	3600 ipm	3600 ipm	3600 ipm	3600 ipm	3600 ipm	3600 ipm	3600 ipm
X & Y Rapid Traverse	4000 ipm	4000 ipm	4000 ipm	4000 ipm	4000 ipm	4000 ipm	4000 ipm
Standard Spindle	15HP 24,000 rpm	15HP 24,000 rpm	15HP 24,000 rpm	15HP 24,000 rpm	15HP 24,000 rpm	15HP 24,000 rpm	15HP 24,000 rpm
Tool Shank	HSK 63F	HSK 63F	HSK 63F	HSK 63F	HSK 63F	HSK 63F	HSK 63F
Standard Tool Capacity	12	12	12	12	12	12	12
Standard Vacuum Zones	2	2	2	3 (OR 4)	4	6	6
