C.R. Onsrud

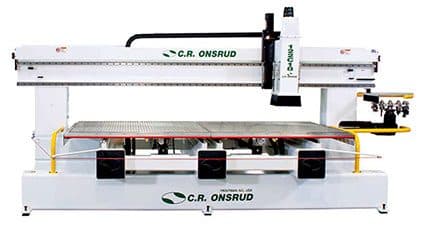

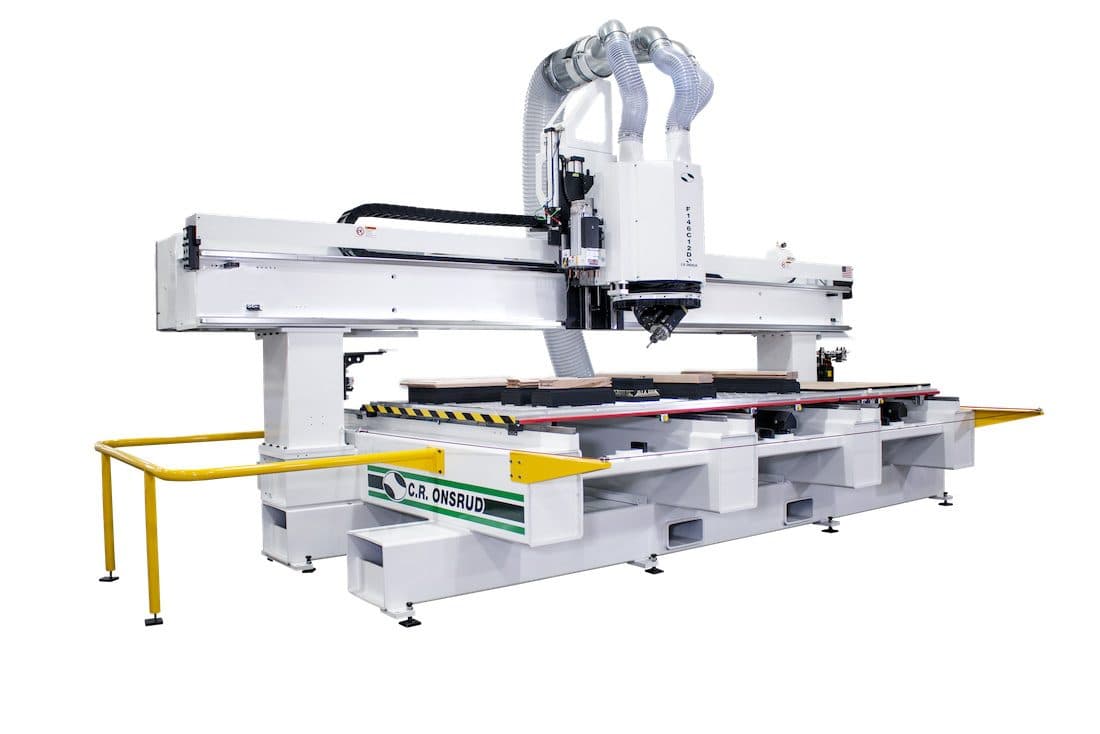

5-Axis C-Series
Are you looking for ultimate flexibility in cutting dense materials such as solid wood, advanced polymer plastics, composites, and non-ferrous metals? Look no further than the 5-Axis C-Series.
Product overview
Versatile Configuration
Built upon C.R. Onsrud’s legacy, fixed-bridge platform, this machine provides maximum versatility for today’s demanding applications. The twin-table configuration allows for greater throughput, through the use of pendulum-processing, while allowing the flexibility to accommodate larger parts with the tables locked together. Forget the hassle of aggregates and step into a machine that will propel your shop to a whole new level of productivity, and versatility.
Standard features
- 4-Pole, reversible, 24,000 RPM High Torque Spindle
- HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity
- Over 14 Inches of Z-Axis Clearance & 11 inches of Z-Axis stroke
- Finite Element Analysis used Extensively in the Engineering Process
- Thermal Heat Treated, Stress Relieved, & Normalized One-Piece Steel Machine Base
- Cast-Iron Fixed Bridge & Cast-Iron Vertical Columns, Increases Weight, Mass, & Rigidity
- Standard 12 Position, Aggregate Ready, Dynamic Automatic Rotary Tool Changer
- Twin Tables Can Operate Locked Together or Independently for Pendulum Processing
- Compact Design Saves Valuable Shop Floor Space
- Intelligent Design Allows for Easy Loading and Unloading
- Efficient and Effective Integrated Dust Transition that Only Requires an 8 inch Dust Hose
- C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
- Independently Controlled Vacuum Zones for Each Table
- Comes Equipped with Choice of Flow Through or Dedicated Spoil Board
- FANUC, OSAI, and B&R control options
- 4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
- Full 3D capability with Helical Interpolation
- And many more options or accessories available
Accessories
Specifications
| Model | F98C | F122C | F146C |
|---|---|---|---|
| Number of Axes | 3/4 | 3/4 | 3/4 |
| Table Size | 96” X 60” | 120” X 60” | 144” X 60” |
| Z Clearance | 14” | 14” | 14″ |
| X-Axis Travel | 60″ | 60″ | 60″ |
| Y-Axis Travel | 124” | 156″ | 164″ |
| Z-Axis Travel | 15.7” | 15.7” | 15.7” |
| Approx. Footprint | 11’ X 14’ | 11’ X 17’ | 11’ X 17’ |
| Machining Speed | 3600 ipm | 3600 ipm | 3600 ipm |
| X & Y Rapid Traverse | 4800 ipm | 4800 ipm | 4800 ipm |
| Standard Spindle | 12HP 22,000 rpm | 12HP 22,000 rpm | 12HP 22,000 rpm |
| Tool Shank | HSK 63F | HSK 63F | 3/4 |
| Standard Tool Capacity | 12 | 12 | 12 |
| Standard Vacuum Zones | 2 | 2 | 4 |
