Moving gantry versatility
Gantry CNC machining centers
Explore the C.R. Onsrud moving gantry CNC routers: from the compact M-Series to the large-envelope G-Series, Wide CNC, and full 5-axis configurations, built for wood, aluminum, plastics, and continuous panel processing.
Four gantry platforms
One moving-gantry family, sized to your parts and your floor.
M-Series
The smallest moving gantry in the line-up, with highly responsive drive mechanisms and the features you'd expect from larger models.
G-Series
The largest moving gantry CNC router in the line-up, well suited for large, continuous panel and sheet processing.
Wide CNC
When you need a larger cutting envelope, the Wide CNC allows for rigid stability during larger material cutting projects.
5-Axis
The economical G-Series platform with a 2-axis articulating head delivers the additional cutting angles you need.

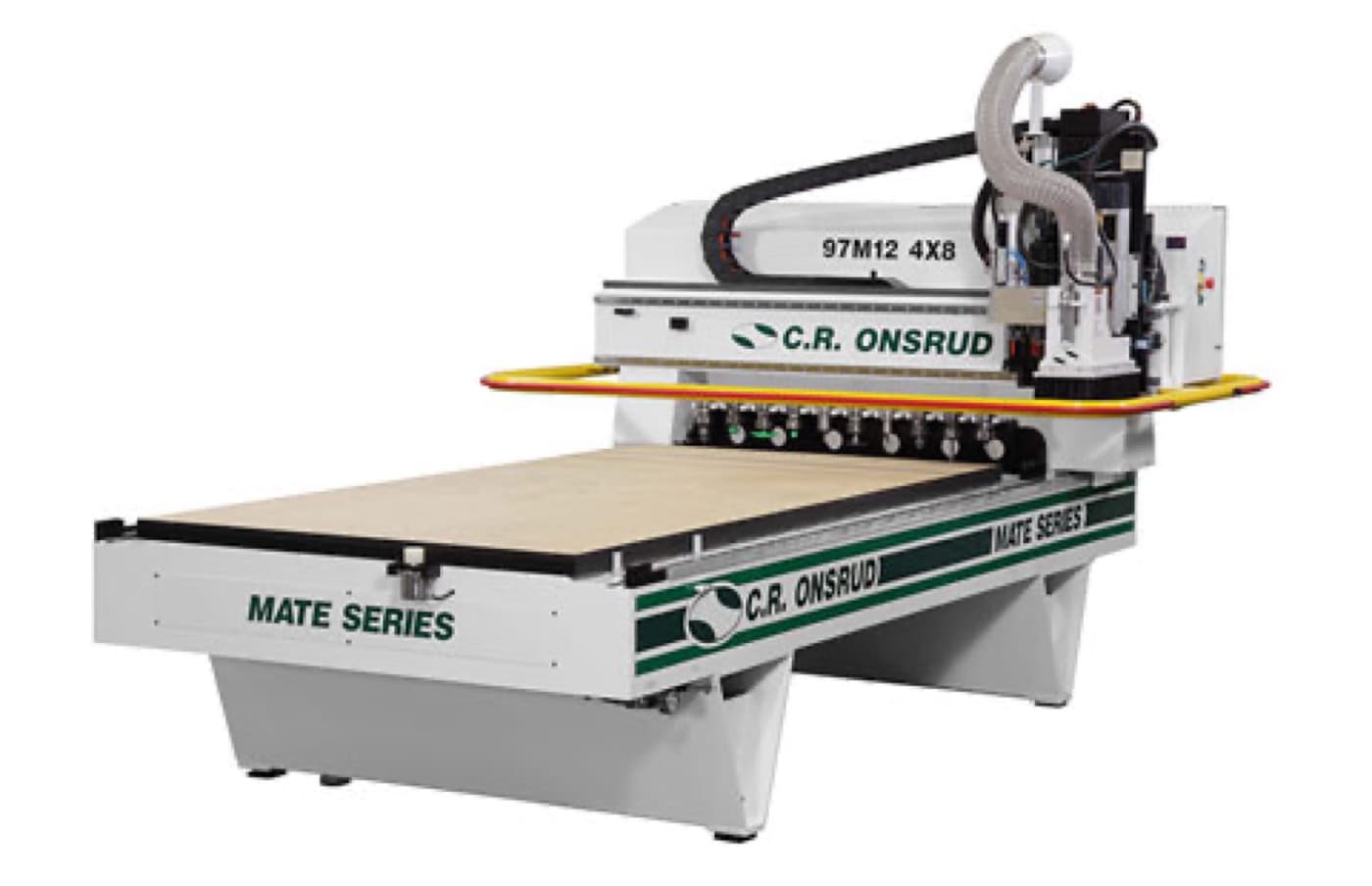

M-Series: small footprint, massive capabilities
The M-Series may be the smallest moving gantry CNC router in the C.R. Onsrud line-up, but don’t be fooled into thinking it’s any less of a workhorse than the bigger machines. The same detailed engineering, workmanship, and quality of materials goes into every machine, no matter the size.
It accommodates wood, aluminum, plastics, and ACM, with a 12HP, 24,000 RPM motor doing the work. Every M-Series comes with 24/7 factory remote diagnostics, so you can operate on your own terms knowing support always has your back.
5-Axis gantry
Needing 5-axis capabilities? Start with the popular G-Series moving gantry platform and add a reliable 2-axis articulating head. The C.R. Onsrud 5-Axis G-Series delivers the additional cutting angles you need within a floor-space-saving platform, with the production flexibility to accommodate small or large parts on a single run.
In a customized pod-and-rail configuration it machines not only the top of the material but the sides as well, and a range of optional work-holding devices and fixtures tailor the machine to your operation.
5-Axis gantry standard features
- 4-pole, double arbor support, reversible, 22,000 RPM high torque spindle
- HSK-63F spindle taper and tool holders, with 1 inch (25mm) collet capacity
- Over 24 inches of Z-axis clearance and 29 inches of Z-axis stroke (up to 41 inches available)
- FEA engineered, heavy-wall, all-steel bridge, vertical columns, and table support base
- Standard 12 position, aggregate ready, dynamic automatic rotary tool changer
- C.R. Onsrud high-flow universal vacuum table system with low vacuum sensing
- FANUC CNC controller with large touch screen HMI
- Full 3D capability, helical interpolation, and simultaneous 5-axis motion standard
- Table sizes in excess of 60 feet long and up to 12 feet wide on custom G-Series
Need maximum rigidity for solid wood or non-ferrous metal? See our fixed bridge CNC machining centers, or browse all aluminum machinery.
