Used Weinig Unimat Gold 2004

By Ryan Scarlett

Used Weinig Unimat Gold 2004

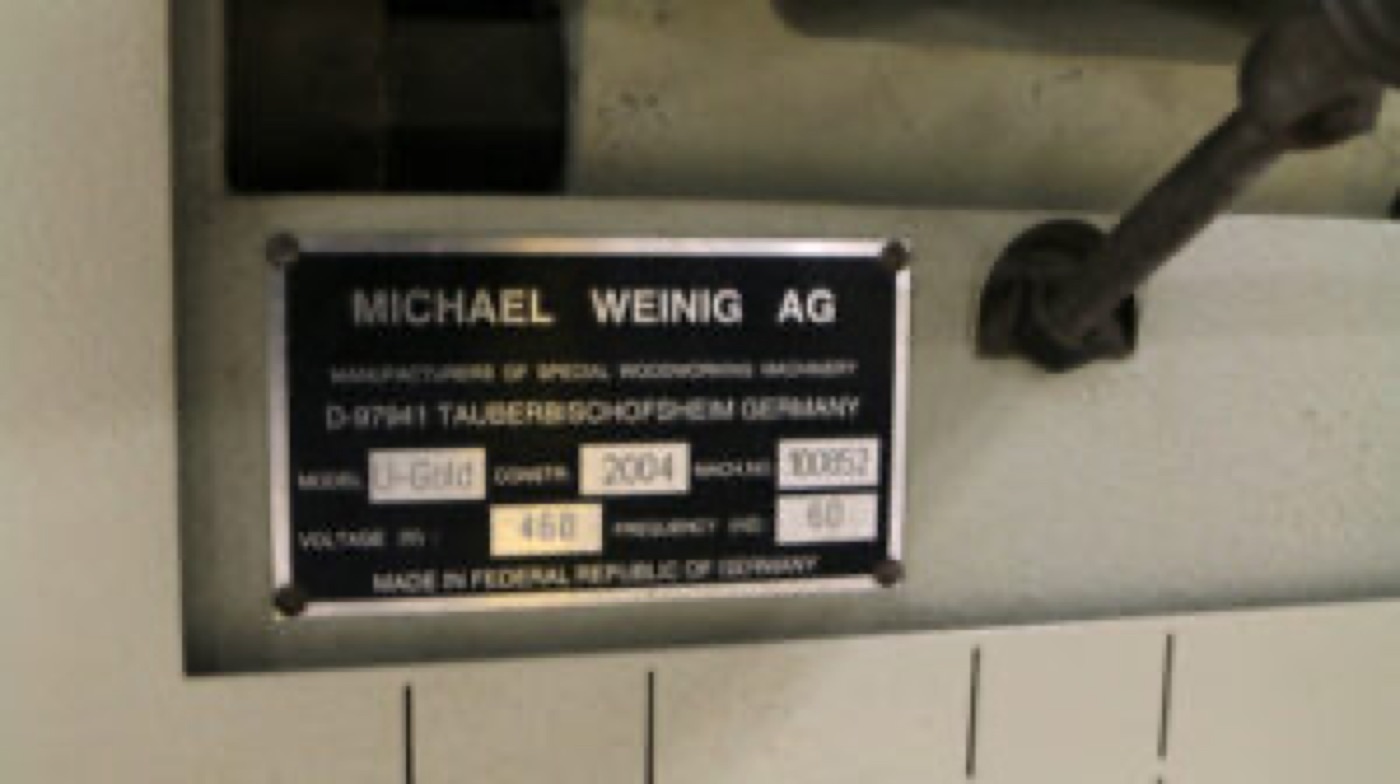

Weinig Unimat Gold 2004 (German Made) This Unimat Gold Moulder includes the following items:

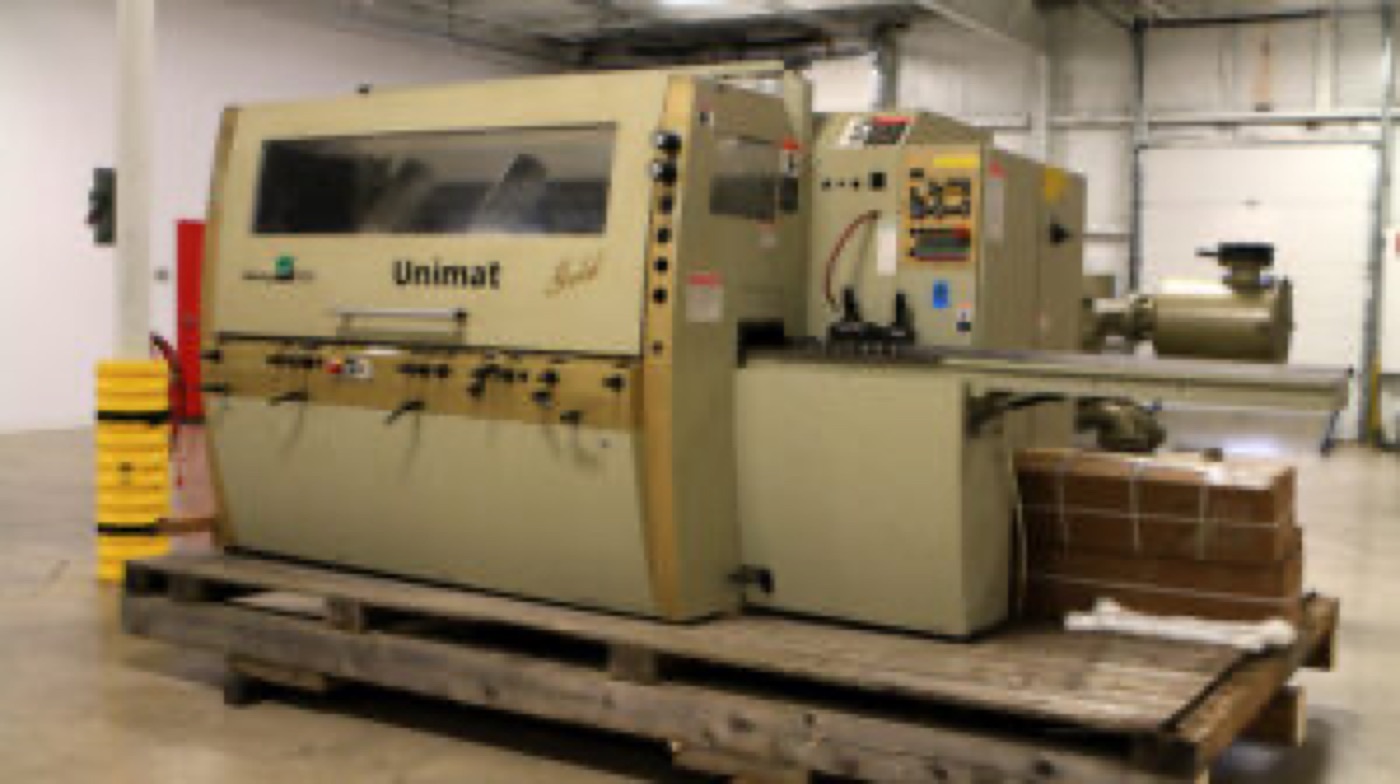

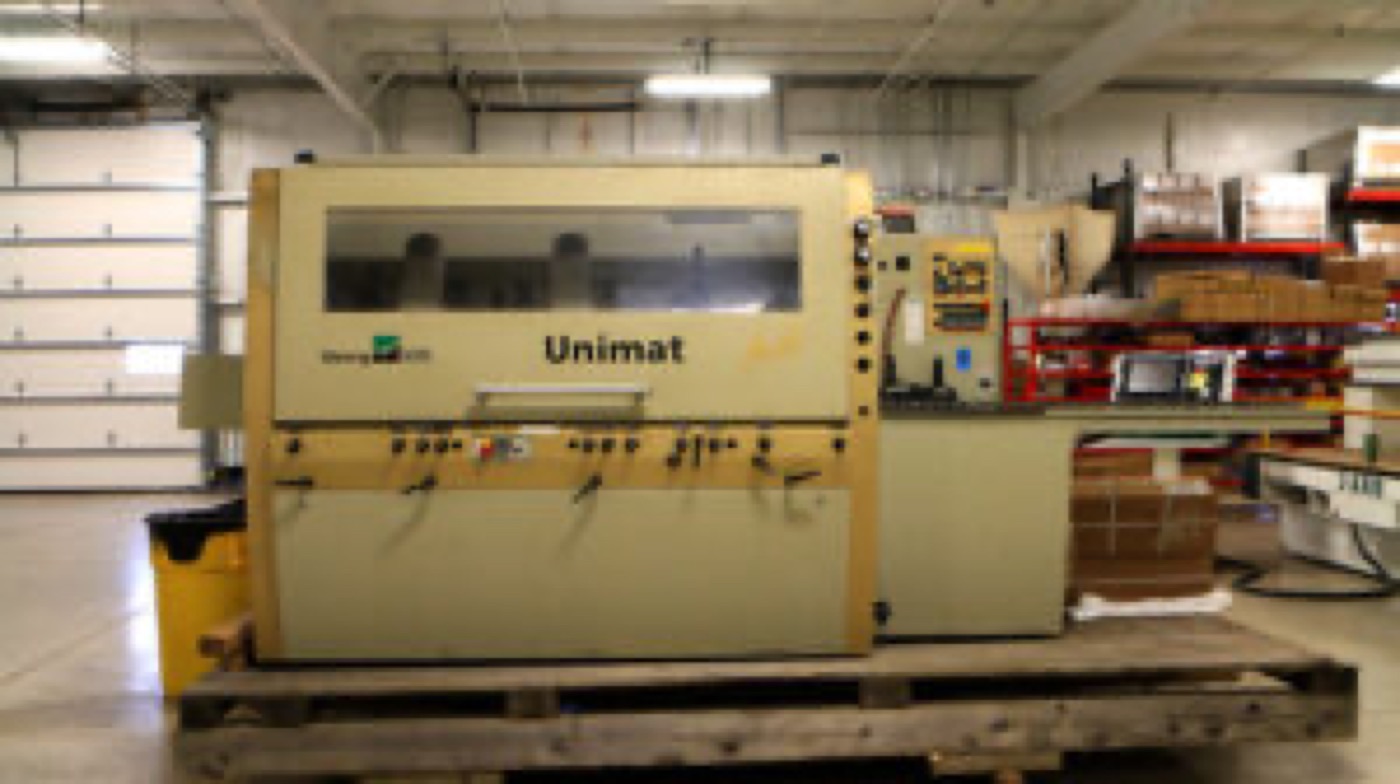

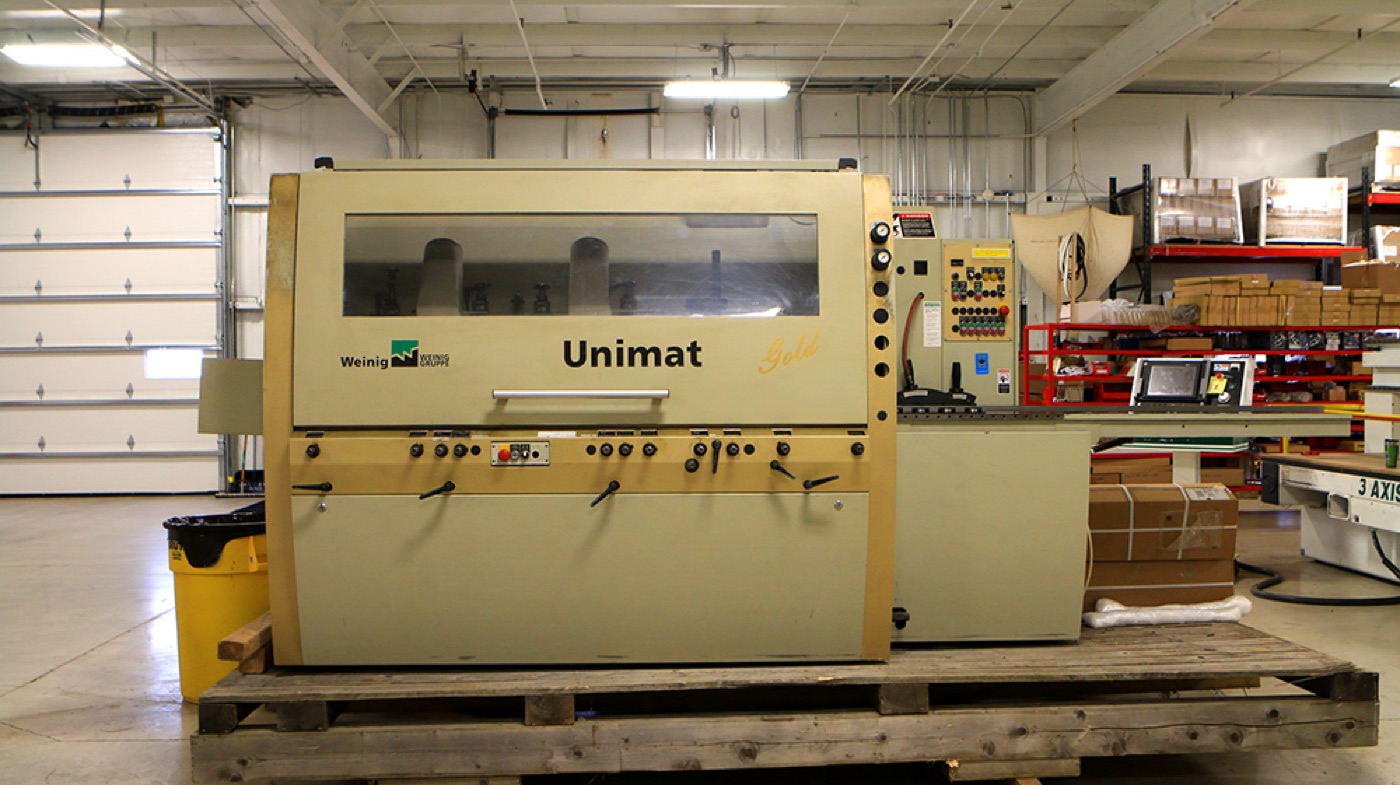

Used 2004 Weinig Unimat Gold moulder, front view with its control panel and outfeed table

Used Weinig Unimat Gold

• Cast iron base • US-Electrics 3 phase, 460 Volts, 60 hertz. 111 Amps • Spindle diameter 1-1/2 inch • 6000 RPM for all spindles • Electronic brakes on all spindles • Feed speed 20 – 98 FPM • Inverter controlled 5.5 HP feed motor • Bottom spindle 10 HP • Right spindle 10 HP (individual motor) • Left spindle 10 HP (individual motor) • Top spindle 15 HP • Top spindle 20 HP • Bottom spindle 10 HP • Receding chip breaker in front of both top spindles • One powered table roller, steel, between the top spindles • One powered table roller, steel, in the outfeed table • Chromed table plates • Table plates adjustable to tool cutting circle on vertical spindles • Manual waxilit pump • Central lubrication points • Side pressure roller before first bottom spindle • Pressure rollers from above, spring-mounted • Lateral pressure roller opposite right spindle, spring-mounted with 2 rollers; connected to left spindle • Electro-magnetic interlock for enclosure door. • Operator training on site NOT included, additional charges apply.

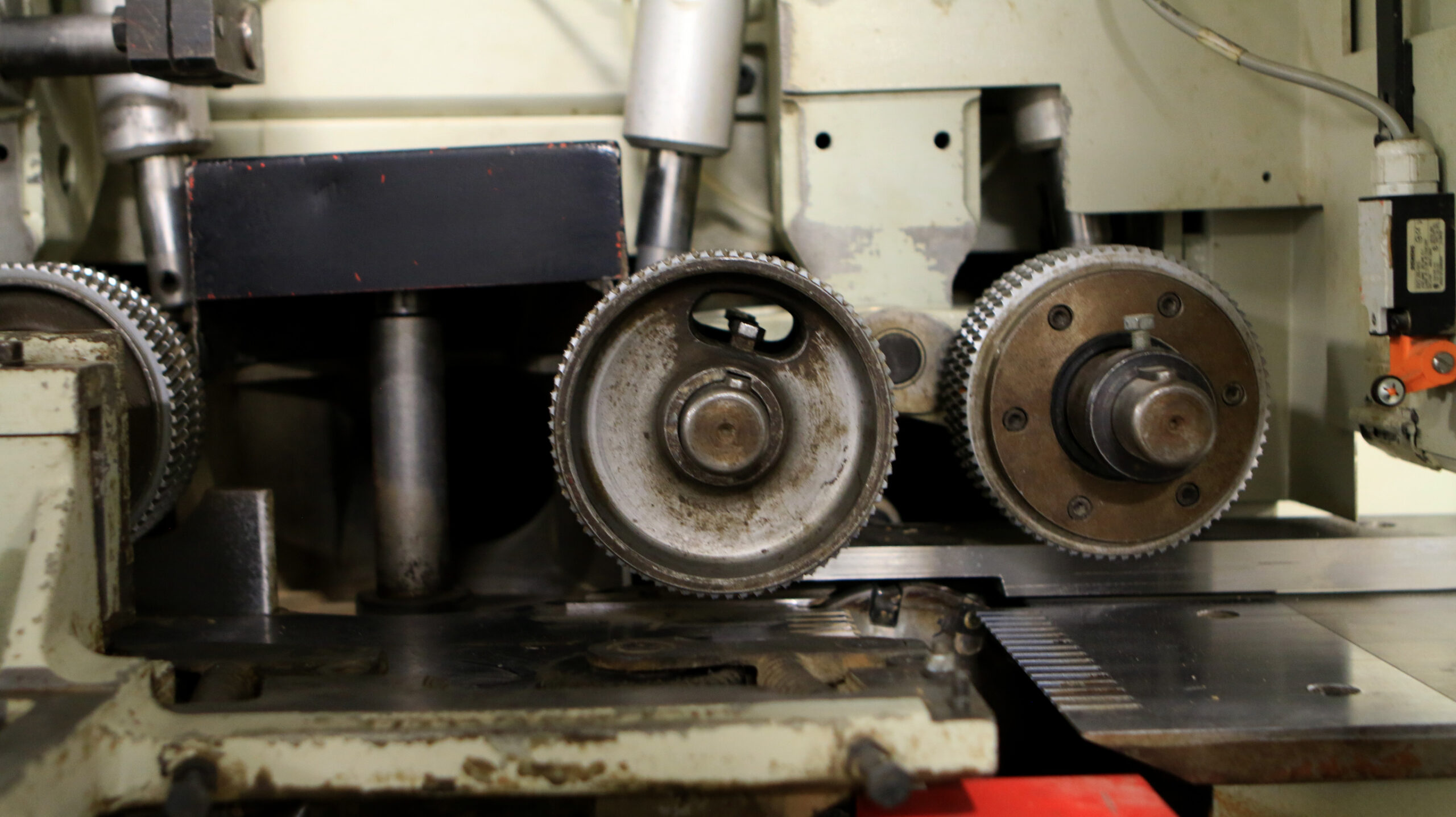

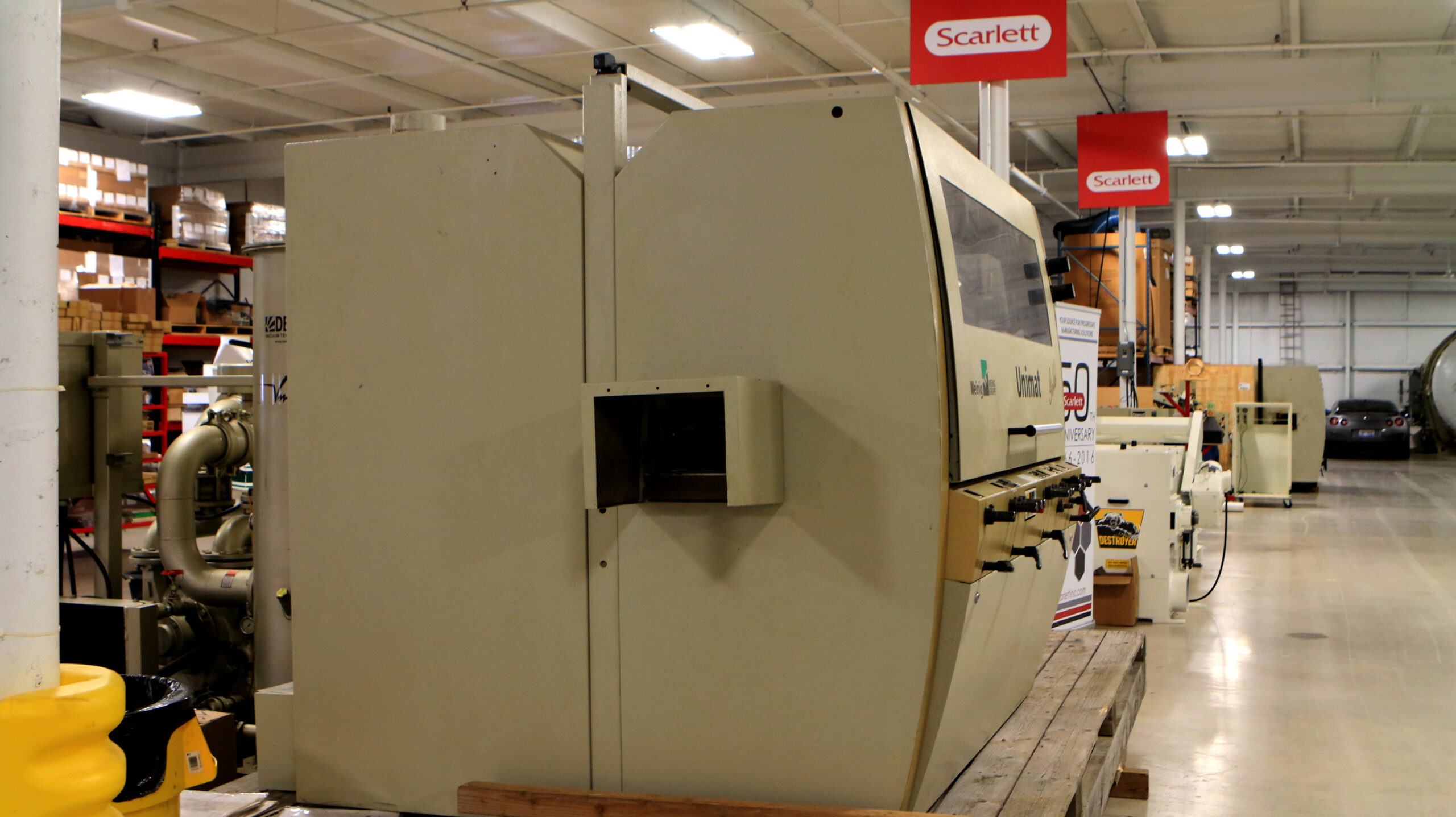

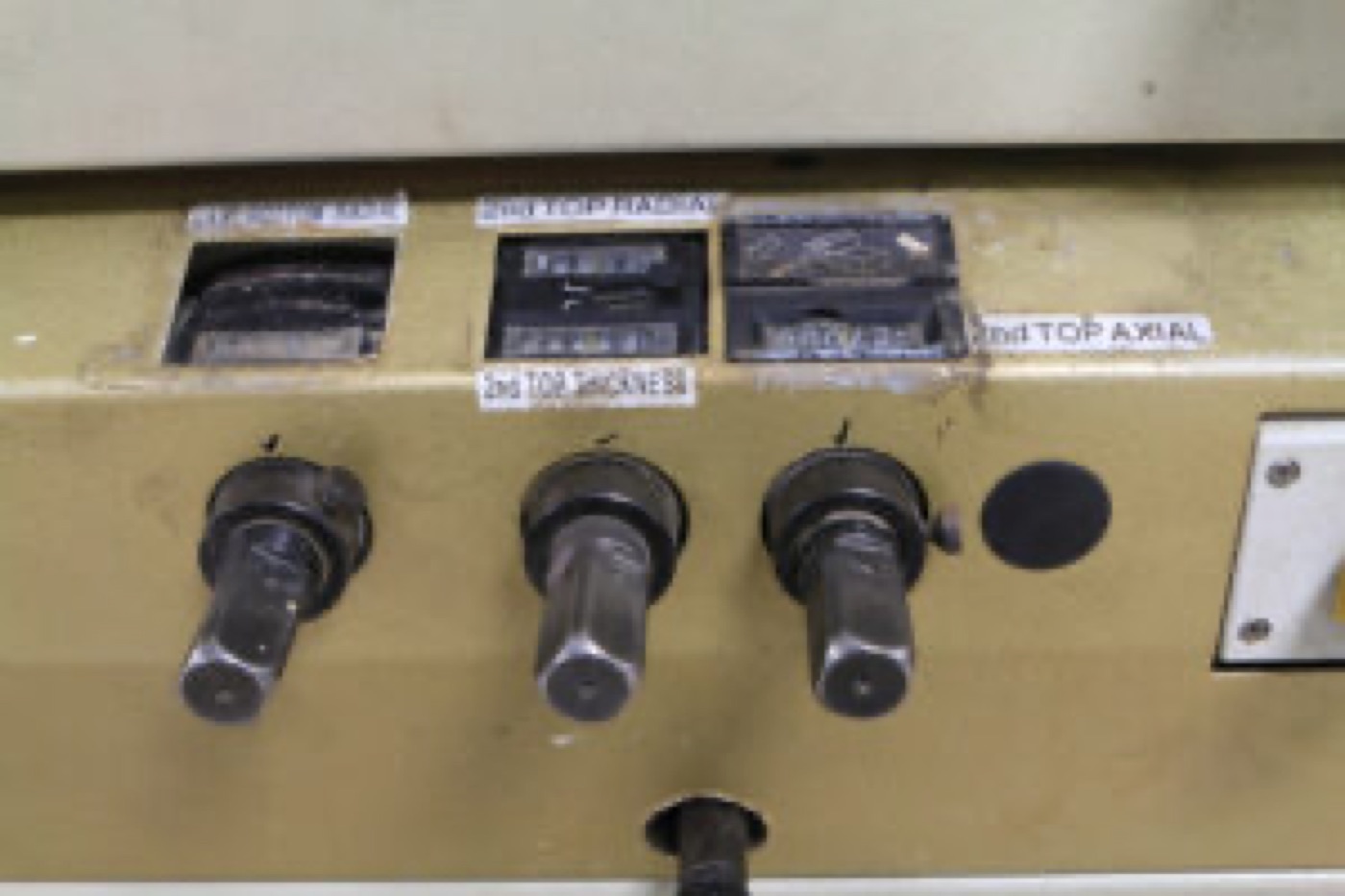

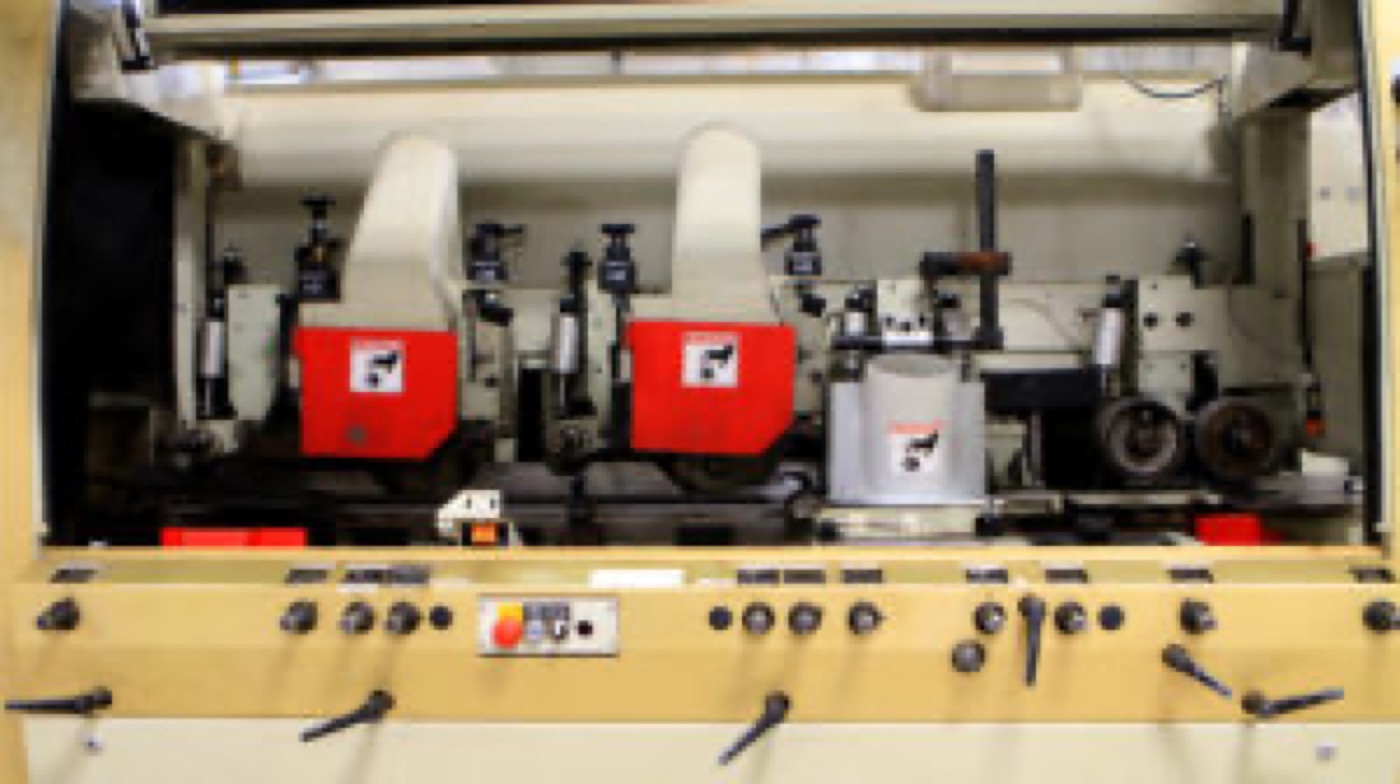

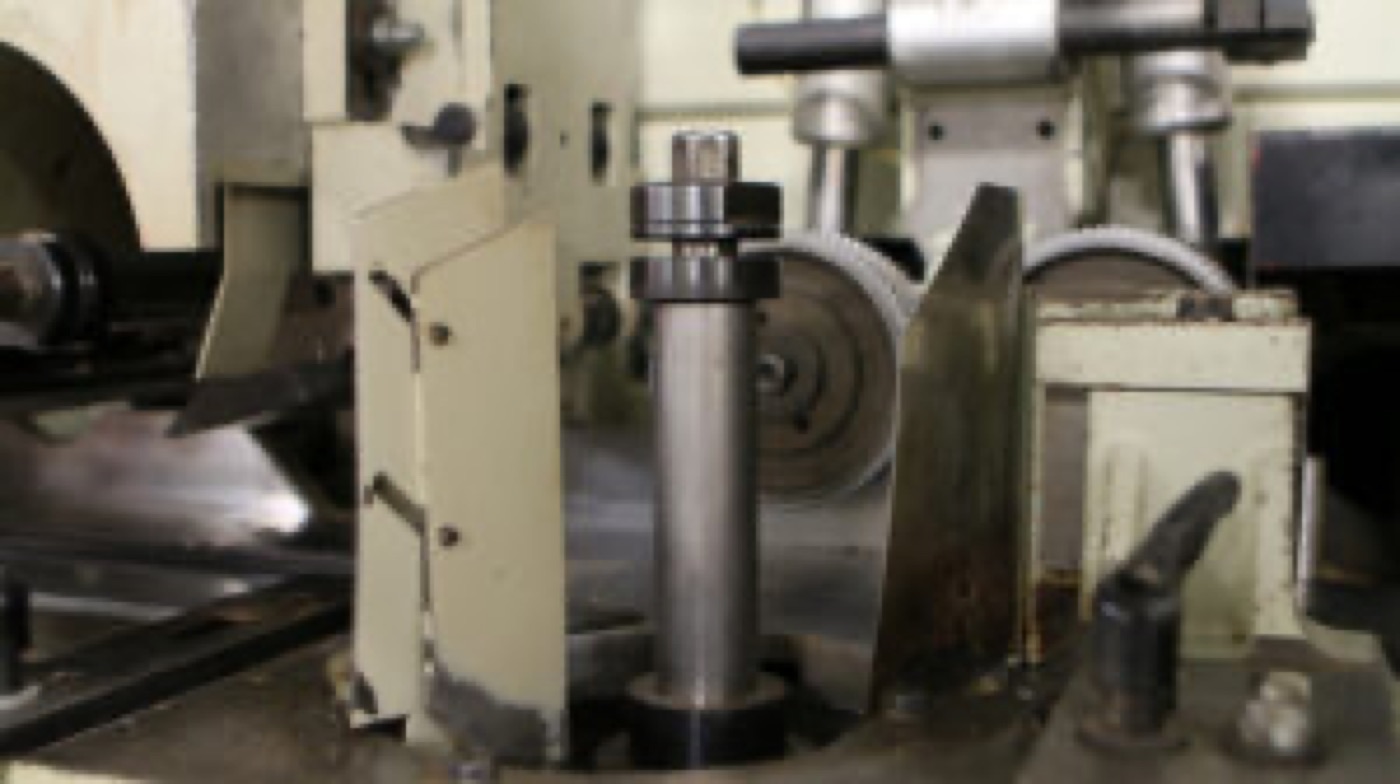

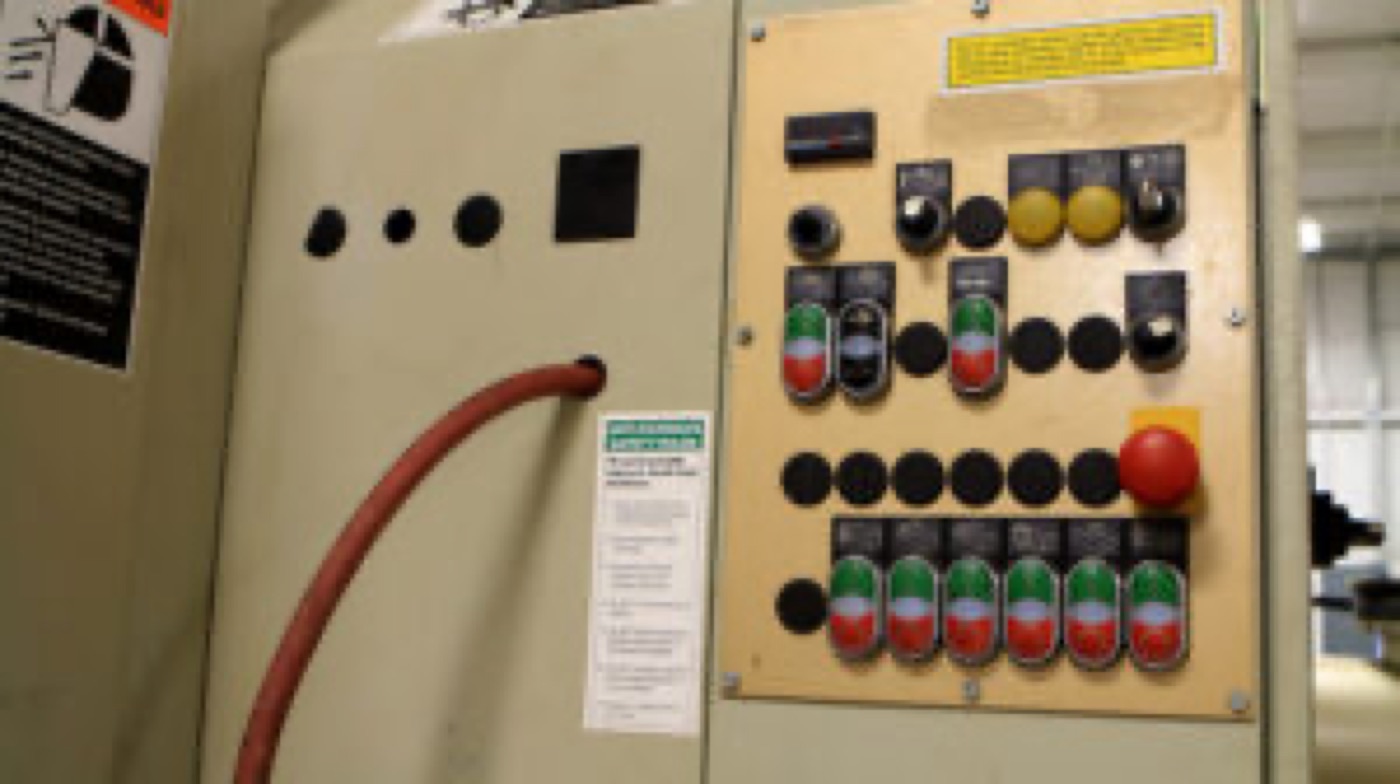

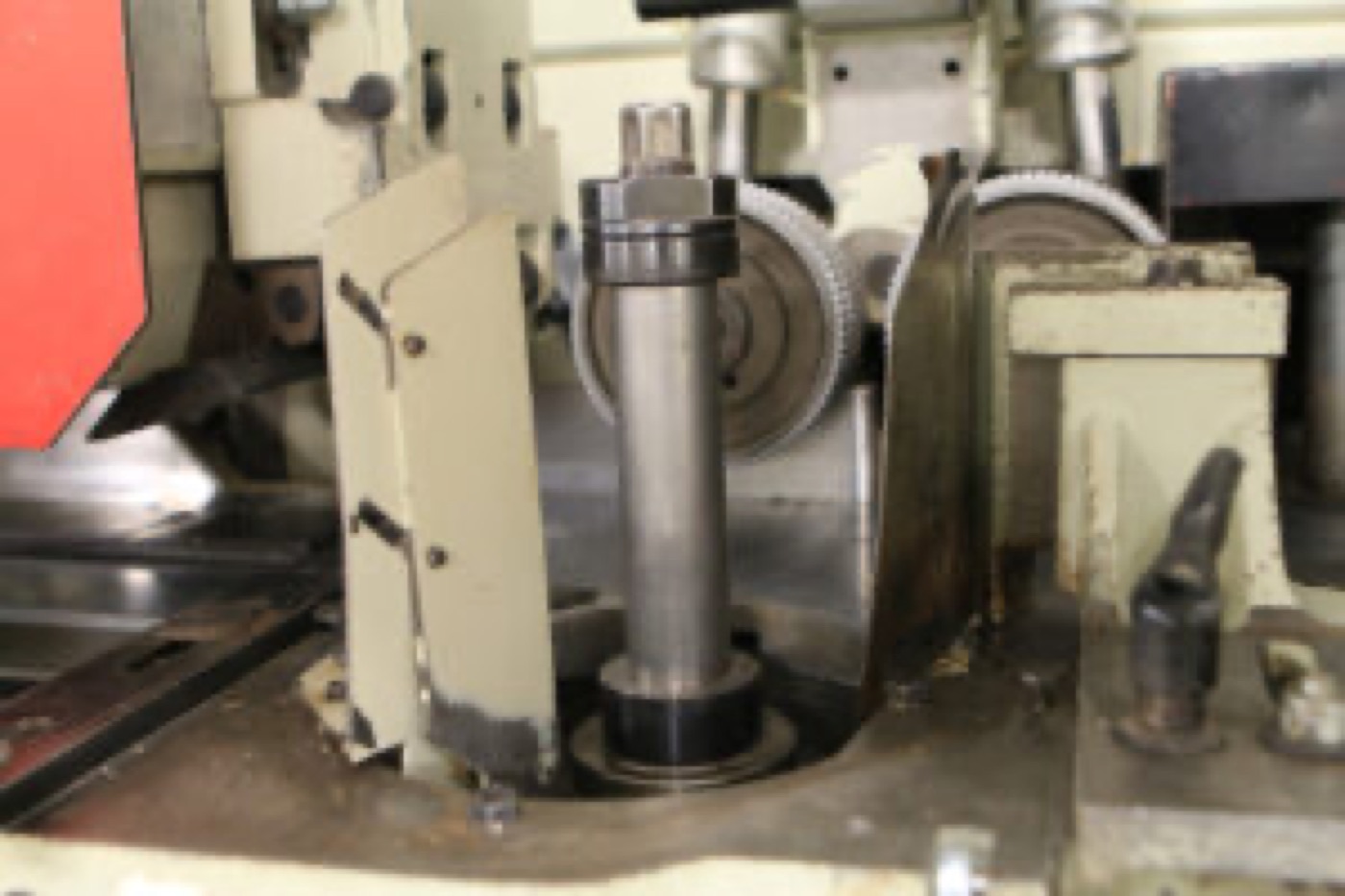

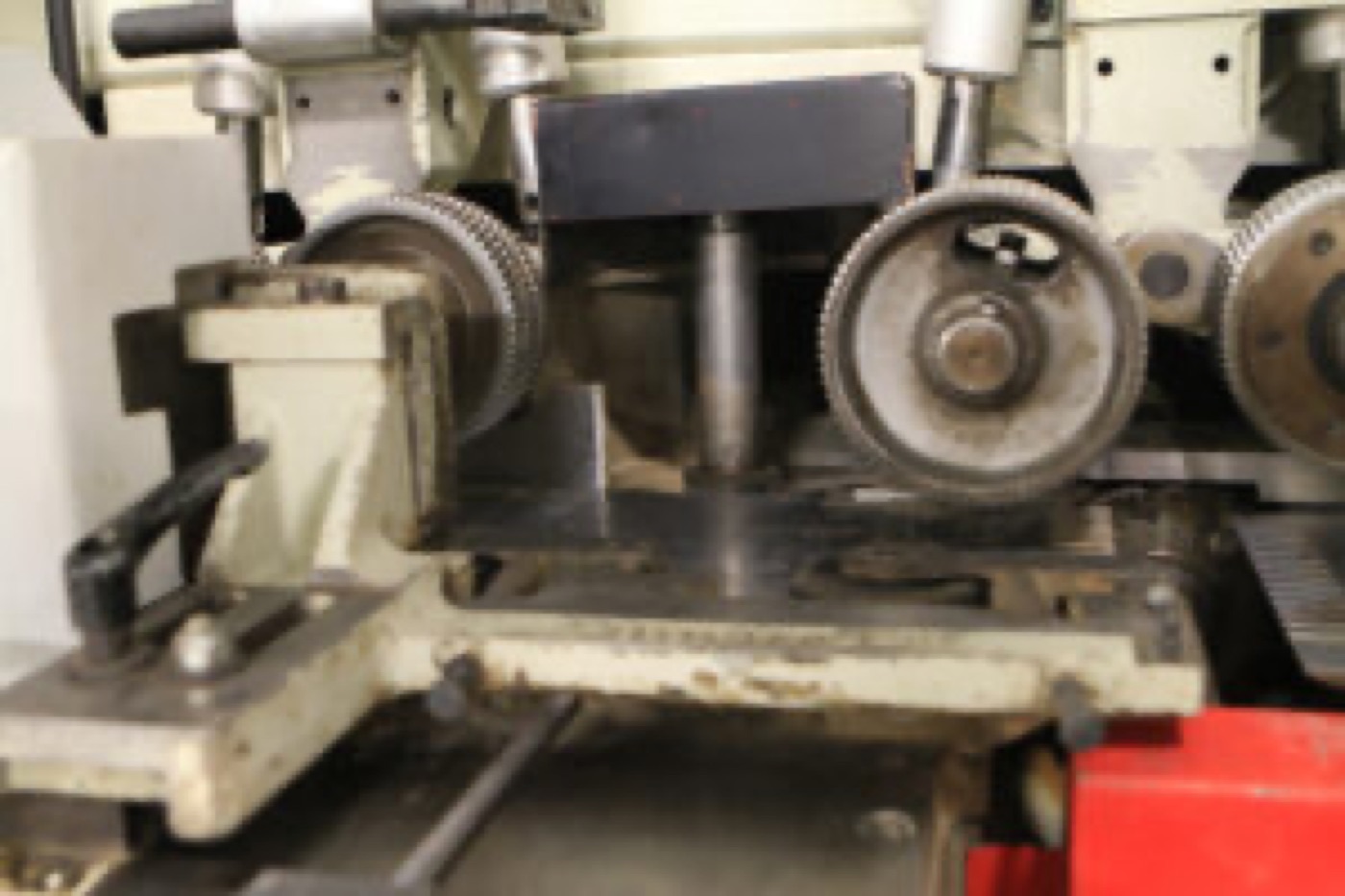

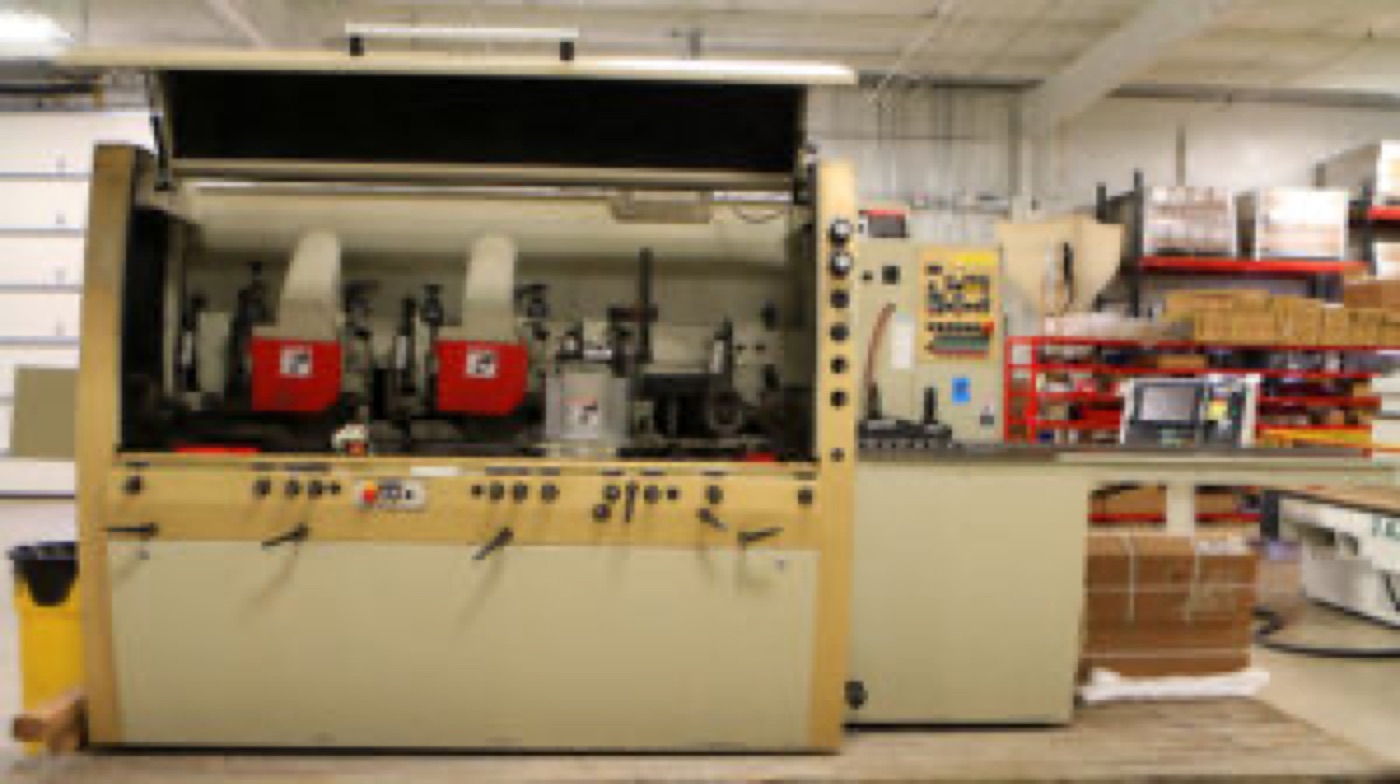

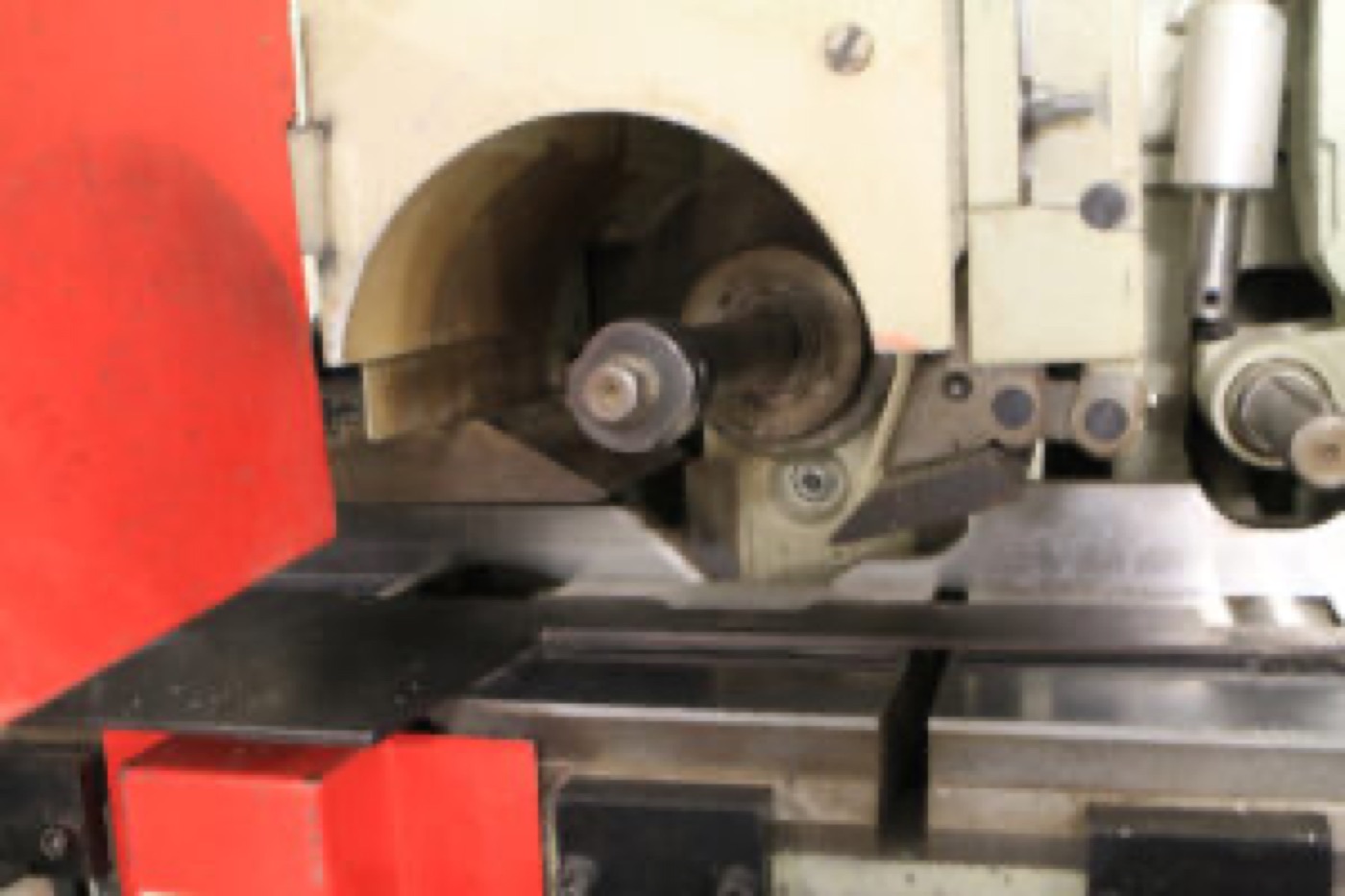

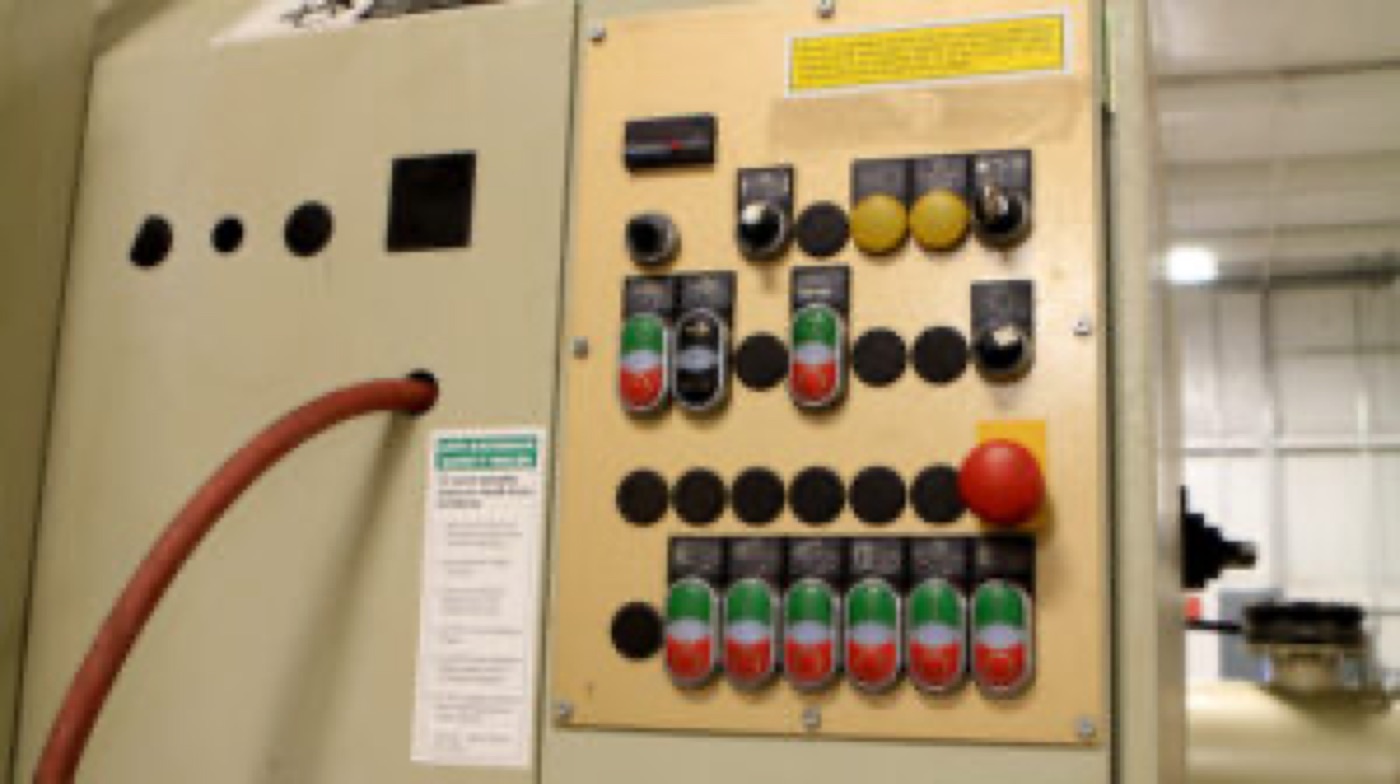

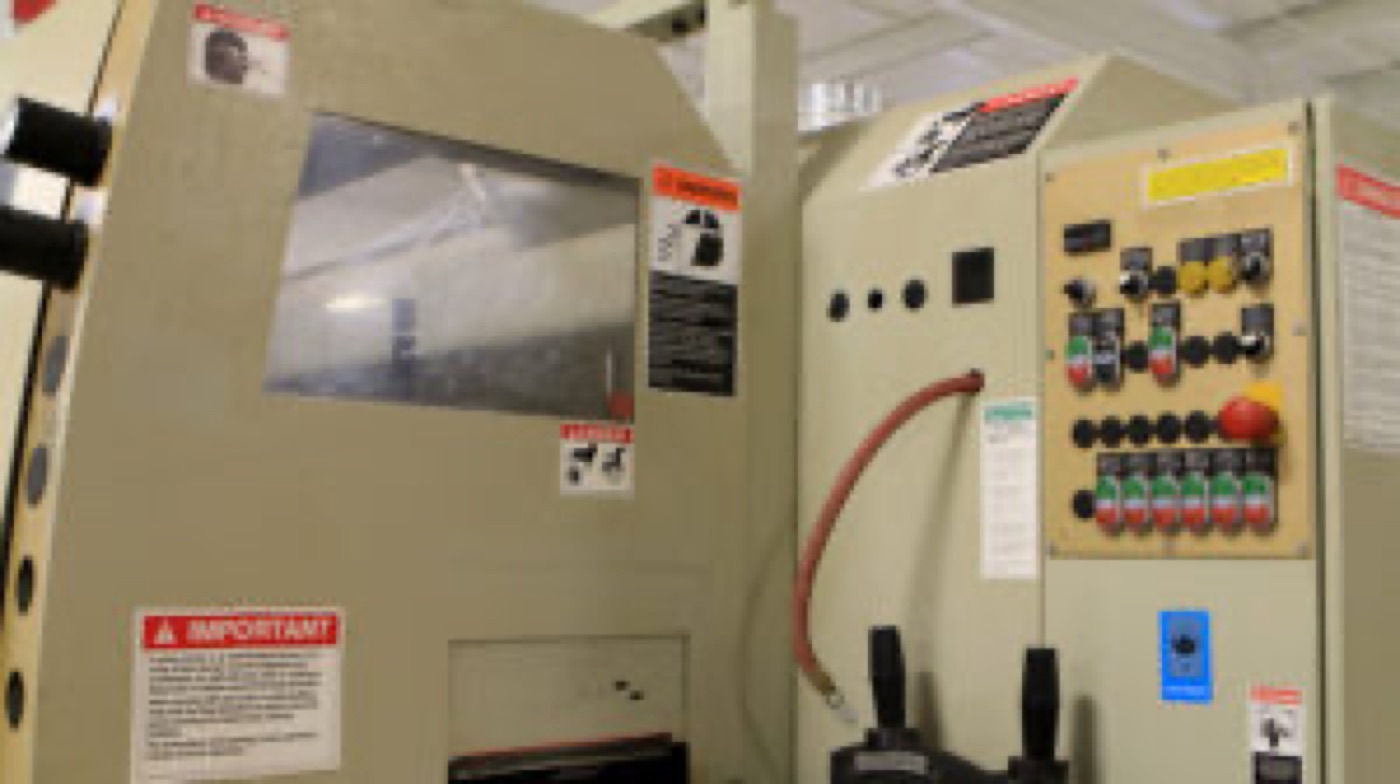

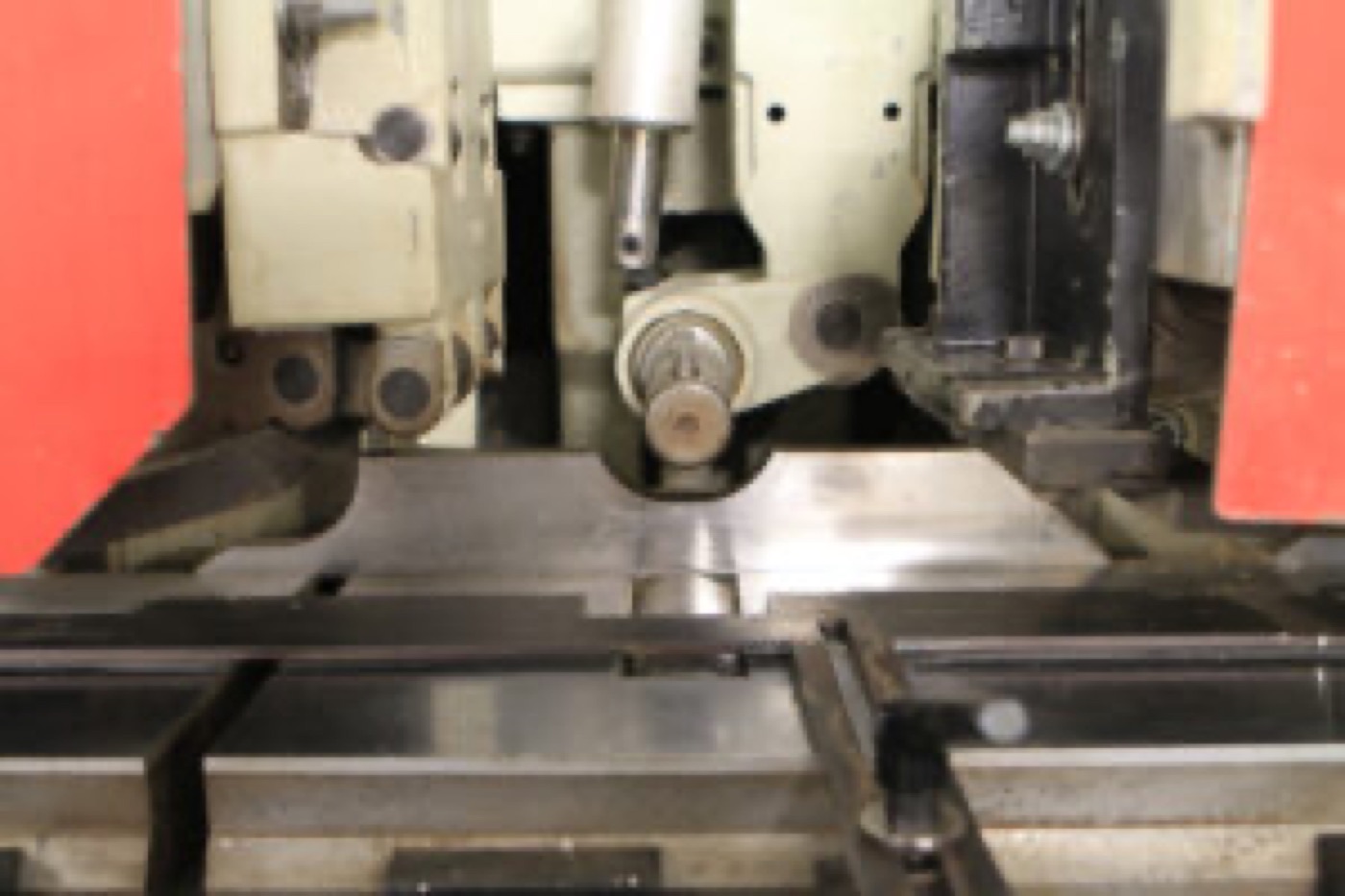

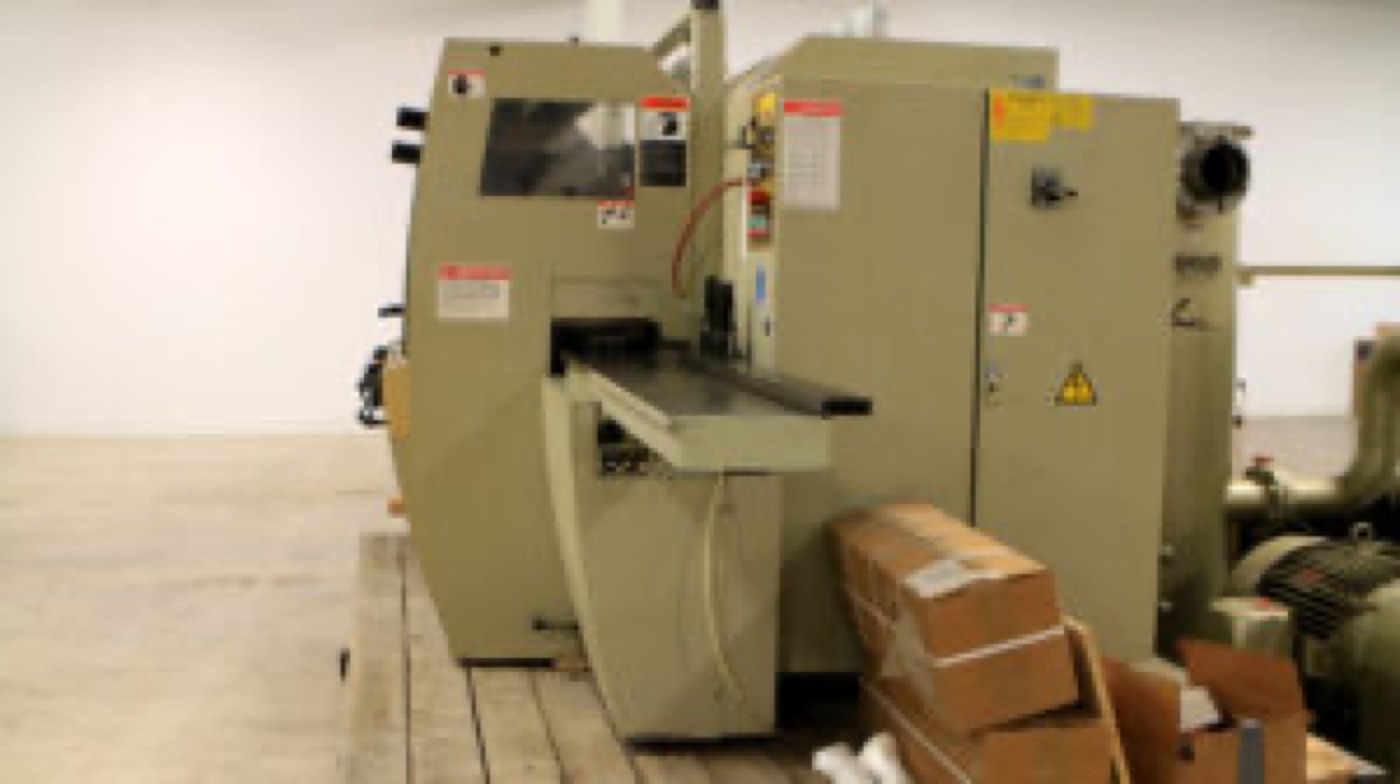

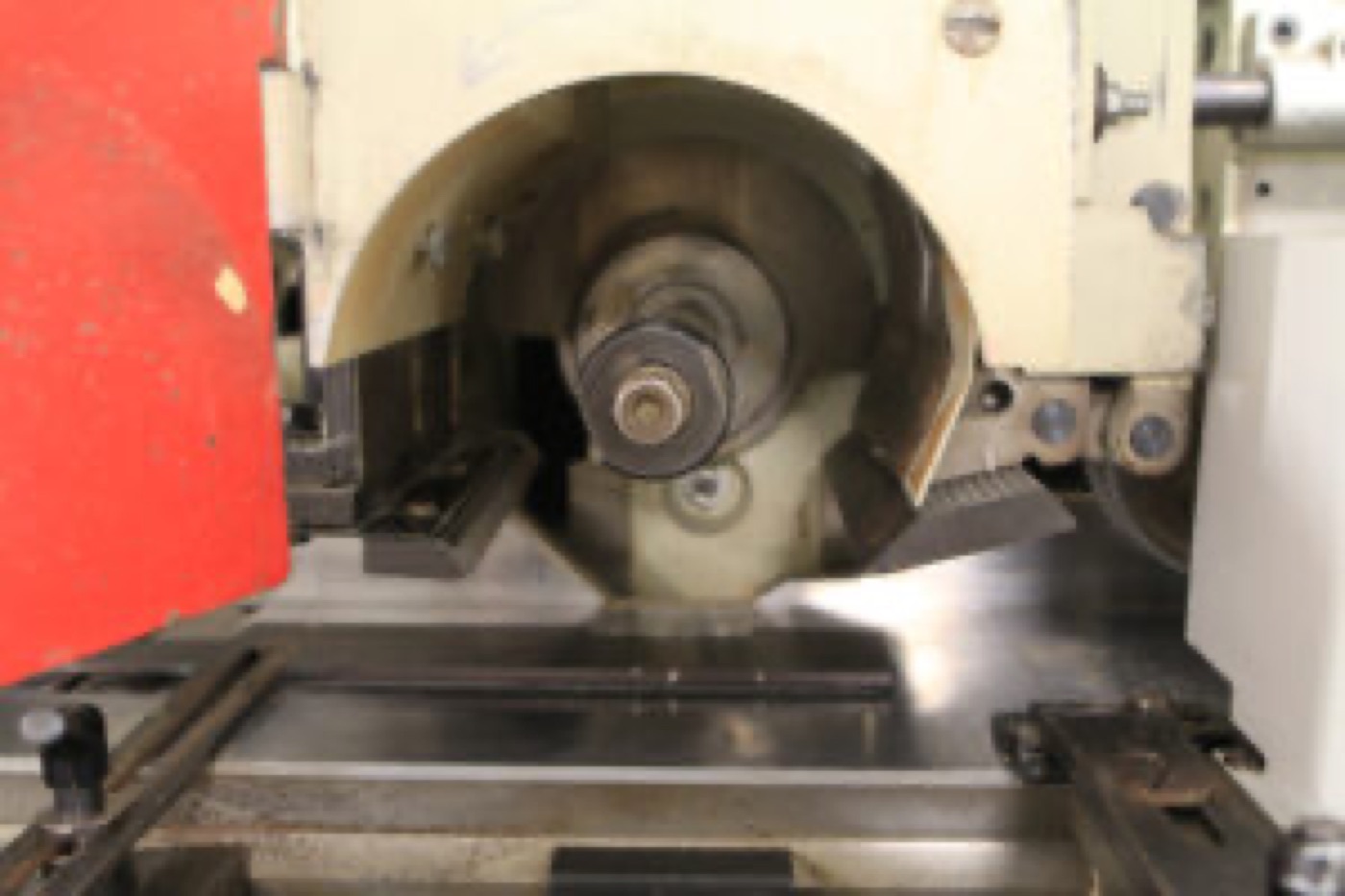

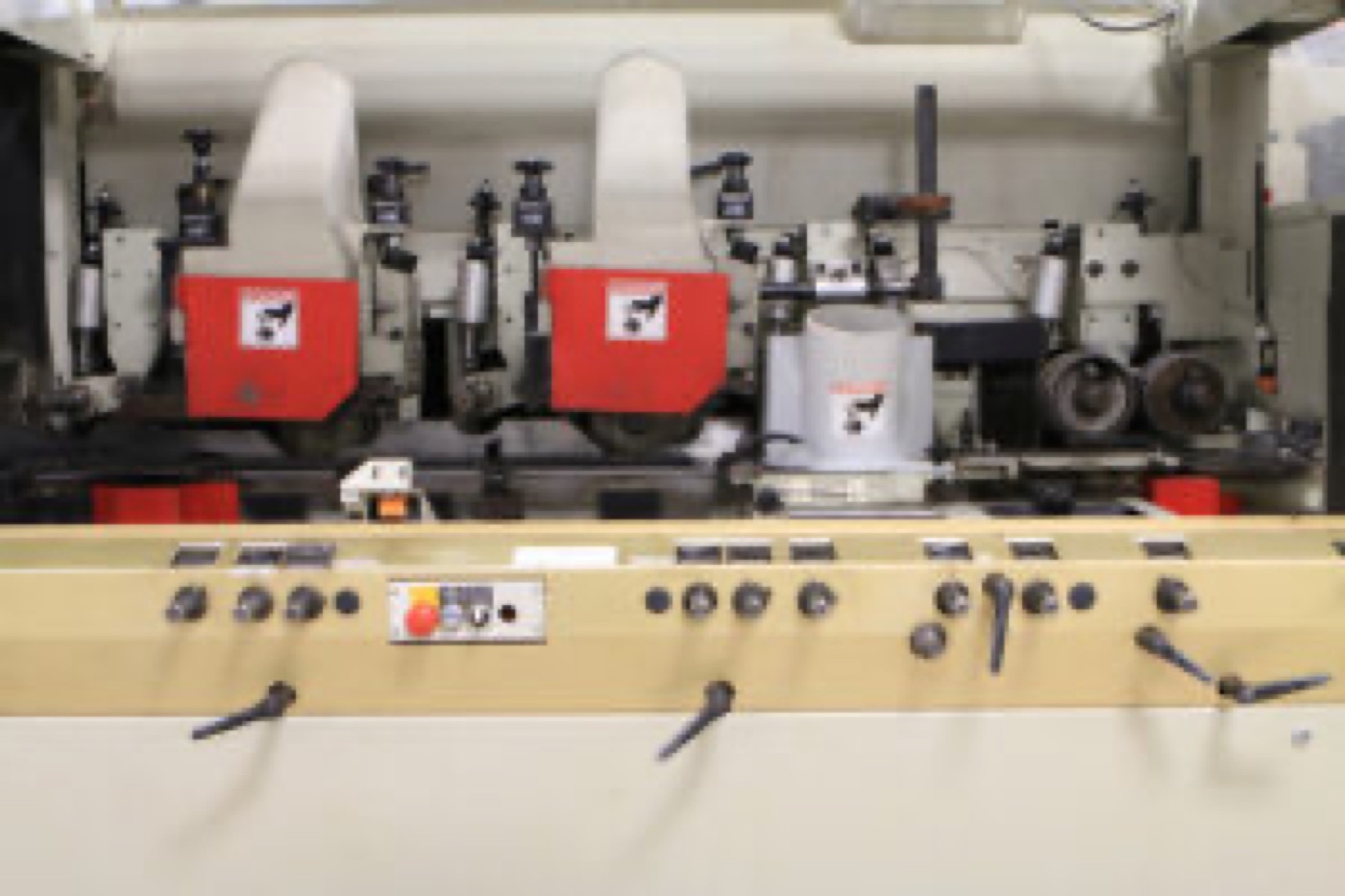

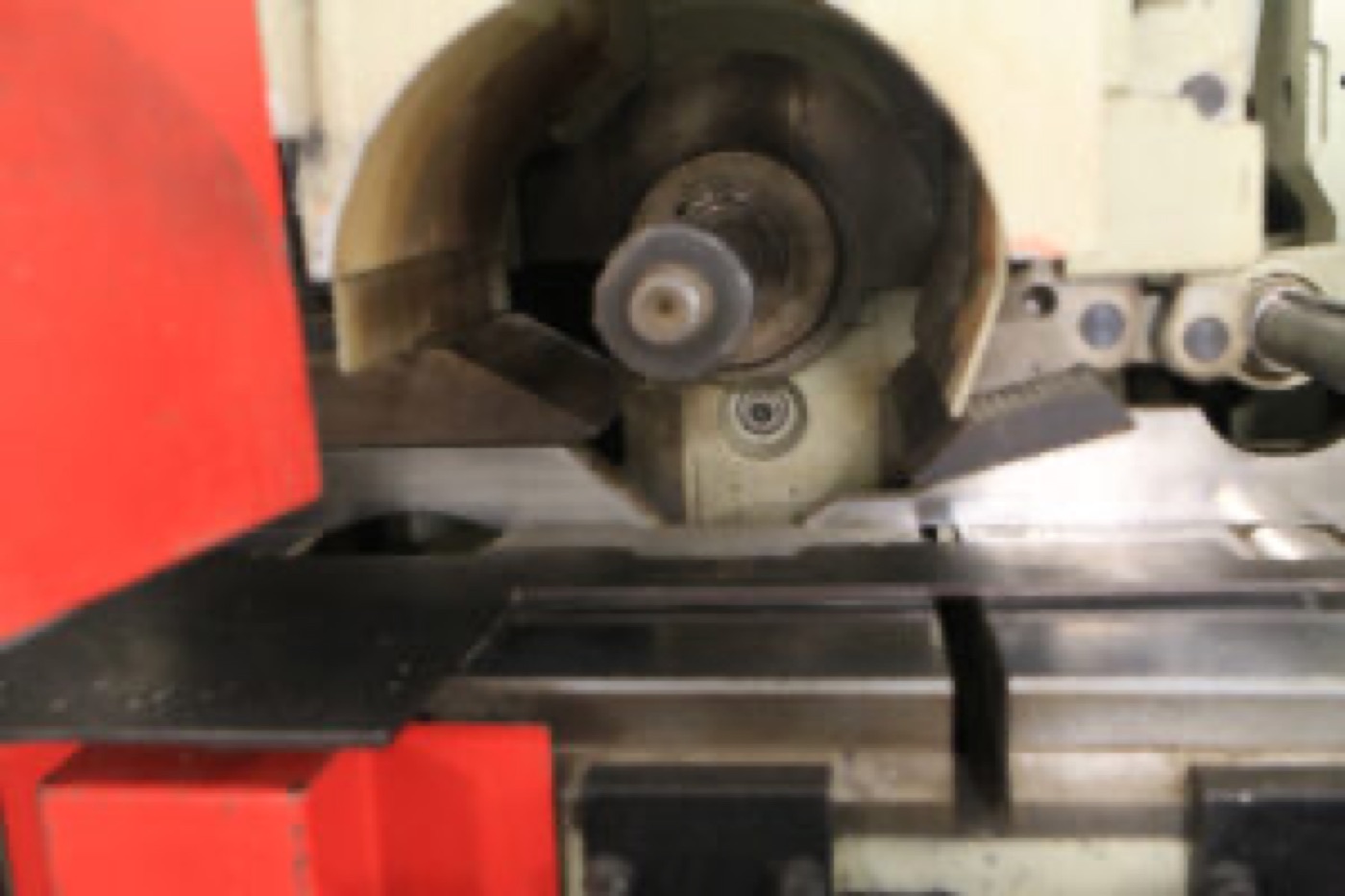

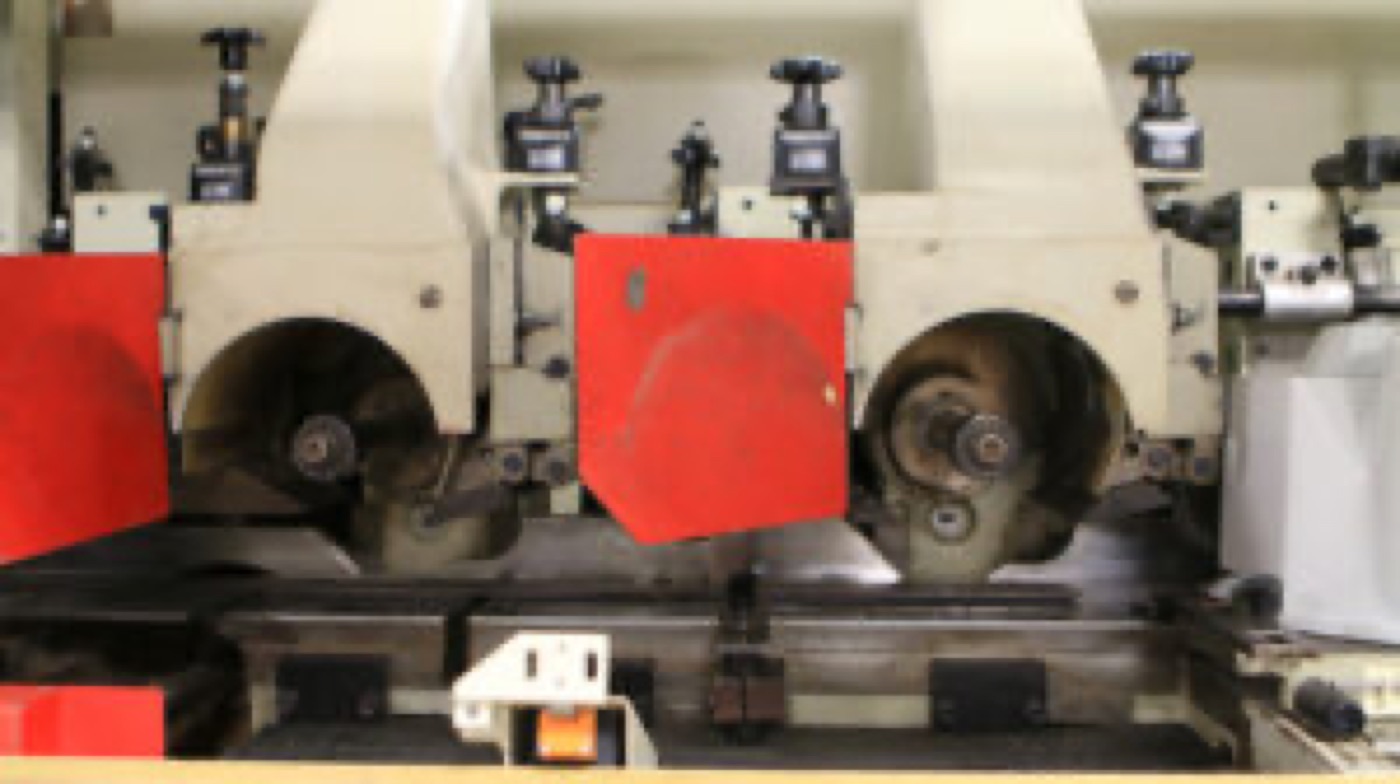

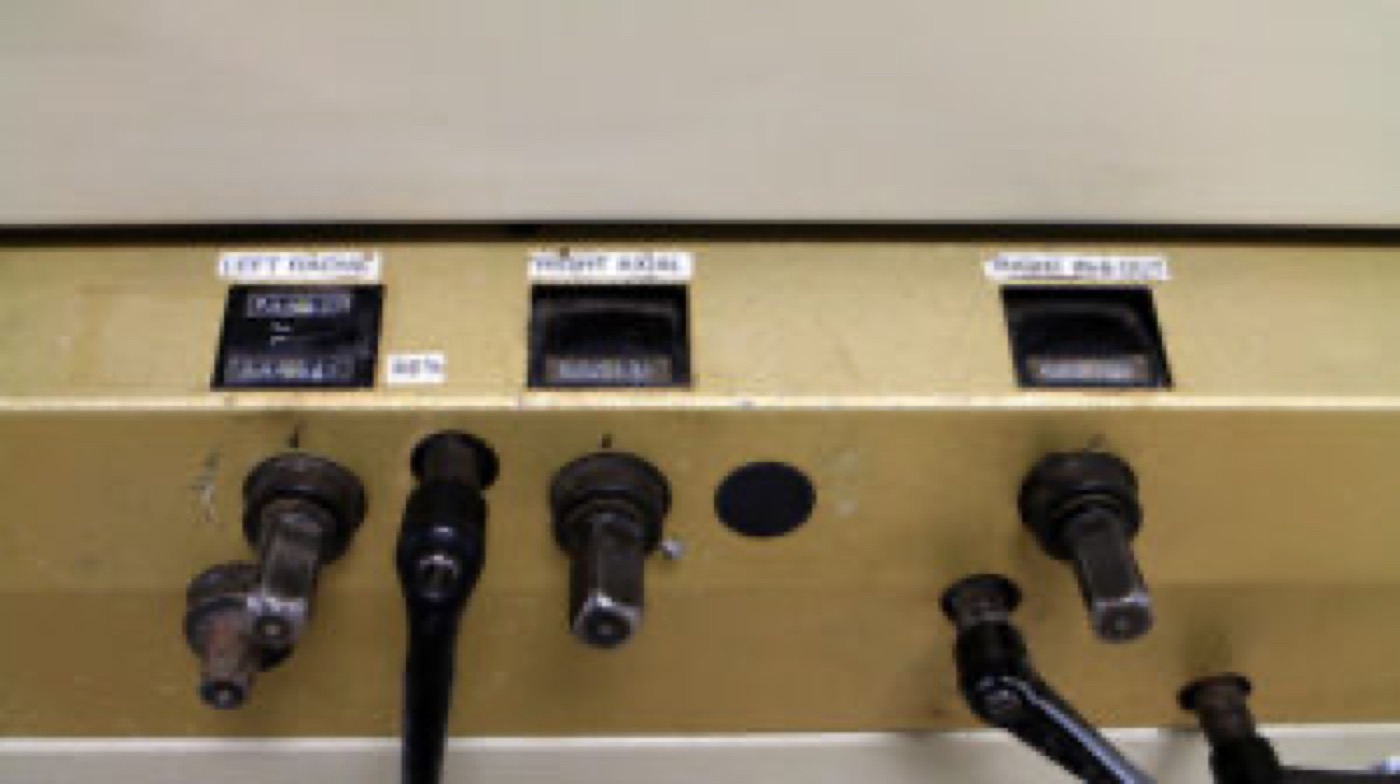

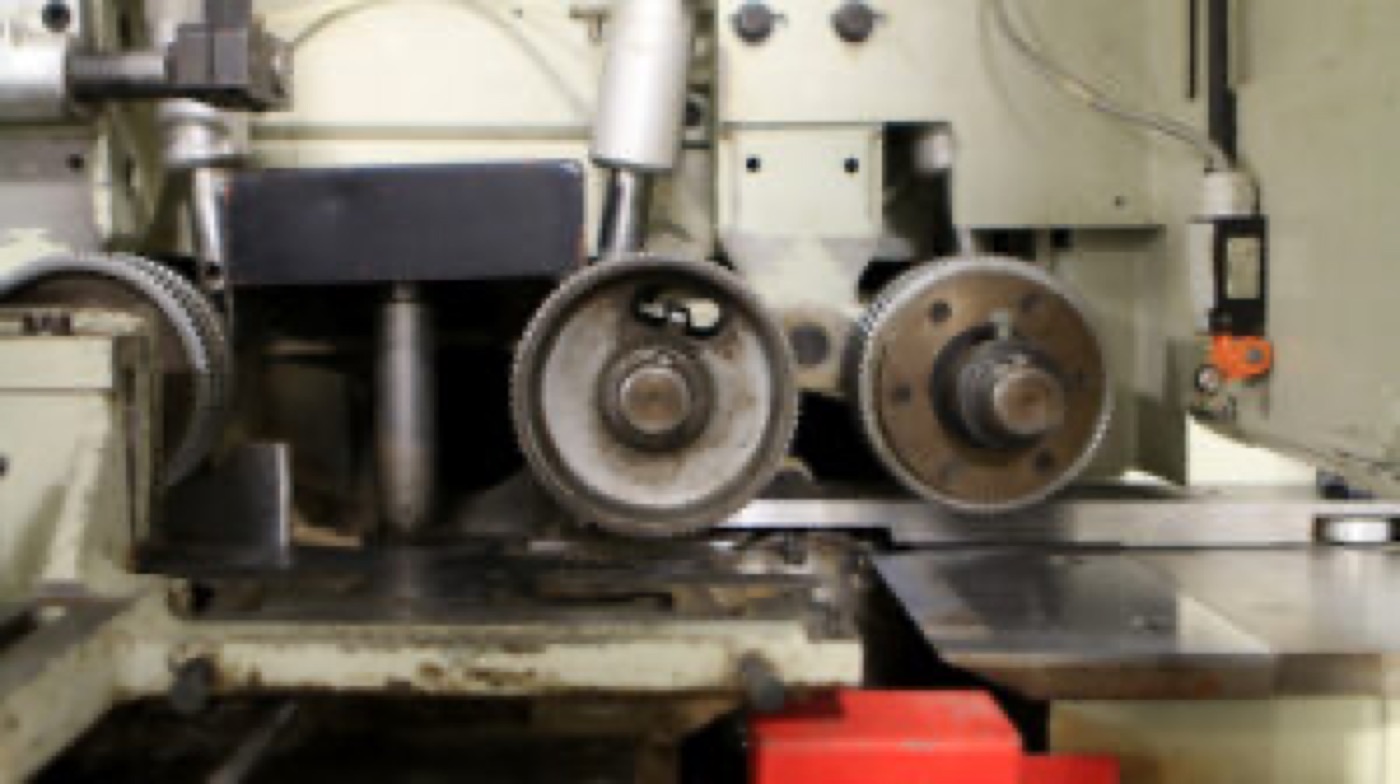

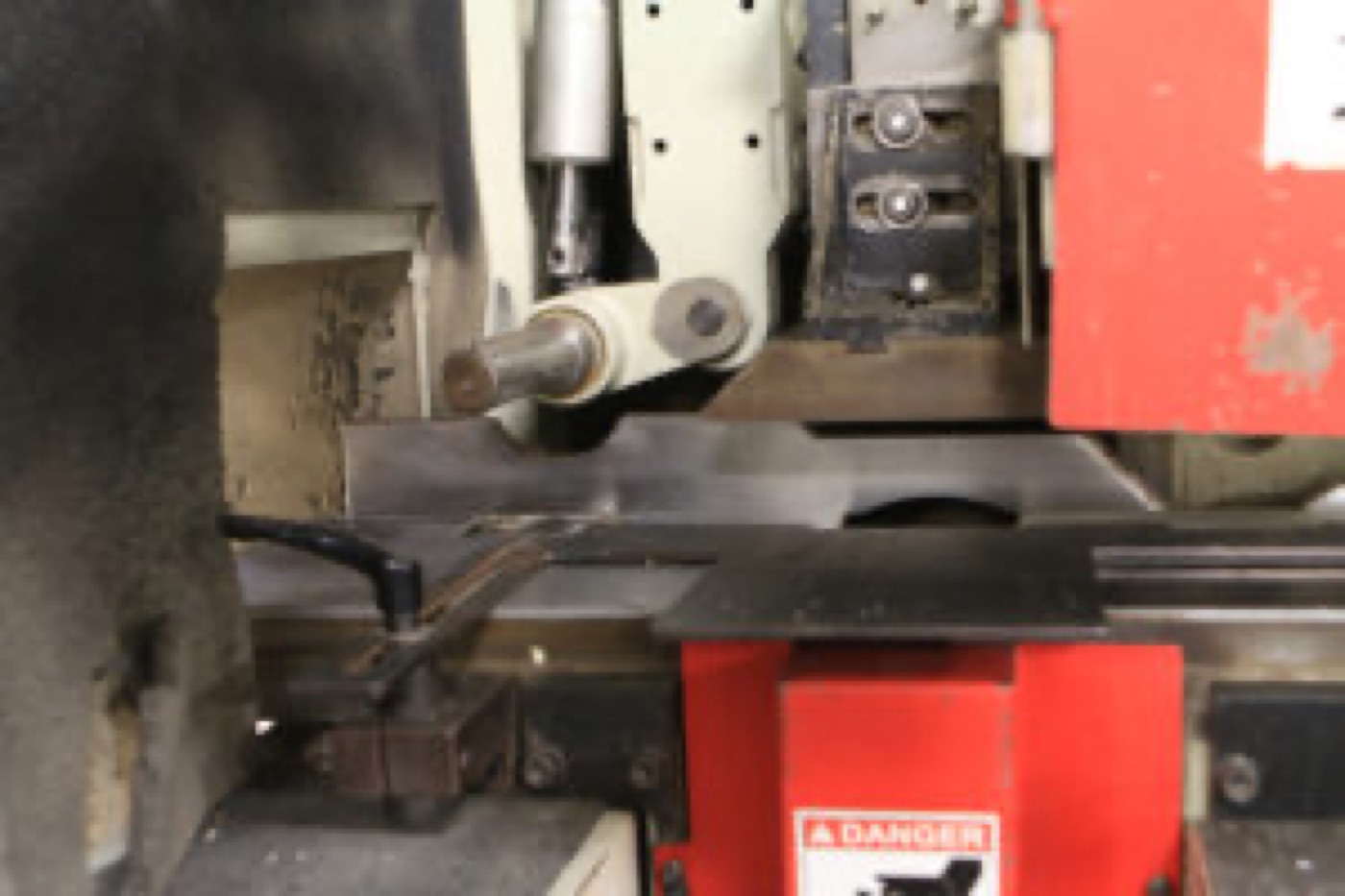

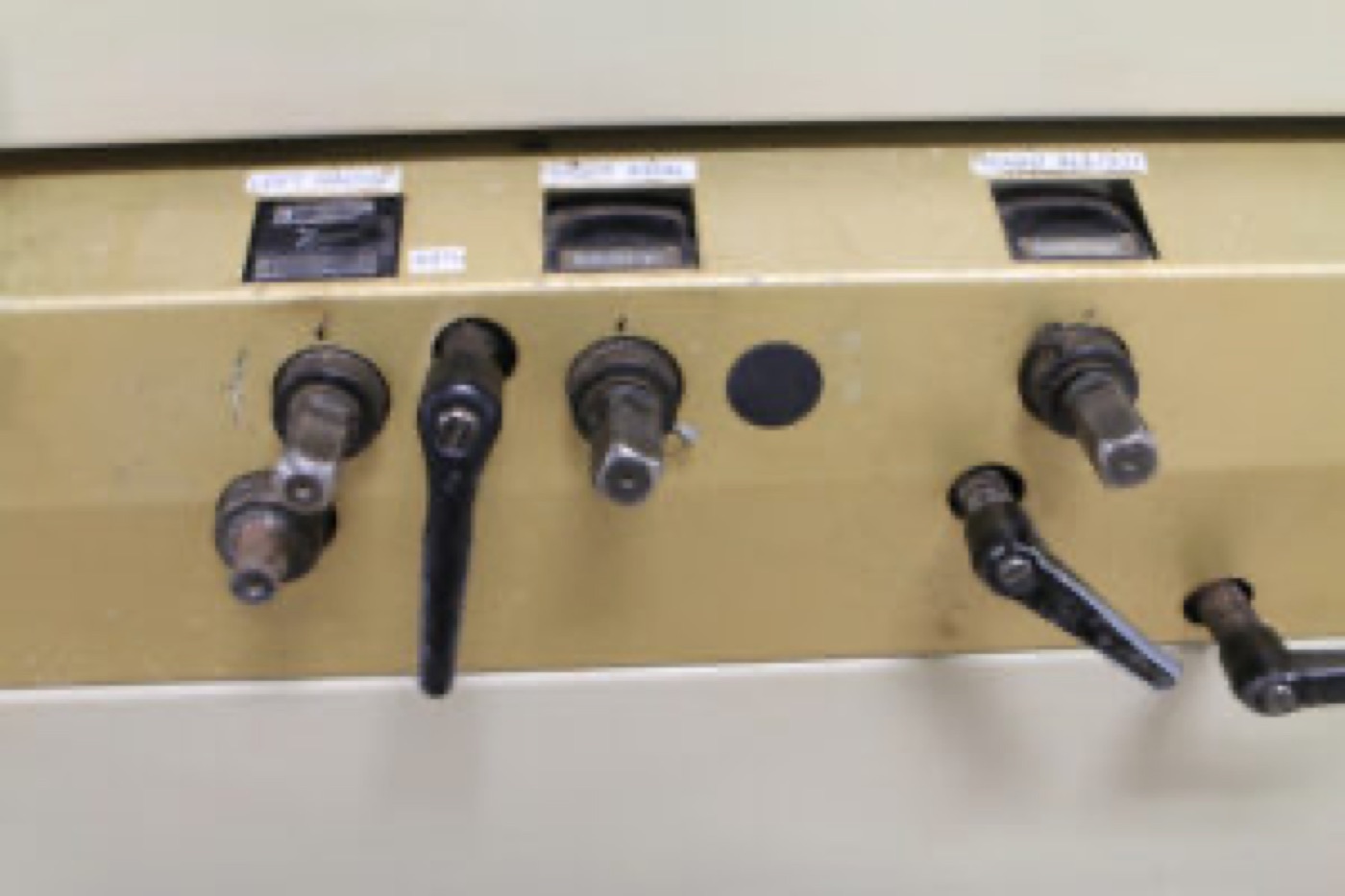

Inside the Unimat Gold with the hood open, showing two top spindles, a vertical spindle and feed rollers Unimat Gold adjustment shafts and position counters labeled 2nd top radial, 2nd top thickness and 2nd top axialUnimat Gold adjustment shafts, clamp levers and position counters for the left radial, right axial and right radial settingsVertical spindle and feed rollers inside the Unimat GoldCutterhead housings and red guards of the two top spindles on the Unimat GoldFront of the Unimat Gold with the hood open, showing spindles, guards and the adjustment panelKnurled feed rollers above the table of the Unimat GoldAnother view of the Unimat Gold feed rollers and tableFull front view of the Unimat Gold moulder with its hood raisedInfeed end of the Weinig Unimat Gold showing a dust hood outlet, in the Scarlett warehouseClose-up of the left radial, right axial and right radial position counters and adjustment shafts on the Unimat GoldUnimat Gold electrical control panel with spindle start and stop buttons and emergency stopAngled view of the Unimat Gold control panel and its spindle push buttonsEnd view of the Unimat Gold moulder with its electrical cabinet and dust portsOperator side of the Unimat Gold with sight window, safety labels and control panelMichael Weinig AG nameplate: model U-Gold, built 2004, 460 volts, 60 Hz, made in GermanyFront view of the Weinig Unimat Gold moulder on a palletAngled front view of the Weinig Unimat Gold moulder and its control stationWeinig Unimat Gold instruction manual included with the machineSide pressure roller and table fence near a bottom spindle on the Unimat GoldTop spindle inside its hood with the chip breaker shoe on the Unimat GoldClose-up of a top spindle shaft and hood above the table on the Unimat GoldSpindle shaft and pressure rollers above the chromed table plates on the Unimat GoldTop spindle and hood on the Unimat Gold, seen from the tableVertical spindle with its guard and feed rollers on the Unimat GoldKnurled feed rollers and a vertical spindle at the table fence on the Unimat Gold

PRICE $39,900 SOLD
