Used C.R. ONSRUD MODEL F122HD15 “Dual FIVE-AXIS Extreme Duty Series” CNC ROUTER

Used C.R. Onsrud F122HD15 dual five-axis CNC router with two spindle heads on a fixed bridge

Dual FIVE-AXIS Extreme Duty Series

(62"X122” axis travel) - with: Thick Cast-Iron Fixed Bridge & Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 3600" per minute machining speed, full 3-D capability, 10' x 15' footprint, precision ball- screw drives for ALL axes, precision linear guide ways, centralized lubrication system, Includes OSAI PC Front Series 10/510i - 6-axis CNC / PC Front Controller w/remote PC.

Includes Liquid Cooled, 4-Pole, 11Kw, 24HP – 22,000 RPM Spindle w/HSK-63 Spindle Taper. Fully programmable, variable speed, quick- change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, 12 TOOL – AUTOMATIC TOOL CHANGER with two (2) HSK tool holders included, TWIN ALUMINUM TABLES function as two independent 61" x 61" tables or can also operate in tandem as a single 122" x 61" table, with full table coverage

All tables include pressure sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable.

HSK-63 Spindle Taper & Tool Changer Adapter - This Upgrade from ISO-30 Taper Spindle & Tool Changers Provides up to 5 Times the clamping force, & allows the use of Router Tooling Weighing up to 2-1/2 Times the weight & measuring up to 2-1/2 Times the diameter

5-Axis Liquid Cooled Spindle Option – Adds a liquid cooling system & chiller in place of the standard fan & compressed air spindle cooling system. (Only recommended when machining mostly non- ferrous metals or when using 20HP spindles or larger)

High Speed – High Production - Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy

12 Tool – Dynamic Automatic Rotary Tool Changer Upgrade – Upgrade to Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. You may require C-Axis or Aggregate Tool Changer option to hold some larger or non-standard aggregates – (w/2 free HSK-63 tool holders)

Pneumatic Controlled Vacuum Switches – (One for each table or zone). Controlled via pull switches on AMCB&R equipped machines. Controlled via either touch screen or M-code on OSAI machines. OSAI 10/510i Machine Controller System Upgrade With Integrated PC Interface – OSAI Numerical Control with OSAI “Win-NBI” PC Interface, High-Res touch screen, network capability, plus adds Larger OSAI Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. Adds m- code controlled vacuum zones. Provided with 4-port network hub (requires 460V out isolation transformer) Includes HSM (High Speed Machining) Functionality & TCP (Tool Center Point)

LIST PRICE NEW: $380,000

PRICE $ 185,000

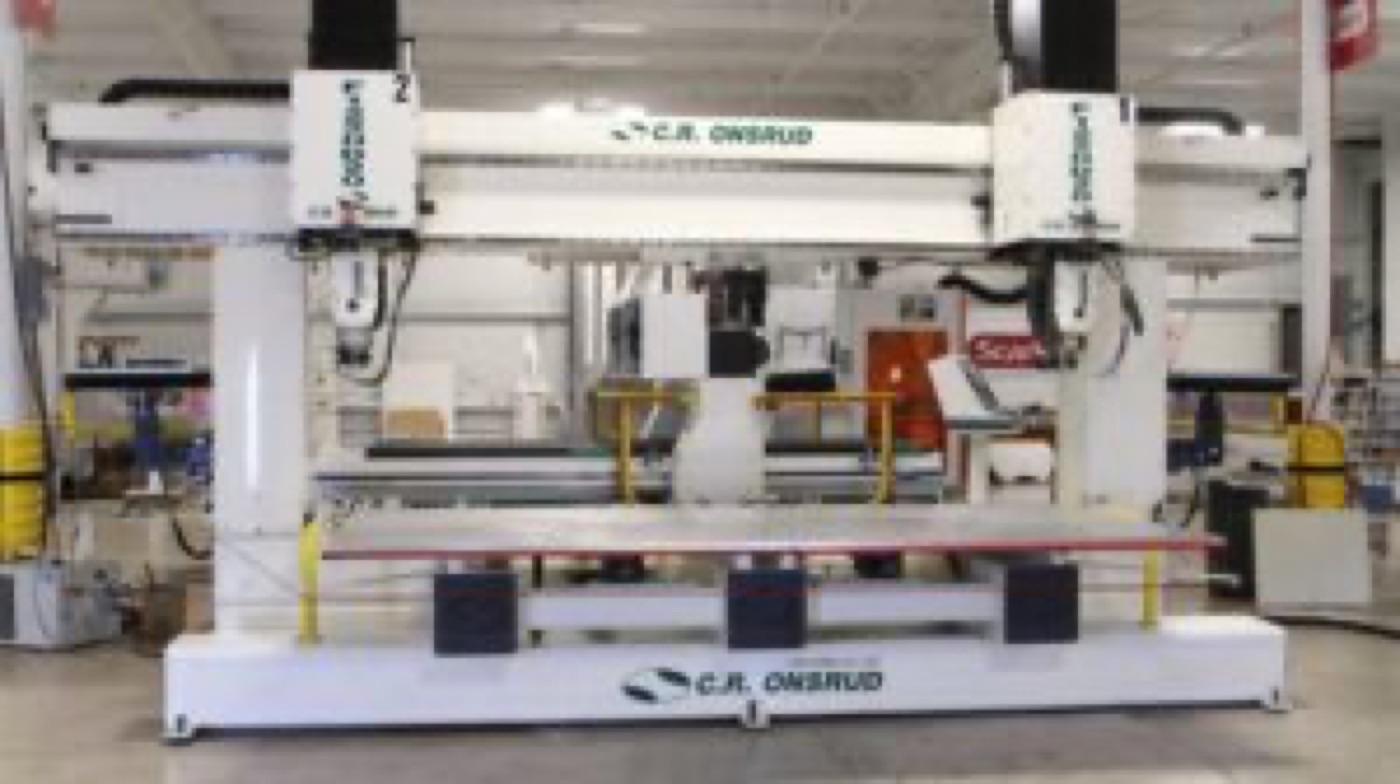

Front view of the C.R. Onsrud dual five-axis router showing both spindle heads and the twin table

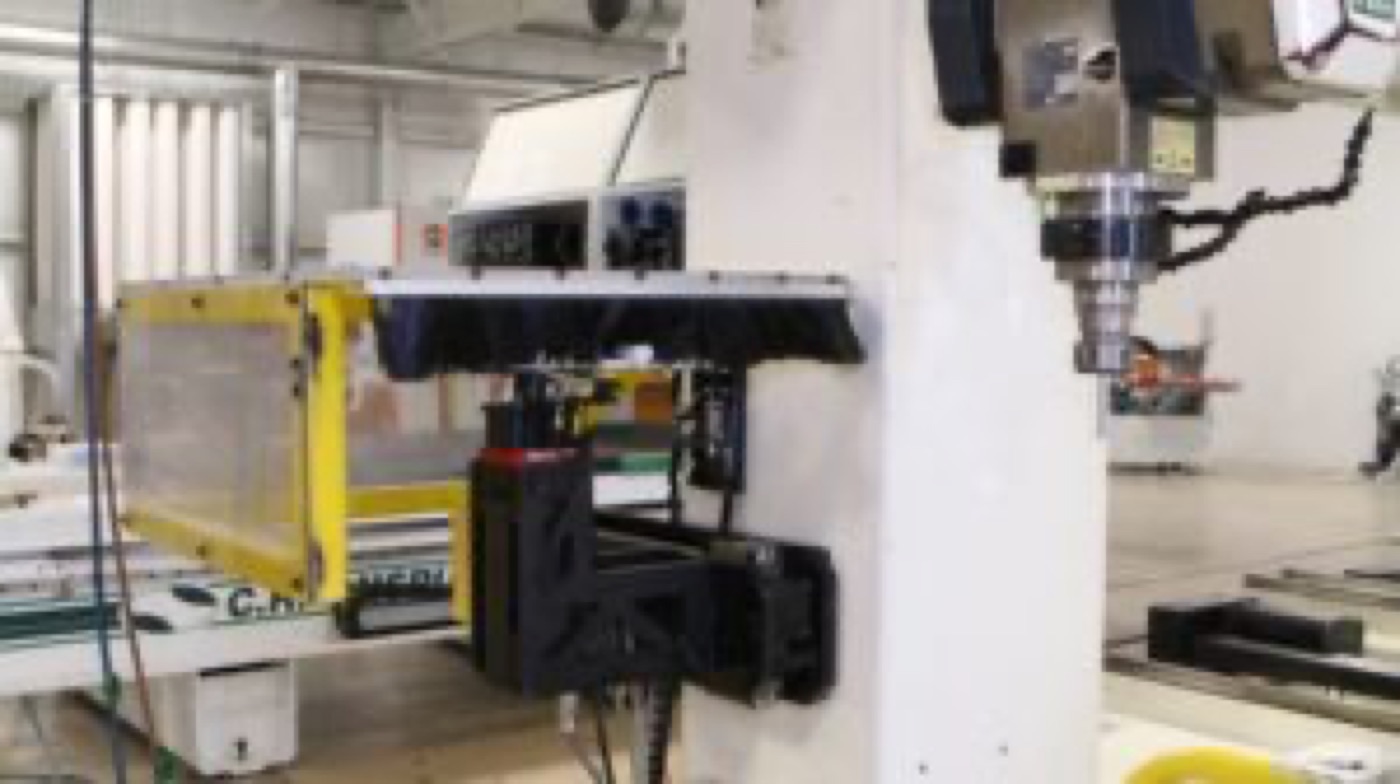

Tool changer station beside an HSK spindle on the C.R. Onsrud dual five-axis router

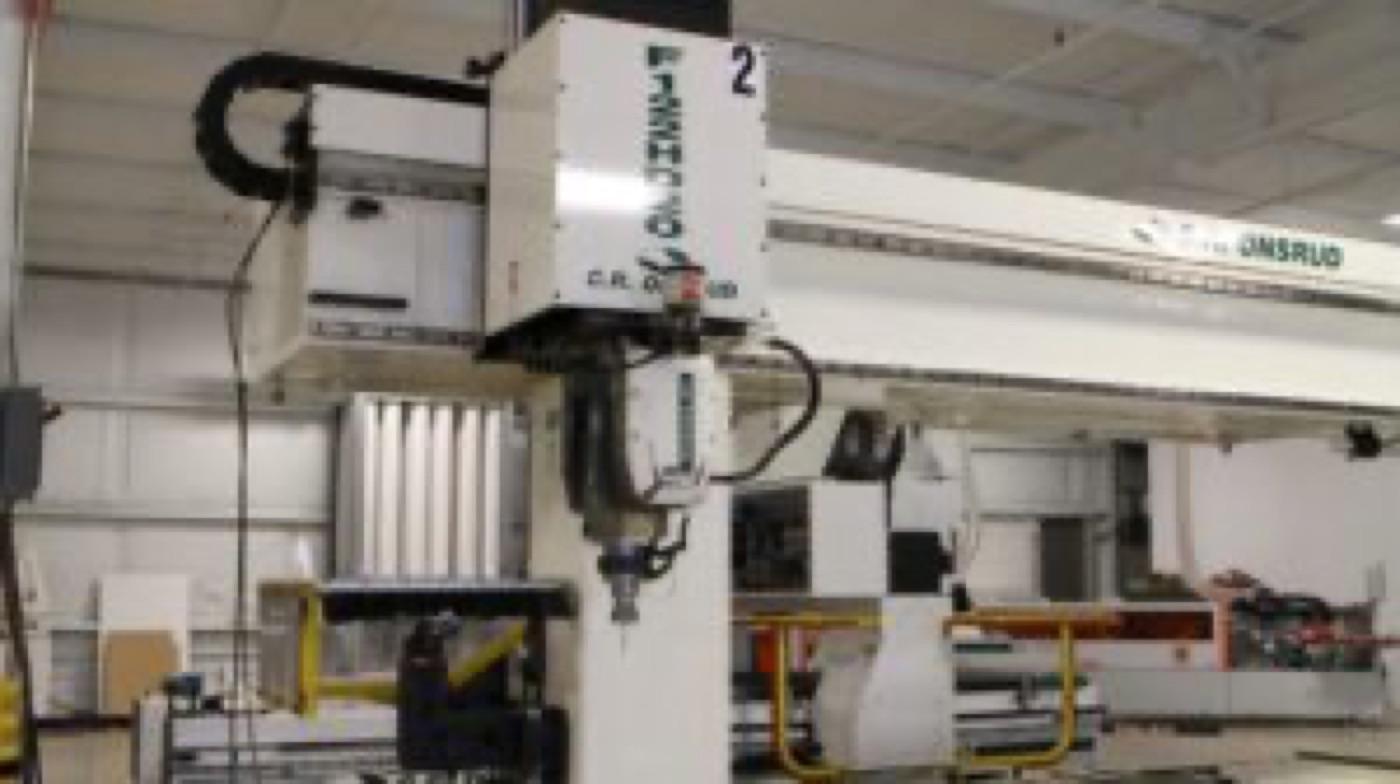

Spindle head 2 on the fixed bridge of the C.R. Onsrud dual five-axis router

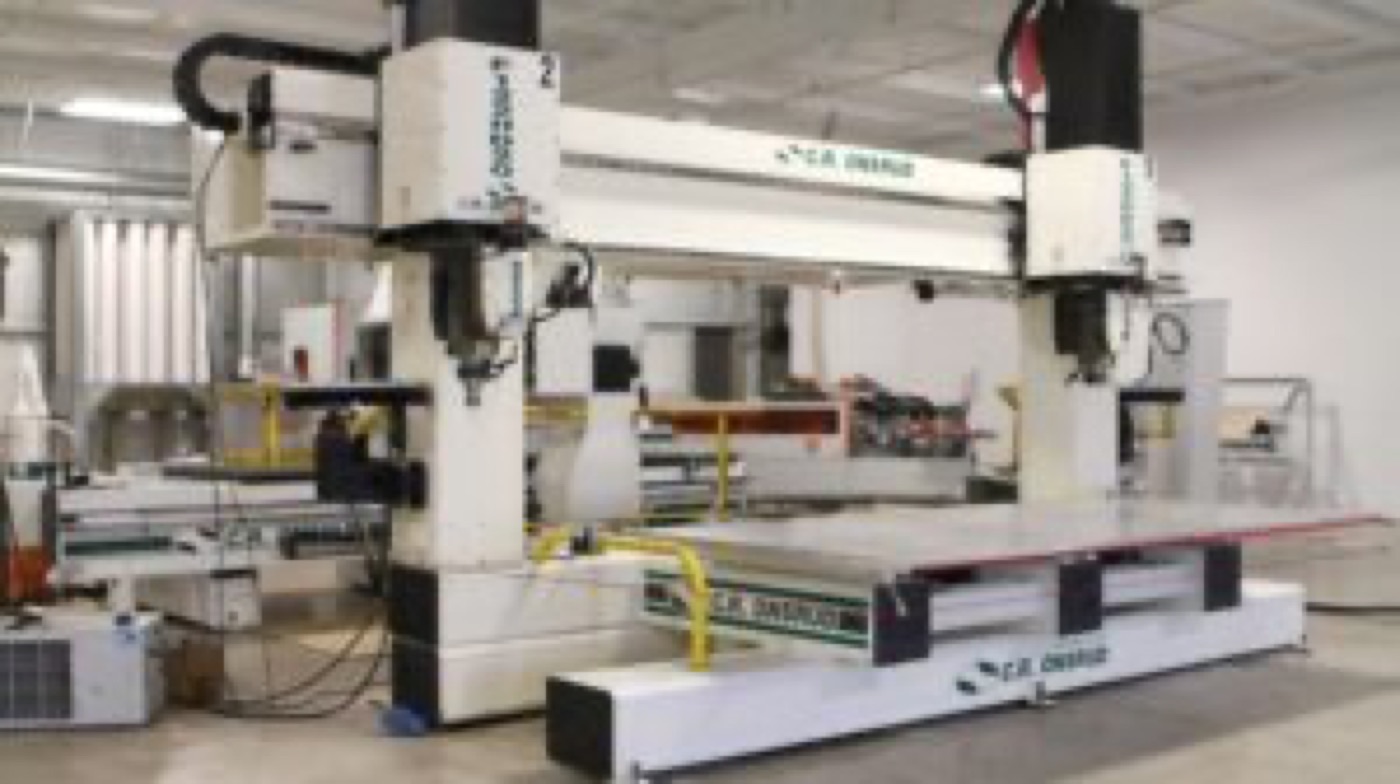

Angled view of the C.R. Onsrud dual five-axis router with both heads and the aluminum table

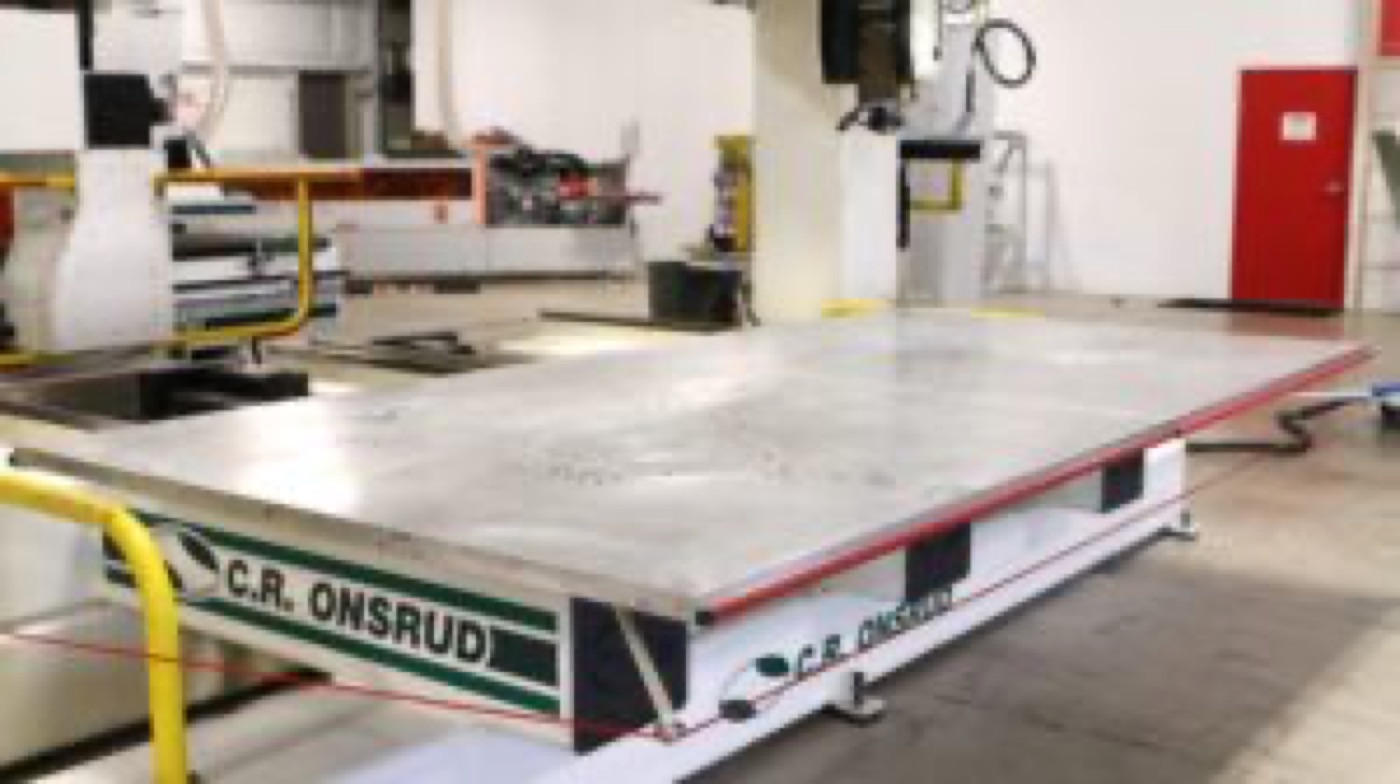

Aluminum moving table of the C.R. Onsrud router with a safety-stop bar along its edge

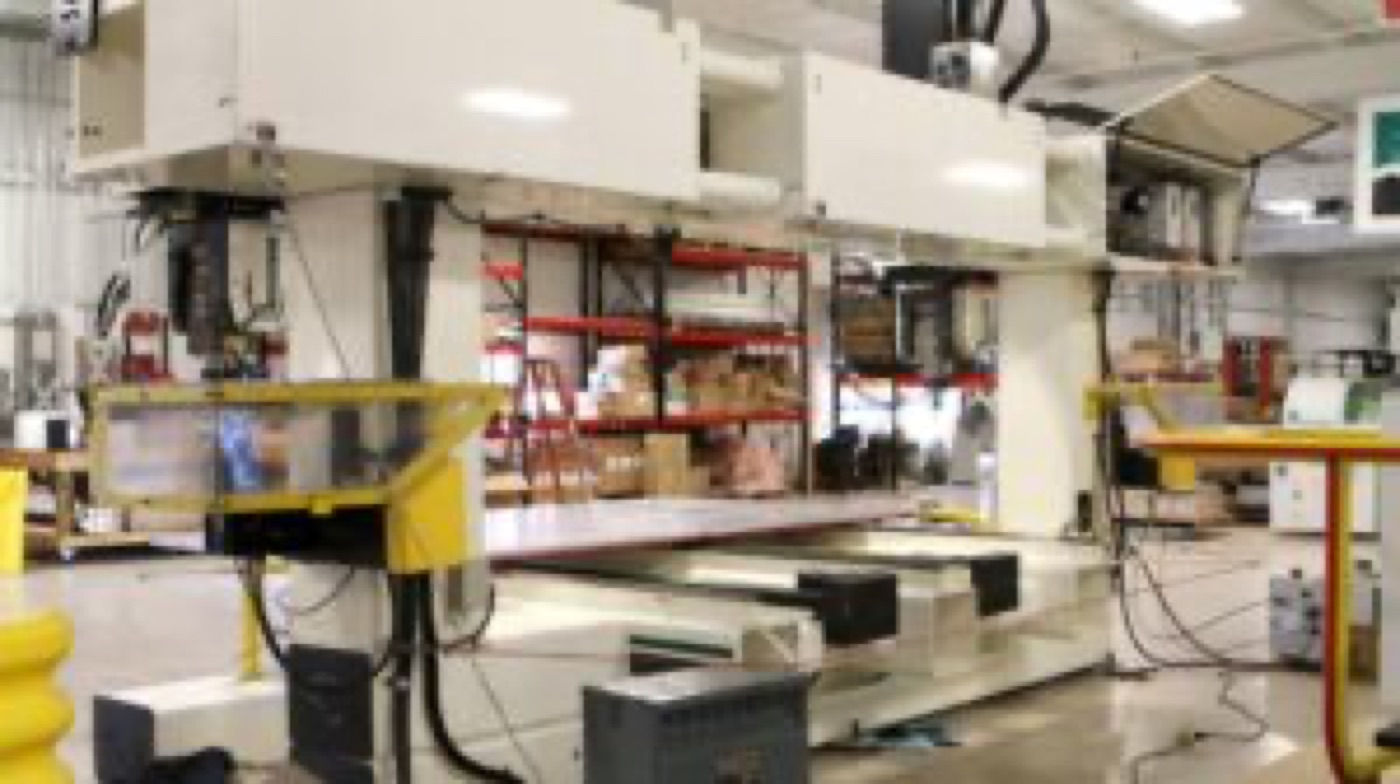

Side view of the C.R. Onsrud router showing the fixed bridge supports and twin tables

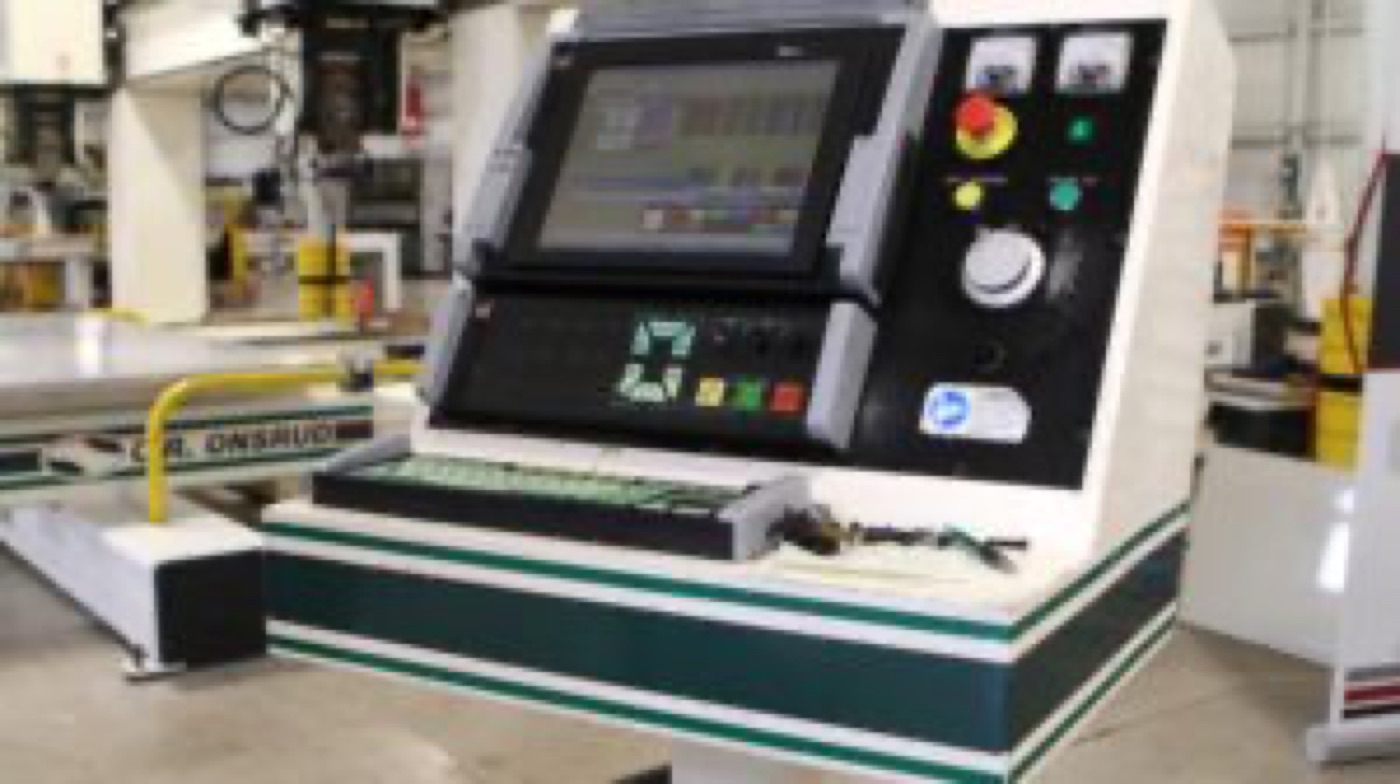

OSAI CNC control console with touch screen and keyboard for the C.R. Onsrud router

https://youtu.be/NKGaFithlTY

Dual FIVE-AXIS Extreme Duty Series

PRICE $ 185,000
