Used C.R. Onsrud Model 98C20HS CNC Router

C.R. ONSRUD MODEL 98C20HS “Super Duty Series” CNC ROUTER 2003

C.R. Onsrud 98C20HS Super Duty fixed-bridge CNC router with twin tables and control console in the Scarlett showroom

(60"X96” axis travel) - with: Oversized Extra Thick Cast-Iron Fixed Bridge & Oversized Extra Thick Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 3000" per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, OSAI Series 10/510i controller, 20HP – 24,000 RPM fully programmable, liquid cooled variable speed, quick-change spindle, capable of routing & drilling, programmable feed rates with override capability, 12 TOOL – AUTOMATIC TOOL CHANGER. TWIN ALUMINUM TABLES function as an independent 60” x 48" table and 60” x 48" table. Each table has low vacuum sensing safety shut-off with override capability. Twin Tables can also operate in tandem as a single 60" x 96" table, with full table coverage. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems. All tables include pressure sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable.

This CNC Router package included the following items: - 5’ x 8’ table with 5’ x 4’ & 5’ x 4’ split for pendulum processing

- OSAI PC Front Series 10/510i System – OSAI PC Front w/High Res touch screen, network capability, PLC Machine Controller, plus adds OSAI Digital Drives, Amps, and Servos - Windows 7 Operating system upgrade - 20 HP Spindle Liquid cooled w/HSK-63F Spindle Taper - Columbo Spindle - 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled - Automatic Aggregate Tool Changer & Aggregate Capability – makes machine aggregate capable - No C-axis, so you can’t rotate the aggravation tool, but it can be used in a fixed position. - Onsrud / NEMI High-Precision Vacuum Grid Table - Vac pump not included - Replacement cost for a new machine is $155k

This is where the machine is located... 4355 Airwest Drive SE Grand Rapids, Michigan 49512 T 616.871.9889 F 616.871.9879 sales@scarlettinc.com

PRICE $94,900

https://youtu.be/Ob9GP75R4FU

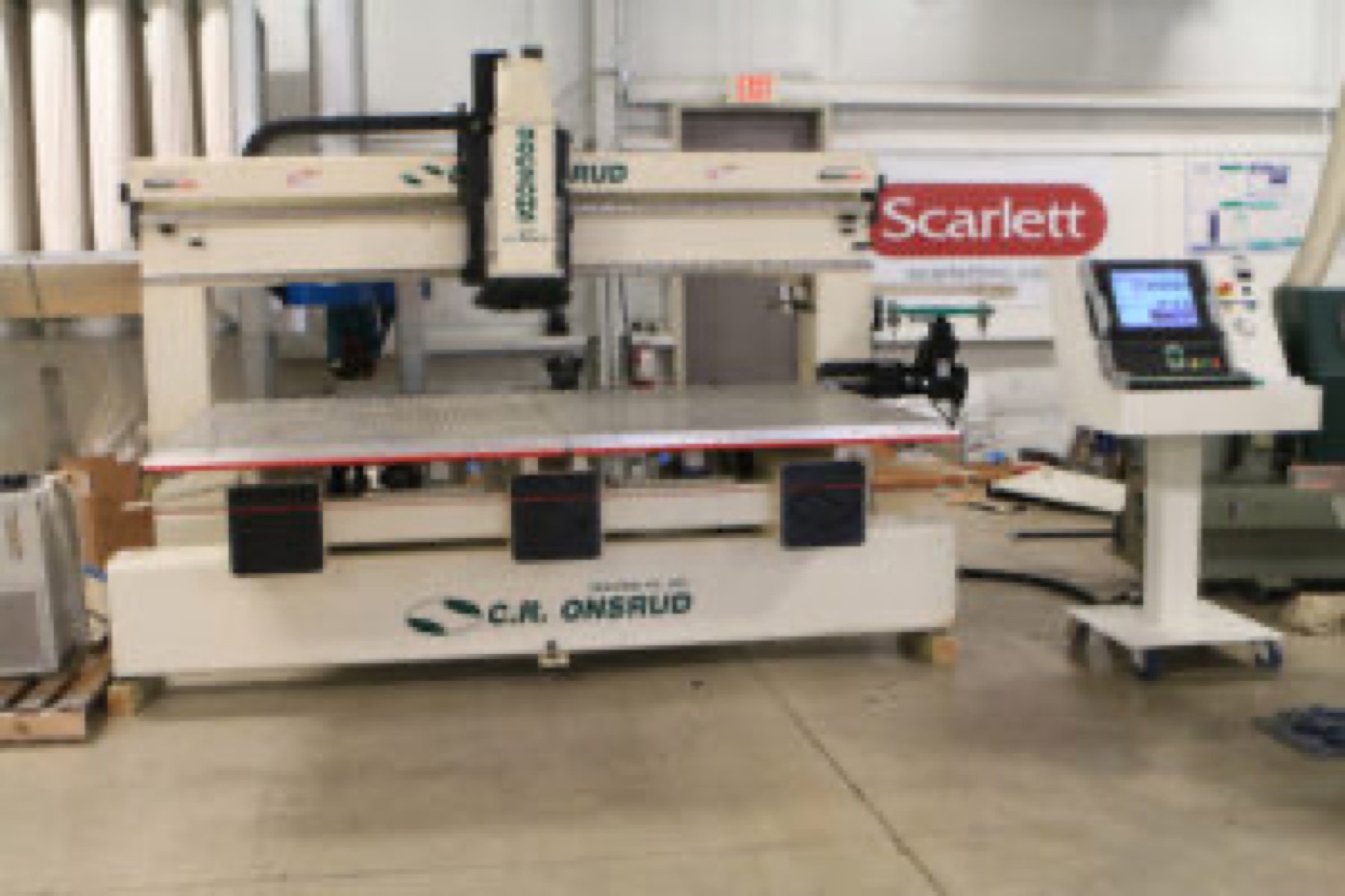

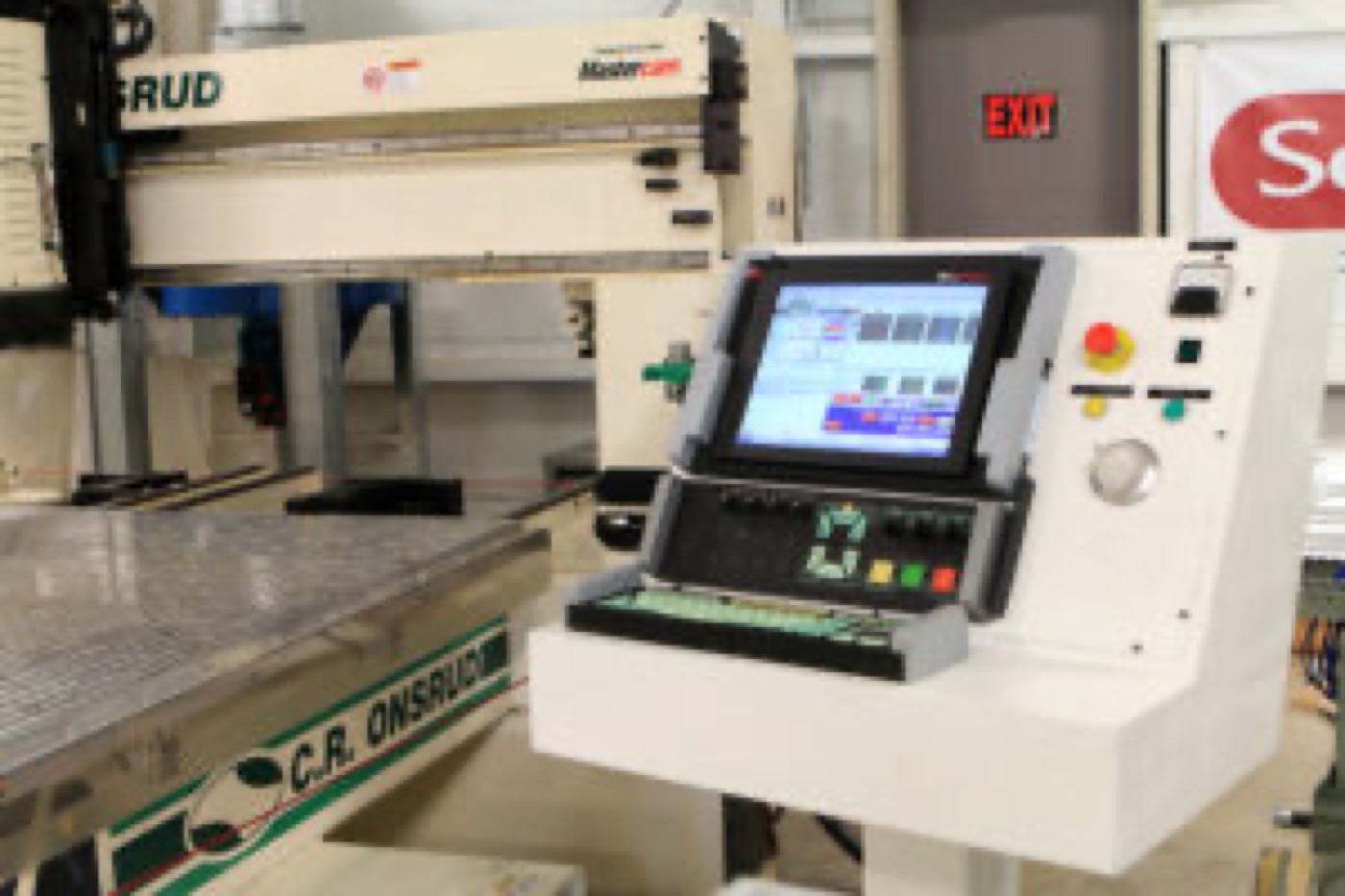

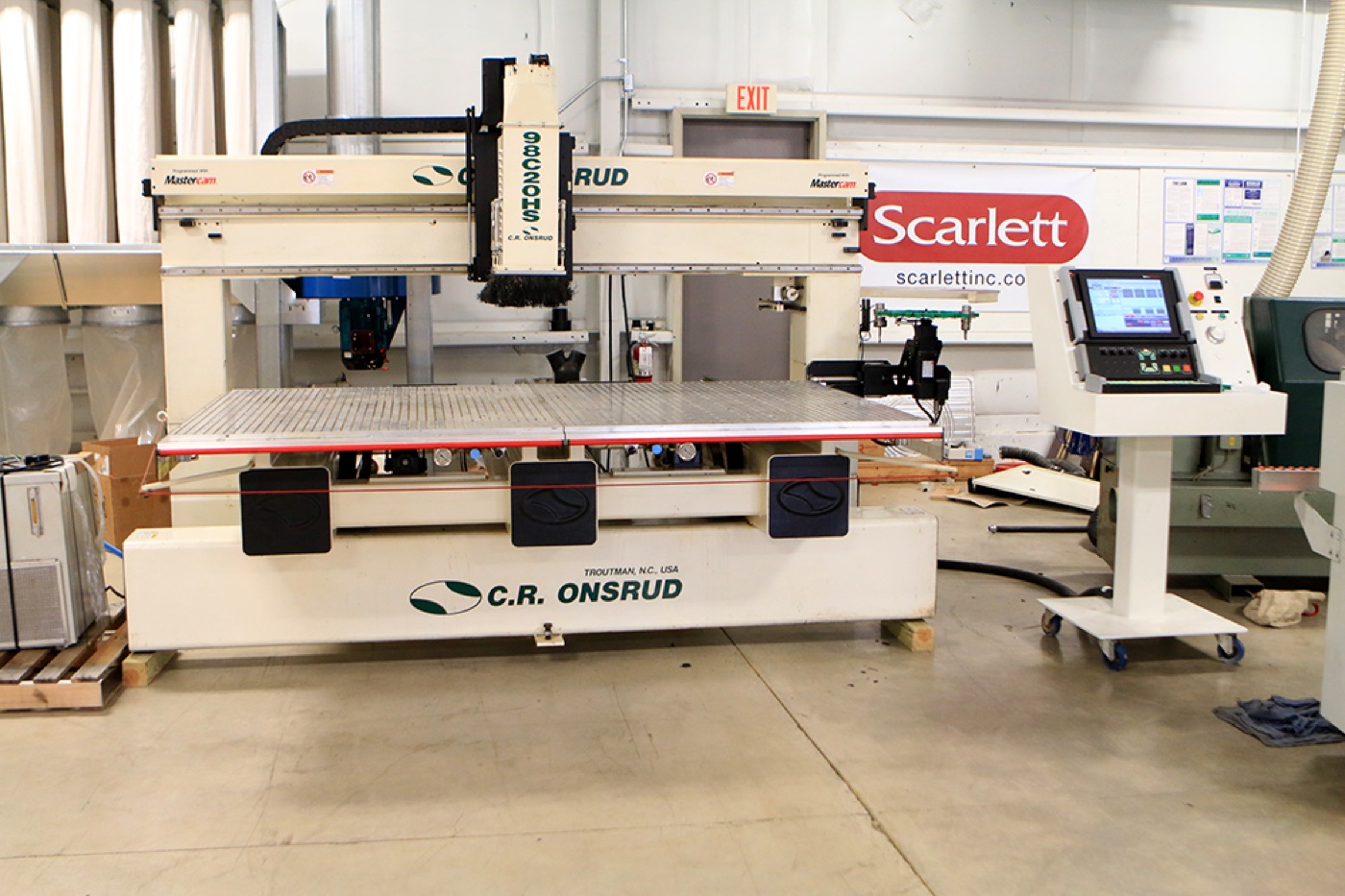

Front view of the C.R. Onsrud 98C20HS CNC router beside its control console

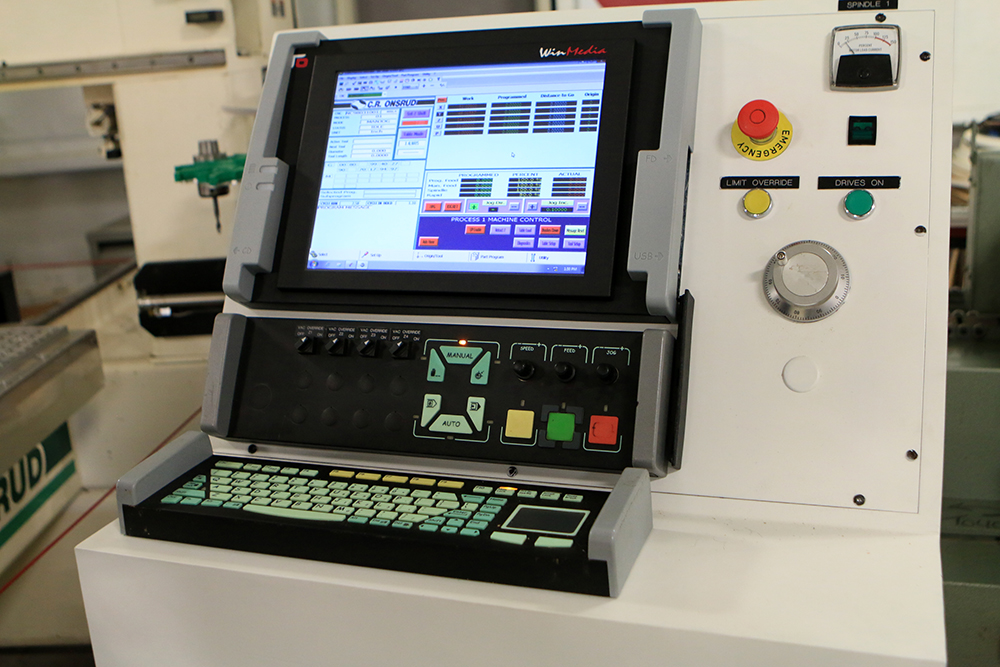

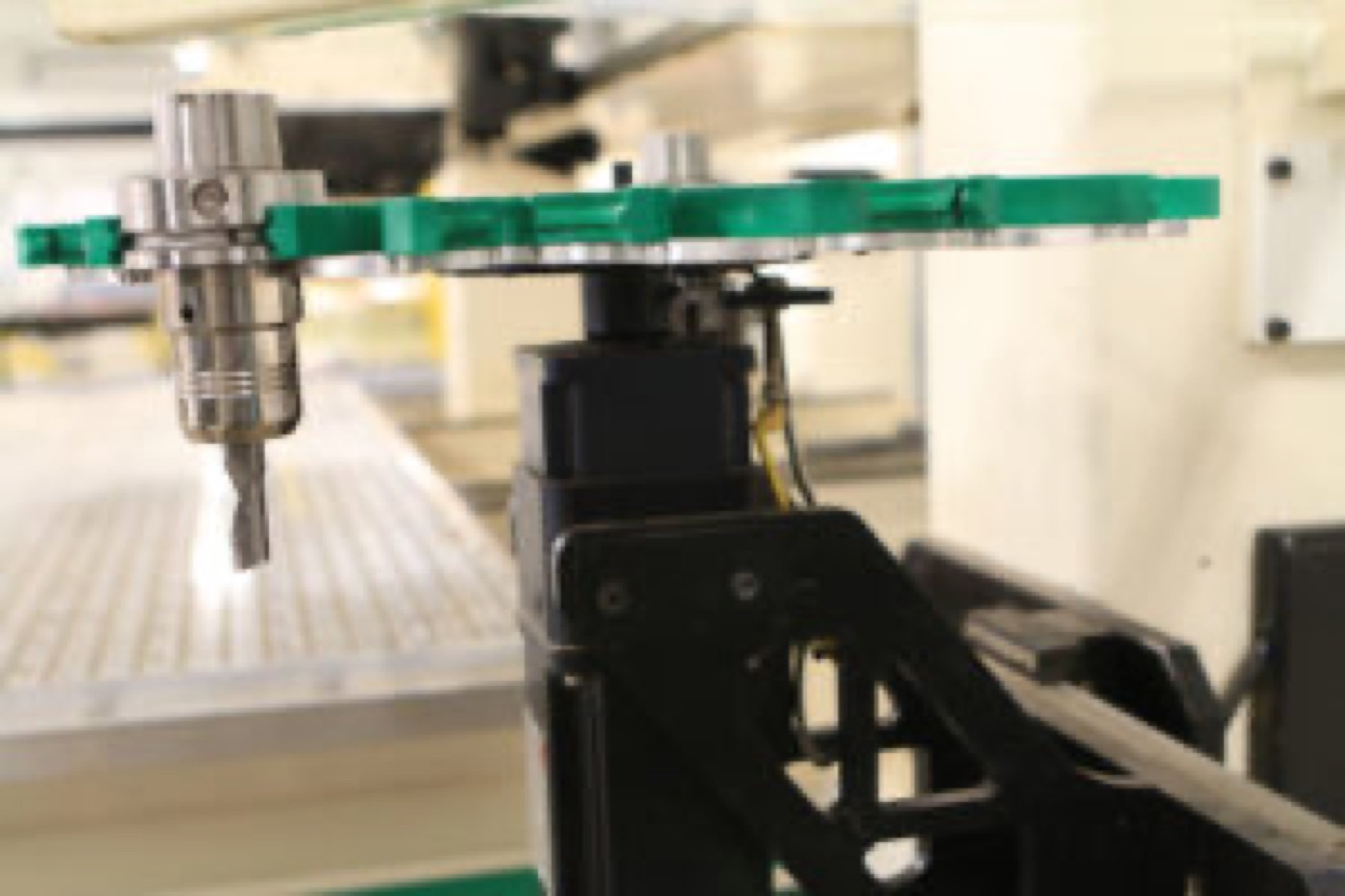

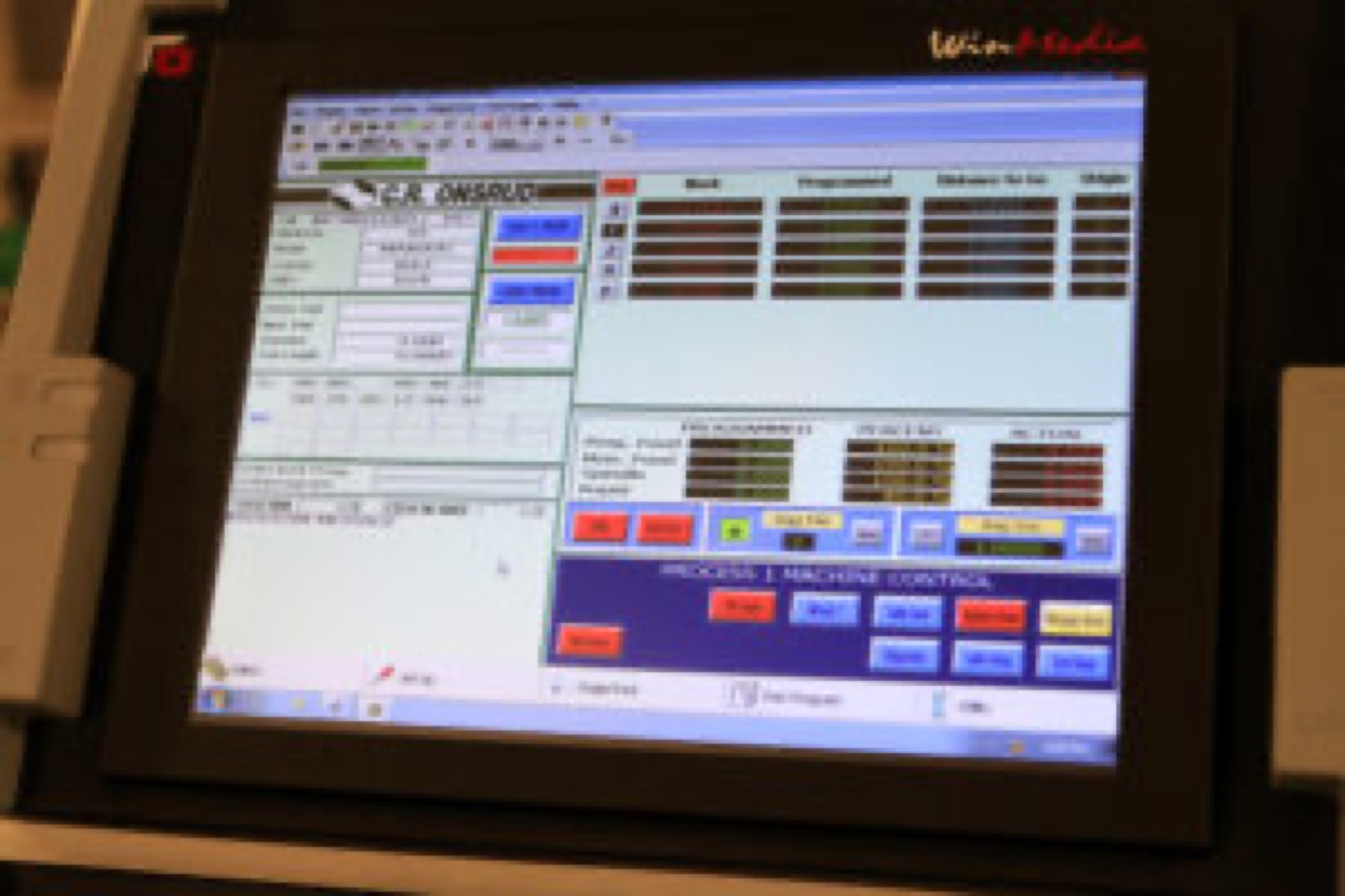

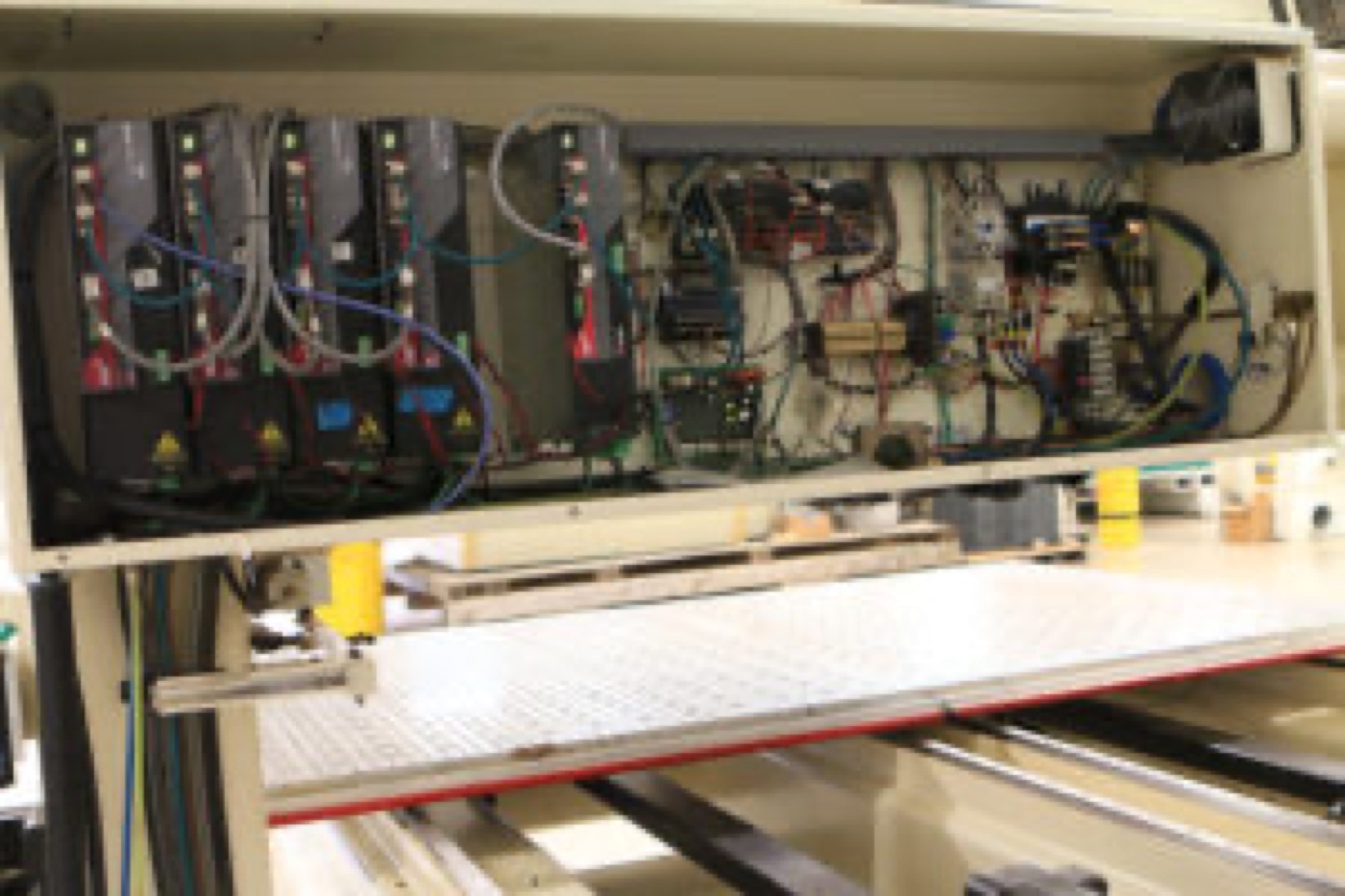

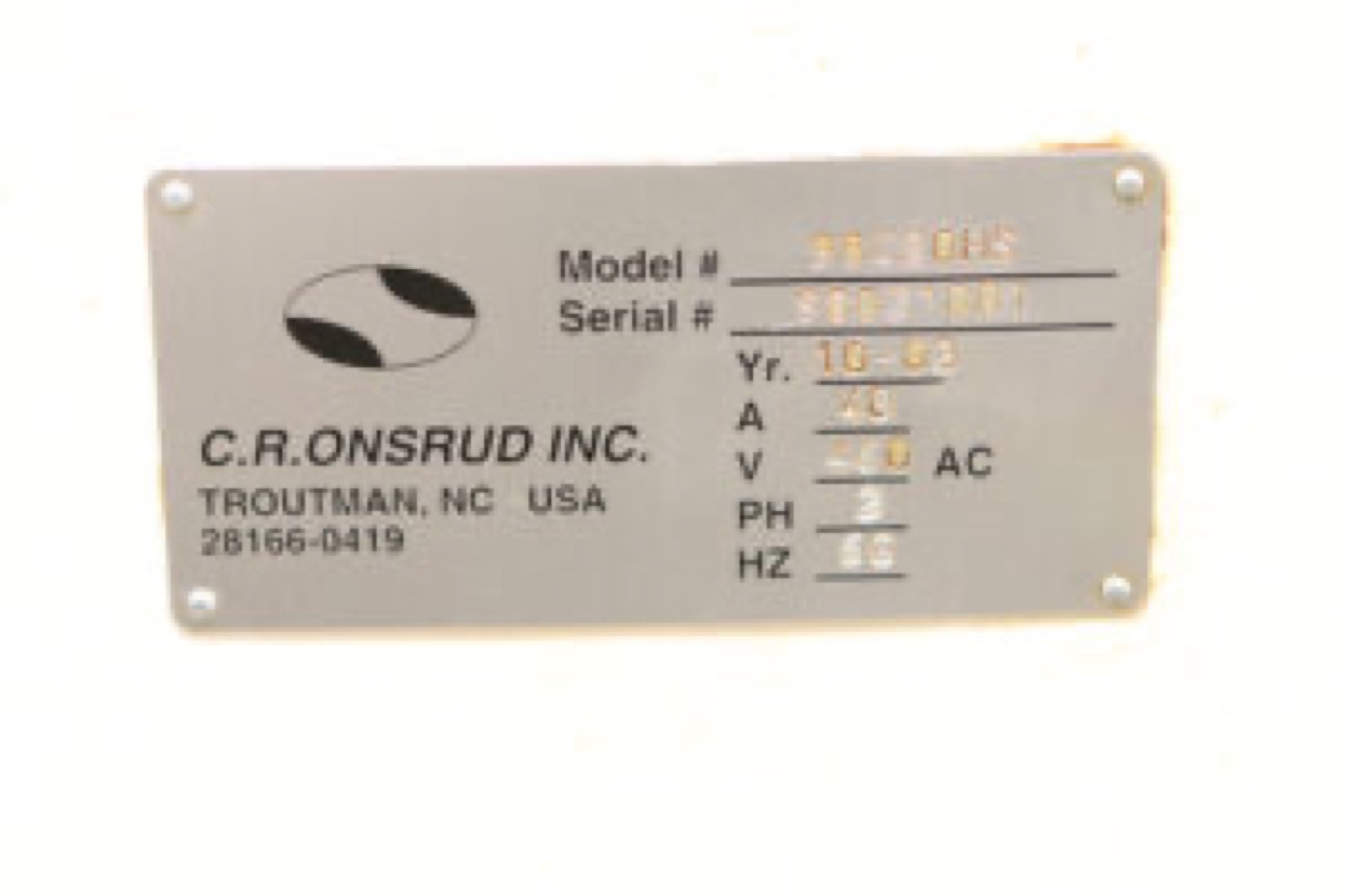

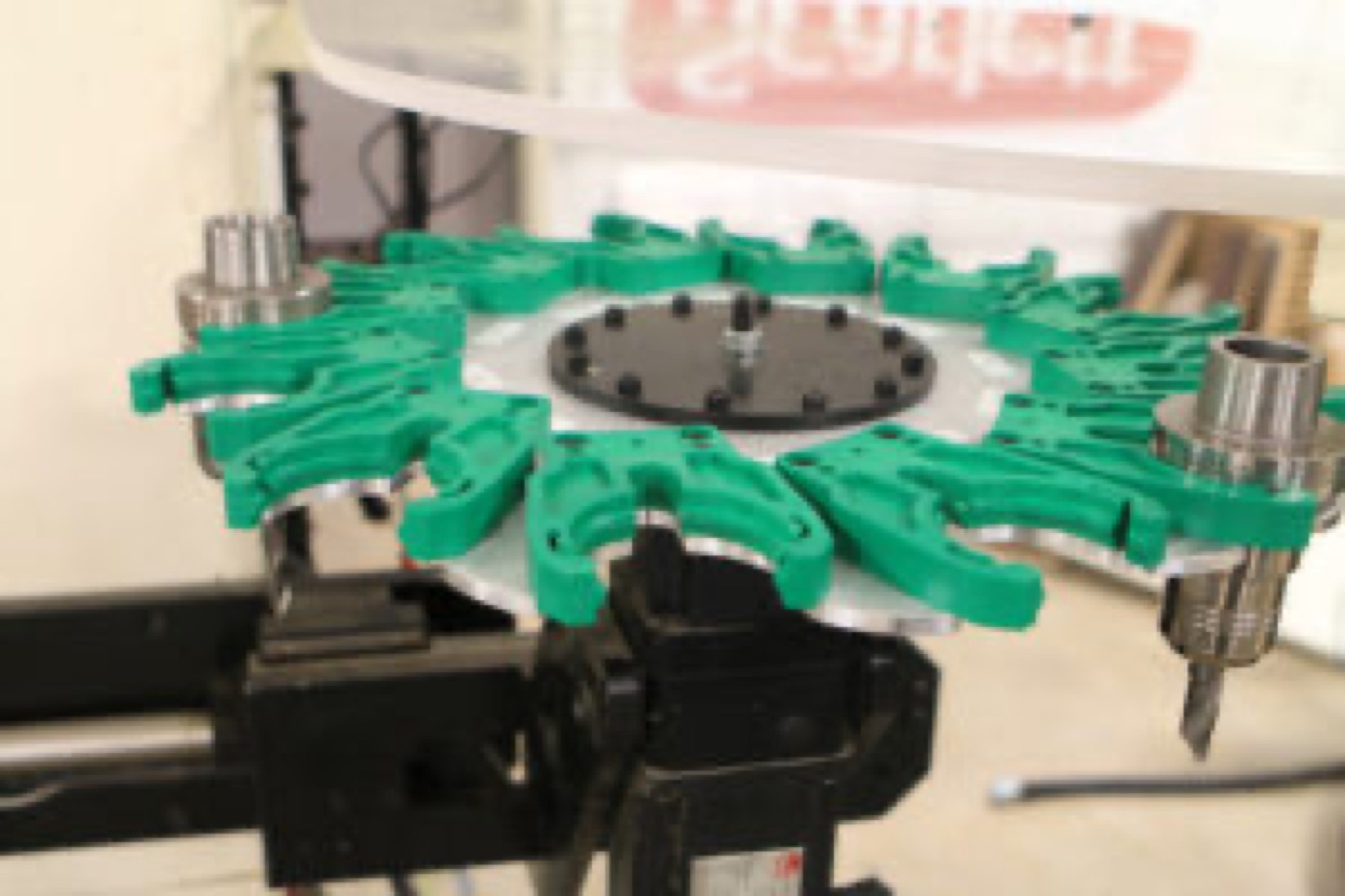

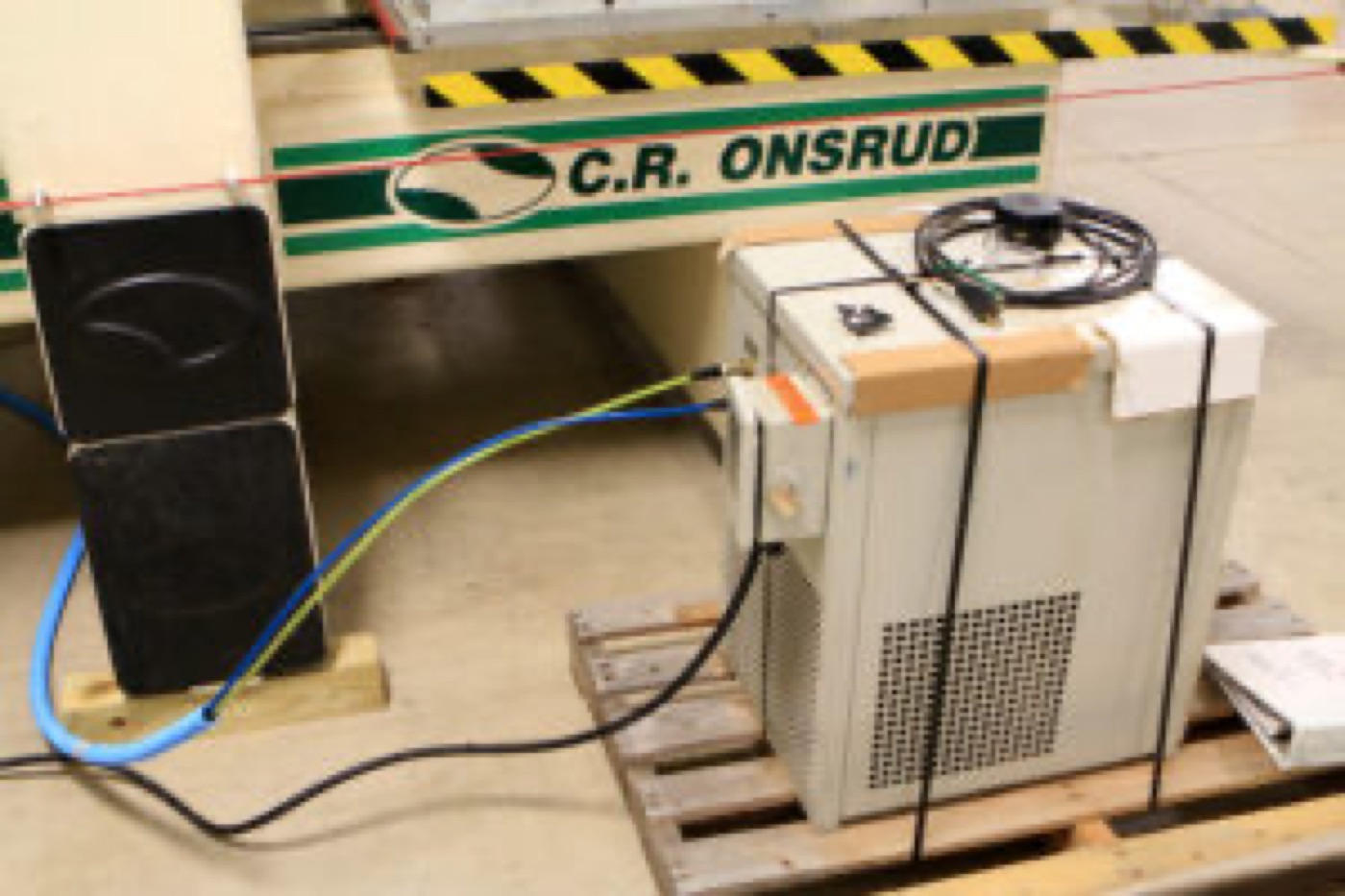

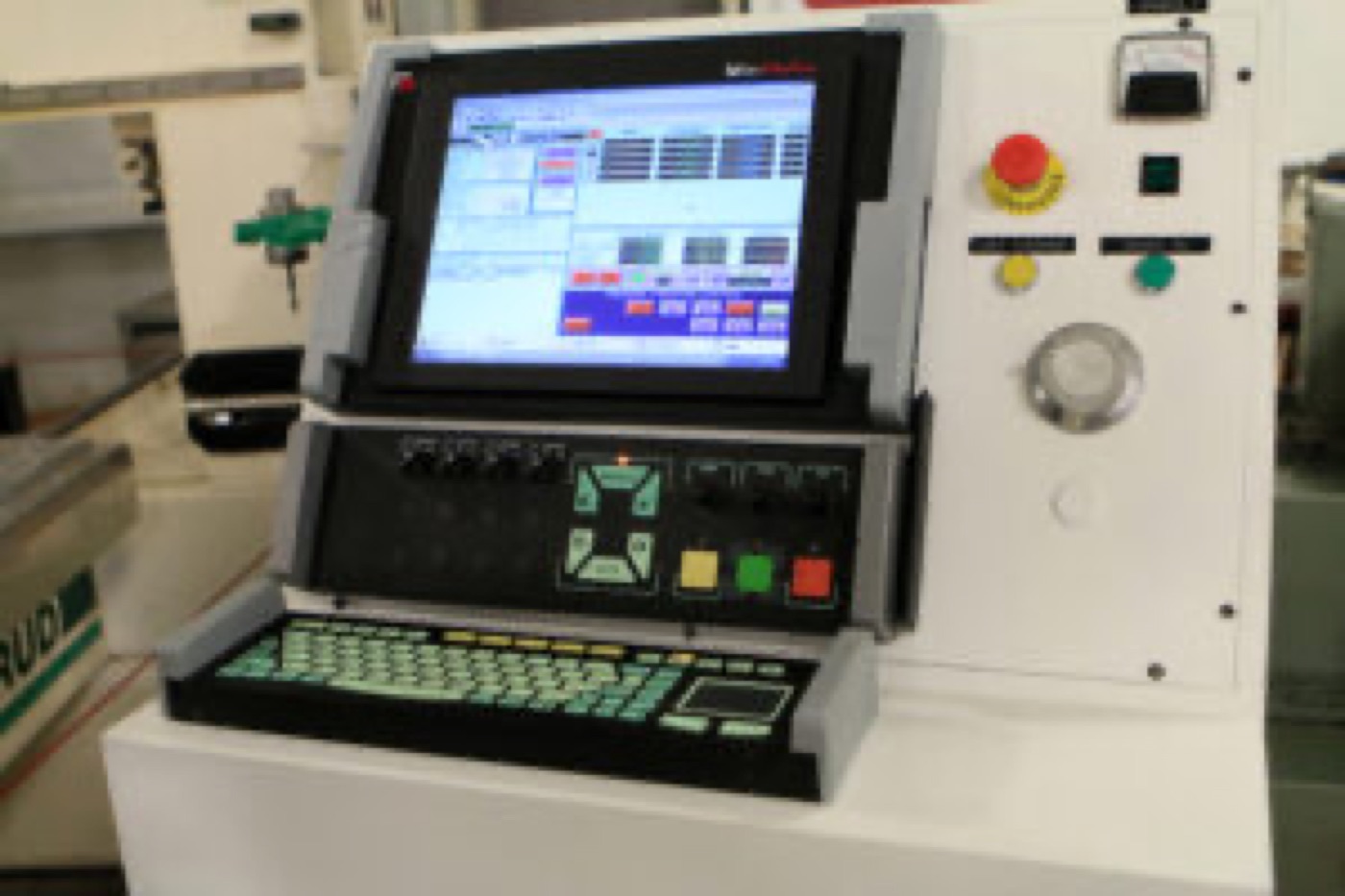

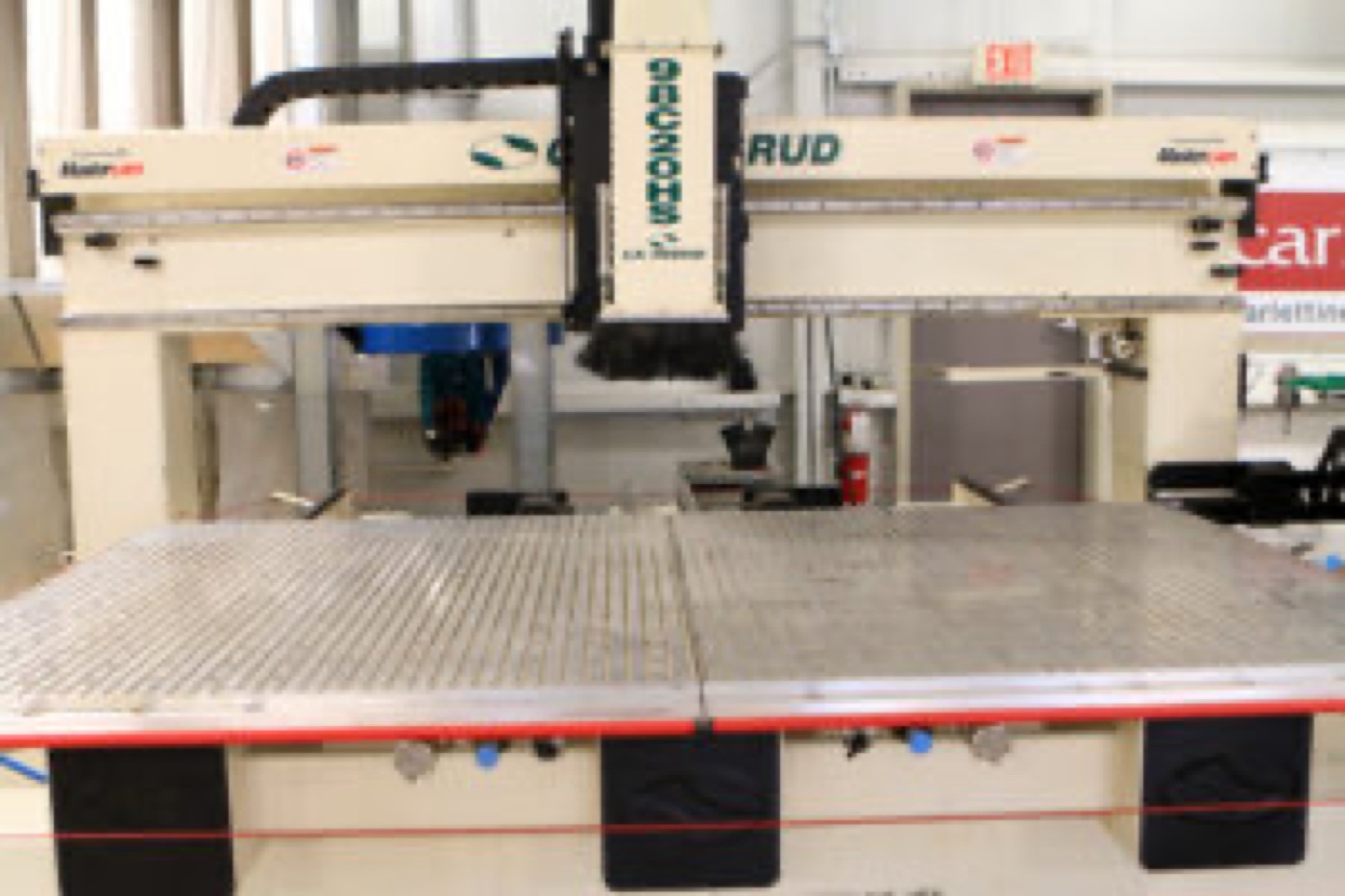

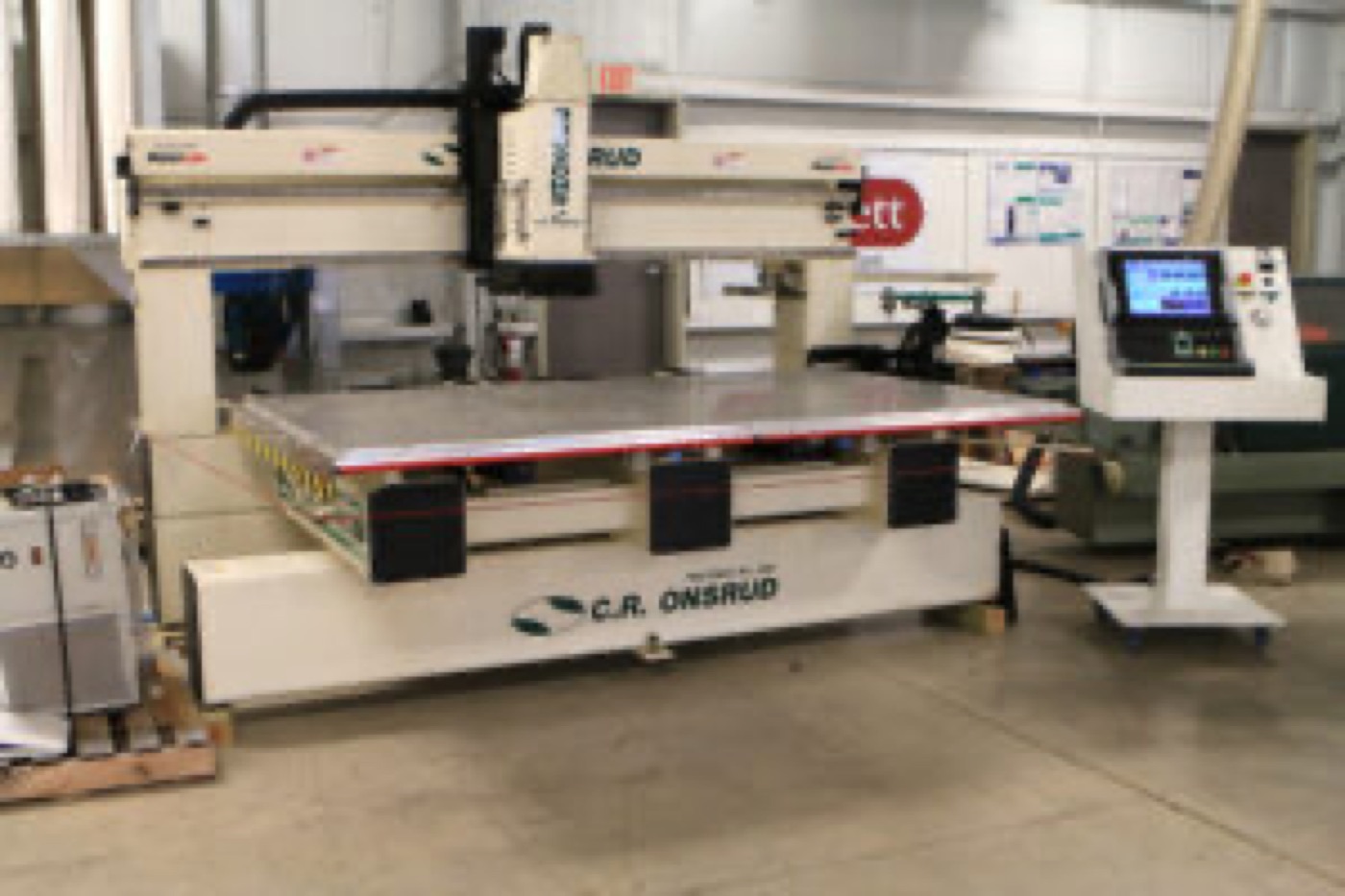

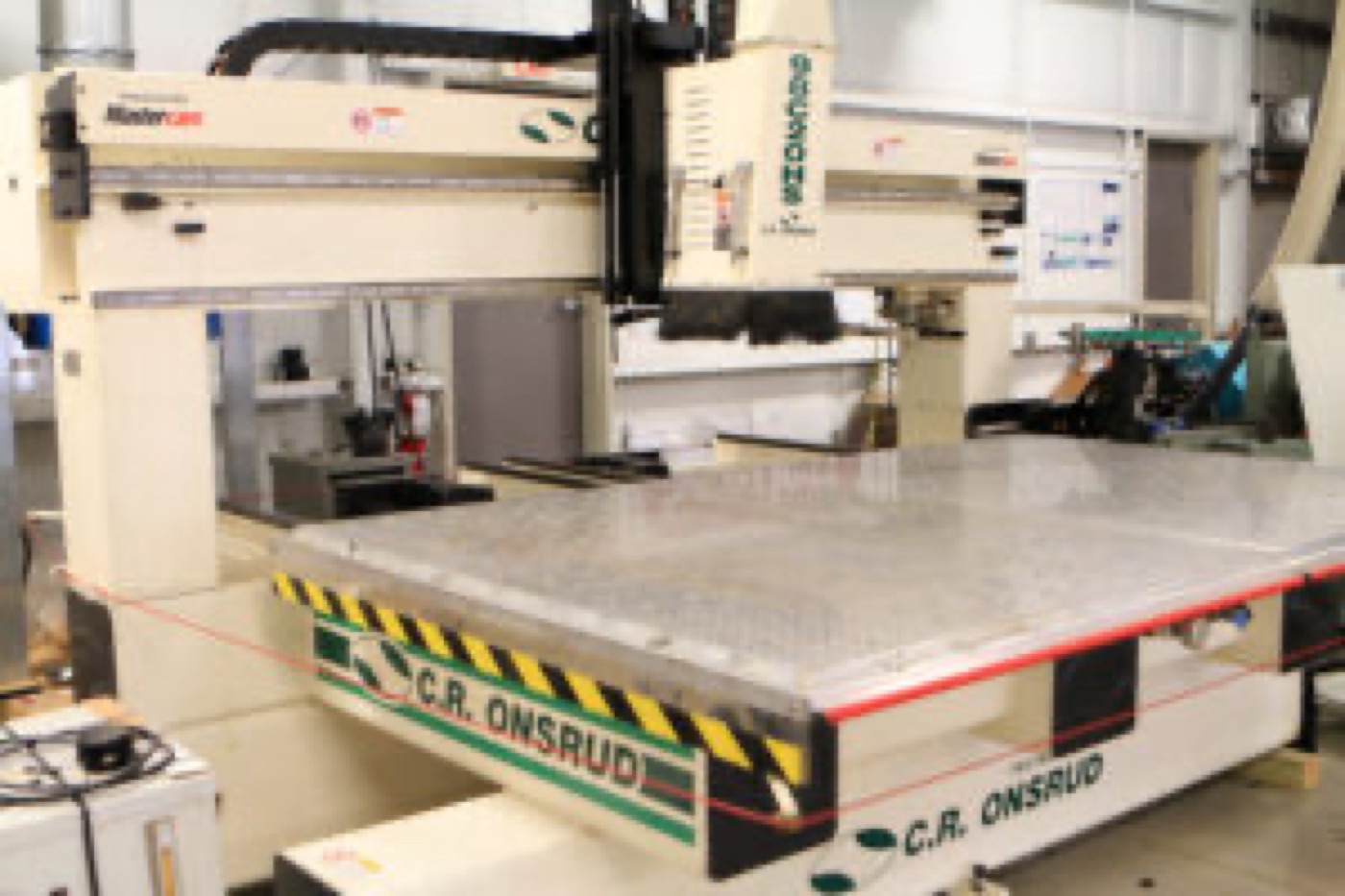

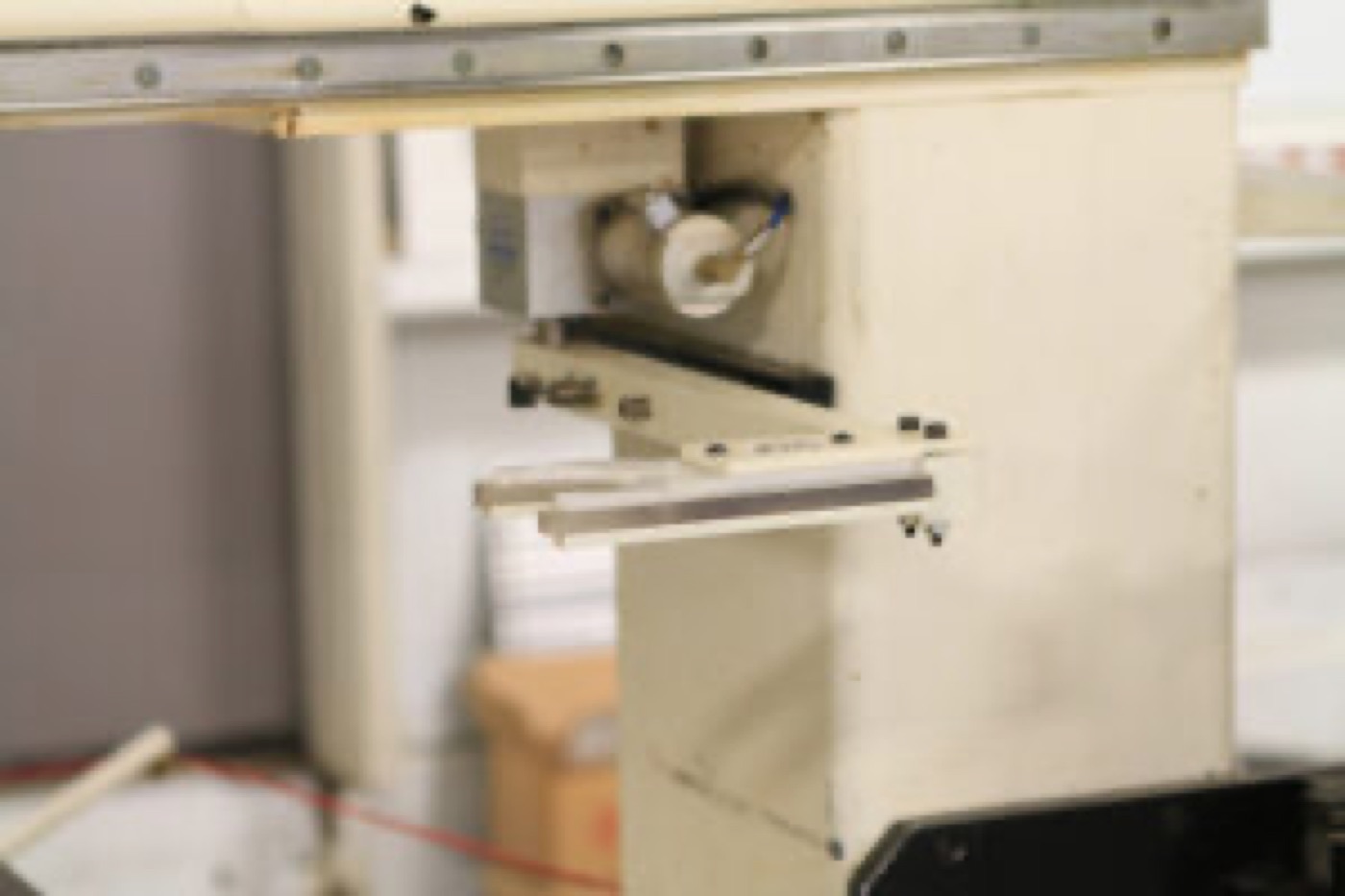

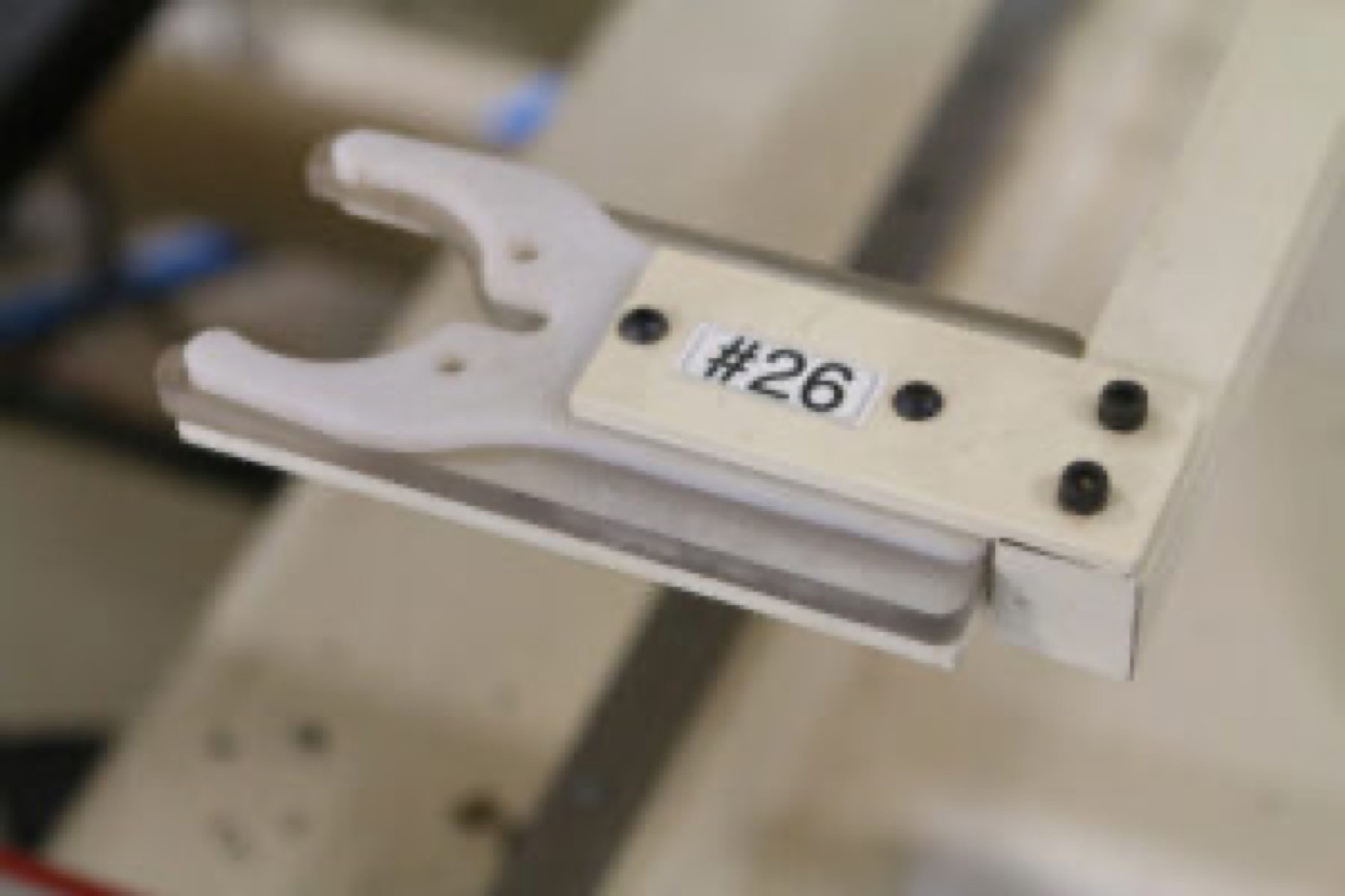

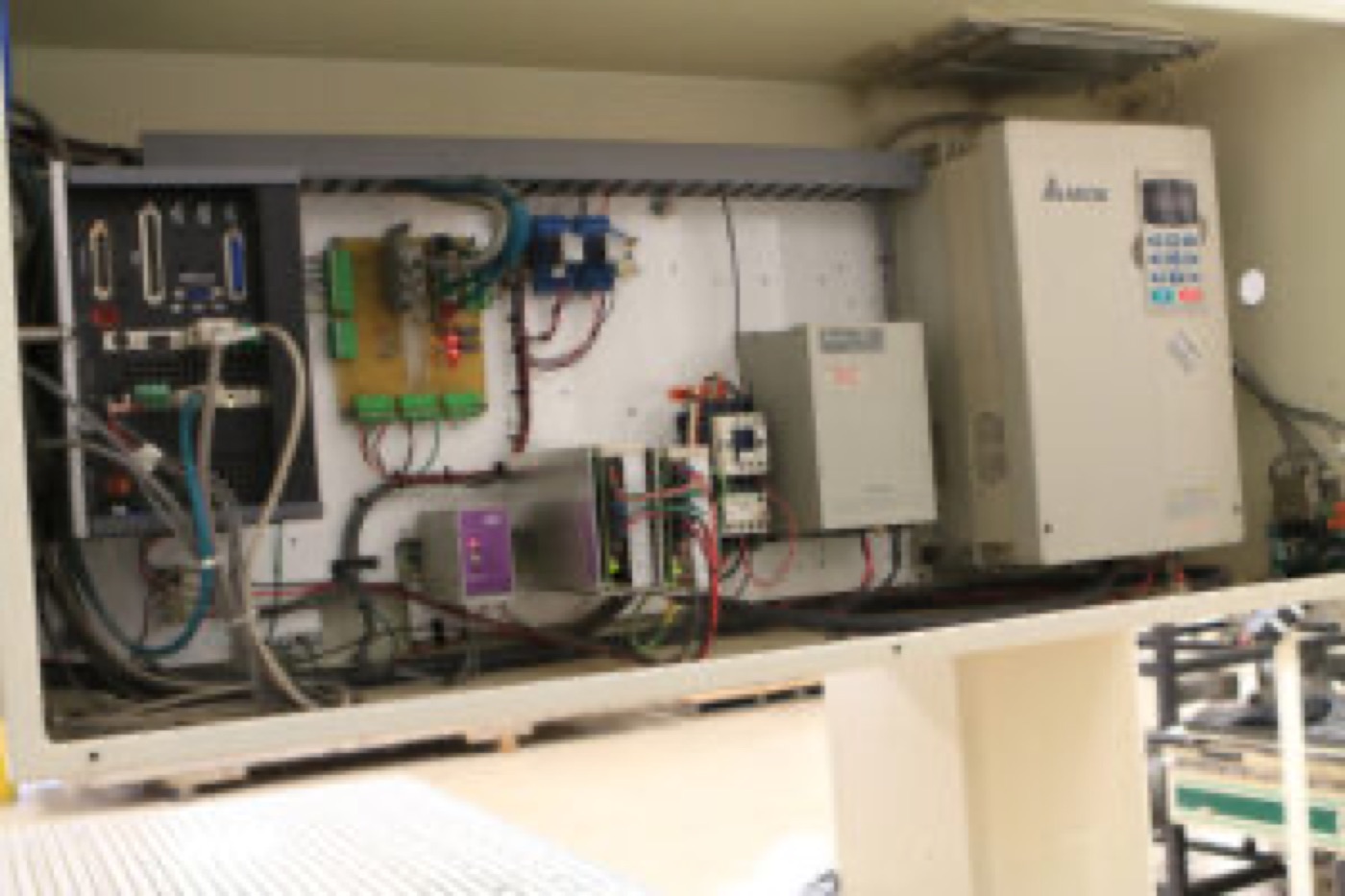

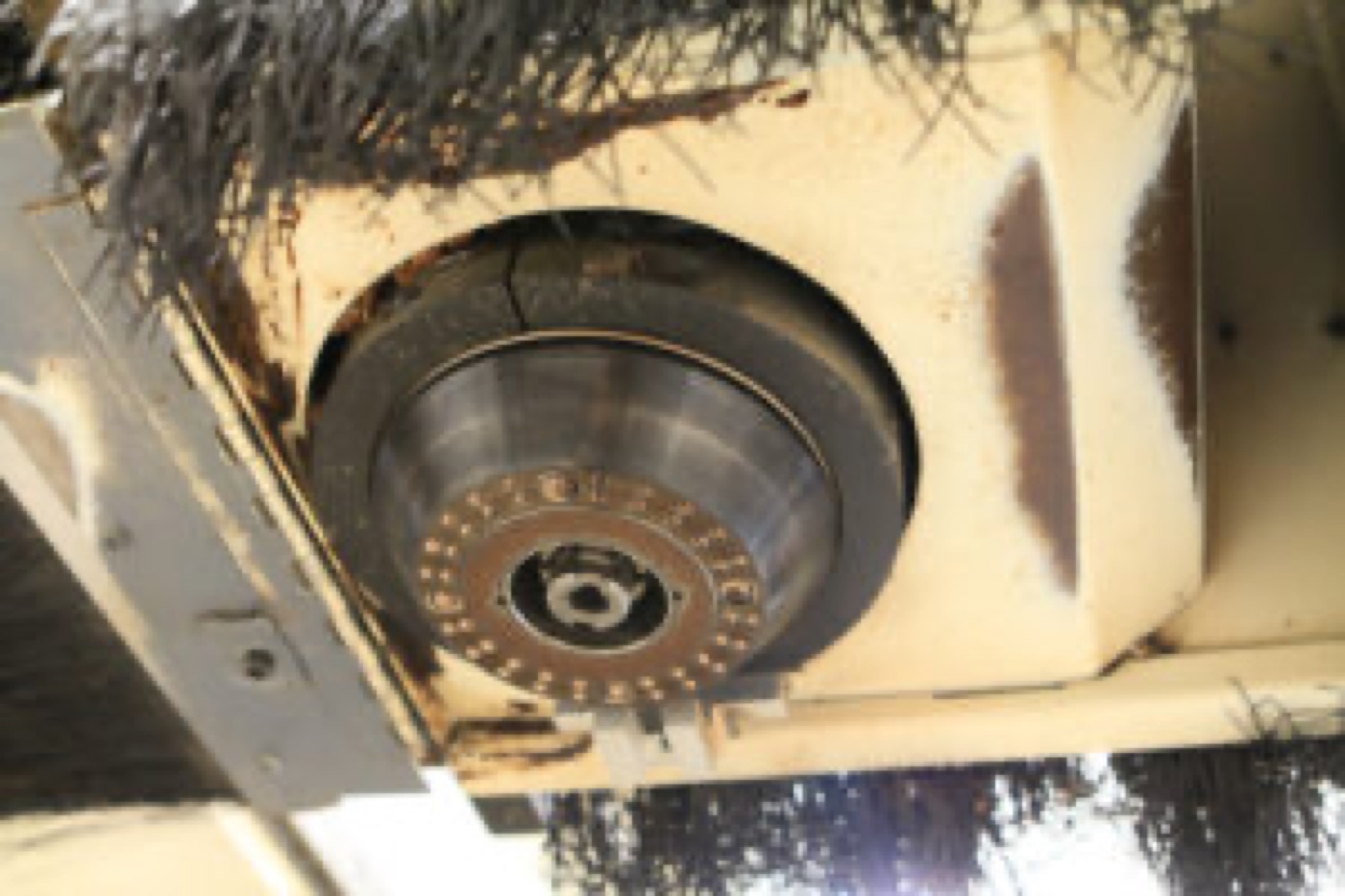

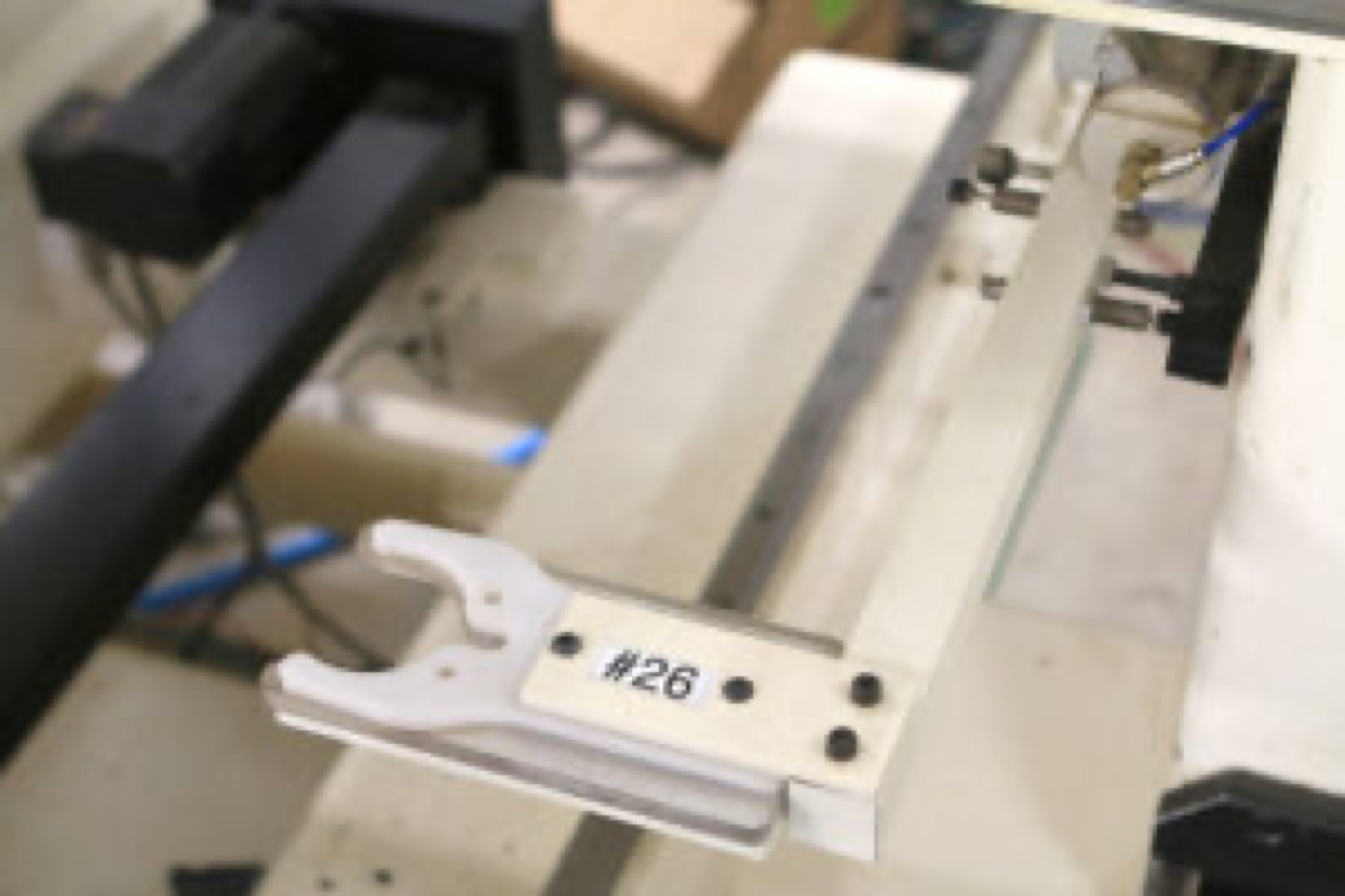

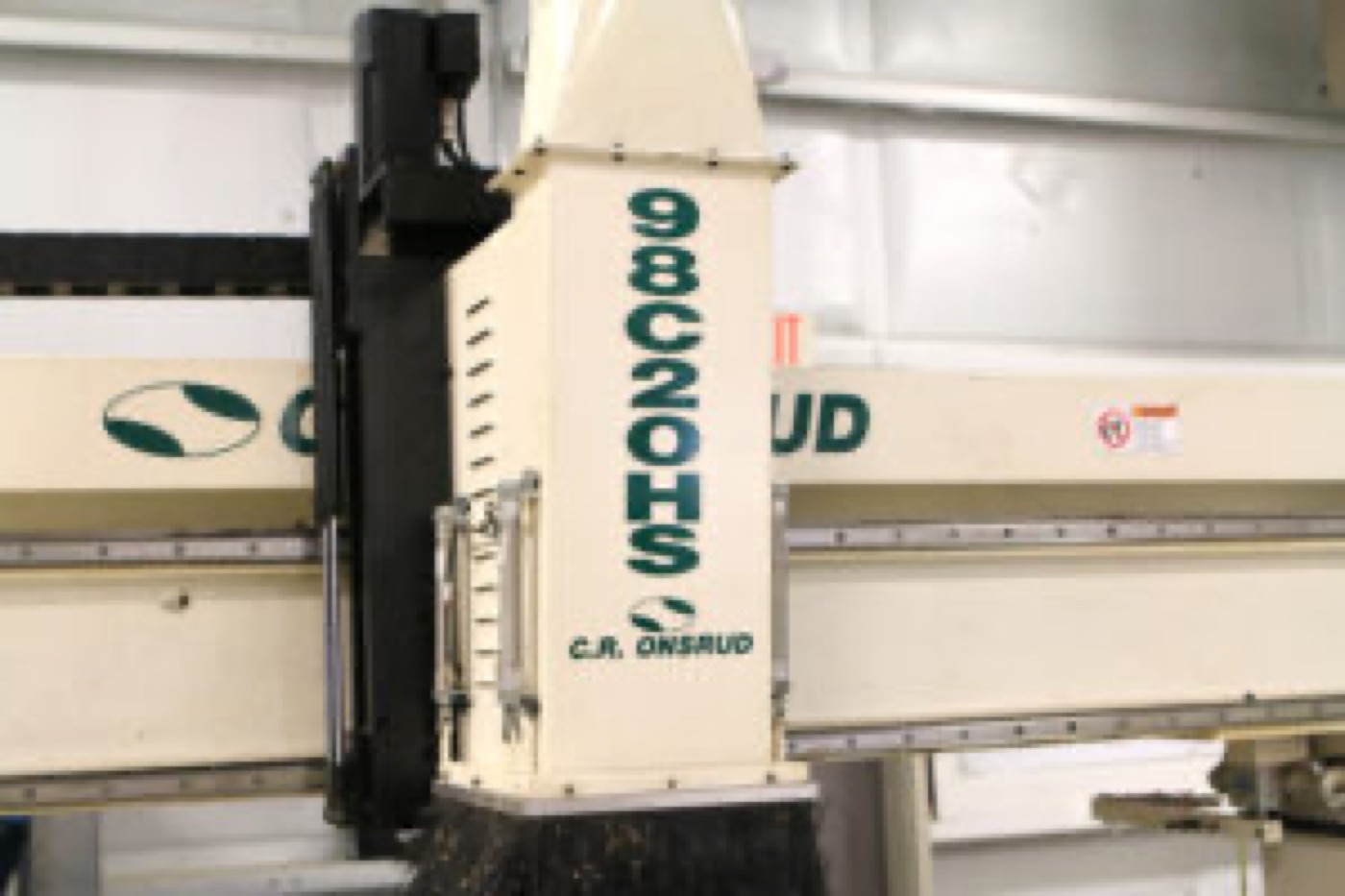

Open electrical cabinet on the 98C20HS with servo drives and wiring above the aluminum vacuum table OSAI touch-screen control console with keyboard for the 98C20HS HSK tool holder in the green rotary automatic tool changer of the 98C20HS Green rotary tool changer carousel holding HSK tool holders on the 98C20HS Spindle carriage on the gantry labeled C.R. Onsrud 98C20HS Control console beside the 98C20HS aluminum vacuum table Angled view of the 98C20HS fixed bridge over its aluminum vacuum grid table C.R. Onsrud Inc. PanelPro CNC Routers manual binder Cooling unit strapped to a pallet beside the C.R. Onsrud router base C.R. Onsrud Inc. machine data plate showing model 98C20HS, serial number and electrical ratings Open electrical cabinet with a Delta variable frequency drive, power supplies and control boards Front view of the 98C20HS CNC router with its twin tables and control console WinMedia control software screen on the 98C20HS console showing machine status Underside of the 98C20HS spindle nose surrounded by the dust brush Tool holder fork labeled #26 on the aggregate tool changer rack Close-up of the tool holder fork labeled #26 Pneumatic tool holder slide mounted on the side of the machine frame Twin aluminum vacuum grid tables under the 98C20HS gantry
