Used C.R. Onsrud CNC Router 146C18CD 5' x 12'
By Ryan Scarlett
Machine: C.R. Onsrud Model 146C18CD CNC Router
Date: 11/11/14
Year: 2007
Price: $149,900.00 SOLD
Condition: Good
FOB:midwest
Description: C.R. Onsrud Model 146C18CD CNC Router
Super Duty Series
18HP Main Router Spindle 24,000RPM
Twin Tables or Locked for a Single 5’ x 12’
HSK63 Spindle Taper
9 Spindle Boring Block
12 Position Automatic Tool Changer

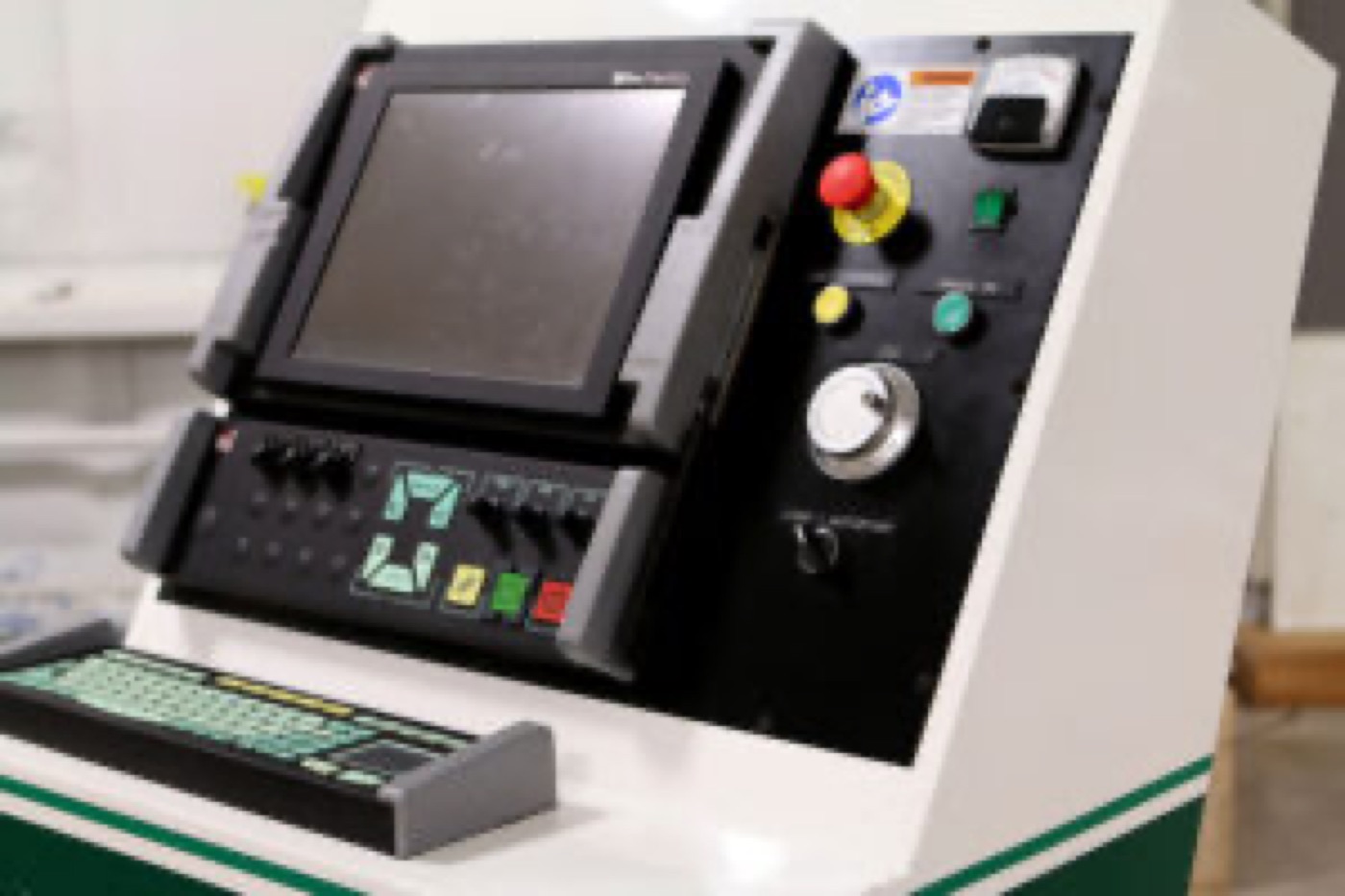

OSAI Controller
40HP Dekker Vacuum Pump
14” Z Axis
C-Axis Ability for Aggregates
Pods
Collets Included
Tool Holders Included
Voltage 440/3PH
Year: 2007
Machine NEW was $251,000.00
THIS MACHINE HAS BEEN SOLD!

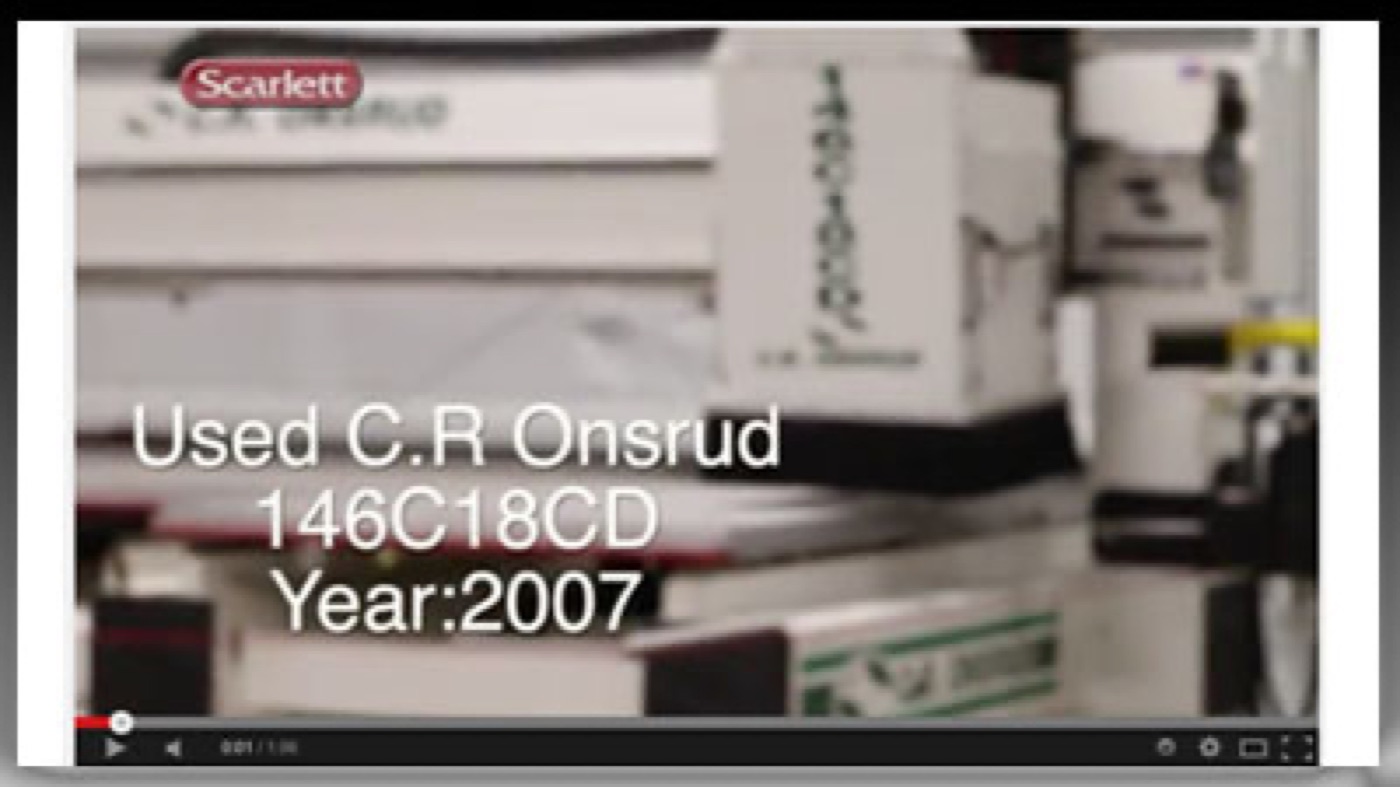

CLICK FOR VIDEO OF THIS MACHINE RUNNING

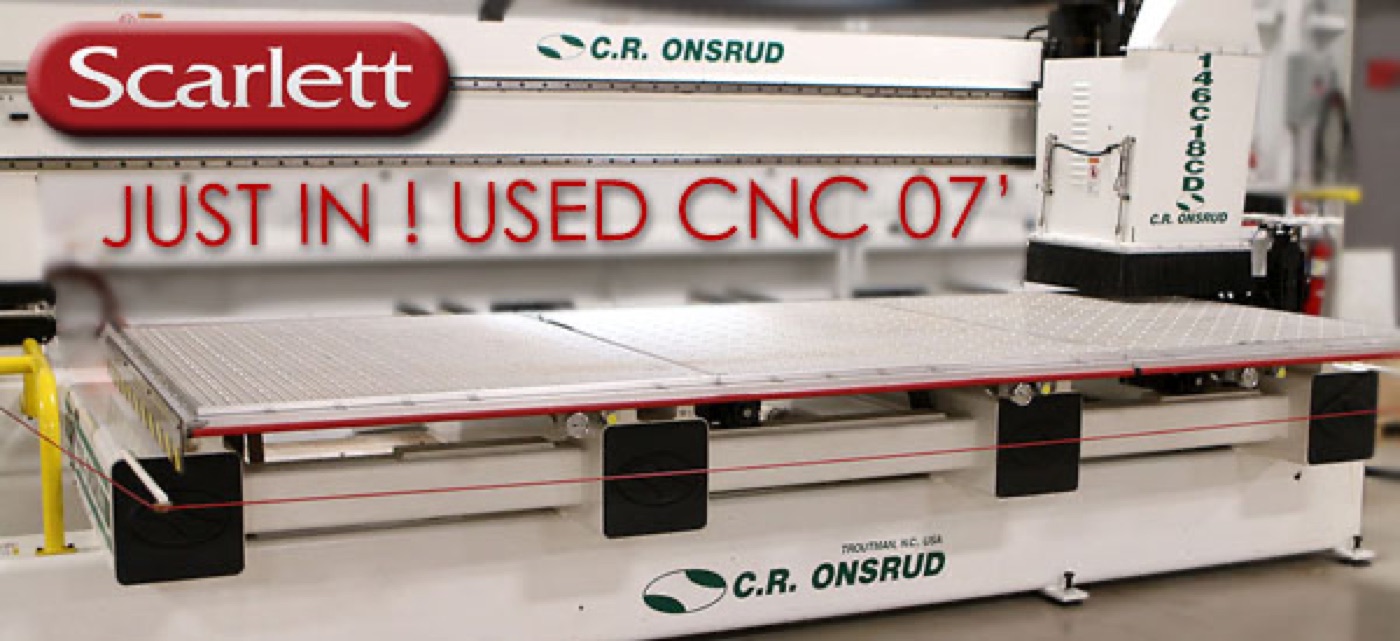

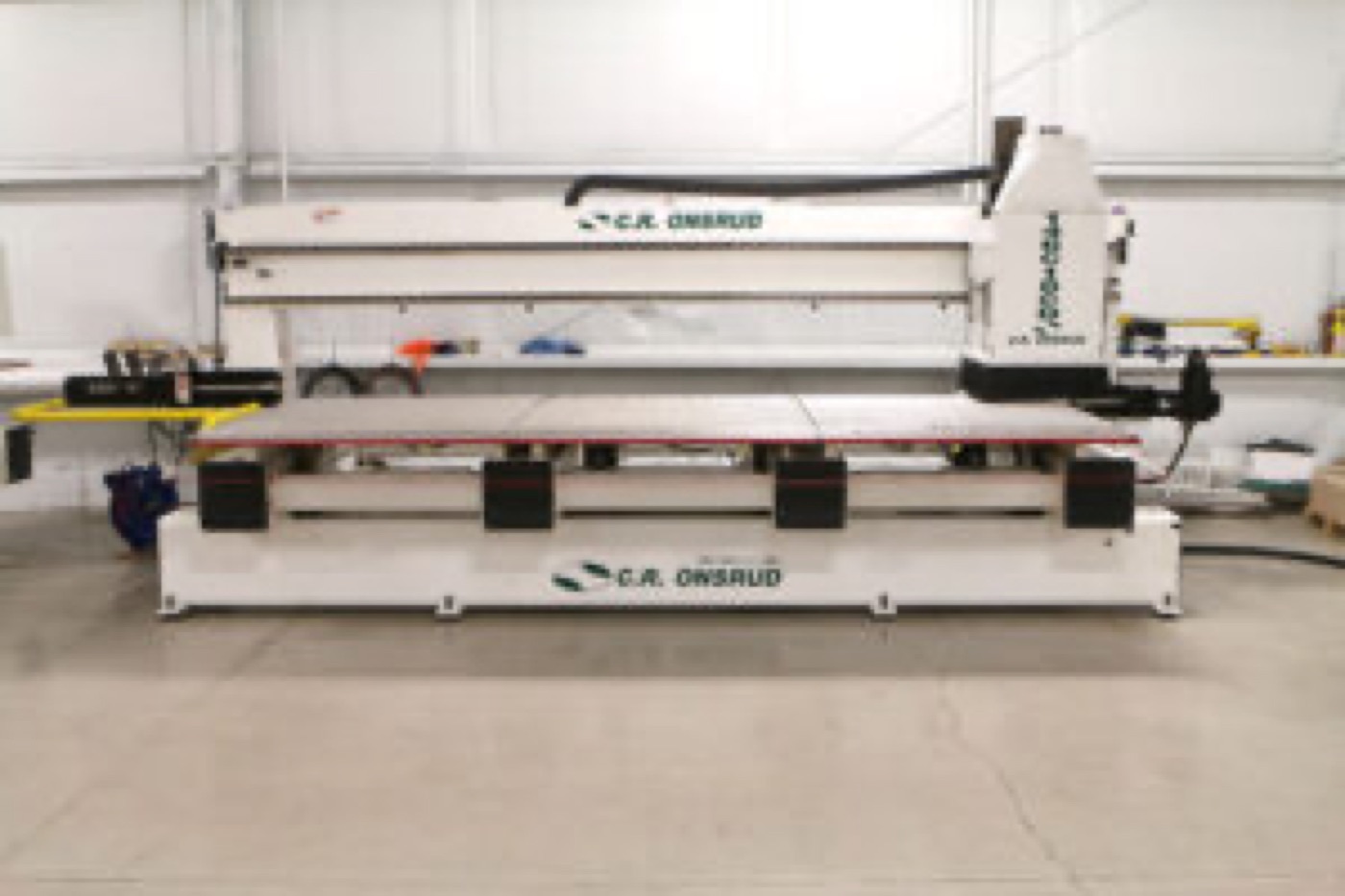

2007 C.R. ONSRUD MODEL 146C18CD “Super Duty” CNC ROUTER - 5’ x 12’ Table

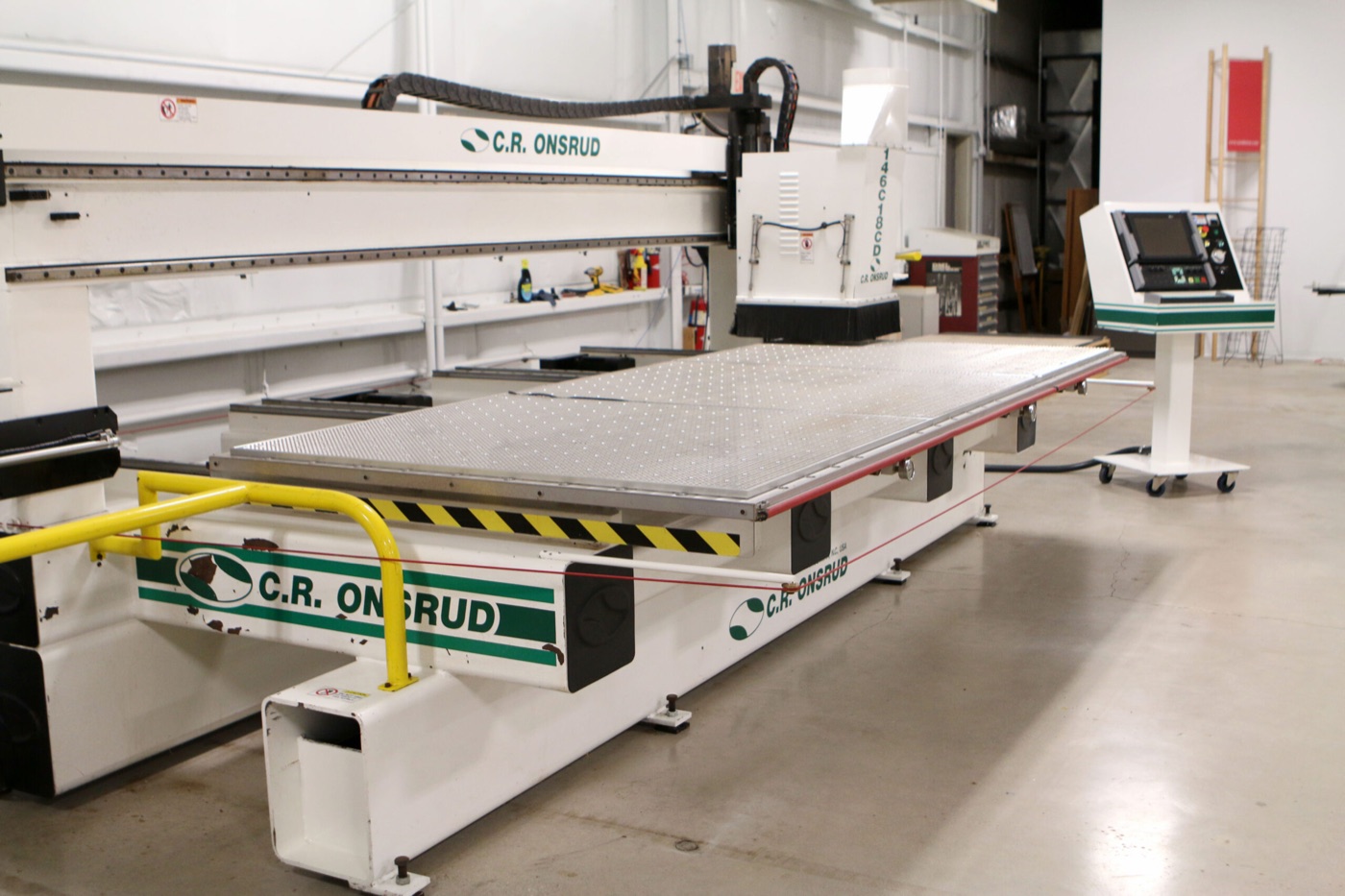

(61"X146” axis travel) - with: Thick Cast-Iron Fixed Bridge & Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 3600" per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 10' x 17' footprint, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, 4-Pole 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, 12 TOOL – AUTOMATIC TOOL CHANGER. TWIN ALUMINUM TABLES function as an independent 61" x 97” & an independent 61” x 49" table. Each table has low vacuum sensing safety shut-off with override capability. Twin Tables can also operate in tandem as a single 61" x 146" table, with full table coverage. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems. All tables include pressure sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable. OSAI 10/510i Machine Controller System Upgrade With Integrated PC Interface – OSAI Numerical Control with OSAI “Win-NBI” PC Interface, High-Res touch screen, network capability, plus adds OSAI Digital Drives & Servos. Provided with 4-port network hub (requires 460V out isolation transformer)
HSK-63 Spindle Taper & Tool Changer Adapter High Speed – High Production - Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy
12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled. Design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates.
C-Axis Ability for Use With Aggregates – Adds a continuous rotation, rotational C-axis to Aggregate Tool Changer & Capability (Price Includes Aggregate Anti-Rotation Spindle Adapter Ring Option)
Automatic Aggregate Tool Changer & Aggregate Capability – stand alone, single pocket, 13th position tool changer with aggregate anti-rotation spindle adapter ring to make machine fully aggregate capable – (for use with or without C-axis Ability below) N/A on machines w/2-12 pos ATC’s
9 Spindle Drilling Block Package – (Multi-Spindle Line Drills) Includes 9 independent or simultaneous firing vertical spindles arranged to drill up to 5 holes at a time in the X axis or 5 holes at a time in Y axis

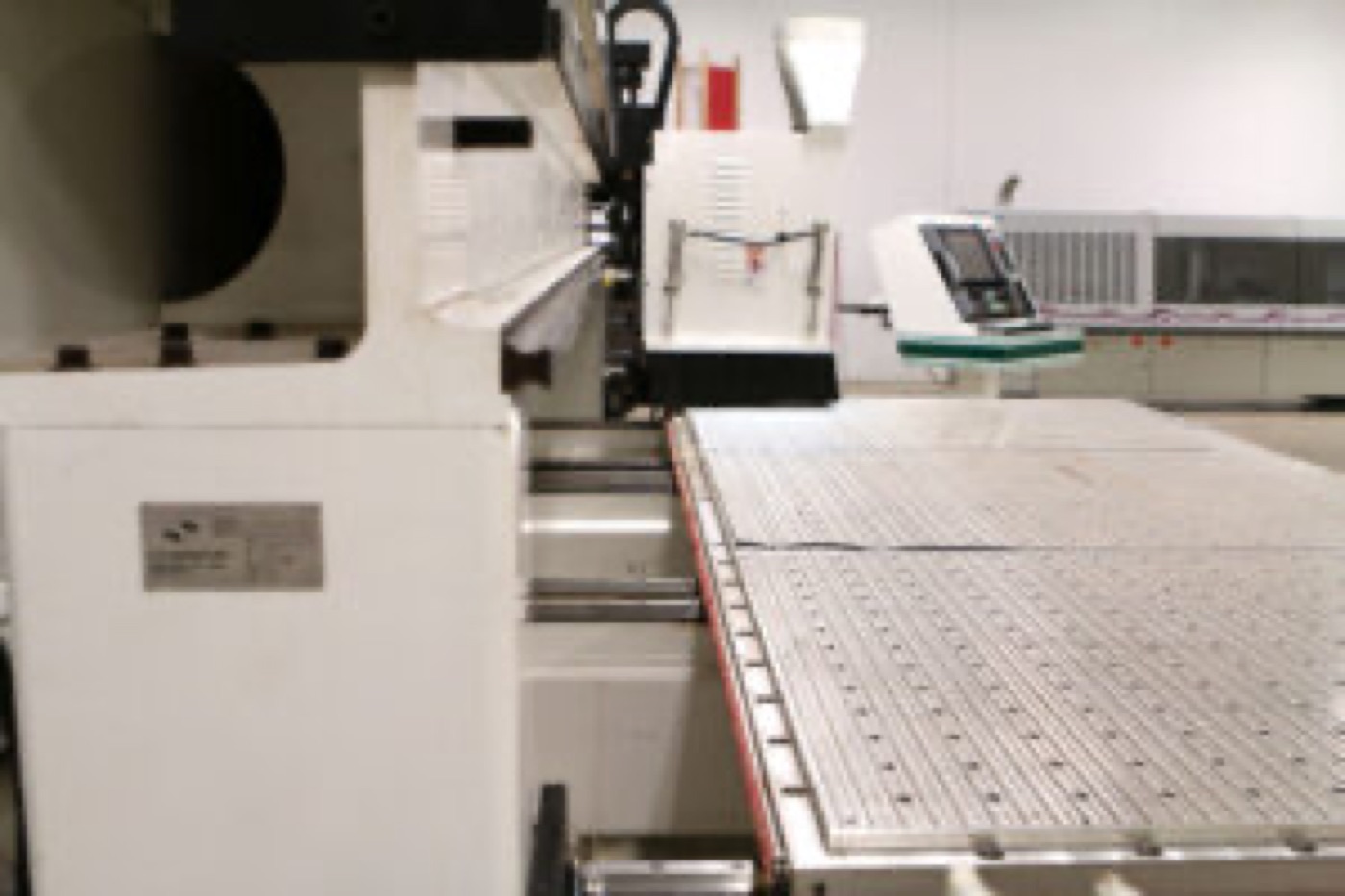

Onsrud / NEMI High-Precision Vacuum Grid Table - Aluminum NEMI Grid table
Pneumatic Controlled Vacuum Switches – (One for each table or zone). Controlled via either touch screen or M-code on OSAI machines. Dust Transition Kit – (appropriately sized dust transition provided for connecting to your dropped-in flex hose)
CR ONSRUD High-Flow Universal Vacuum Table System – Includes: oversized 4” intake manifold, high- capacity vacuum plumbing, high-flow 1” grid waffle patterns, & equipped with choice of suck-thru or dedicated spoil boards.
40 HP Dekker Vac Pump Included
PRICE................................................................................................$149,900.00
FOB: Grand Rapids, MI
Terms: 100% due before delivery
