New and Used 5 Axis CNC's

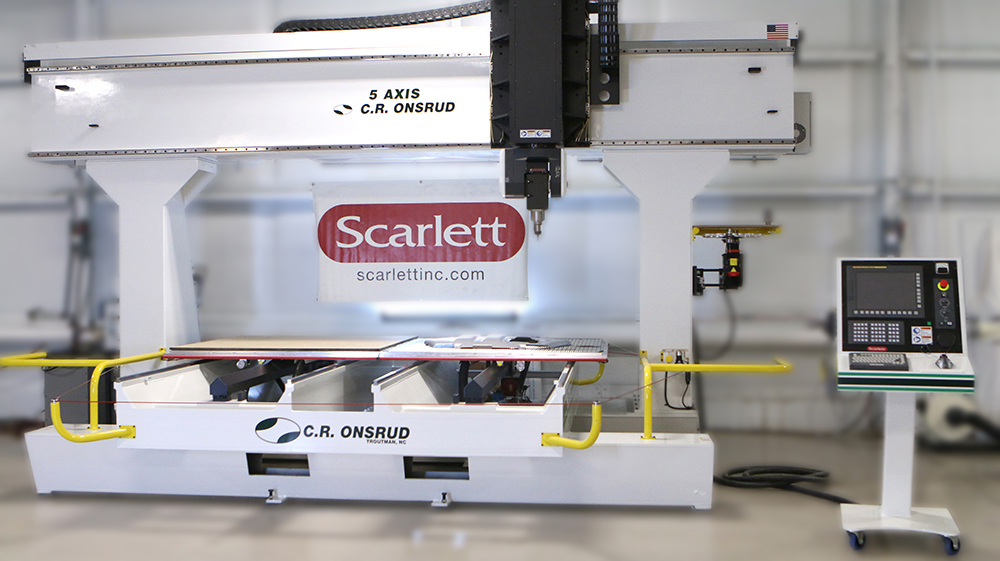

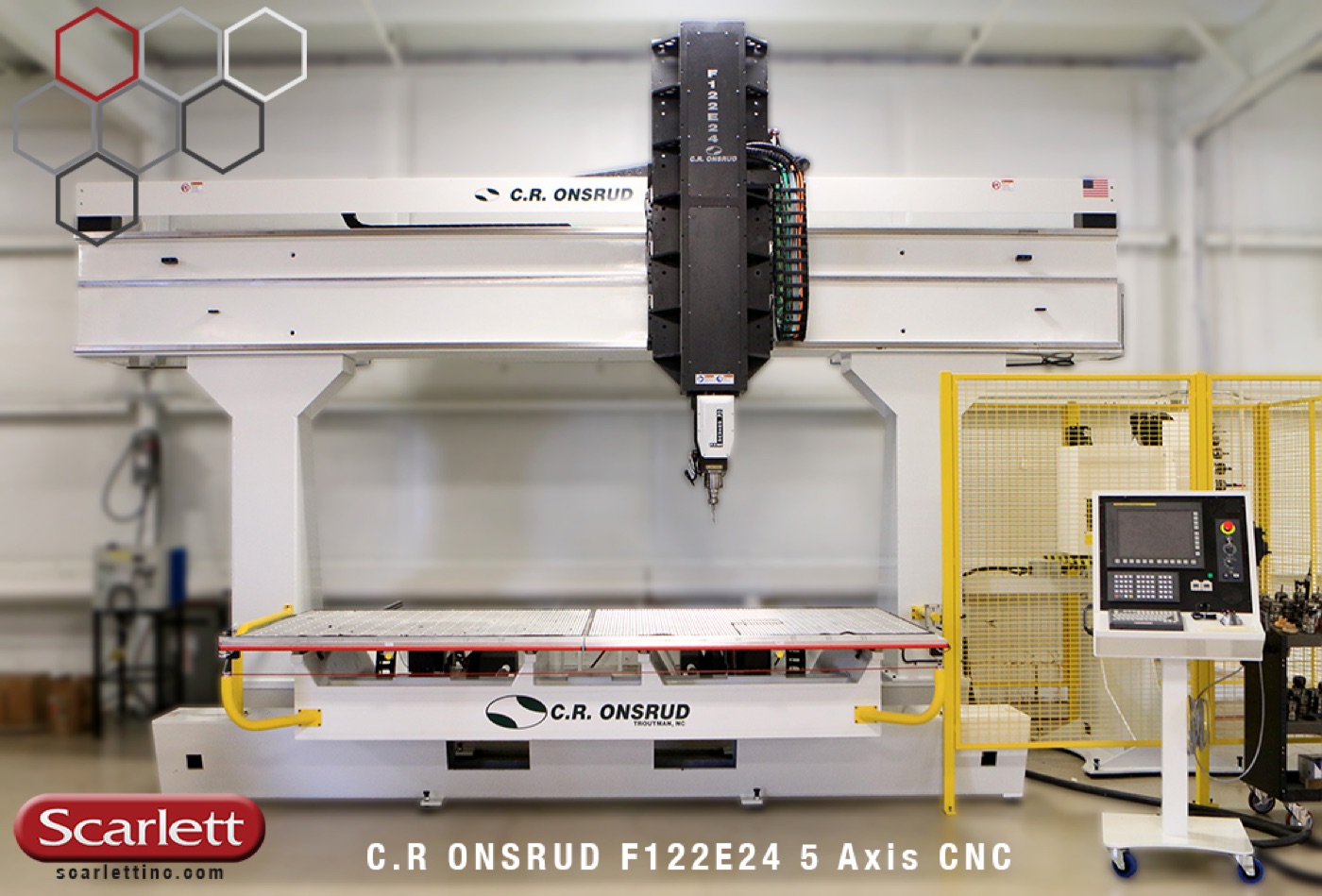

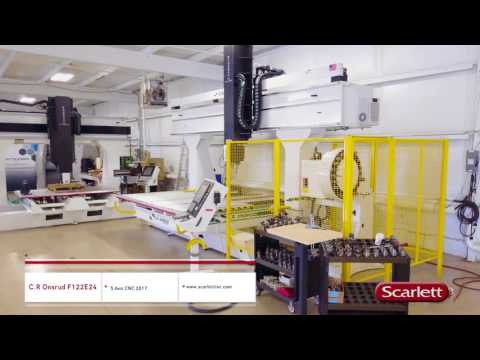

2017 C.R Onsrud Model 122E24 - NEW

Package with Accessories

5-Axis - 24 HP Spindle Chiller for Liquid Cooled Spindle Option Automatic Oil Mist Lubricator 5x5 - Aluminum Vacuum Grid Table

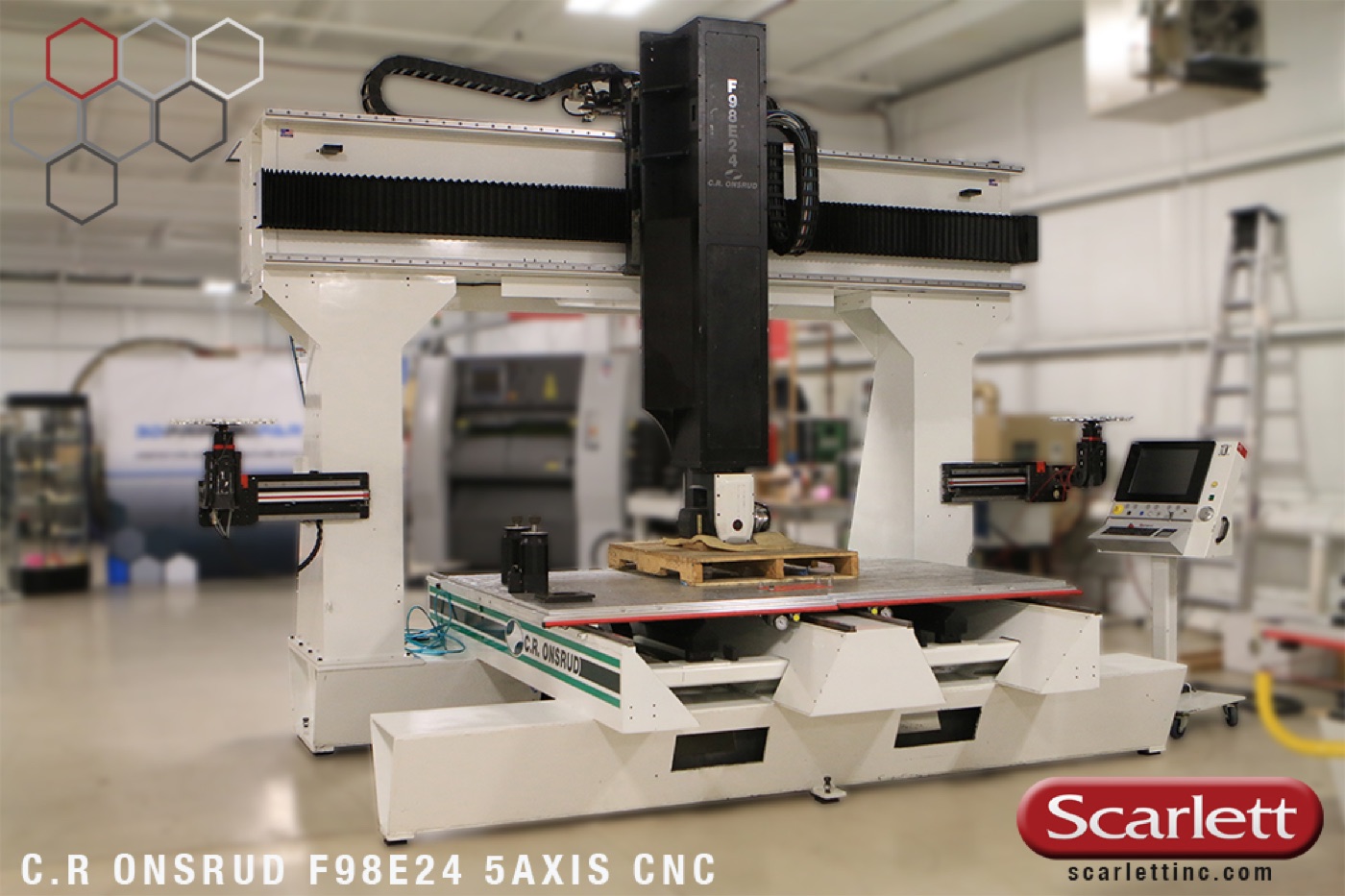

2015 CR Onsrud Model F98E24 5 Axis CNC Router - USED

Specifications:

No Of Axis ...........................................................................5

Table Size When (1) Table ................................................. 60” x 96”

Table Size When (2) Tables ...............................................(2x) 60” x 48”

X-Axis Travel ..................................................................... 82”

Y-Axis Travel ......................................................................162”

Z-Axis Travel ......................................................................29-41-53”

Z Clearance ........................................................................27-39-51”

A-Axis Rotation ................................................................ +/- 120 Degrees

C-Axis Rotation .................................................................+300/-115 Degrees

Machining Speed ...............................................................3,600 IPM

X & Y Rapid Traverse ........................................................4,000 IPM

Spindle Speed ...................................................................24,000 RPM Double Armature

Spindle Motor ...................................................................24 HP

Spindle Taper ...................................................................HSK 63F

Tool Capacity ...................................................................(2) 12

Vacuum Zones ................................................................. 2

Approximate Footprint .................................................. 12’ x20’

Voltage ......................................................................... 440V/3-Ph/60Hz

Equipped With:

OSAI PC Open Series 5-Axis CNC/PC Front Controller

Twin 4’x5’ Aluminum Tables Function As Independent Tables, Or Single 8’x5’ Table

Thick Fixed Bridge & Vertical Supports

Machine Plumbed For (2) Vacuums. NO Vacuum Pumps.

Fully Programmable & Reversible, Variable Speed Quick Change Spindle

Routing & Drilling

A & C-Axis Rotation

Thermal Heat Treated

Stress Relieved & Normalized

Steel Frame Base

Twin Moving Table Design With 3600” Per Minute Machining Speed

Full 3-D Capability

Precision Drive All Axes

Centralized Manual Lubrication System

Precision Linear Guide Ways

(2) 12 Tool ATC’s

4-Port Ethernet, USB, & Serial Ports

Miscellaneous HSK Tool Holders

* enclosure and vacuum pump available to add to package.

 $ 220,000

Call for more details.

616-871-9889
