Pillar Machine
Miter door machine

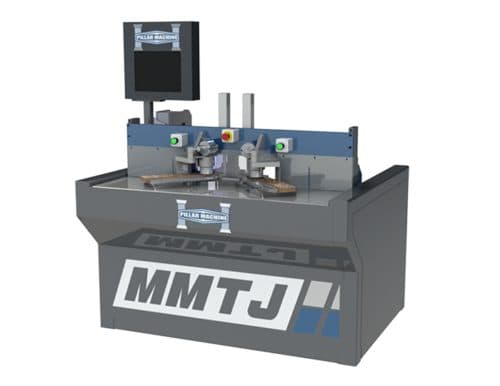

The MMTJ is a full 3 Axis CNC machining center used for producing high-quality miter joints used in cabinet door manufacturing. This machine produces between 250-400 doors per 8-hour shift with one operator.
Product overview
What the MMTJ does
- Mitering
- Mortising
- Tenoning
Advantages of the MMTJ
- Elimination of complicated machine setups
- Climb cut of both tenon and mortise for a tear-out free cut
- Cuts MDF, paper, or vinyl wrapped profiles
- Eliminates the need for applying inlays
- Reduces tooling maintenance and cost by more than 50% by eliminating end coping
- Eliminates the need for outside profiling or sanding the edges of doors
- Eliminates the need for sanding the face of the doors
- Stiles and rails both run face down for consistent machining
- Self-aligning joints
- A more durable, better-looking blind joint, with no visible joint on the edge of the board
- Multiple tool paths to choose from in tenon and miter to accommodate all profiles
Standard features
- 3-Axis control for high quality joints and flexibility in machining various sizes of profiles. (X, Y and Z)
- 2 working zones
- 3 HP high frequency spindle for mortise (18,000 RPM)
- 6 HP high frequency spindle for tenon (18,000 RPM)
- 1″ x 3.5″ machining capability (larger sizes available upon request)
- 15″ industrial color touchscreen for creating and selecting programs
Options
- Bar-code Reader
- Diamond tooling
- Pillar-Gauge CNC back fence (for use in sizing part lengths)
- Larger machining capabilities

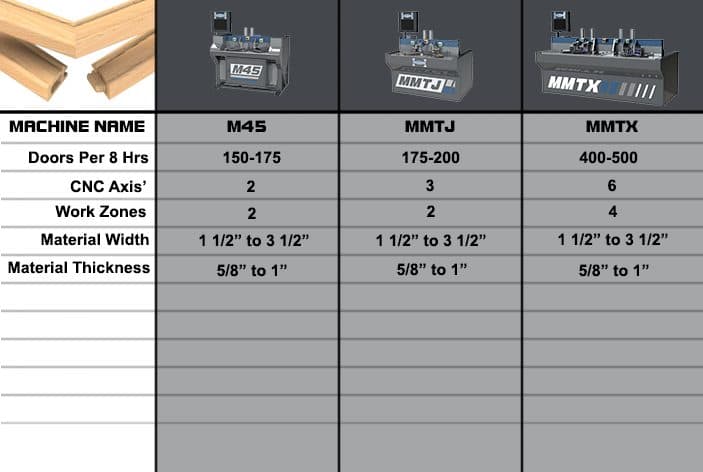

Specifications
Standard features, options, and information may change without notice.
Made in the USA
All Pillar Machine machines are built 100% at the Salt Lake City factory, and the benefits of an American-made machine go well beyond supporting the local economy.
- Parts are sourced from North American vendors, which improves parts availability and keeps pricing honest
- Real factory support: when you need technical help, you can often talk directly to the people who built, wired, and tested your machine
