Case clamps

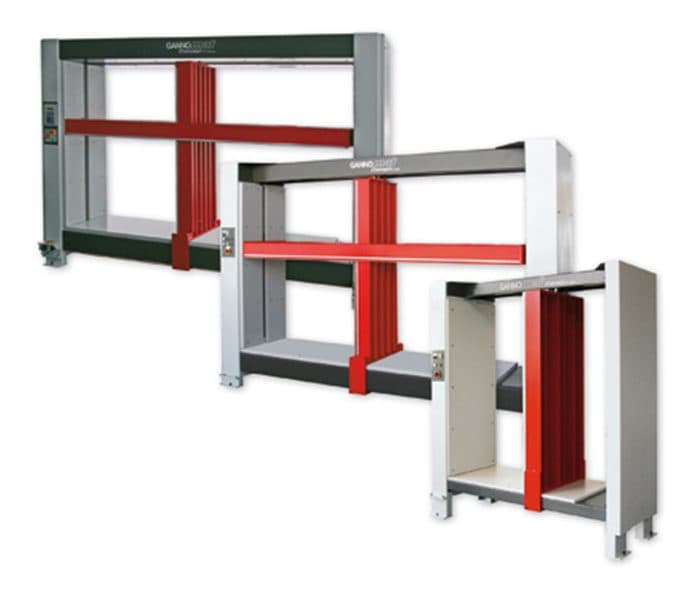

Gannomat offers three models of case clamp to fit your company's production. The Gannomat Concept line of case clamps provide reinforced steel beams, adjustable pressing force from 300 kg to 2,200 kg (3,500 kg for the Primus), and an extensive options package to fit your company's assembly area.

Talk to a machinery expert 616-871-9889

Product overview

Flexible Support

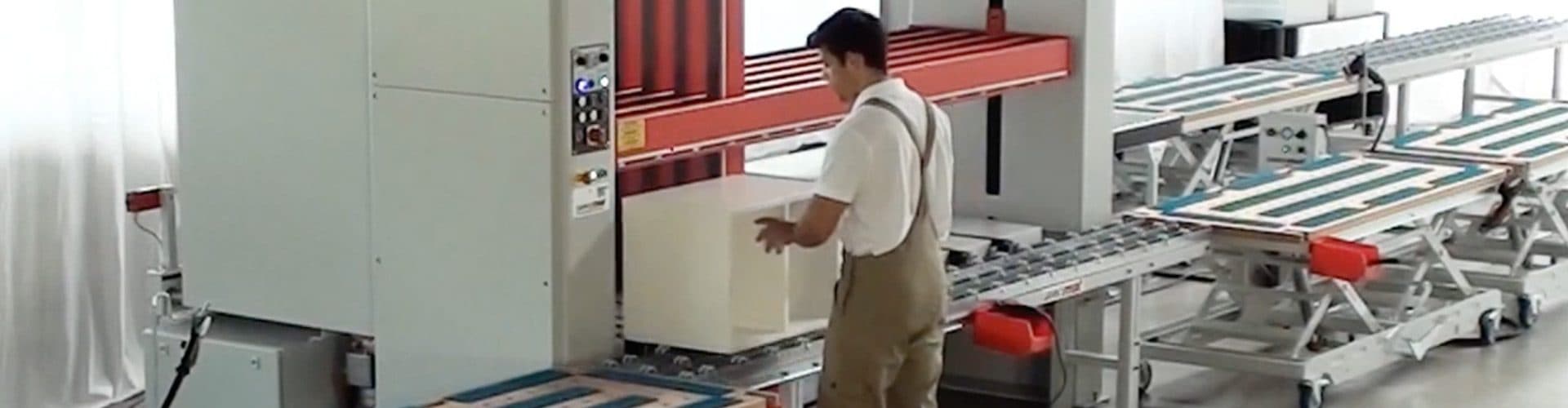

Flexible support for the assembly of dowel construction case goods, and ideal for drawer assembly production.
High Pressing Force
Gannomat case clamps provide some of the highest pressing force on the market at 3,500 kg max.
Varying Depth
Models can also come in a 700mm or 900mm depth to fit your company's assembly production needs.

Models

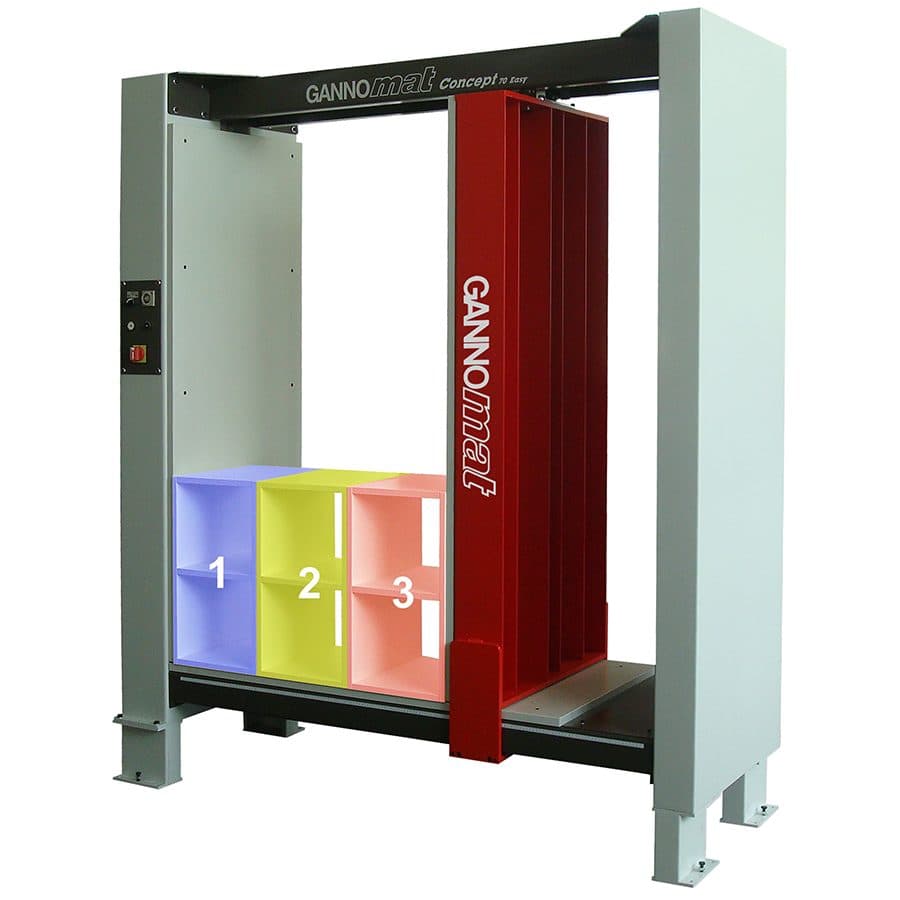

Concept 70 Easy

The Concept Easy is the ideal assembly support for dowel construction for case goods production as well as drawer production.

Small footprint requirement, less than 20 square feet
Potentiometer for stepless adjustable pressing force
Pressing force min. 300 daN (kg)
Pressing force max. 2200 daN (kg)
3 Pressing velocities and adjustment rates, 5 /10 / 25 mm/sec. (with fine positioning / creep feed)
Adjustable clamping cycle time with automatic opening
Clamp dimensions: 79″ L x 32″ D
Minimum clamping width: 6″
Maximum clamping width: 51-3/16″
Two models: 70/170: 82-5/8″ H with 67″ Working Height and the 70/250: 114″ H with 98-1/2″ Working Height

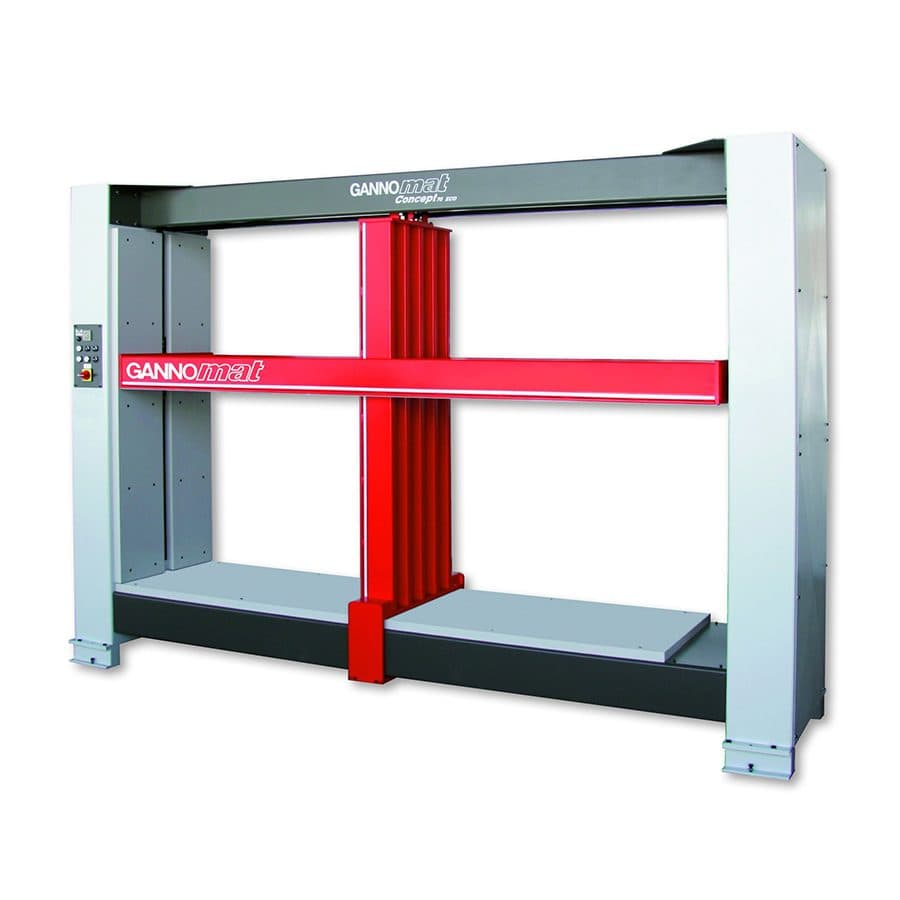

Concept 70 ECO Plus

The Concept Eco, Gannomat's most popular model, provides flexible support in the assembly of dowel construction case goods as well as drawer assembly production.

With workpiece tolerance compensation (System Ganner)
2 Potentiometer for stepless adjustable pressing force
Pressing force min. 300/500 kg
Pressing force max. 2200 kg
4 Pressing velocities and adjustment rates, 5 /10 / 25 / 50 mm/sec. (with fine positioning / creep feed)
Adjustable clamping cycle time with automatic opening
Simple operation by 6 individual push buttons for 8 motion sequences
Standard Length (X): 150 to 2500 mm, Height (Z): 150 to 1300 mm, Depth (Y): 150 to 700 mm. Can also be provided in longer X-axis length as an option.

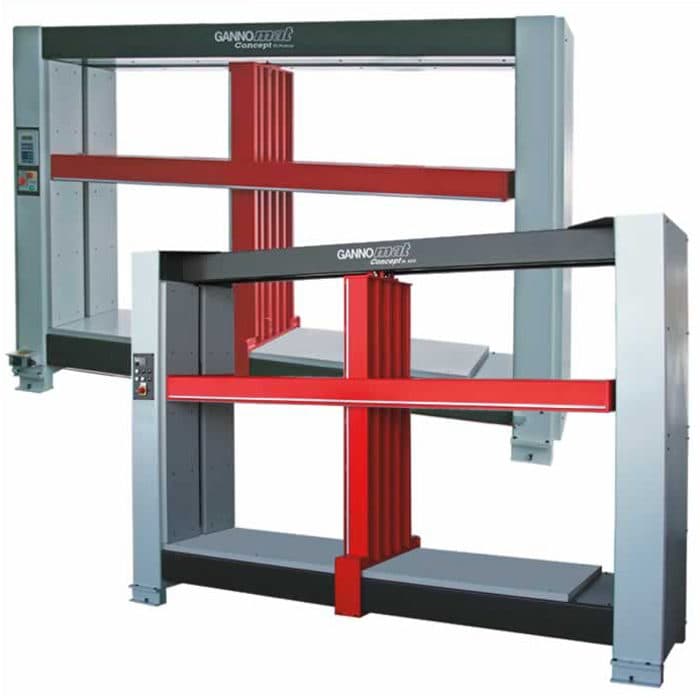

Concept Primus 70/90

The Concept Primus provides some of the highest pressing force on the market at 3,500 kg max. This model can also come in a 700mm or 900mm depth to fit your company’s assembly production needs.

With workpiece tolerance compensation (System Ganner)
2 Potentiometer for stepless adjustable pressing force
Pressing force min. 600/800 kg
Pressing force max. 3500 kg
4 Pressing velocities and adjustment rates 5 /10 / 25 / 50 mm/sec. (with fine positioning / creep feed)
Adjustable clamping cycle time with automatic opening
Simple operation by 6 individual push buttons for 8 motion sequences
Width (X): 150 to 2500 mm, Height (Z): 150 to 1300 mm, Depth (Y): 150 to 700 mm = Concept Primus 70, Depth (Y): 150 to 900 mm = Concept Primus 90. Can also be provided in longer X-axis length as an option.
