C.R. Onsrud Model 241G18 3-Axis Panel Pro Series CNC Router SOLD

This 3-Axis CNC Router package included the following items:

- 5’ x 20’ table with 5 independent vac zones for pendulum processing

- OSAI PC Front Series 10/510 System – OSAI PC Front w/High Res touchscreen, network capability, PLC Machine Controller, plus adds OSAI Digital Drives, Amps, and Servos - Windows 7 Operating system

- 18 HP Spindle - 4-Pole, 13.5Kw, 18HP – 24,000 RPM fully programmable & reversible, variable speed, HSK 63F tool interface, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates w/override capability.

- 12Tool-DynamicAutomaticRotaryToolChanger-FullyServocontrolledinsteadof Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. You may require C-Axis or separate Aggregate Tool Changer option to hold some larger or non-standard aggregates.

- Aggregate Anti-Rotation Retention Ring - Attaches to spindle underside. Gives spindle the ability to pick up aggregates from ATC. (Included In Automatic Aggregate Tool Changer &/or C- Axis Ability options)

- 25HP Dekker V-Max Liquid Ring Vacuum Pump - 450 CFM System @ 29”/hg

PRICE: SOLD

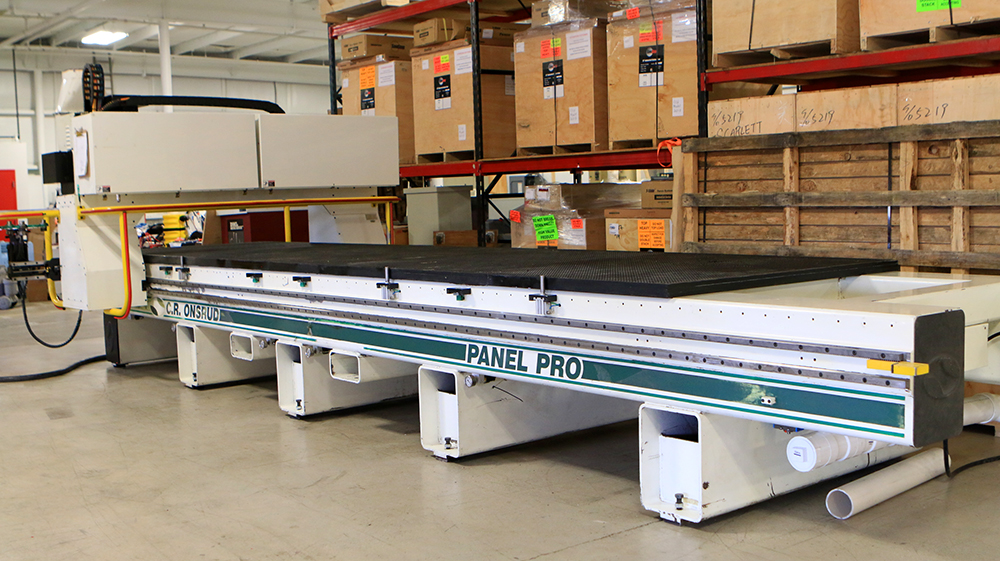

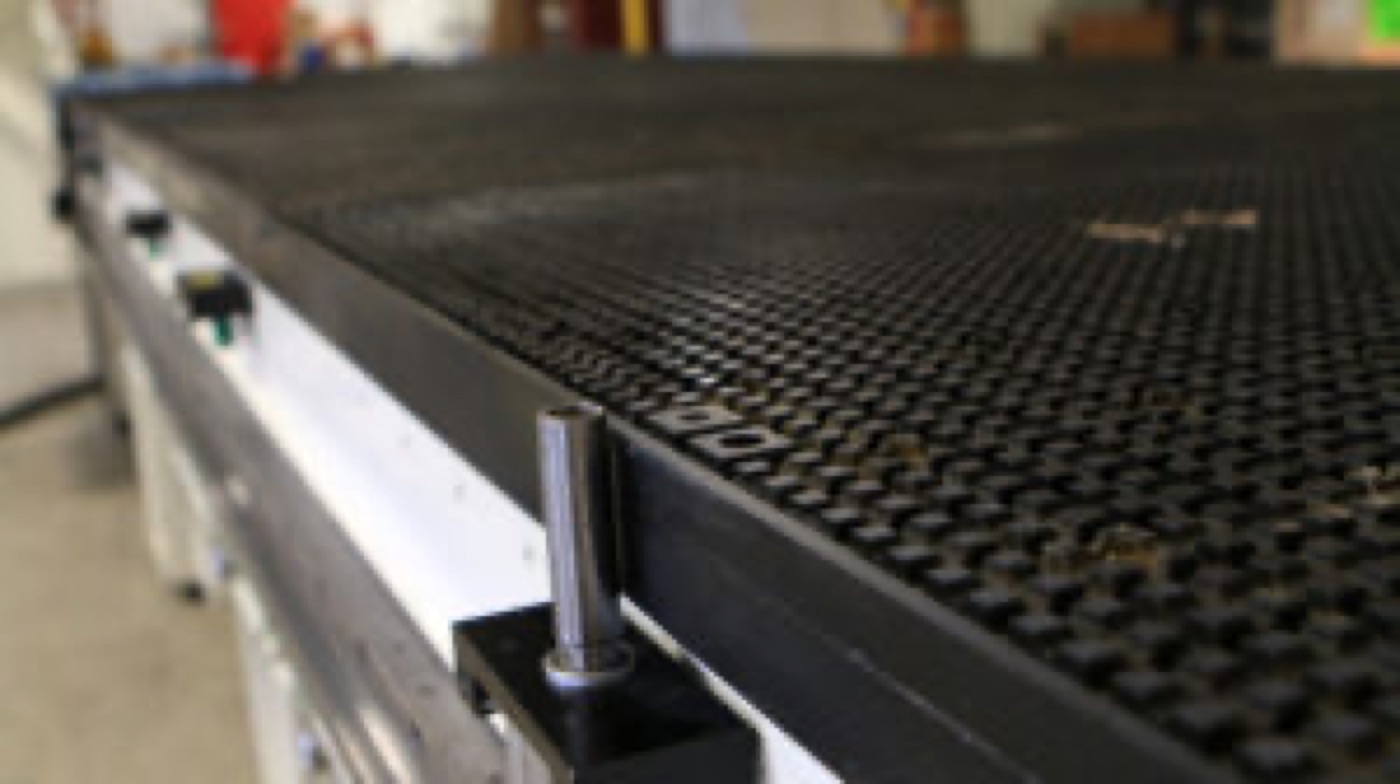

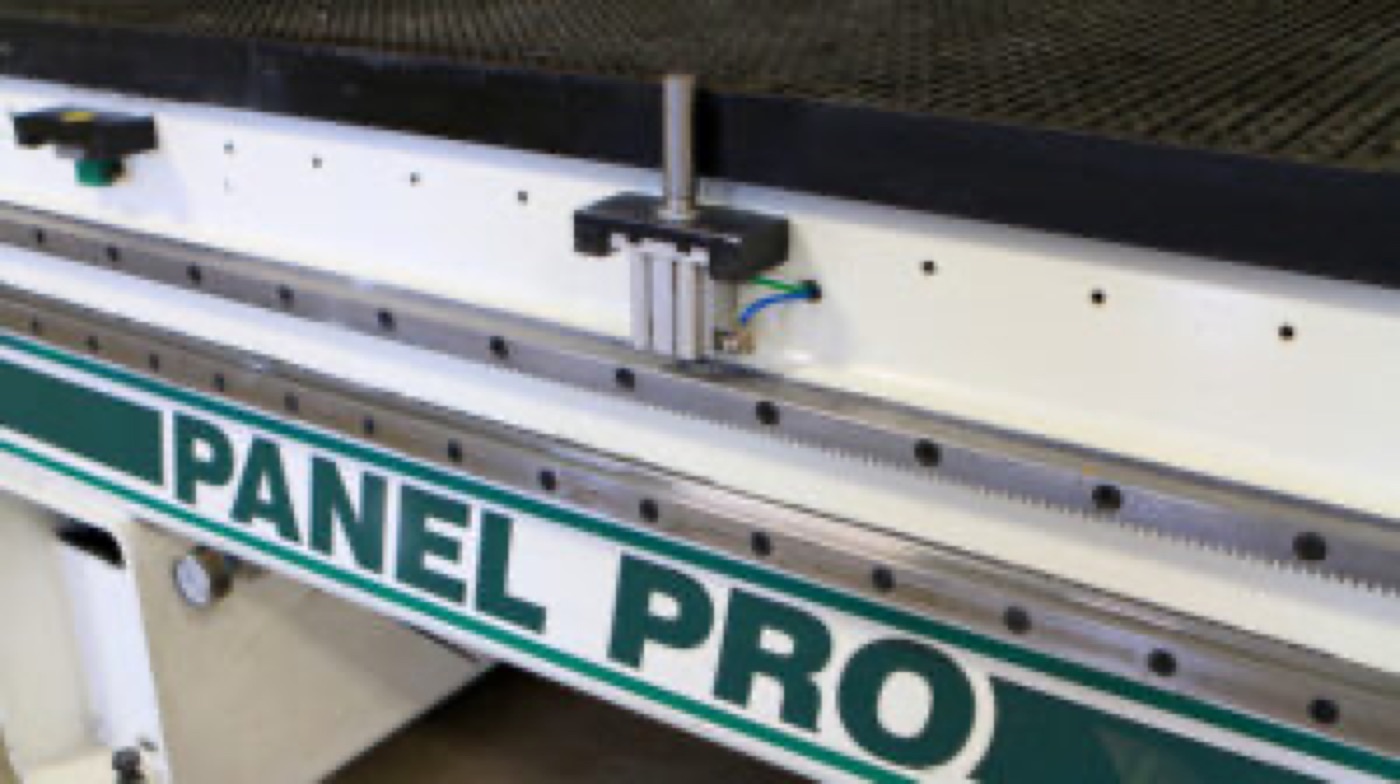

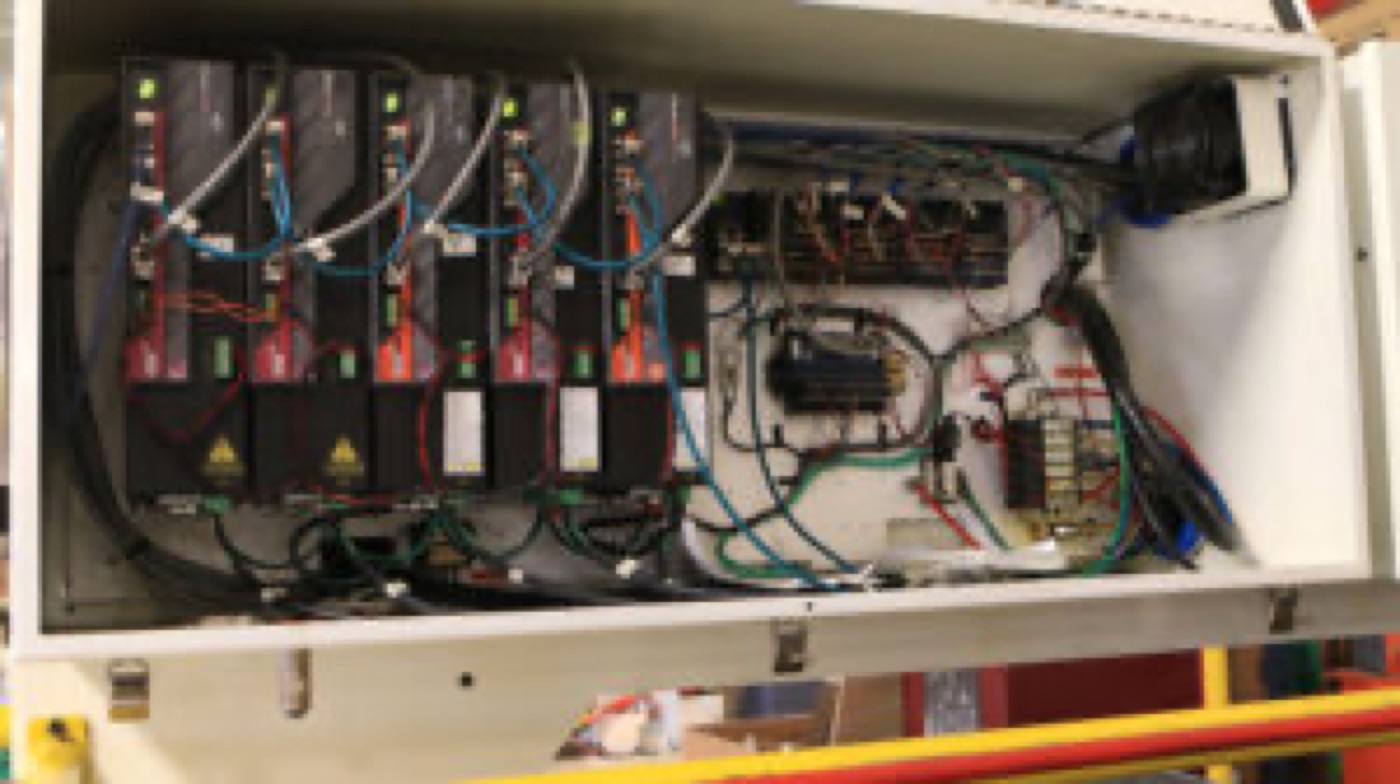

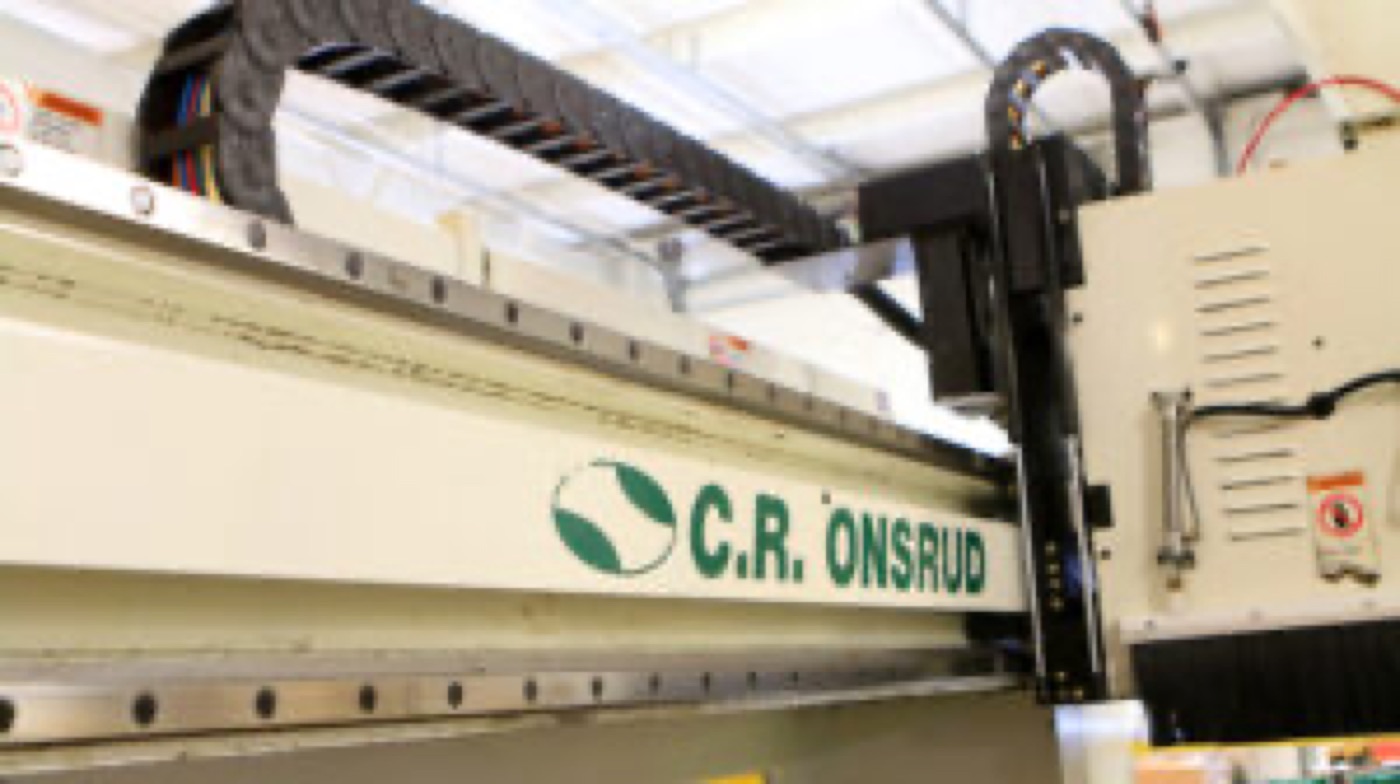

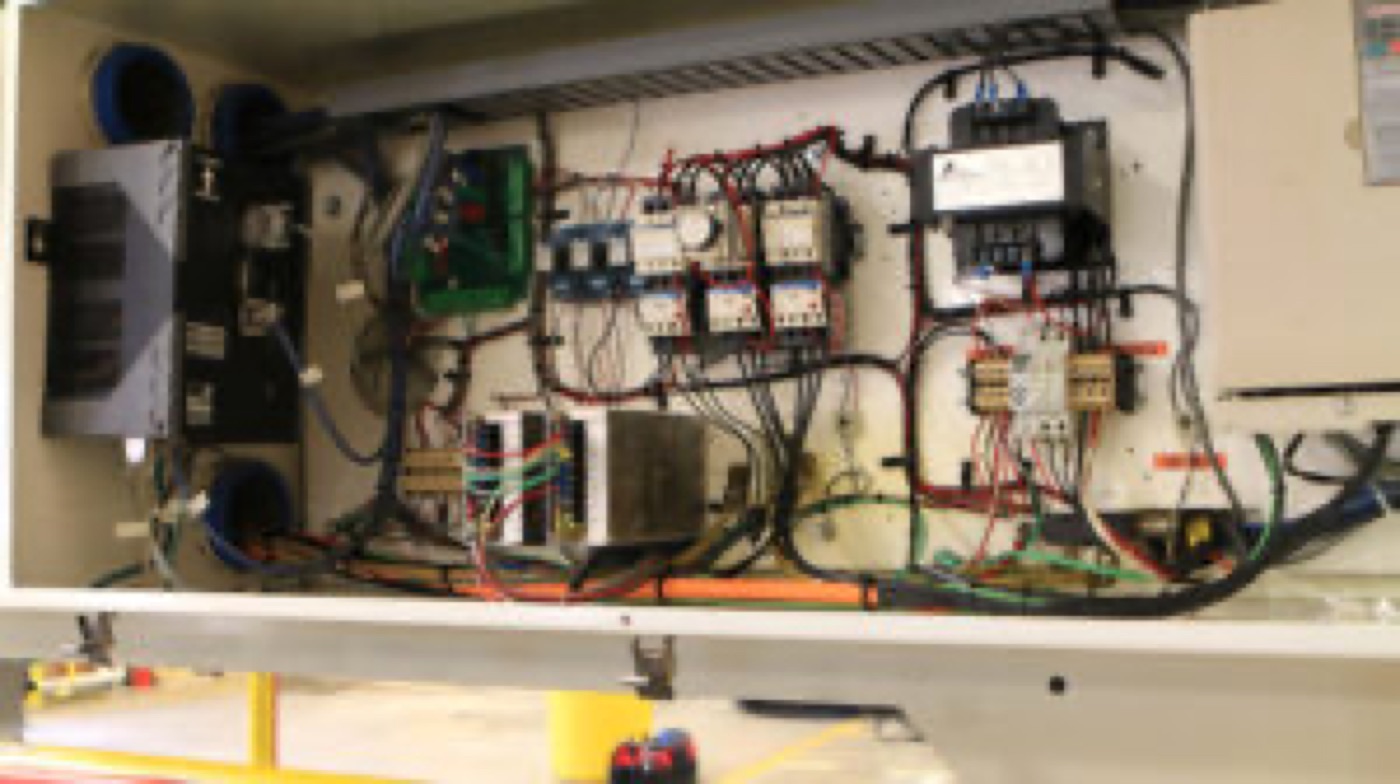

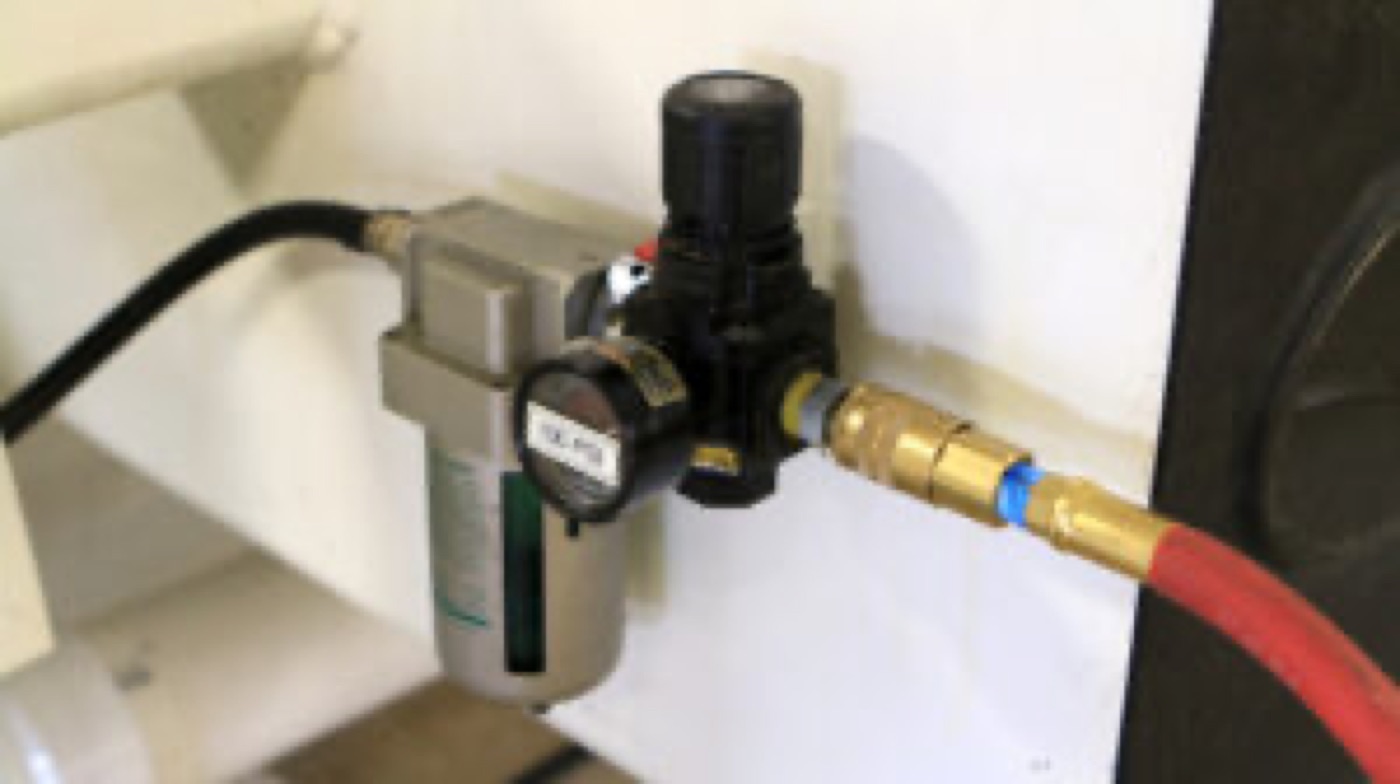

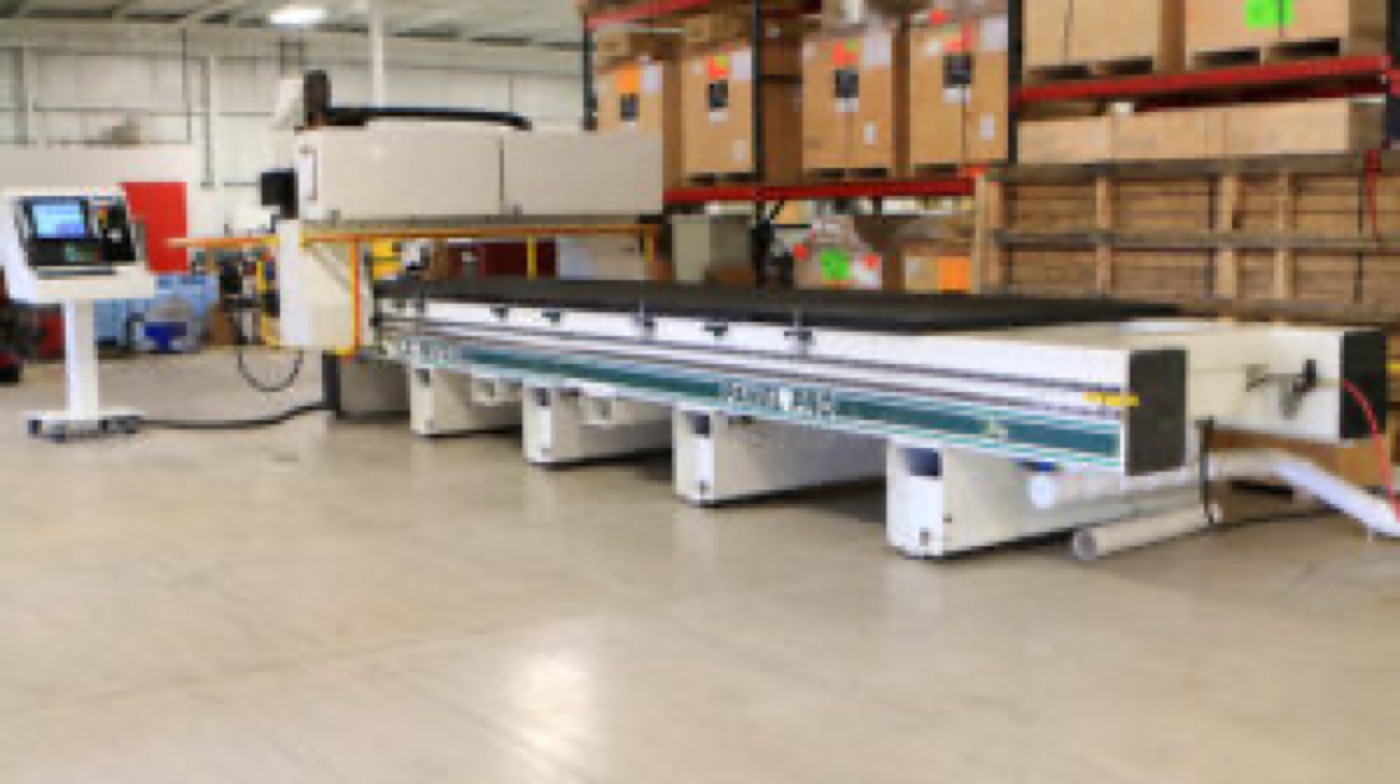

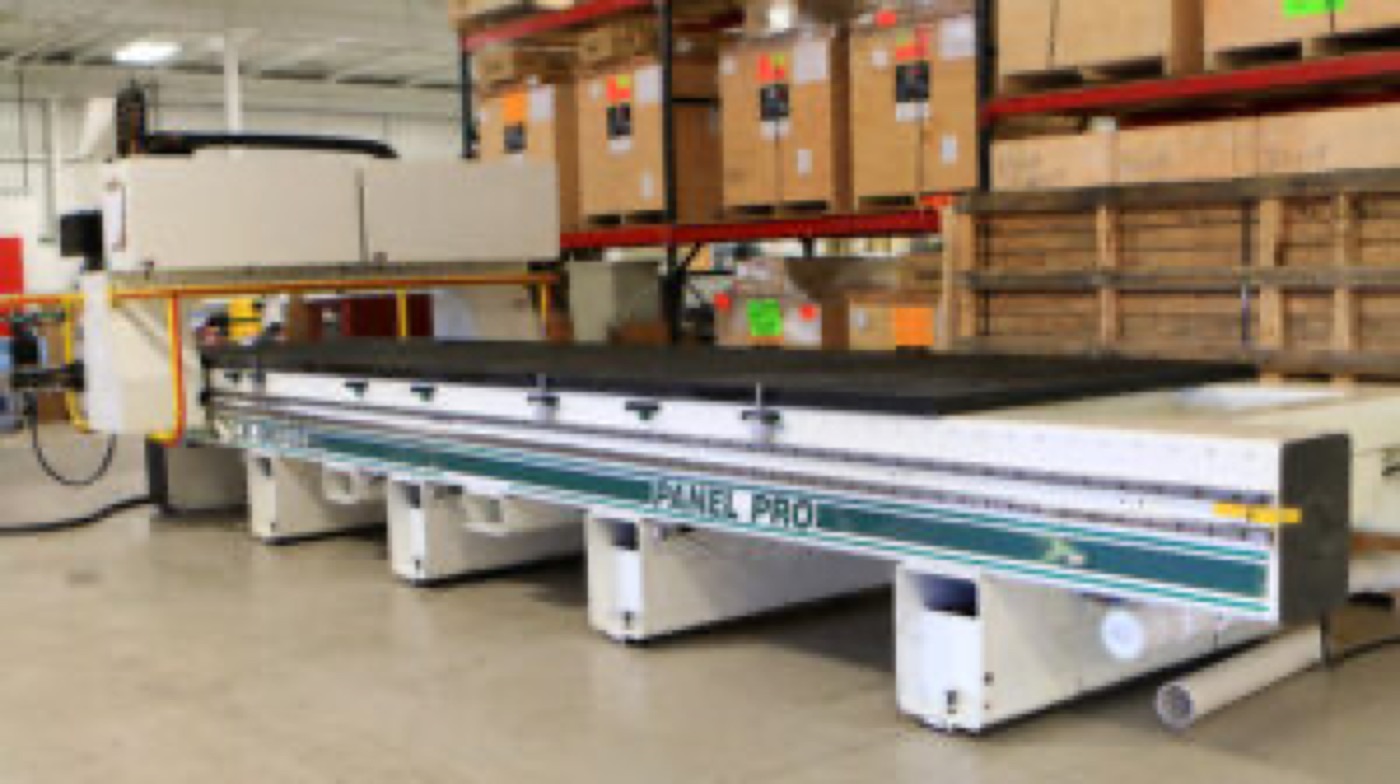

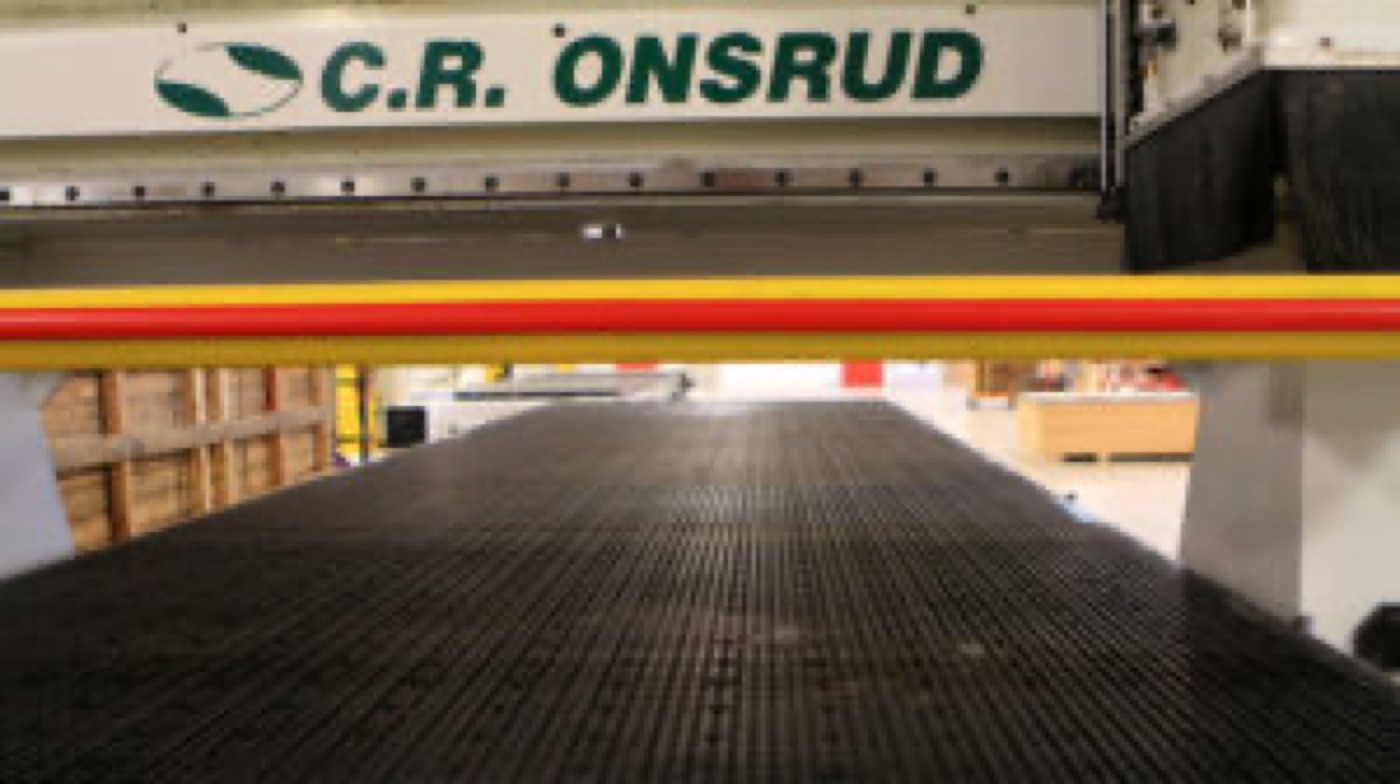

Looking down the vacuum grid table beneath the C.R. Onsrud gantry and yellow safety bar C.R. Onsrud 241G18 Panel Pro CNC router with its long vacuum table and freestanding control console Side of the long Panel Pro table with a row of pneumatic pop-up stops Close-up of the Panel Pro side rail with helical rack and a pneumatic pop-up stop Vacuum grid table surface with a pop-up locating pin along the edge Open electrical cabinet showing the router's servo drives and wiring Air filter and pressure regulator with gauge on the router's air supply line Open electrical panel with contactors, transformer and power supplies C.R. Onsrud gantry beam with linear rail and cable carrier

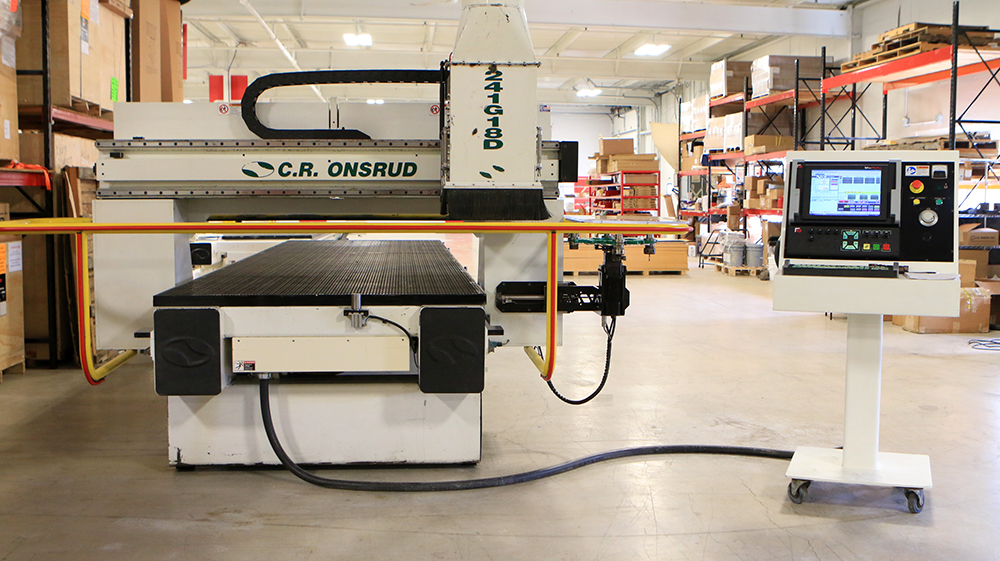

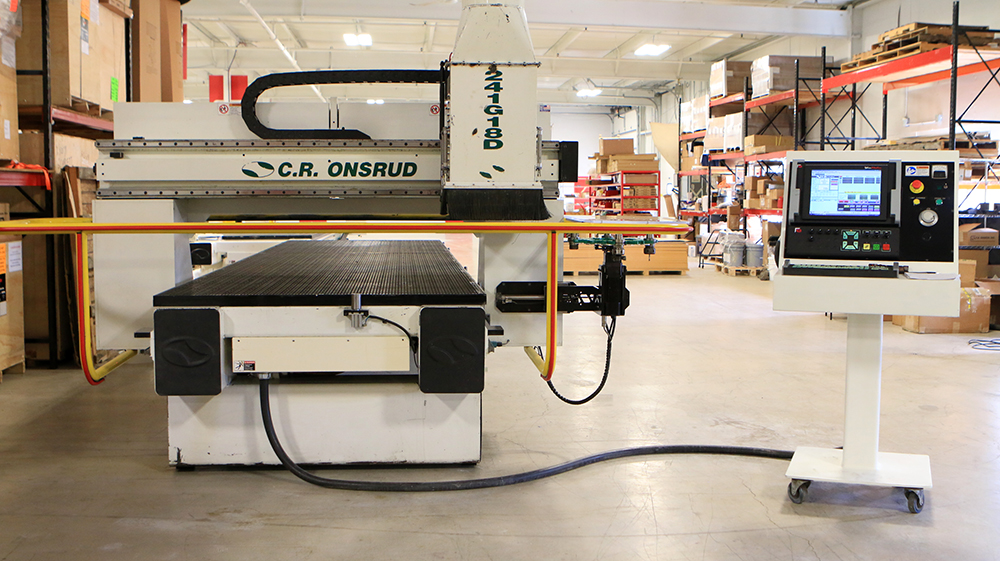

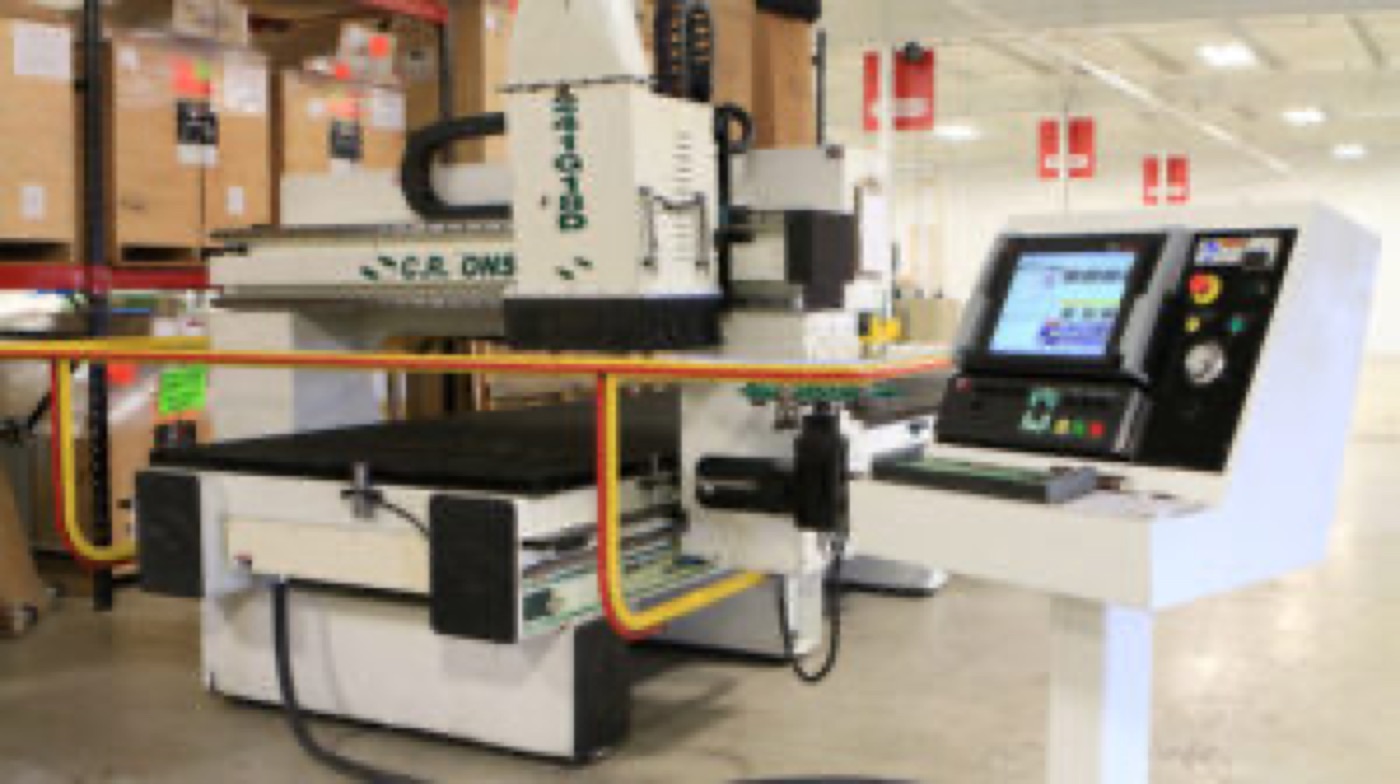

C.R. Onsrud 241G18 router head and table beside the OSAI touchscreen control console

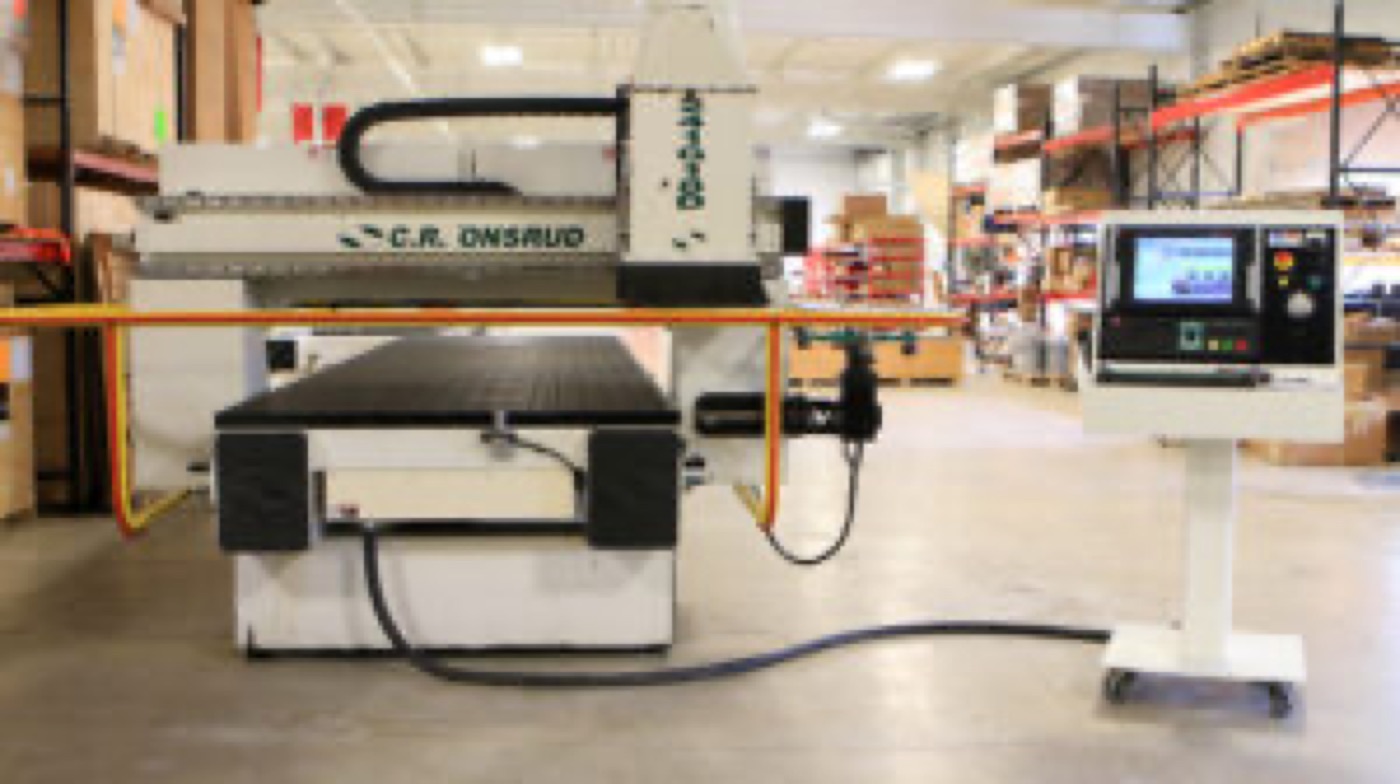

End view of the C.R. Onsrud 241G18 CNC router and its control console in the warehouse

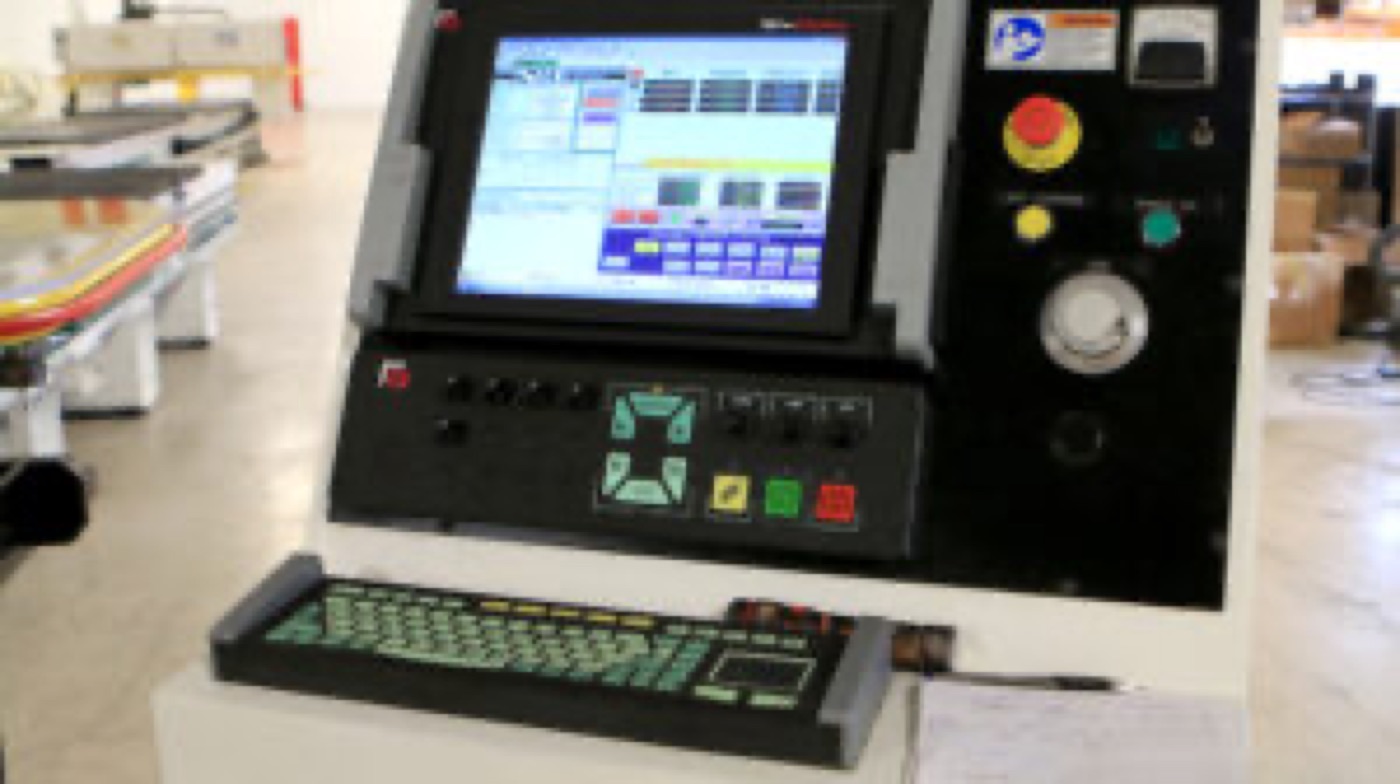

OSAI control console with touchscreen, keyboard, jog controls and emergency stop

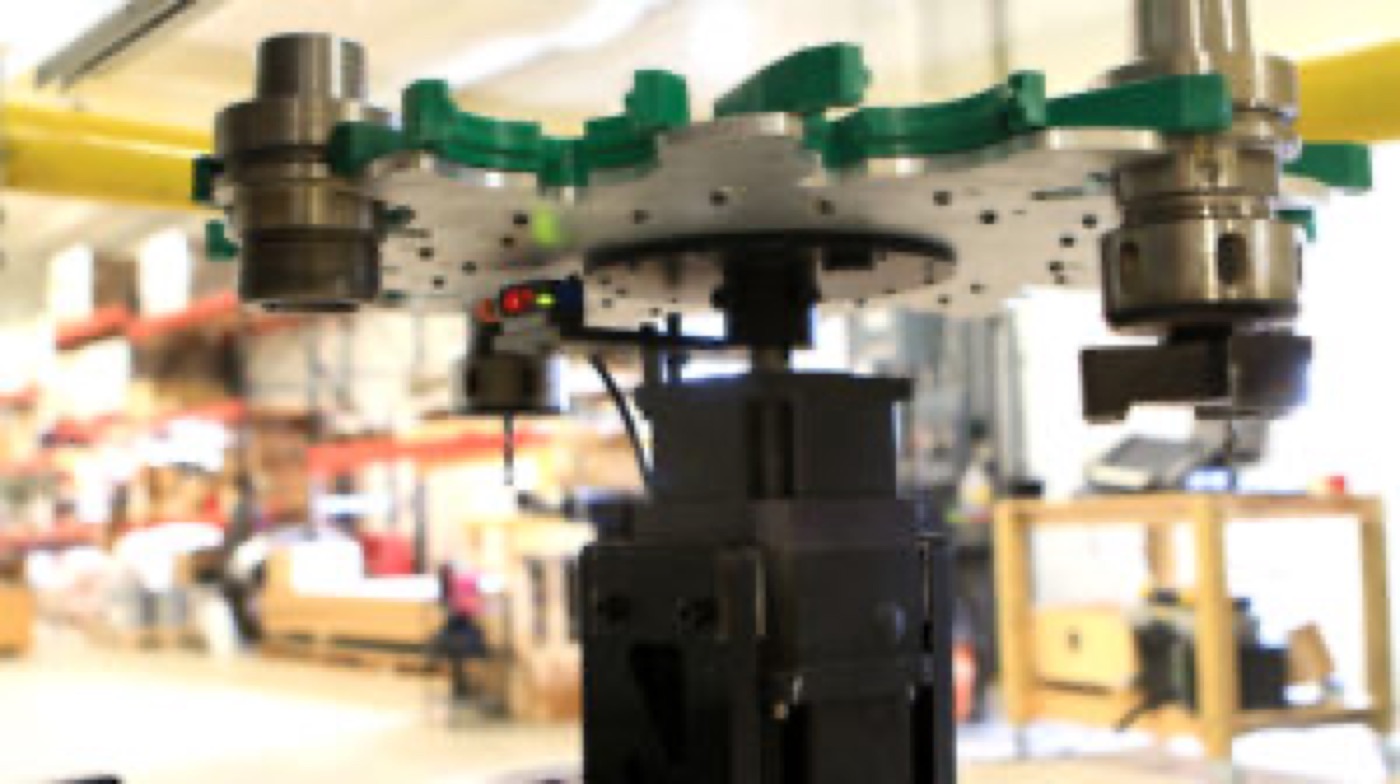

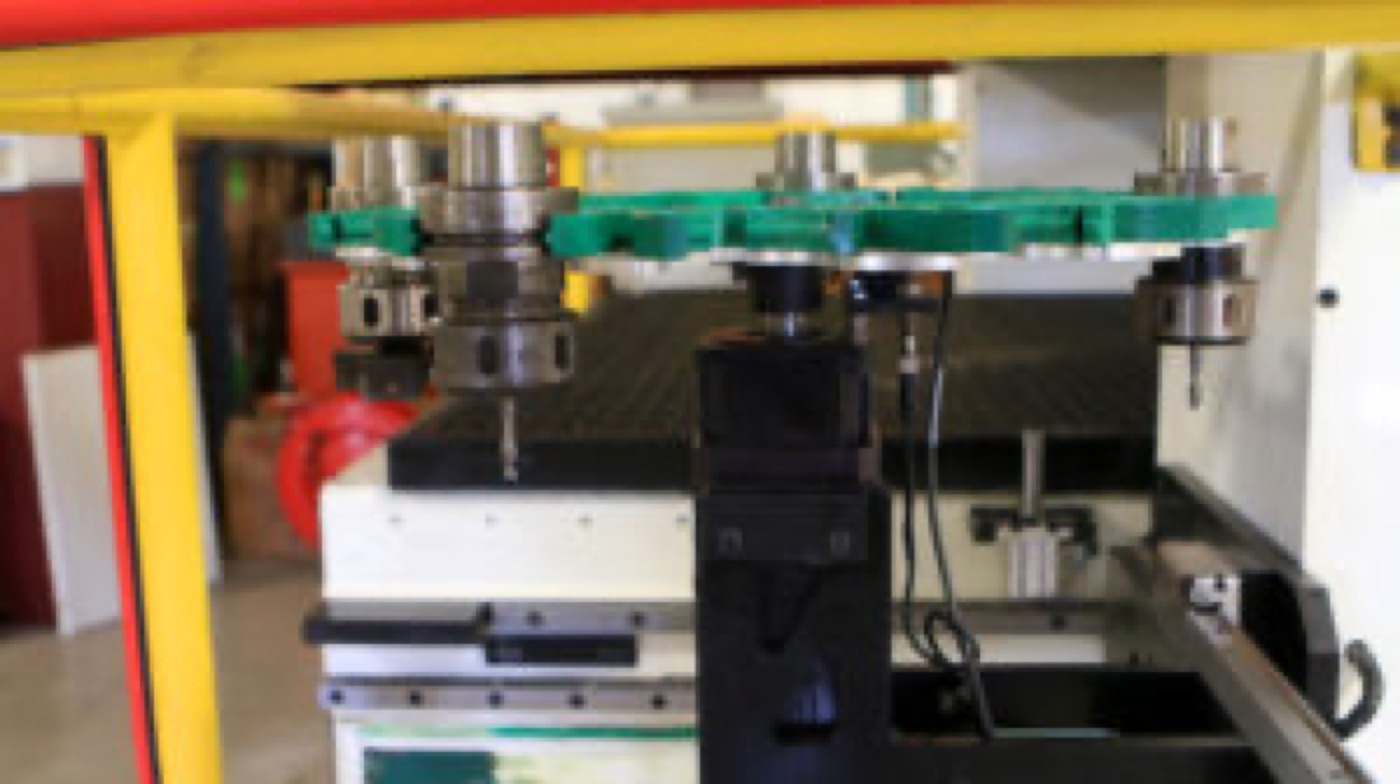

Rotary tool changer holding HSK tool holders beside the router head

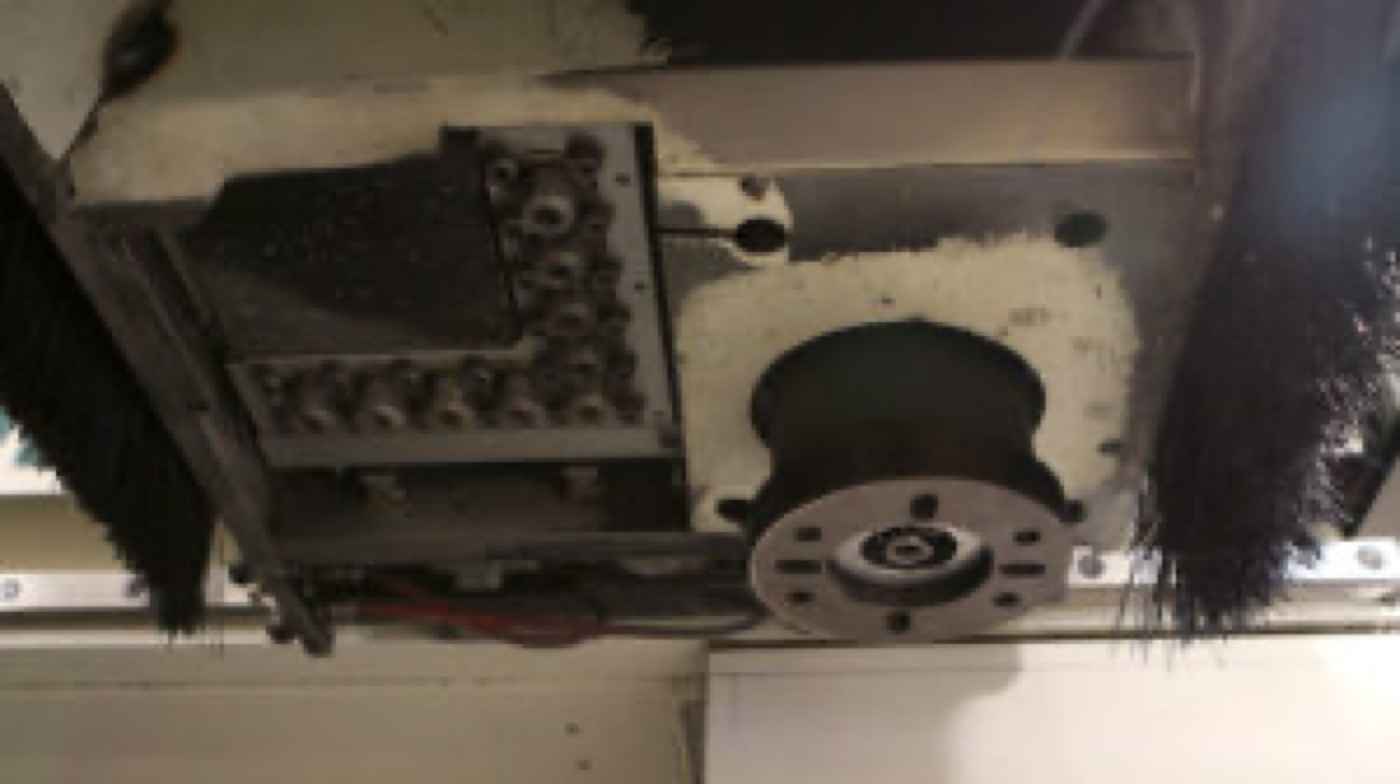

Underside of the router head showing the spindle nose and dust skirt brushes

This 3-Axis CNC Router package included the following items:

PRICE: SOLD
