C.R. Onsrud 122C18 CNC Router (2012) SOLD

By Ryan Scarlett

C.R. Onsrud 122C18 CNC Router (2012) SOLD

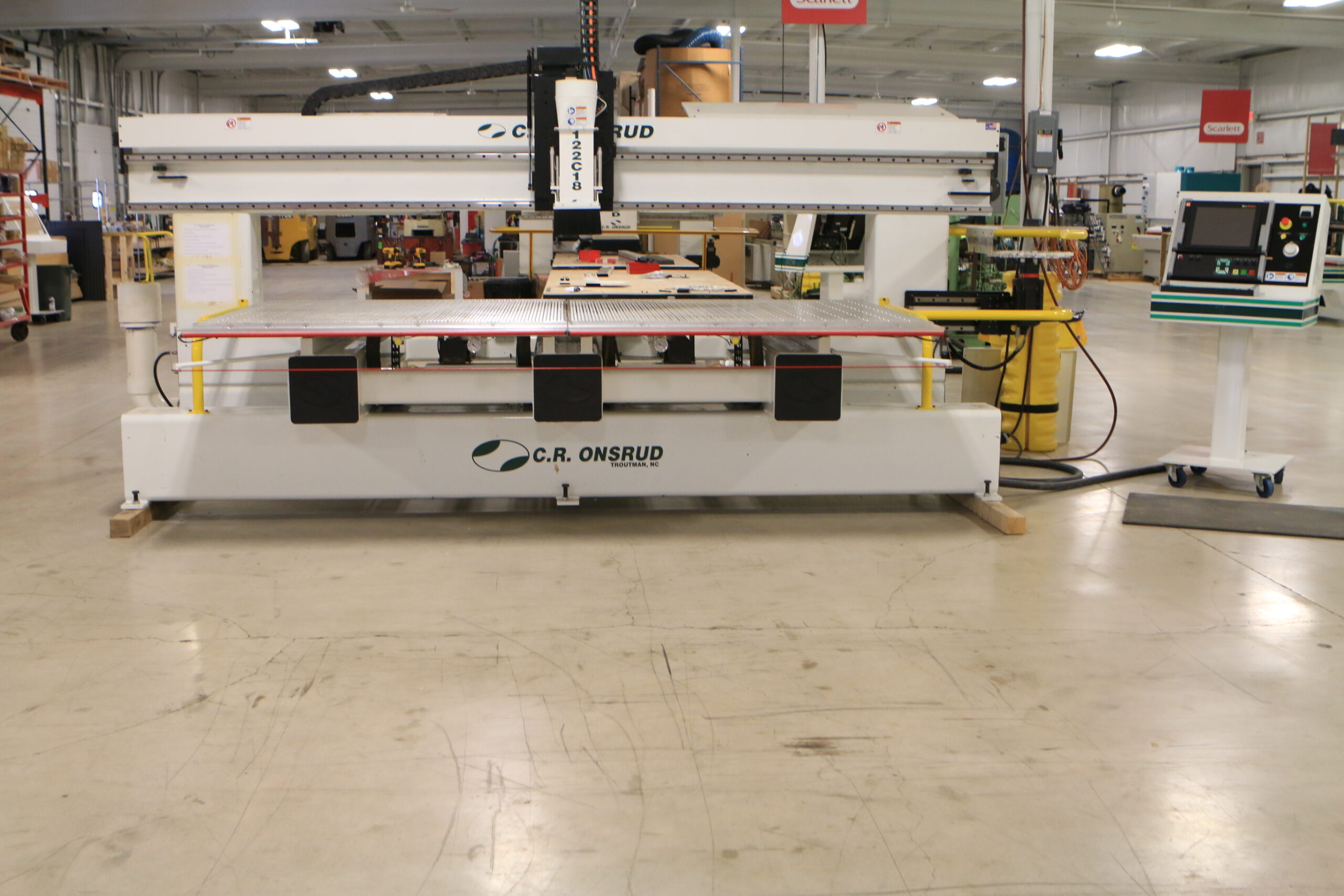

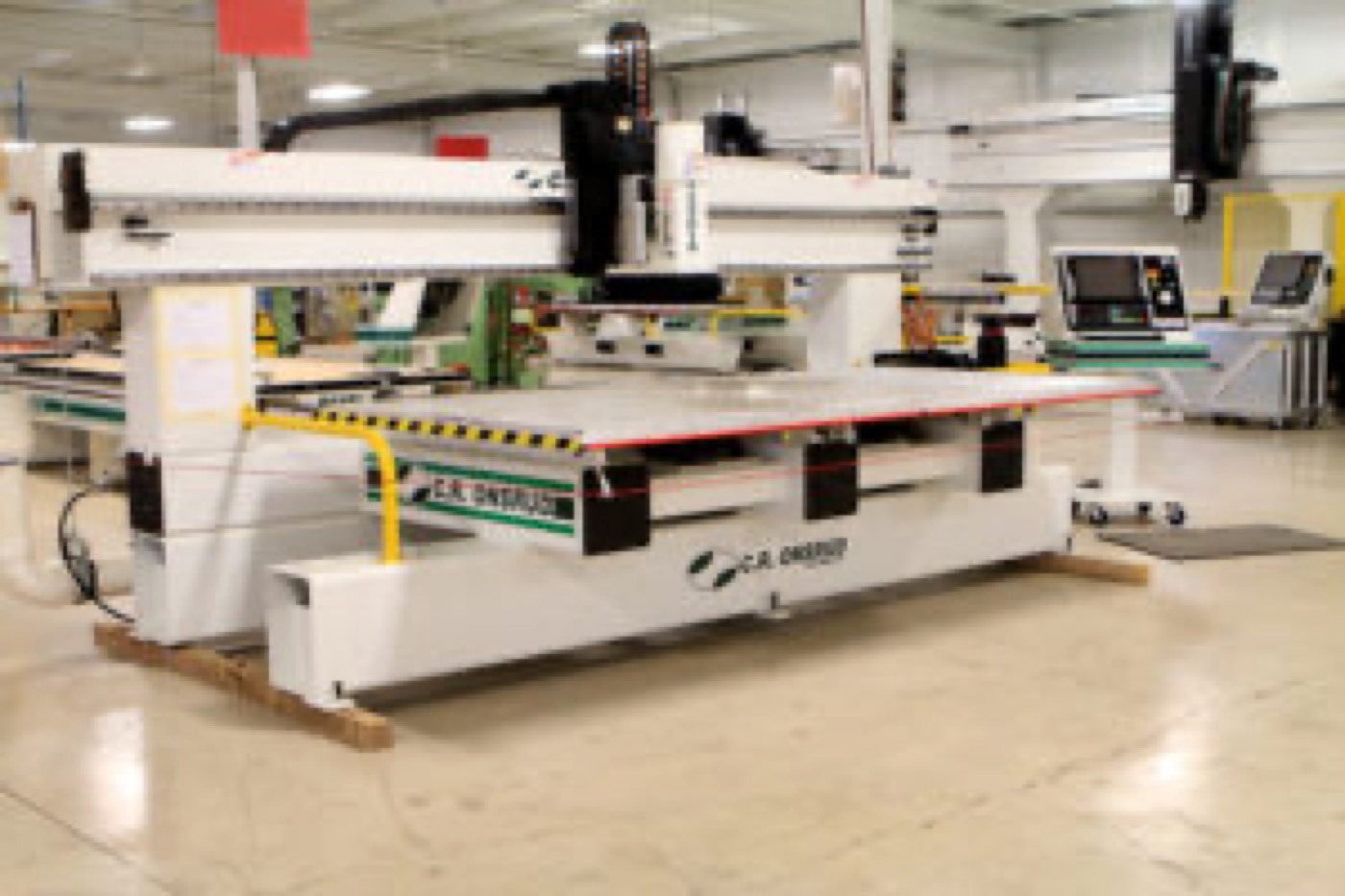

Front view of the C.R. Onsrud 122C18 Super Duty CNC router with twin aluminum vacuum tables

SOLD

C.R ONSRUD 122C18 "Super Duty Series" CNC

5' x 10' table with twin 5' x 5' & 5' x 5' split for pendulum processing

OSAI PC Front Series 10/510i System – OSAI PC Front w/High Res touch screen, network capability, PLC Machine Controller, plus adds OSAI Digital Drives, Amps, and Servos

Windows XP Operating system upgrade

18 HP Spindle - 4-Pole, 13.5Kw, 18HP – 24,000 RPM fully programmable & reversible, variable speed, HSK 63F tool interface, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates w/override capability.

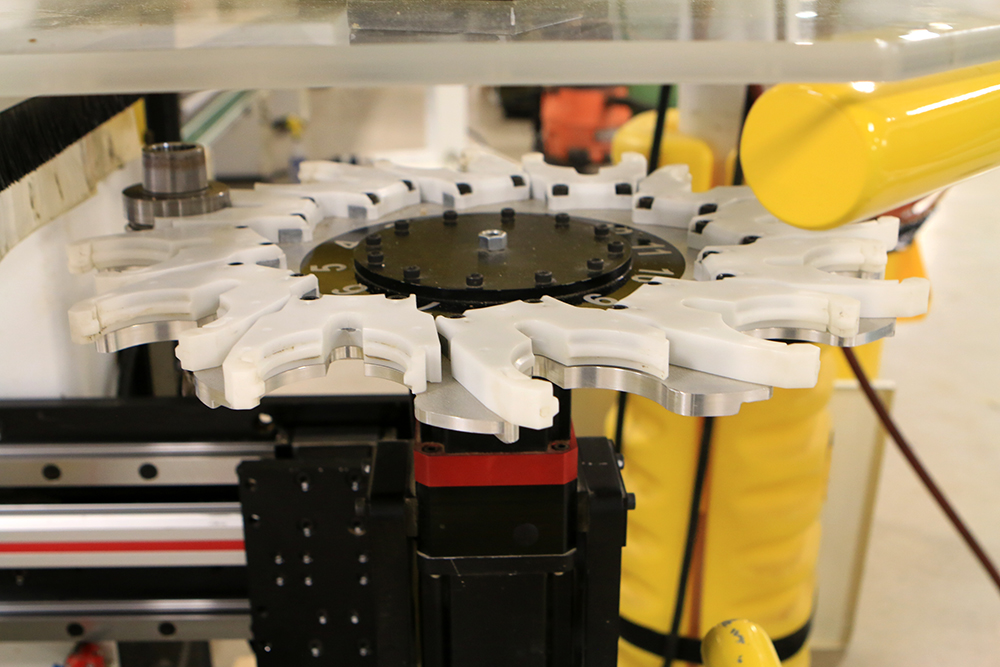

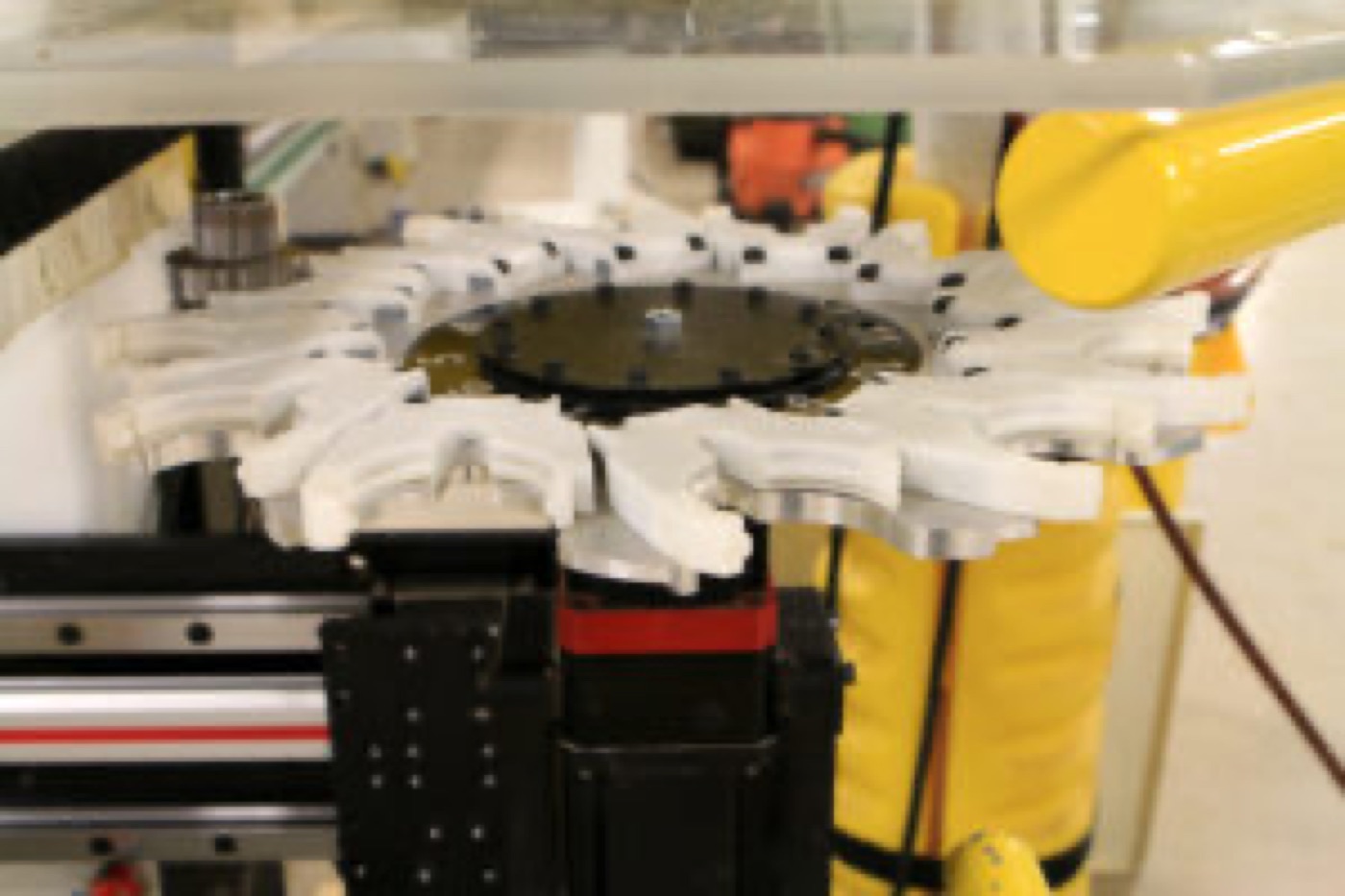

Dynamic Automatic Rotary (12) Position Tool Changer

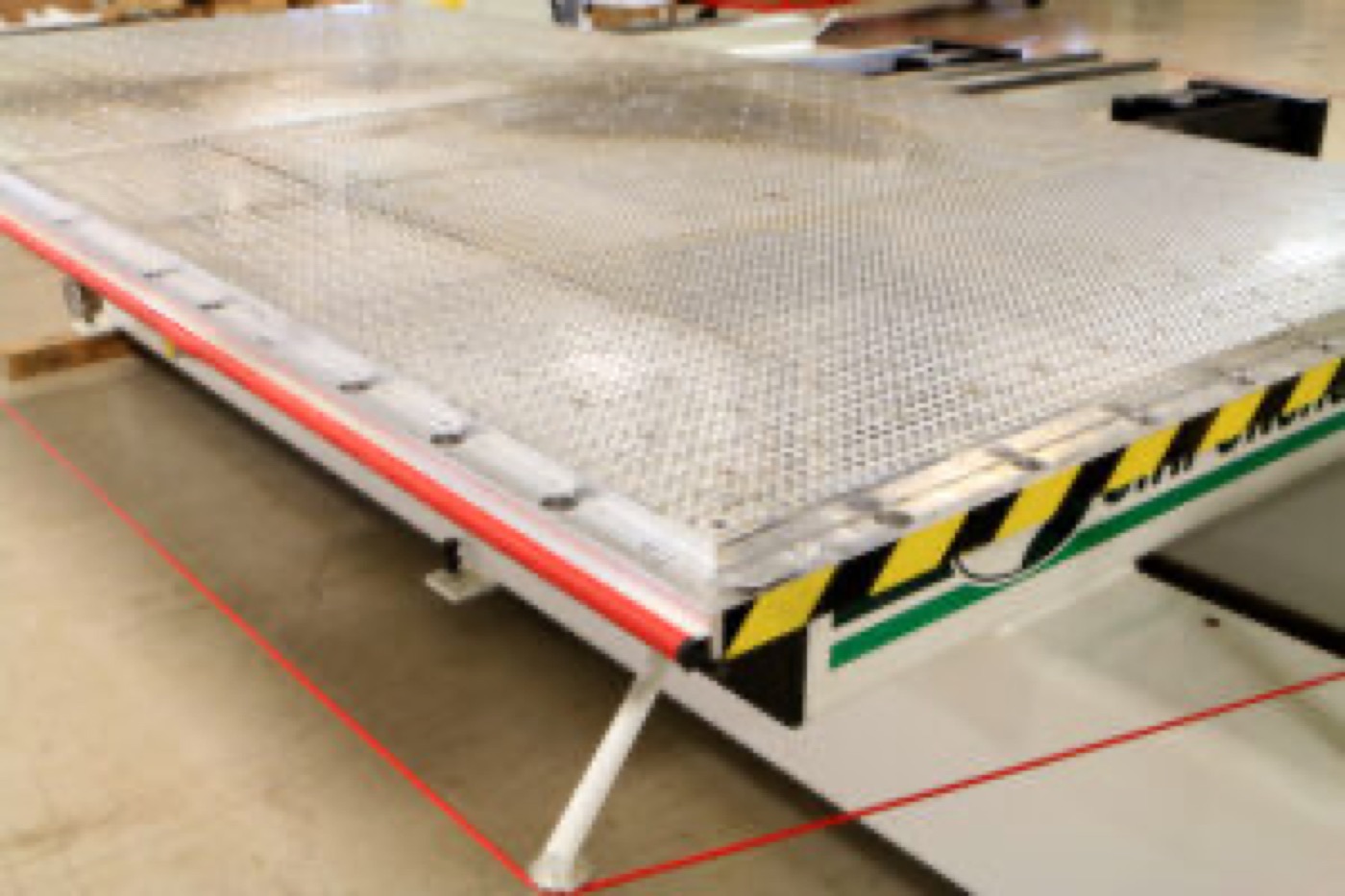

Onsrud / NEMI High-Precision Vacuum Grid Table

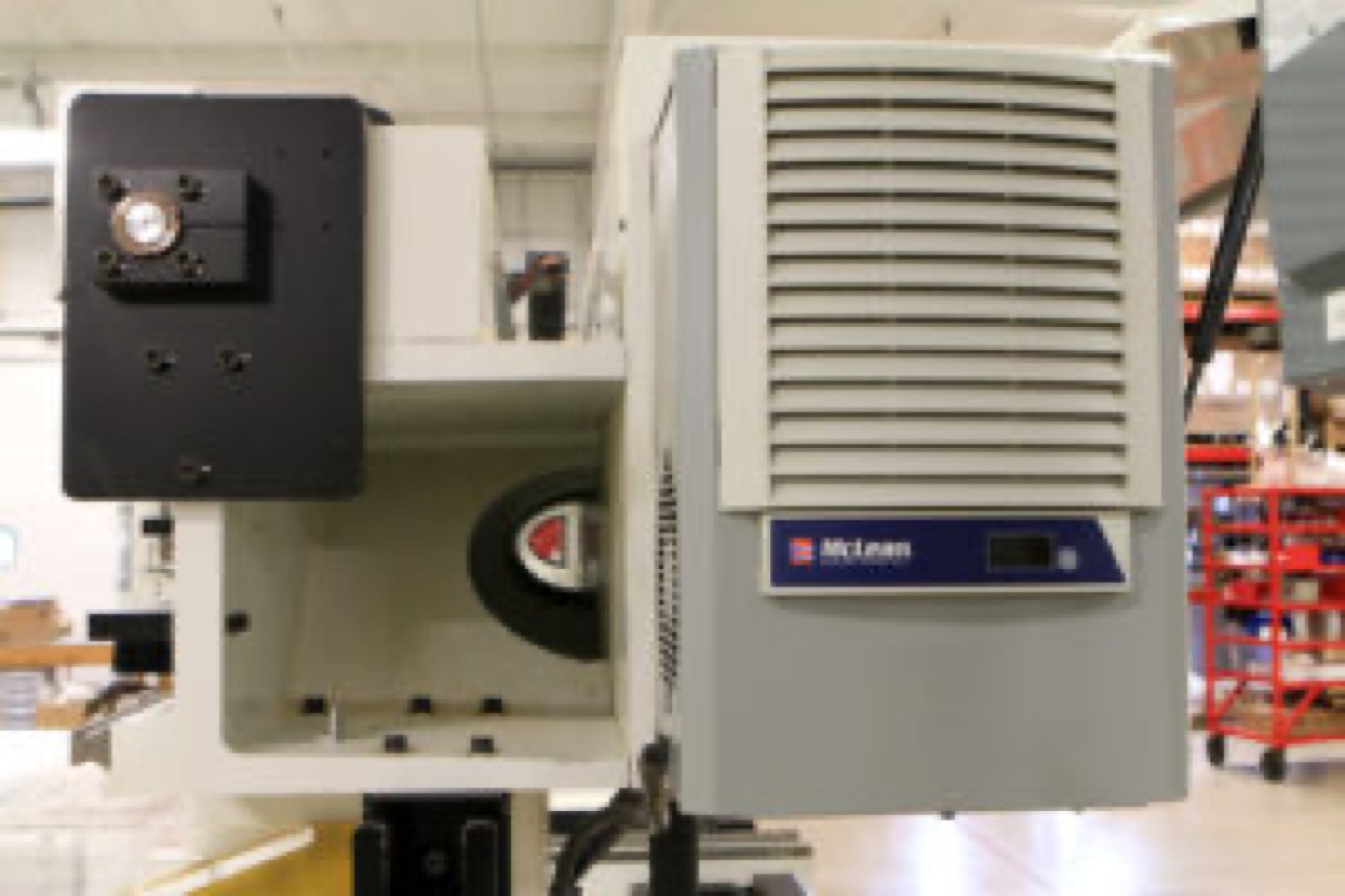

Air Conditioned Electrical Panel

Fabricated base consisting of heavy steel construction with cast iron bridge and vertical supports

All structural components are stress relieved utilizing thermal heat treatment.

Fixed bridge design with twin moving tables allows for – up to – 3100 IPM programmable feed rates. High precision ball-screw drive for all axis movements.

Tables can function as two independent work surfaces or operated in tandem as one single table

Tables include pressure sensitive safety stop "edge switch" on front and rear. In addition, a 360 degree emergency stop cable surrounds the machine.

Industrial machine control system with full 3D capability (multi-axis interpolation)

PRICE $ 120,000 SOLD

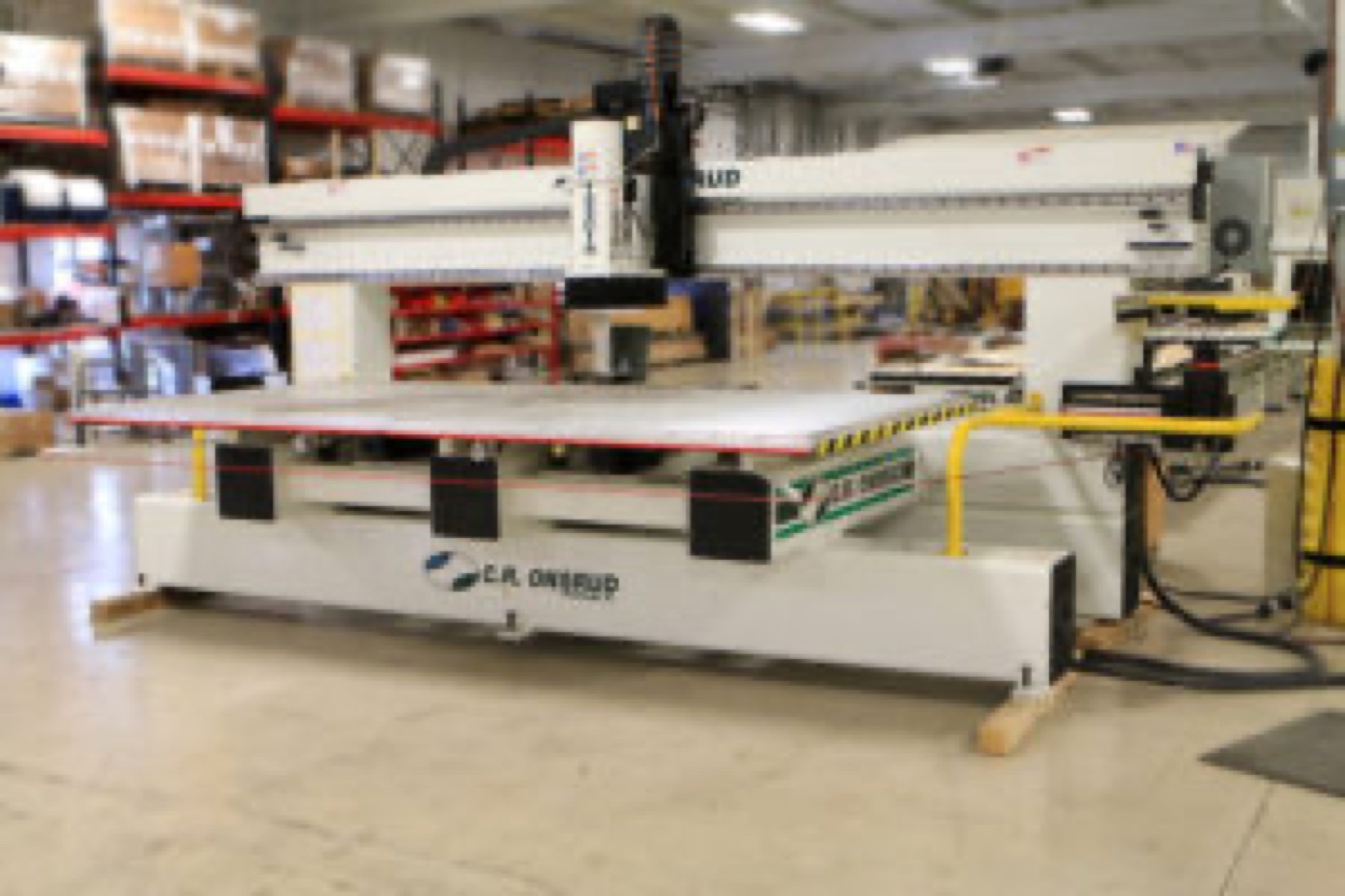

C.R. Onsrud 122C18 CNC router and its control console on a warehouse floor

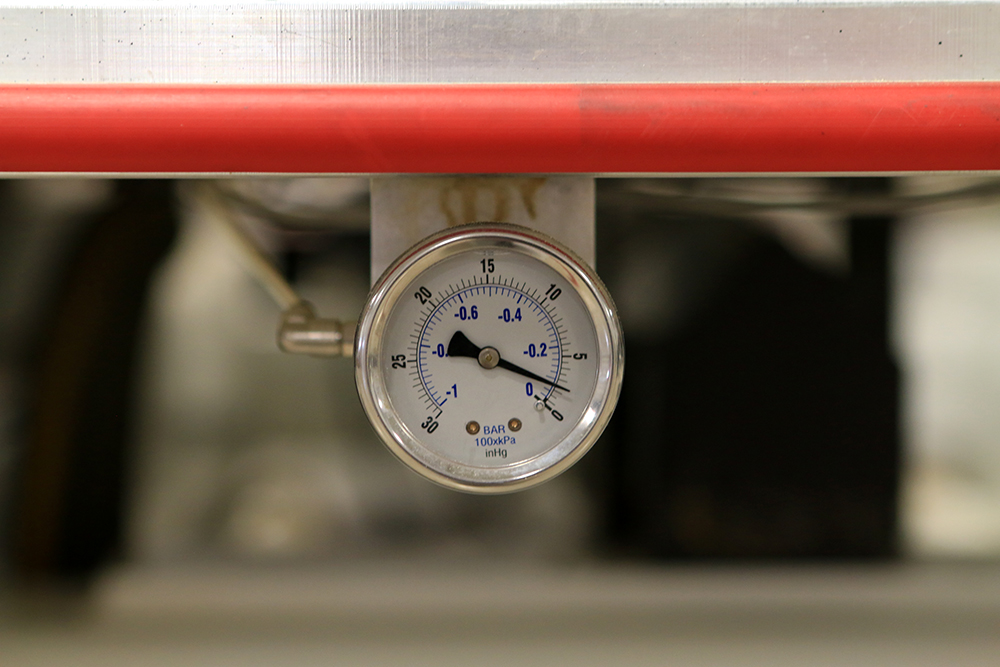

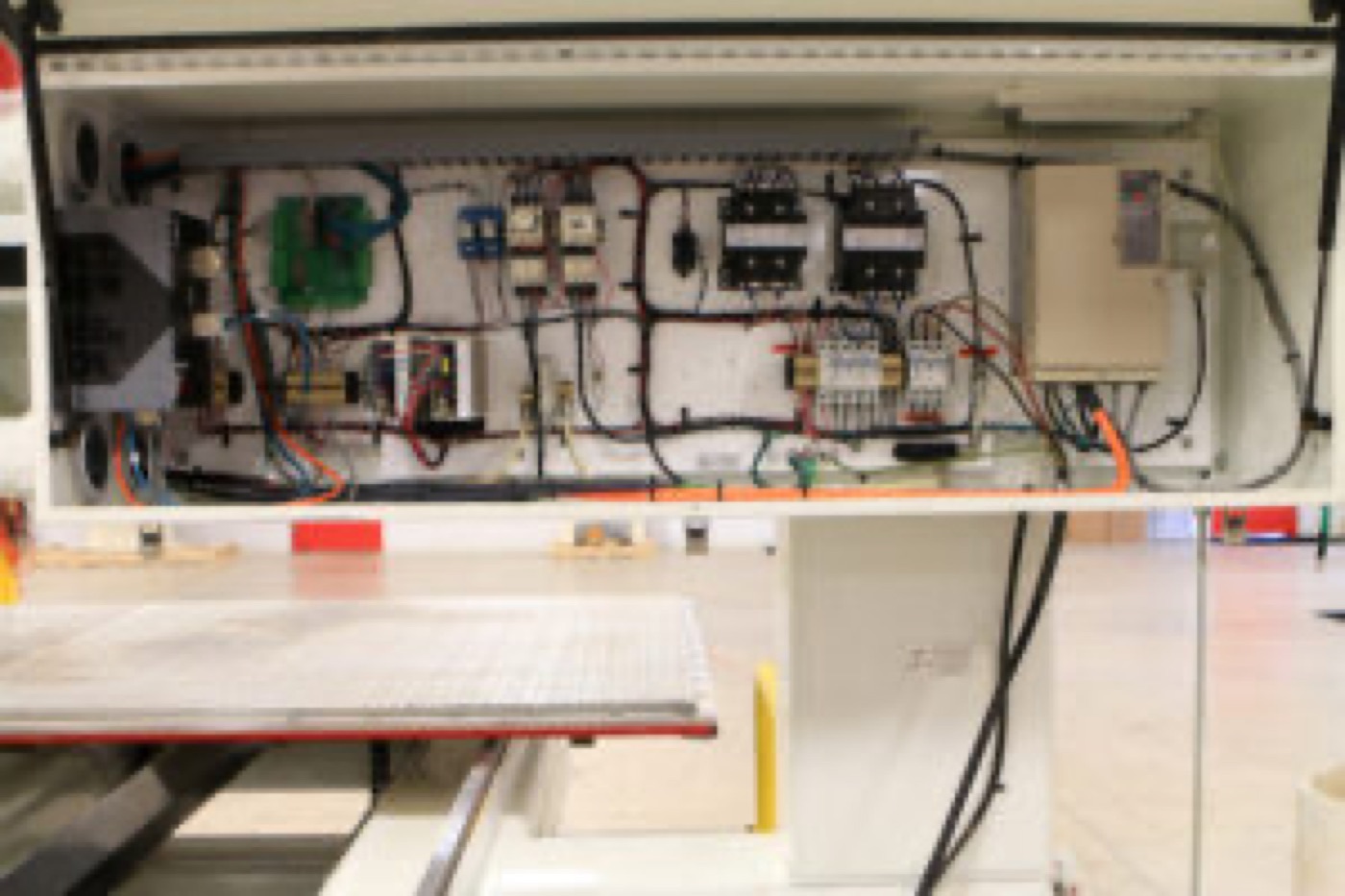

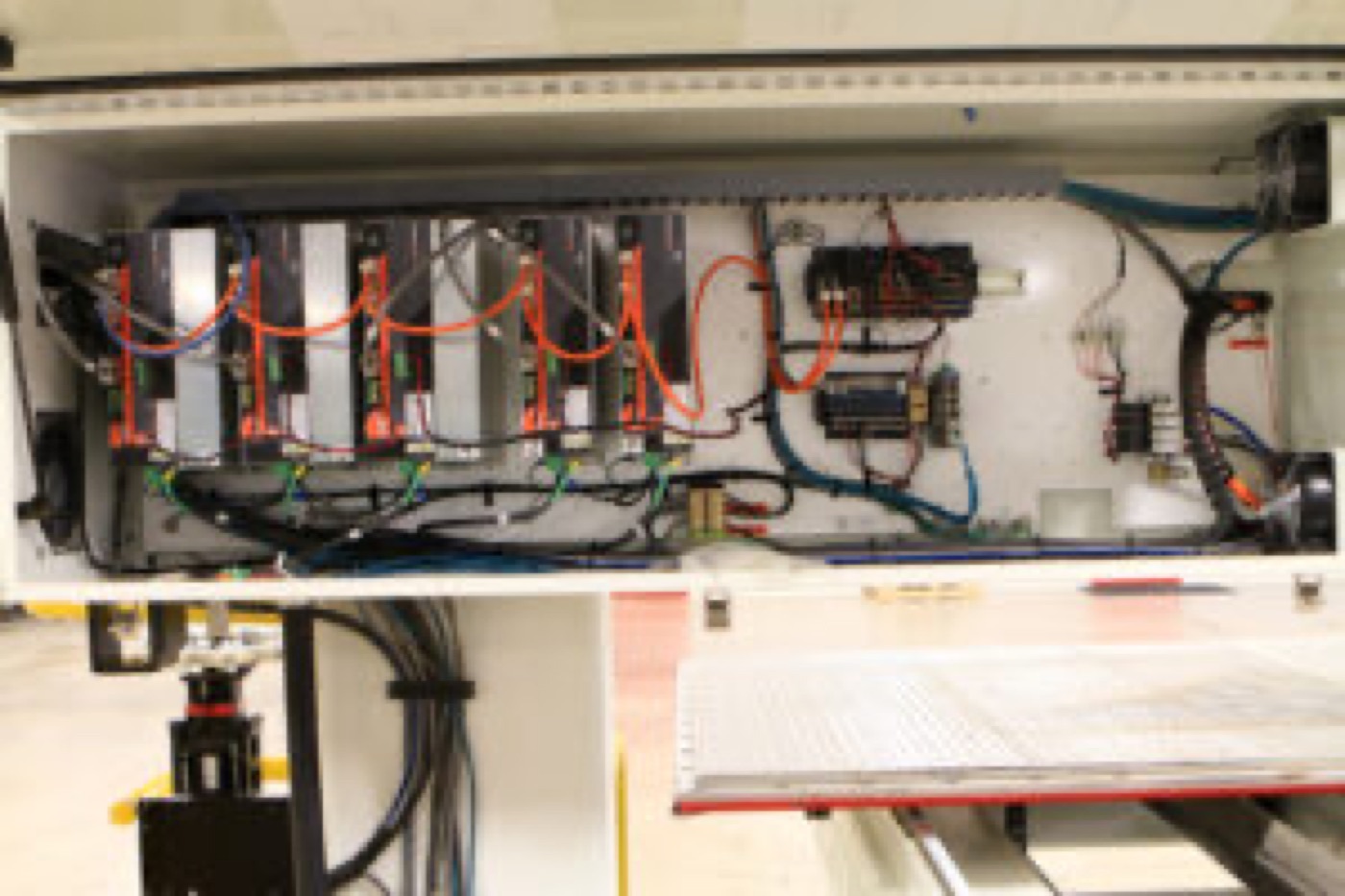

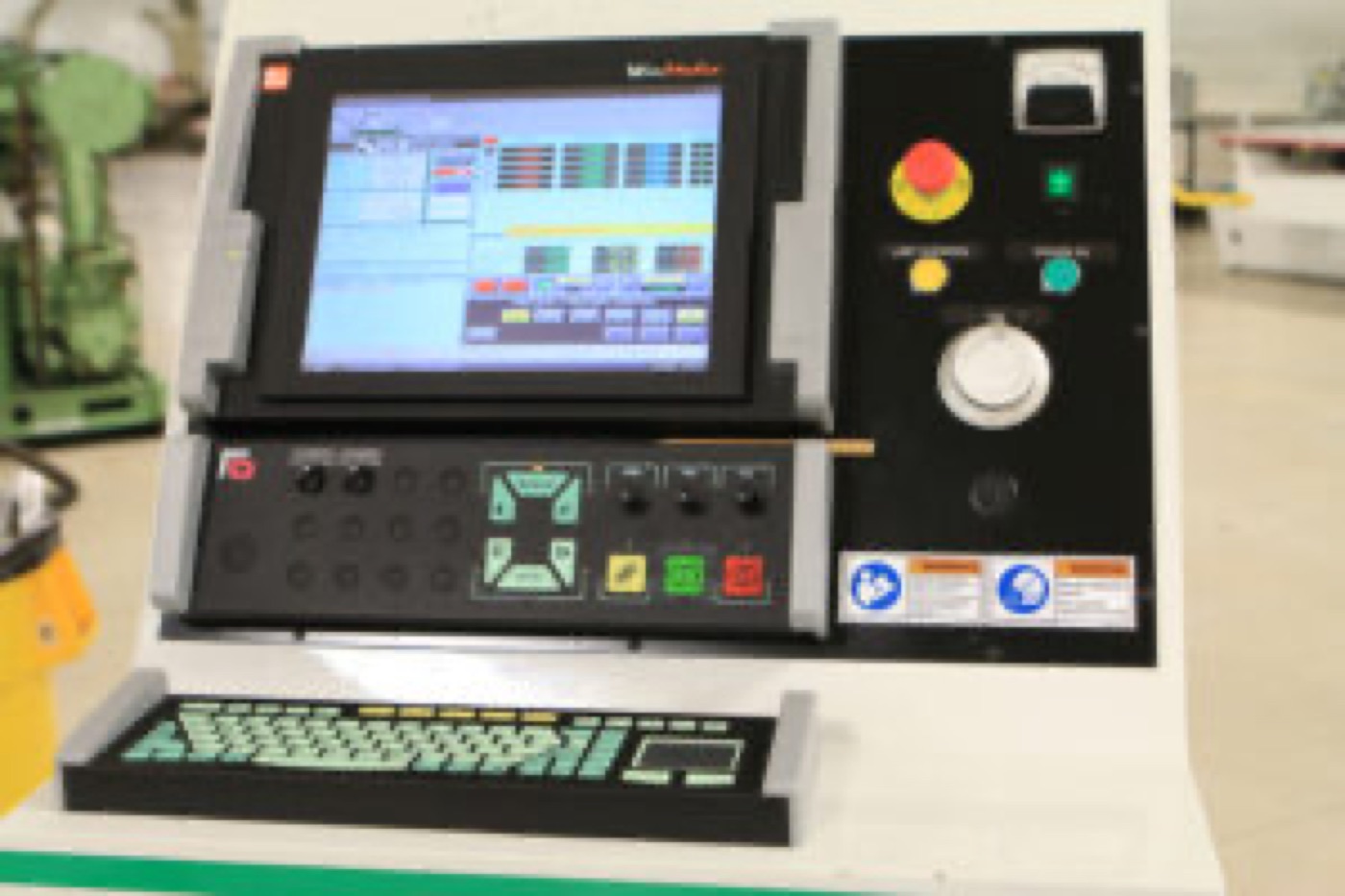

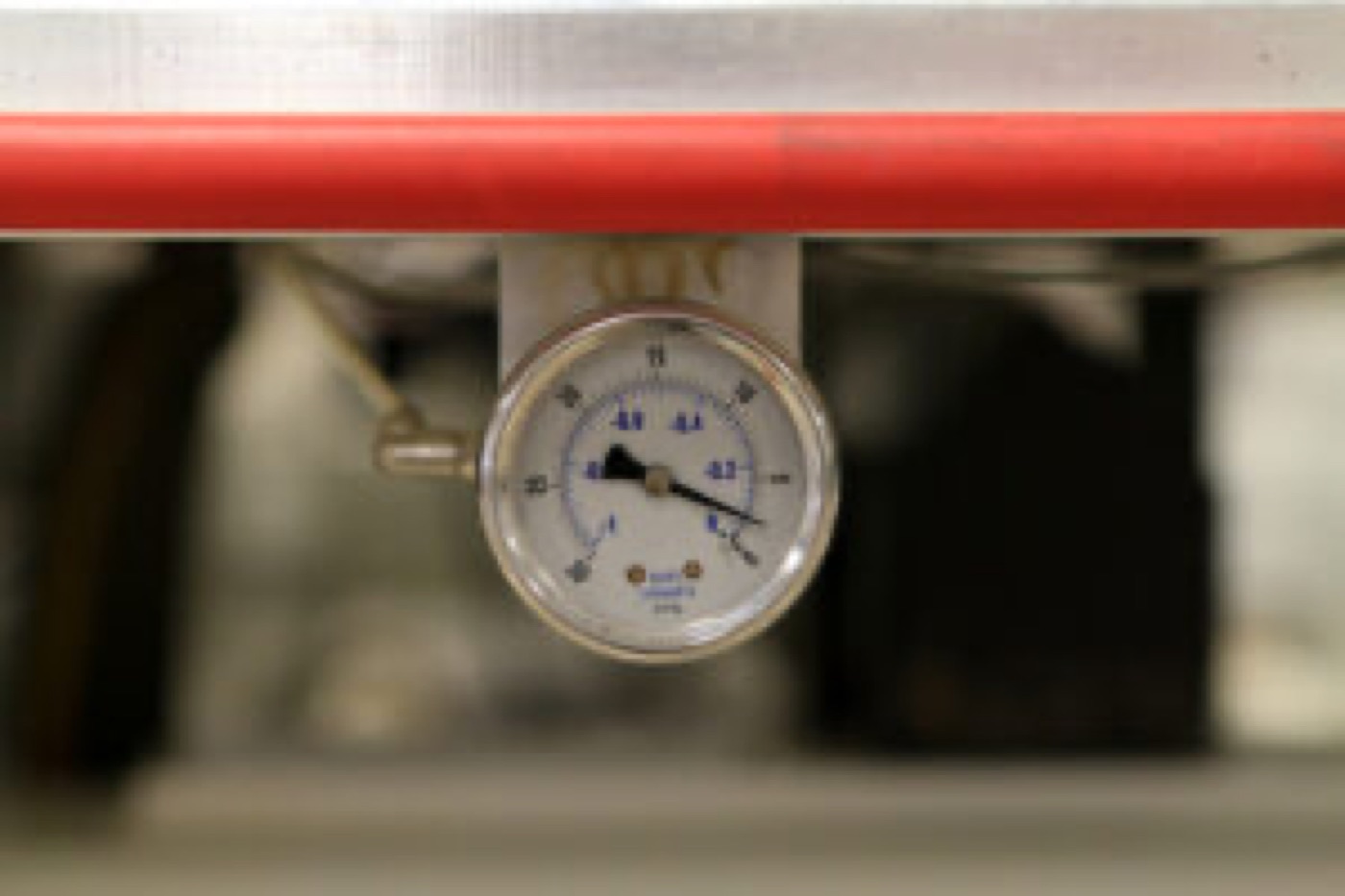

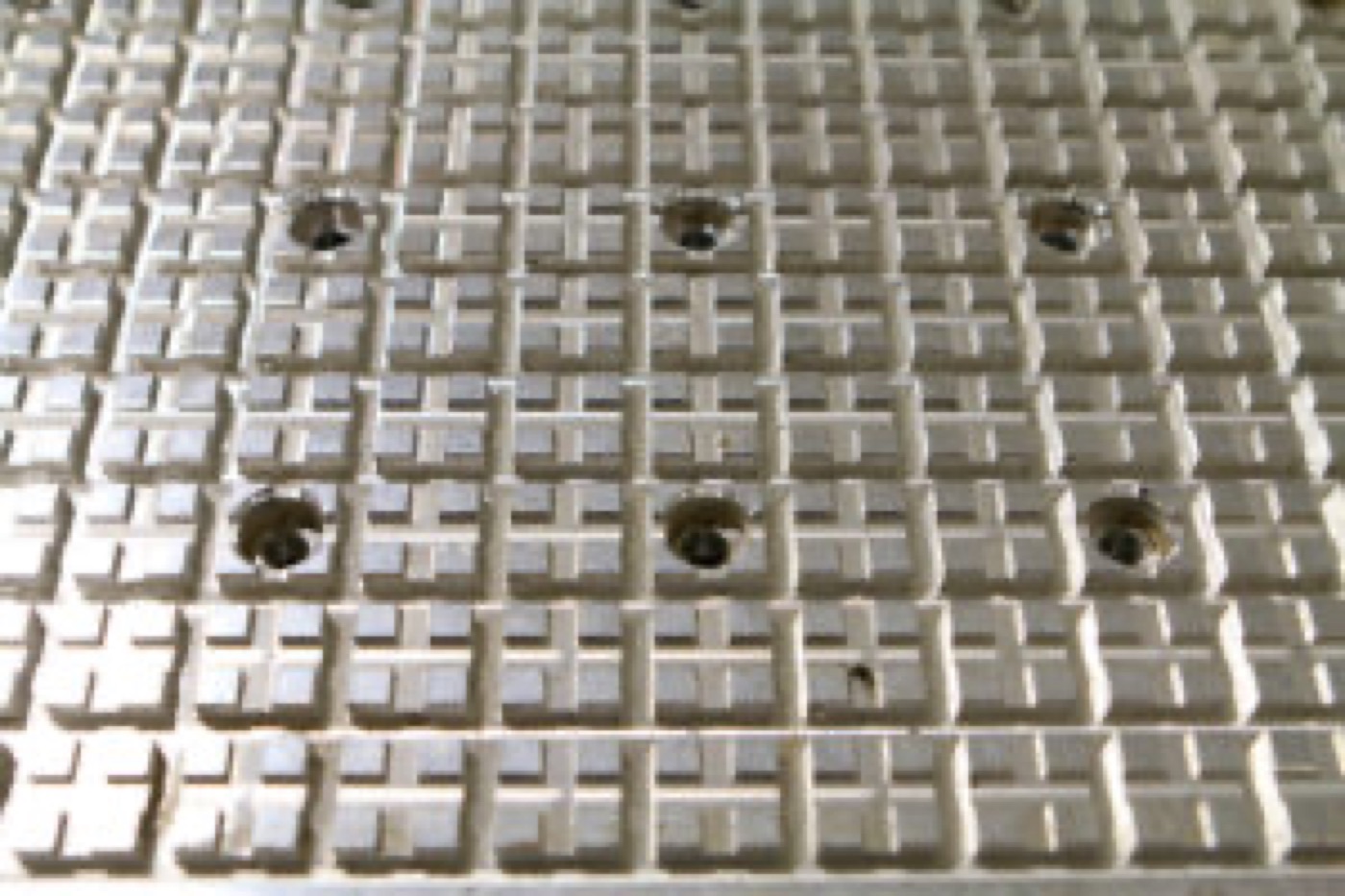

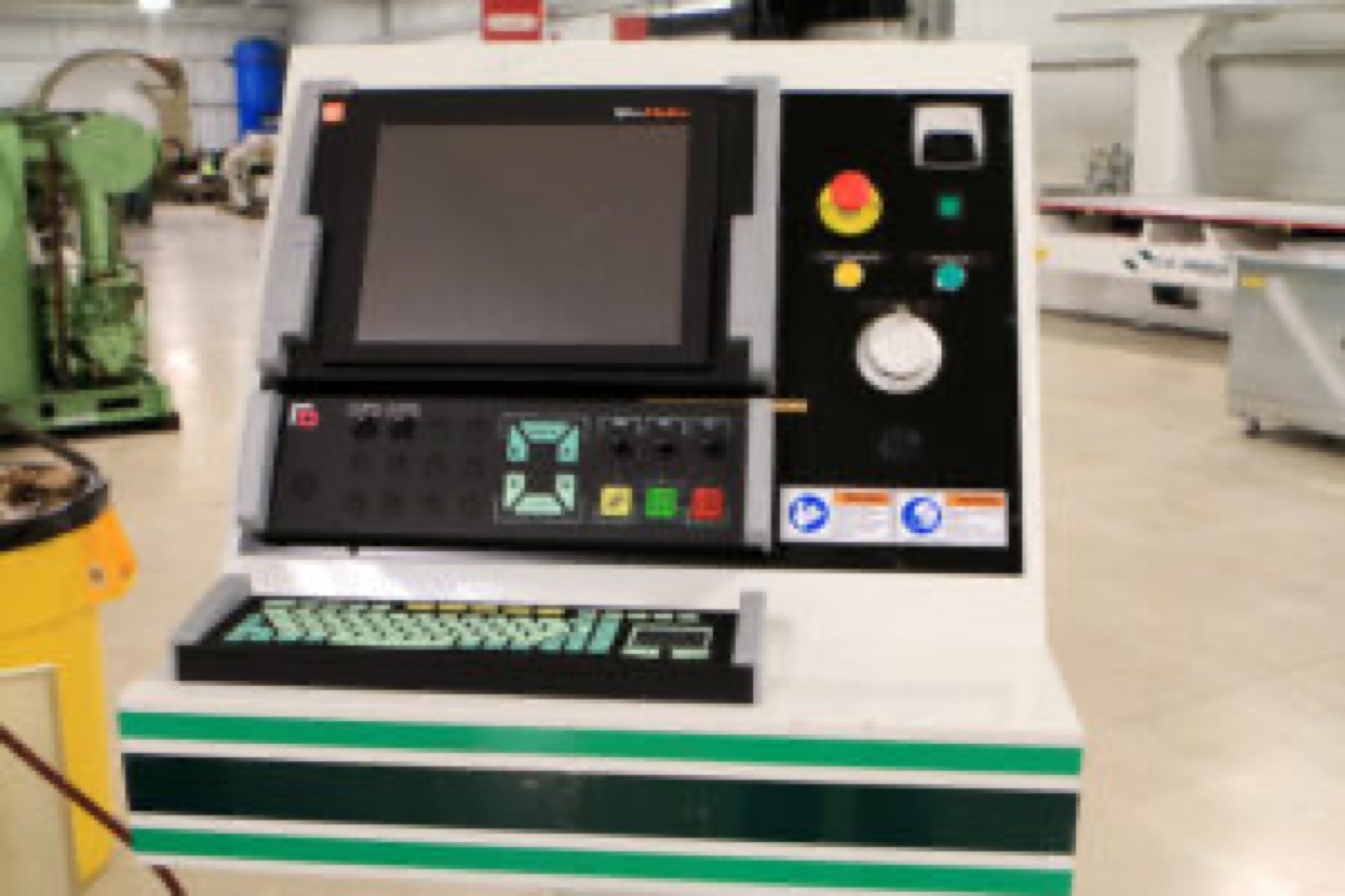

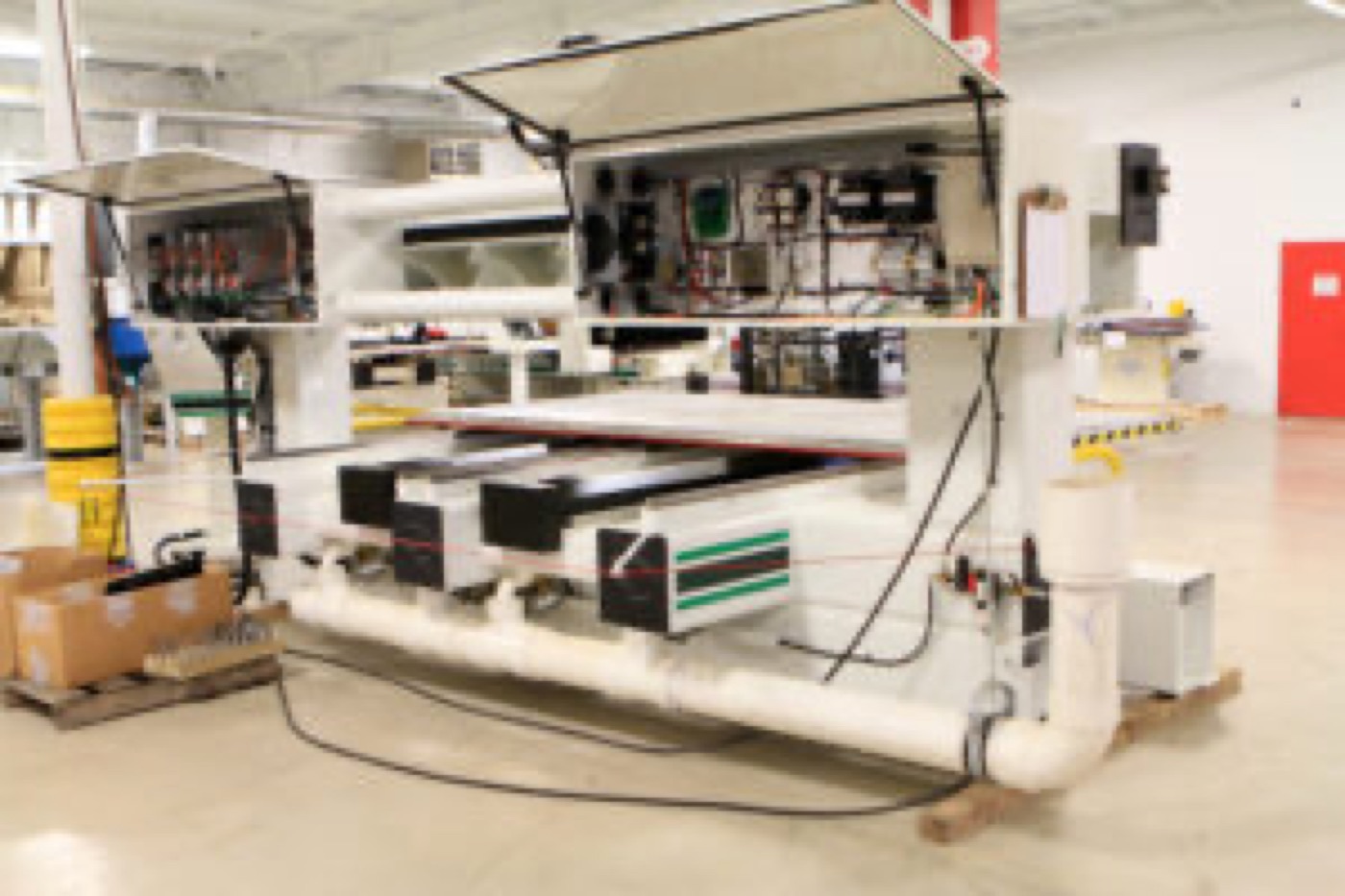

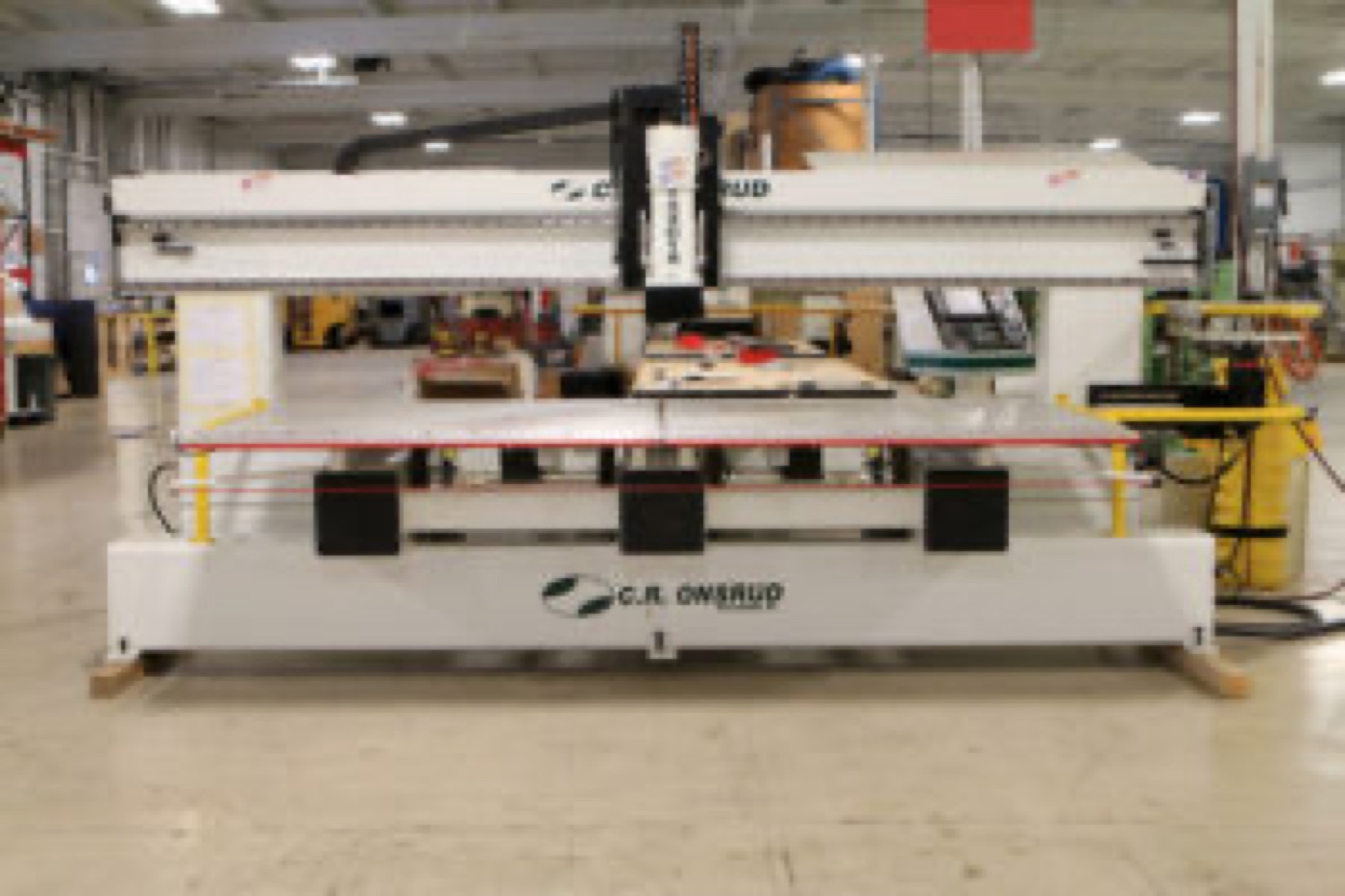

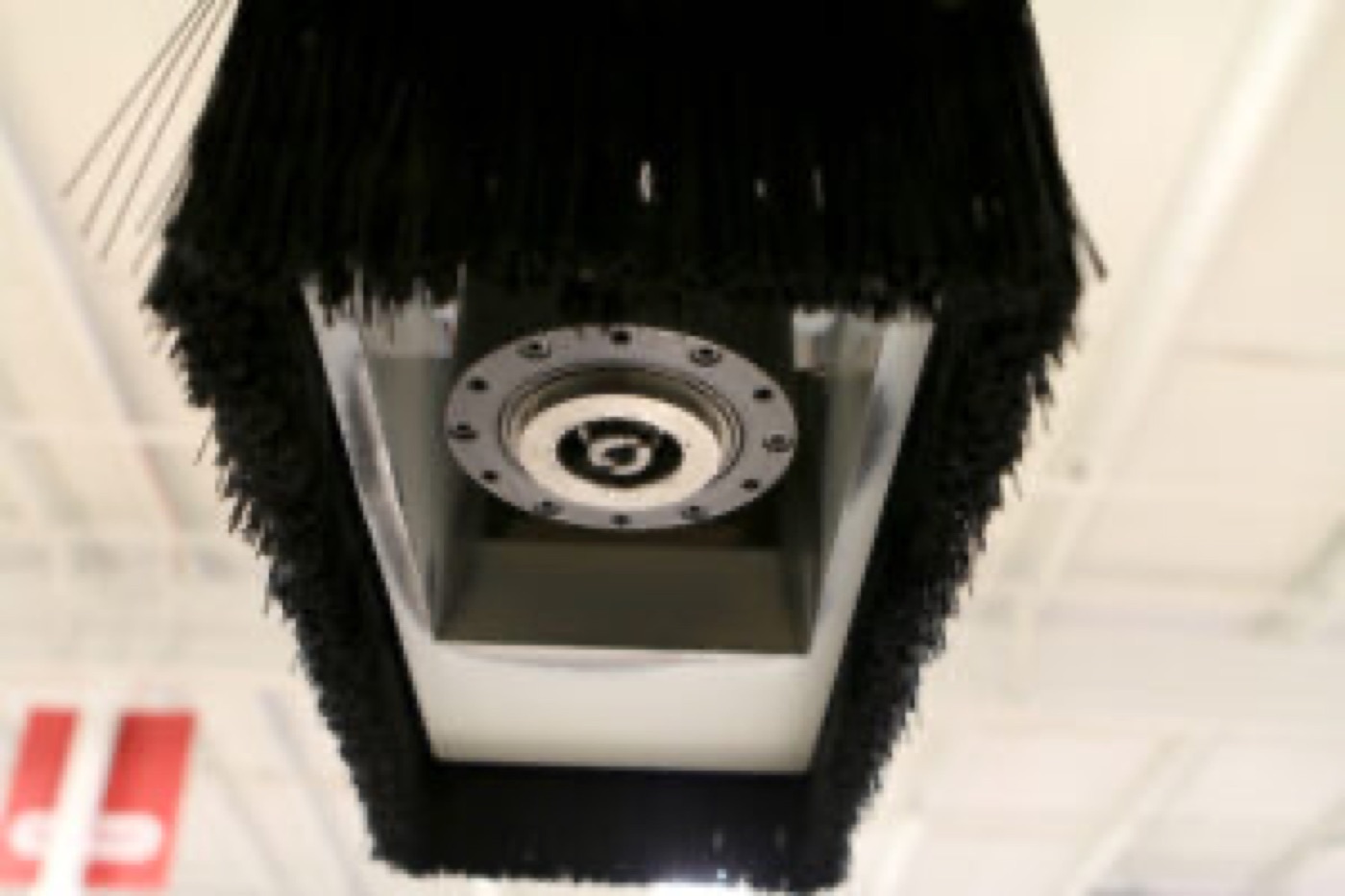

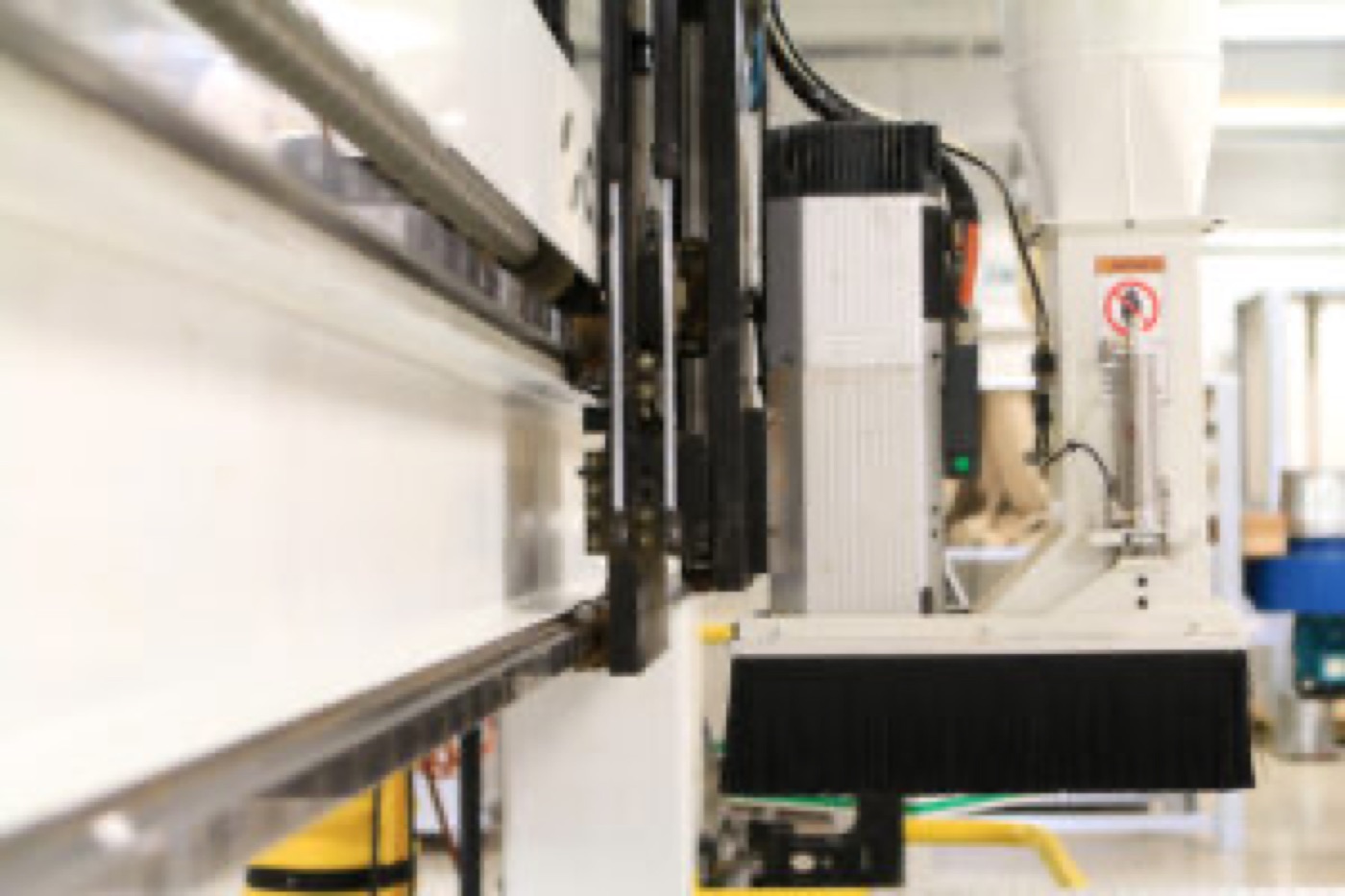

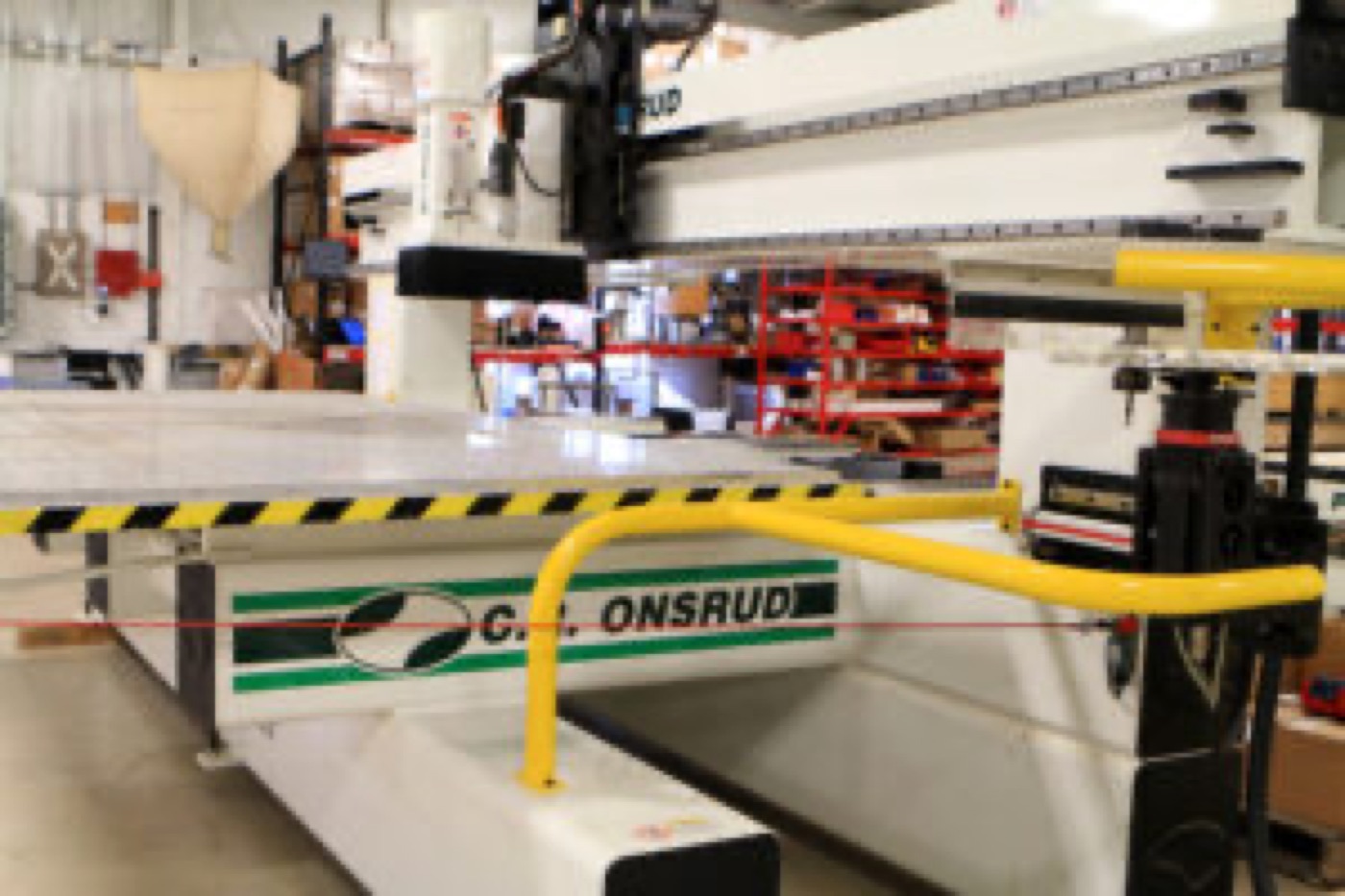

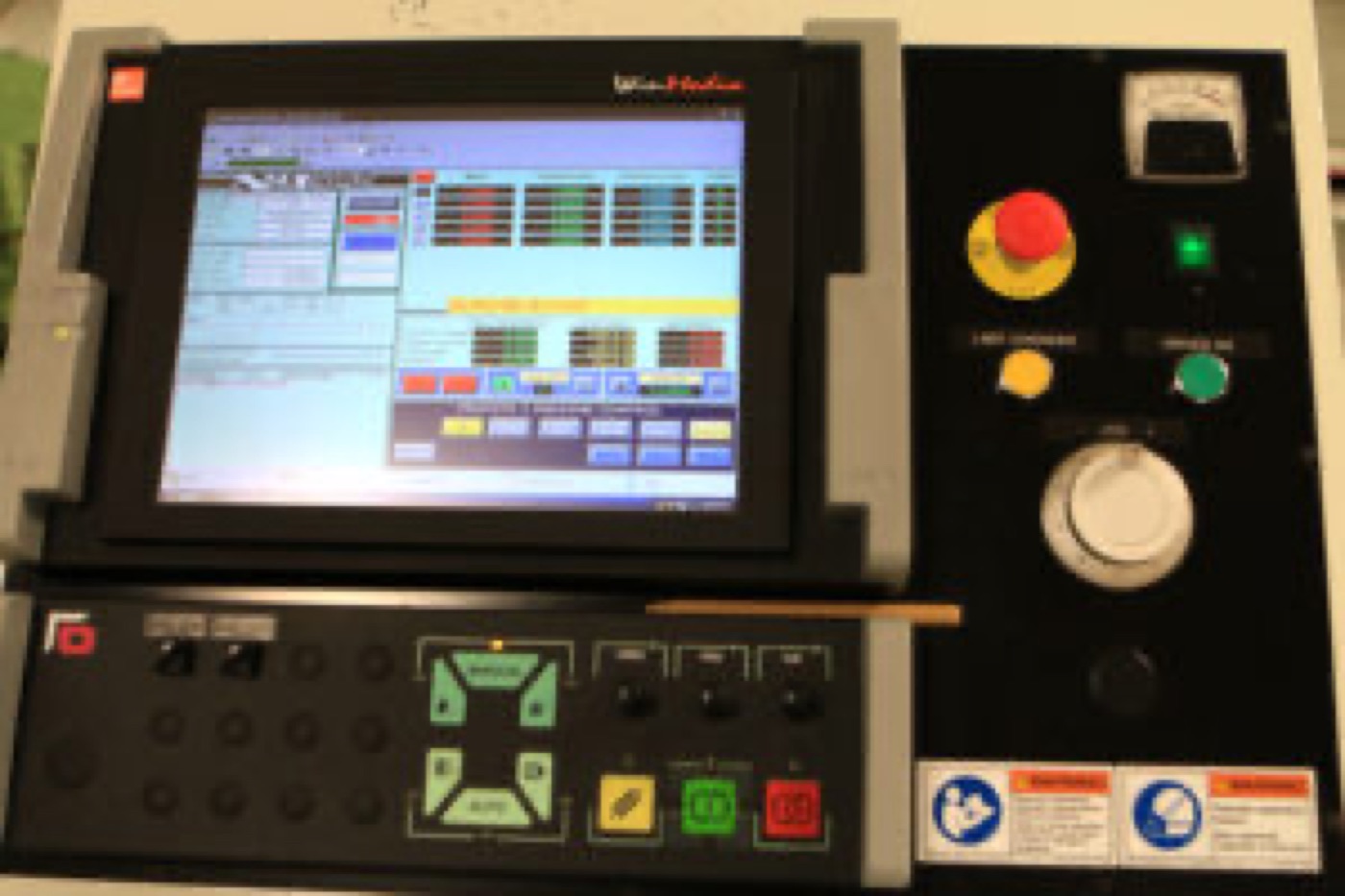

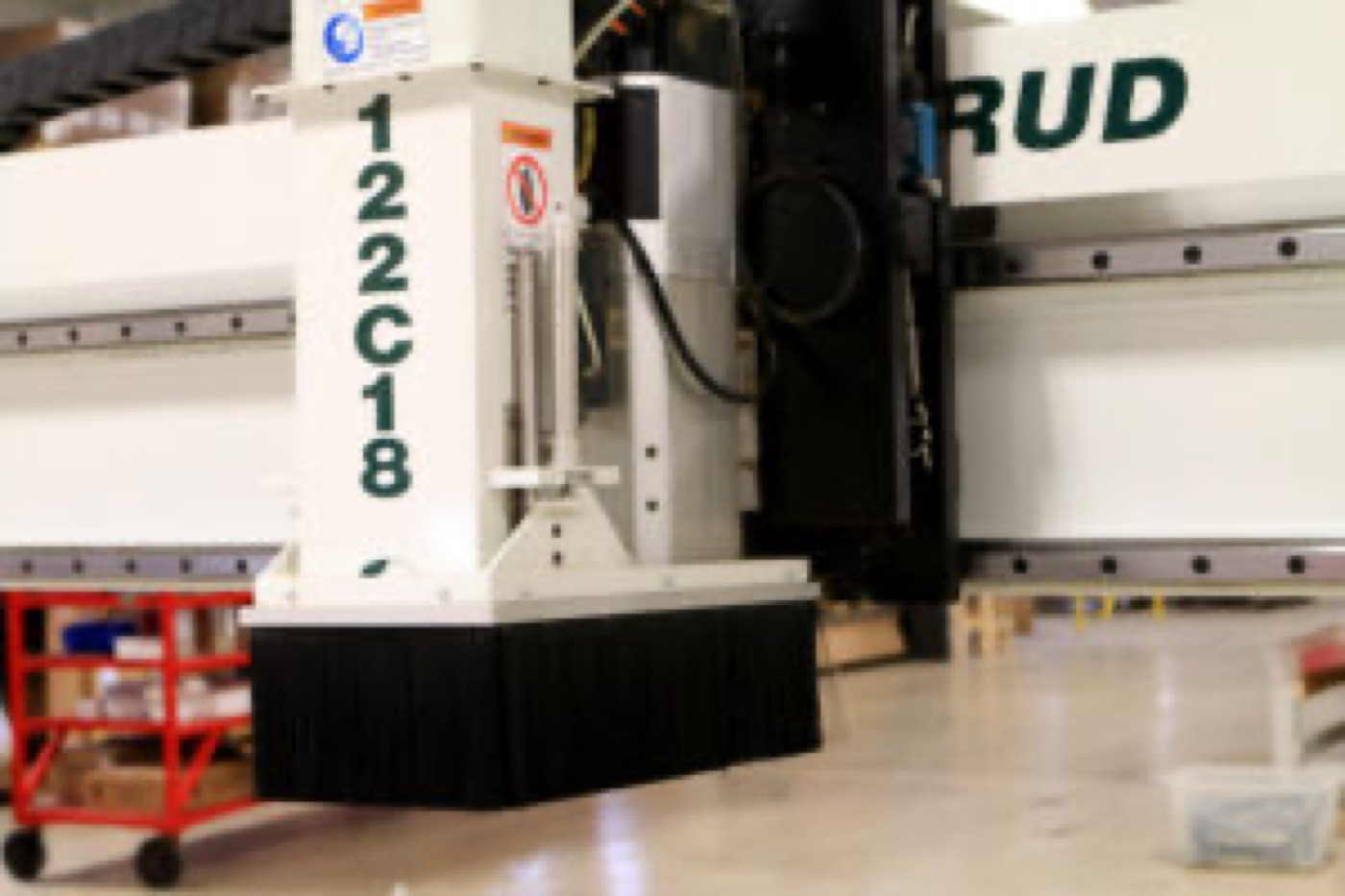

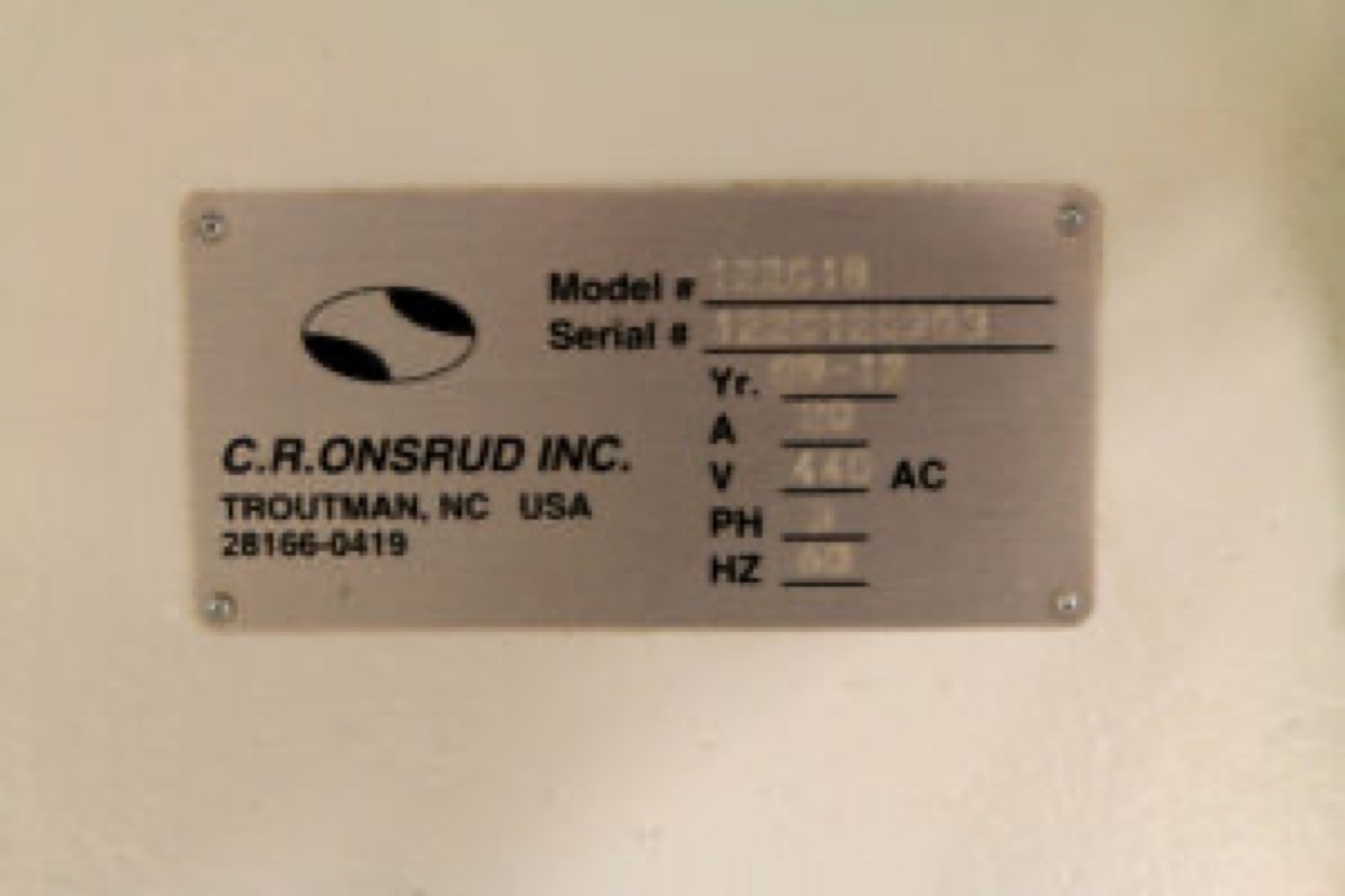

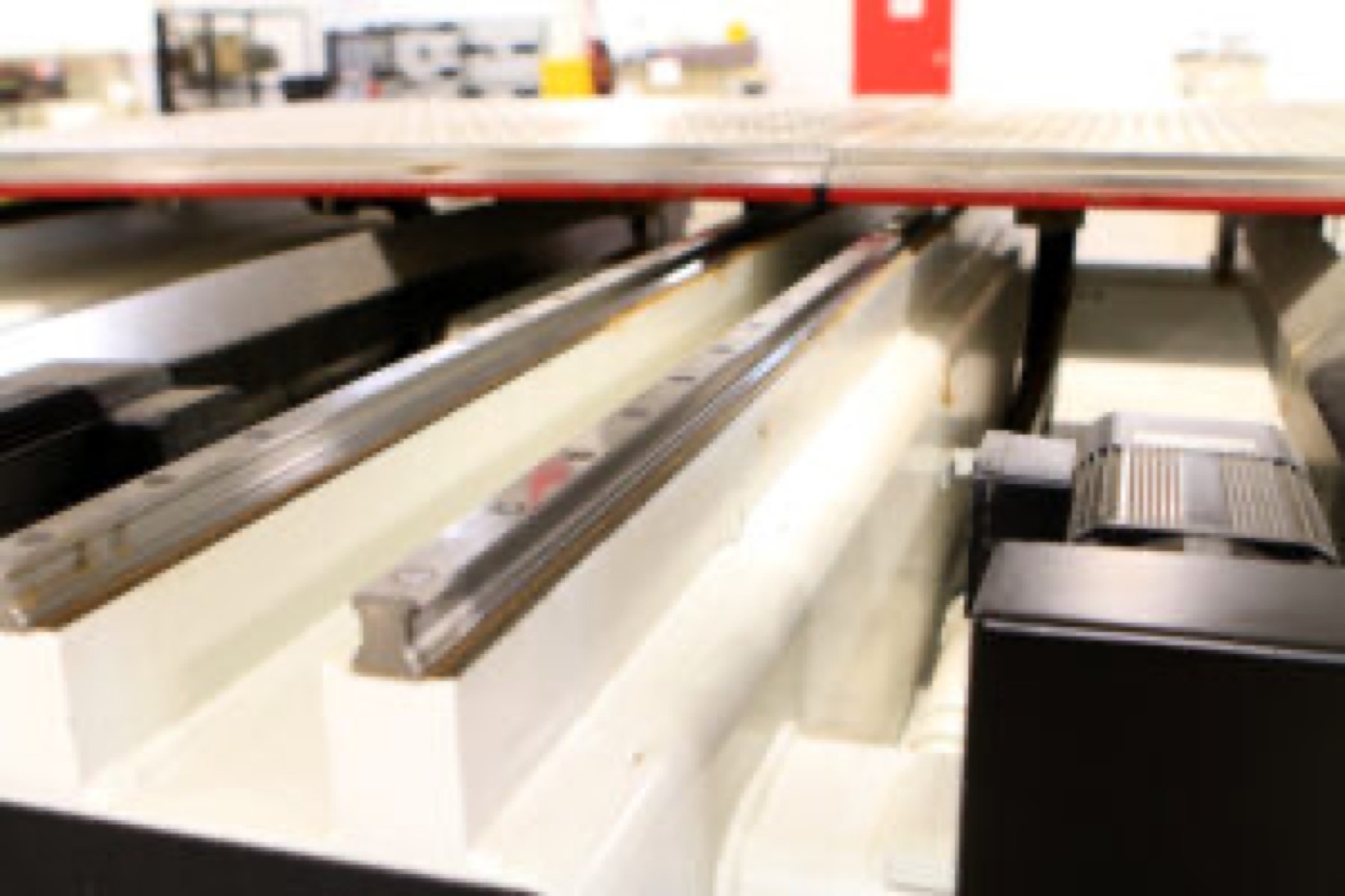

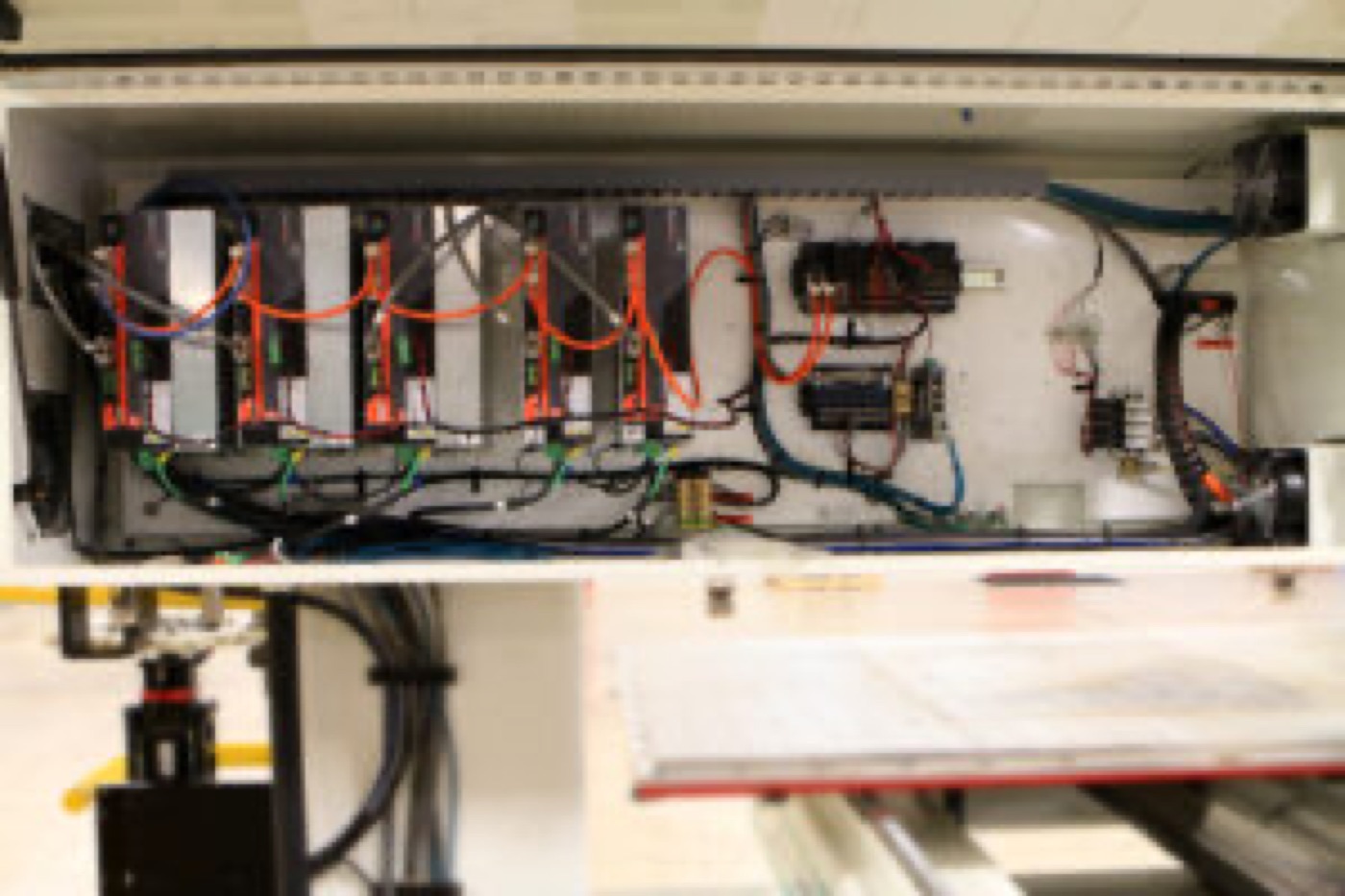

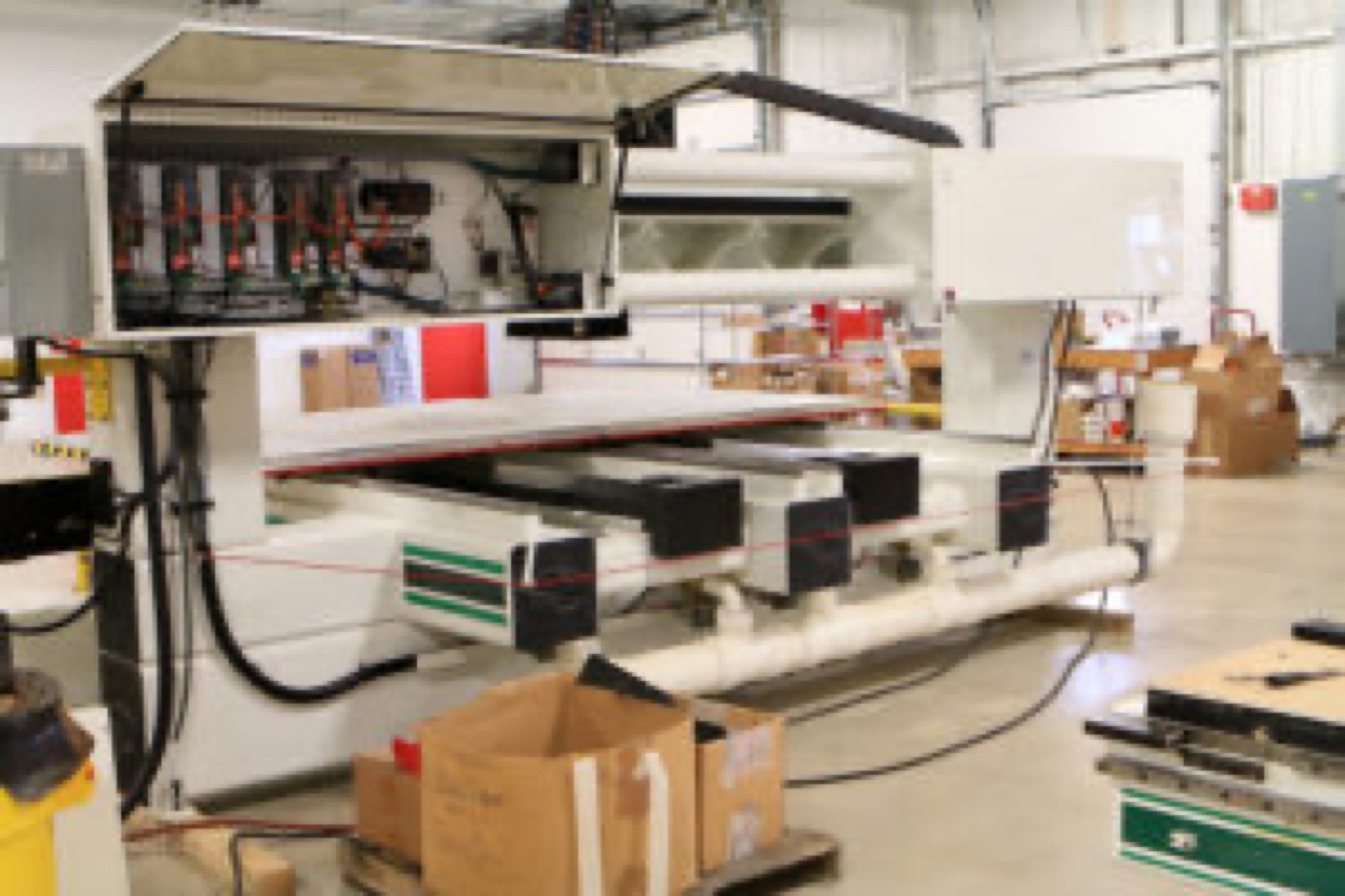

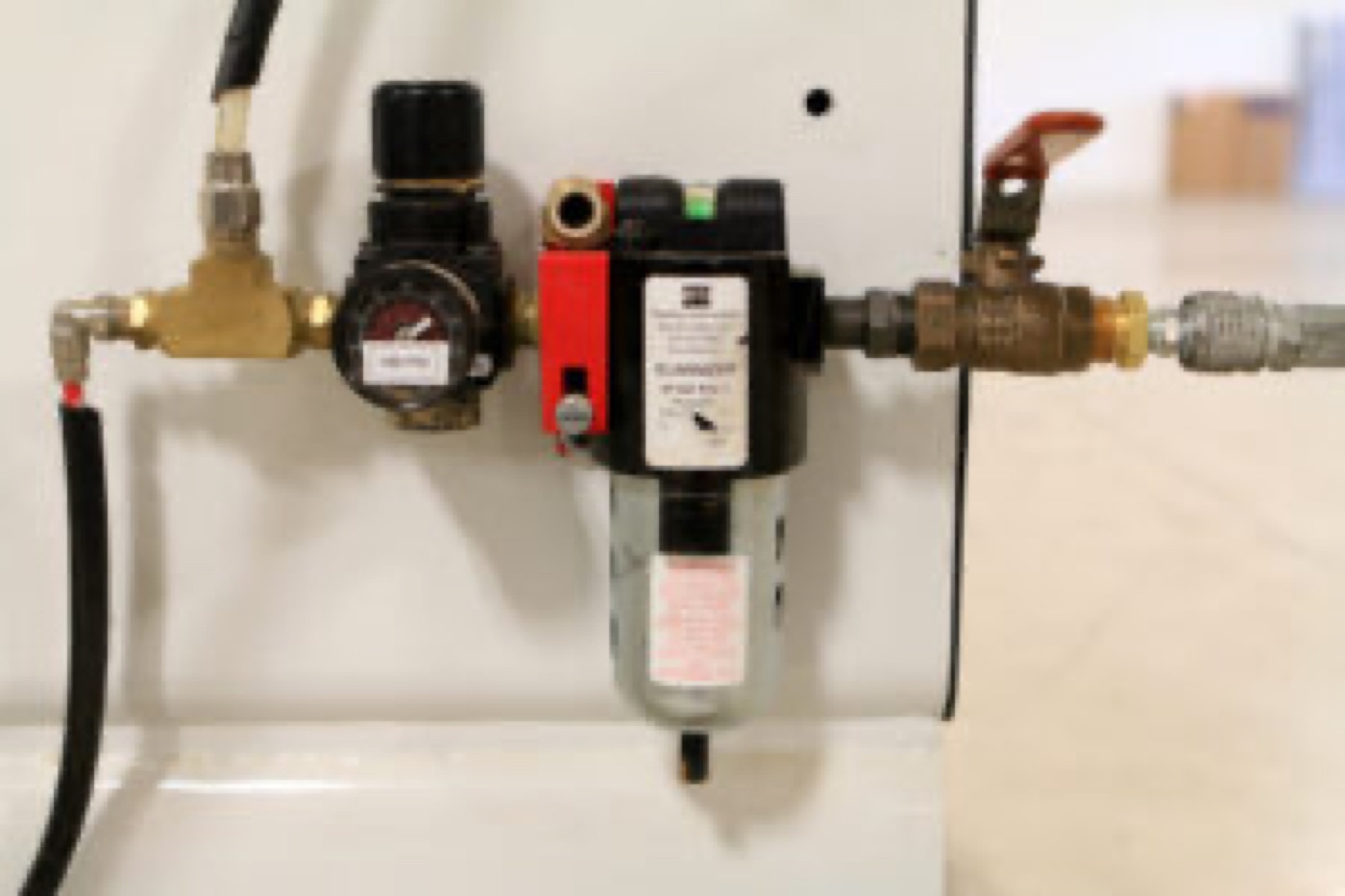

C.R. Onsrud 122C18 seen head-on, showing the fixed bridge over the twin moving tablesOSAI control console with touchscreen, jog keys, keyboard and emergency stopClose-up of the OSAI touchscreen control panel with emergency stop and handwheelVacuum gauge mounted under the edge of the tableClose-up of the NEMI aluminum vacuum grid table surfaceUnderside view of the spindle nose inside the brush dust skirtRear of the C.R. Onsrud 122C18 with both electrical cabinets open and the vacuum plumbing belowSide view of the router head on the bridge, with spindle motor, linear guides and dust skirtOpen electrical cabinet with contactors, relays and a drive above the tableC.R. Onsrud Inc. data plate, Troutman, NC, listing model 122C18, serial number and electrical ratingsAir pressure regulator, filter and shutoff valve on the machine's air supplyLinear guide rails and servo motor beneath the moving tablesOpen electrical cabinet with a row of OSAI digital servo drives and fiber optic cablingSecond view of the servo drive cabinet above the tableWooden rack of router bits, drill bits and profile cuttersRear corner of the router with the drive cabinet open, showing the moving tables and vacuum pipingMcLean air conditioner on the electrical panel next to the bridge supportC.R. Onsrud table base with yellow safety rail and the router head beyondRotary tool changer carousel on the side of the routerOSAI control console with touchscreen, keyboard, jog keys and emergency stopCorner of the aluminum vacuum table with the red pressure-sensitive safety edge and perimeter safety cableRouter head labeled 122C18 with its brush dust skirtAngled view of the C.R. Onsrud 122C18 CNC router in the Scarlett warehouseC.R. Onsrud 122C18 CNC router viewed from the front corner, with the tool changer at right
