NEW C.R. ONSRUD MODEL F122E24 5-Axis E Series CNC Machining Center

By Ryan Scarlett

NEW C.R. ONSRUD MODEL F122E24 5-Axis E Series CNC Machining Center

NEW C.R. ONSRUD MODEL F122E24 5-Axis E Series CNC Machining Center SOLD

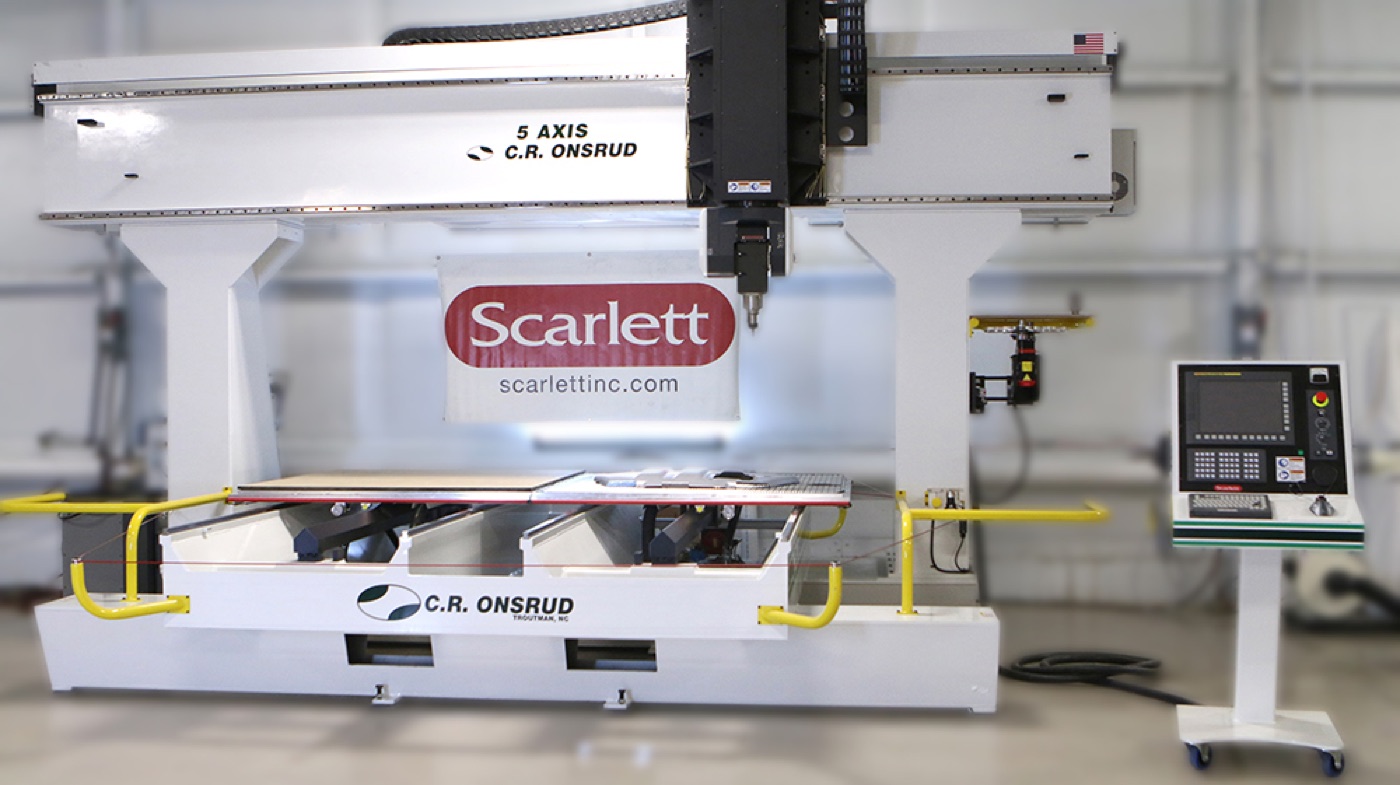

New C.R. Onsrud 5-axis machining center with a Scarlett banner hung below the bridge and its control console beside it

Heavy Duty 5 Axis Machining Center, Thick Fixed Bridge & Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 3600″ per minute machining speed, full 3-D capability, precision drives for ALL axes, precision linear guide ways, centralized manual lubrication system, 12 Tool – Automatic Tool Changer with two (2) HSK tool holders included, Twin Aluminum Tables function as independent tables. Twin Tables can also operate in tandem as a single table, with full table coverage. Each table has low vacuum sensing safety shut-off with override capability. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems. All tables include pressure sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable.

41-inches of Z stroke – Increases 5-Axis Frame under bridge clearance & Z-stroke 41 inches

Two Tables (5’X5')

(2) 5’×5' – Aluminum NEMI Vacuum Grid Table – Aluminum NEMI grid table enables the conversion from total flow-through vacuum hold-down to pods, pins, fixtures, etc. with higher accuracy part positioning

FANUC 31i-B5 Machine Controller System With Integrated PC Interface

5-Axis – 24 HP Spindle - Double-Armature, 5-Axis Long Nose Spindle w/ HSK-63F Spindle Taper, fully programmable & reversible, variable speed, quick-change spindle, capable of routing & drilling, programmable feed rates w/override capability. A-Axis Rotation +/- 120 degrees, C-Axis Rotation + 300 / – 115 degrees.

Chiller for Liquid Cooled Spindle – Adds a liquid cooling system & chiller in place of the standard fan & compressed air spindle cooling system.

Automatic Oil Fog Mist Lubricator – Sprays a fine oil mist on the tip of the bit, for cooling purposes

12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled. Design eliminates misfires & quickly changes between 12 different tools.

Contact Scarlett for more info...

https://youtu.be/S96JeT9Ybu0
