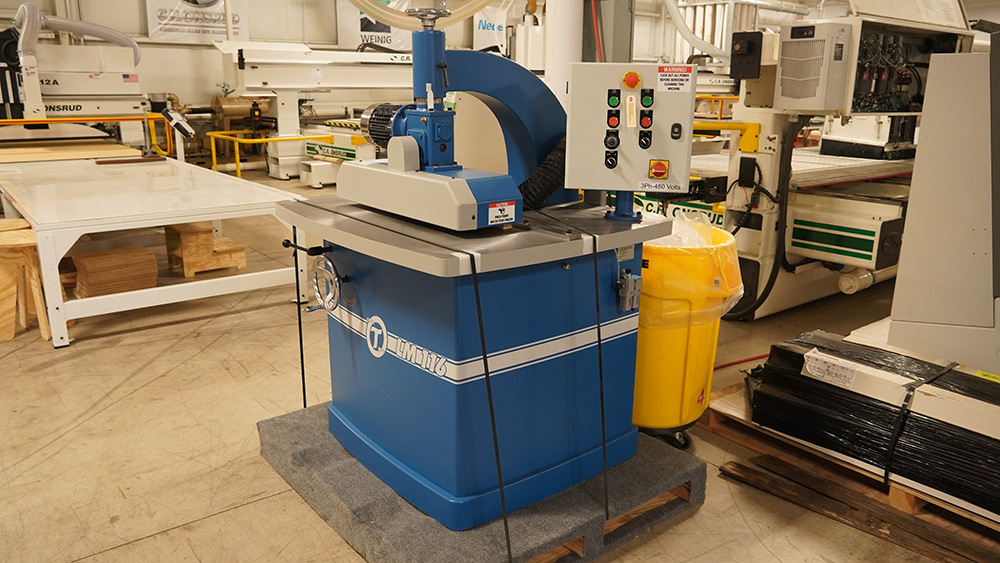

2022 Circle T EASY Lock Miter LM116 (NEW)

Our Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!

• A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
• No more downtime setting up and changing out your shaper!!!
• No more running pieces on their side!!!
• Upgrade to our EASY LOCK MITER LM116

APPLICATION SPECIFICATIONS:

• Maximum Material Thickness: 1″
• Minimum Material Thickness: 1/2″
• Minimum Material Width: 1-1/4″
• Minimum Material Width (2-Sided): 2″
• Minimum Material Length: 12″
• Capable of Machining Angles from 90 – 30 Degrees (Finish Angle)

DRIVE PACKAGE SPECIFICATIONS:

• Spindle Motor: 5 HP
• Feed Motor: 0.5 HP
• Spindle Diameter: 1-1/4″
• Spindle Speed: 8,200 RPM
• Variable Speed 11-Roll Positive Grip Feeder

UTILITY REQUIREMENTS:

• Dust Collection Requirements: 670 CFM, 4″ Outlet
• Pneumatic Requirements: 100 PSI .5 CFM
• 25 AMP Disconnect at 480V 3phase

DIMENSION SPECIFICATIONS:

• Table Size: 40″ x 47″
• Footprint: 42″L x 54″W x 60″H
• Shipping Dimensions 57″L x 48″W x 79″H
• SHIPPING WEIGHT: 1400lbs
• NET WEIGHT: 1250lbs

$28,500

This machine is physically located at Scarlett Inc’s showroom in Grand Rapids, MI. Please call to arrange a visit. We are 3.5 minutes from the airport and would be happy to pick you up. Please note that the below description is from the original manufacturer’s spec.

For a more detailed description, please call James to discuss if this machine will fit your needs. 616.308.9800
