Like New HOLZ-HER LYNX 7511CNC Router

HOLZ-HER LYNX 7511CNC Router Used- VERY LOW HOURS SOLD

The HOLZ-HER LYNX 7511 represents the most advanced CNC technology and the best service and support programs in the woodworking industry.

The LYNX 7511 is a heavy-duty machining center that is capable of handling the toughest routing and shaping requirements as well as the fast and precise drilling requirements of the most demanding wood shops. This is due to the basic design which incorporates a heavy-duty frame construction with the proven solid arm stationary “Y” axis support arm design.

Both the machine base and support arm are manufactured from heavy gauge steel, normalized after welding. The normalizing process will relieve any stress in the metal prior to further machining operations ensuring very accurate drilling for guideway placement. This design also requires much less floor space behind the machine in comparison to other designs.

The heavy-duty frame and the rigid arm design provide for vibration free machining as well as for full support of the head movement throughout the entire machining cycle. This is most important at the outermost points of the machining cycle. When the machining center is machining at the front of the work envelope the rigid arm design provides full support of the working units while also minimizing the unsupported overhung load. STANDARD ITEMS INCLUDED WITH BASE MACHINE

Solid welded machine frame with ground prismatic guide system Rack & pinion drive in X-axis, ball screw drive system in Y- and Z-axis 1 push buttons for clamping and releasing of work pieces 4 Pneumatic Pup-Up Pins for panel positioning 10 vertical boring spindles individually selectable, 6,800 RPM 6 in X- and 4 in Y-axis, with dedicated 2.28 HP motor 15 HP Air Cooled Router Head (11 Kw) 1,000-18,000 RPM HSK-63F 12-Position Linear Tool Changer mounted at right end of the machine frame Vacuum pump (2) 250 m³/h Manual lubrication for all linear guides in X, Y, and Z Transformer for 230V/60 Heat Exchanger for electrical cabinet HSK F63 Tool Holders (6 each) ( 6 ) 1/2 Inch collets for tool holders Drill Bit Adapters (10 mm) – Left (5 each) Drill Bit Adapters (10 mm) – Right (5 each) Handheld control unit

VERY LOW HOURS...

PRICE $79,000

SOLD

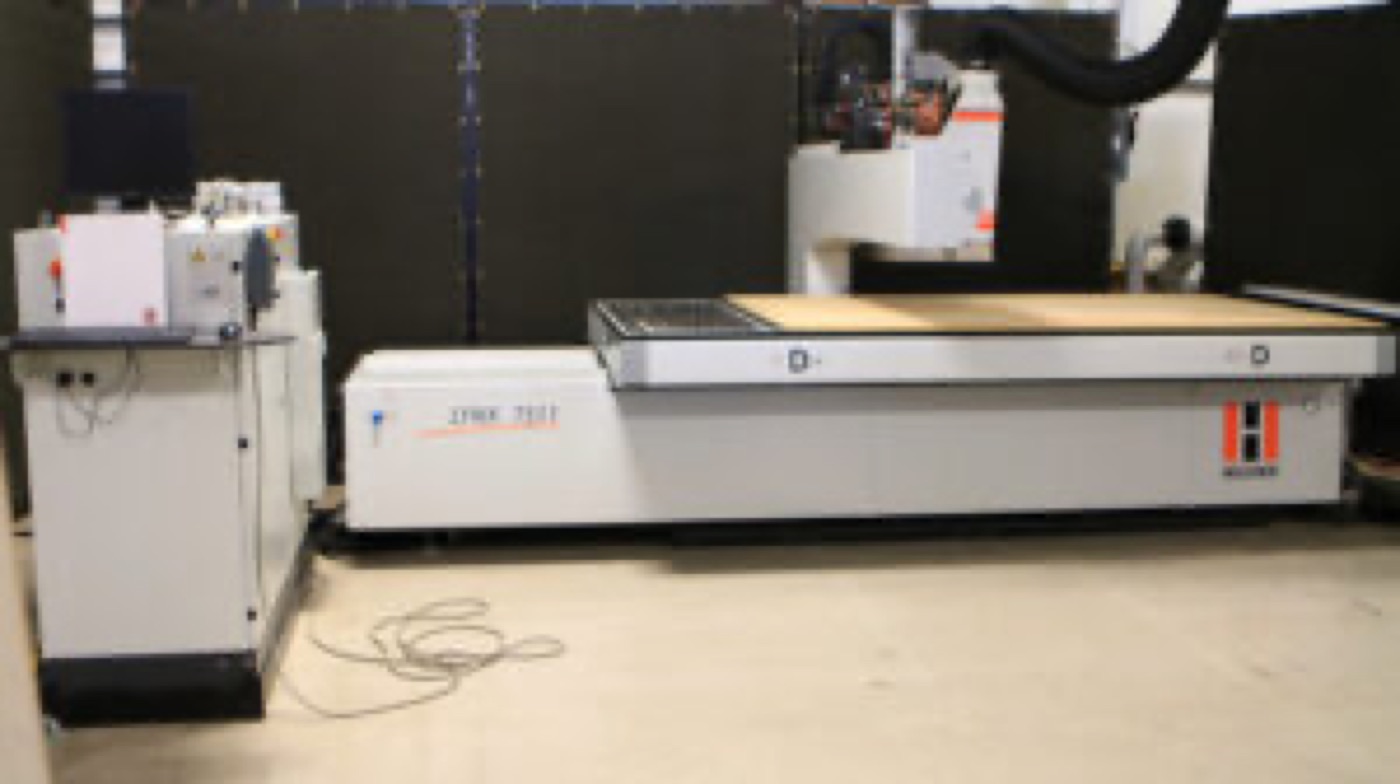

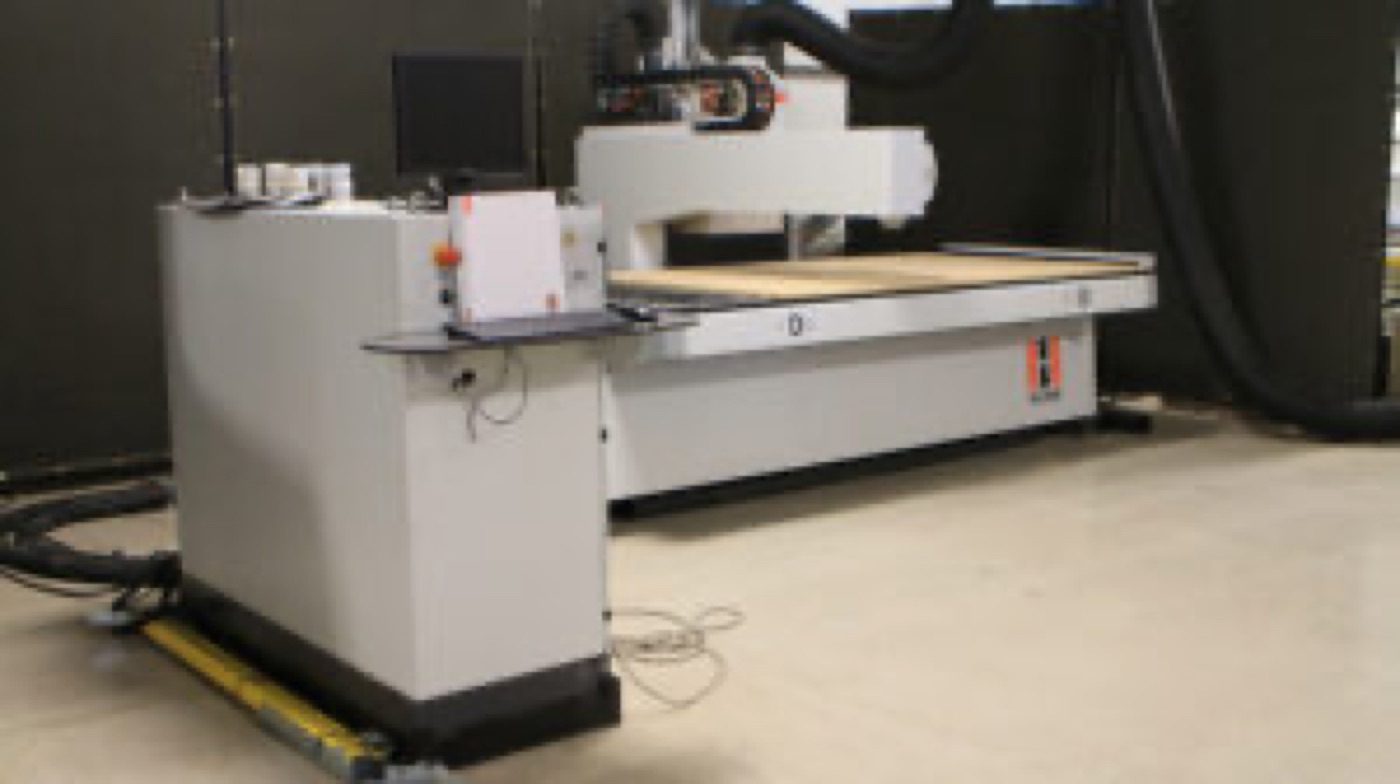

Used Holz-Her LYNX 7511 CNC router with its control cabinet, front view

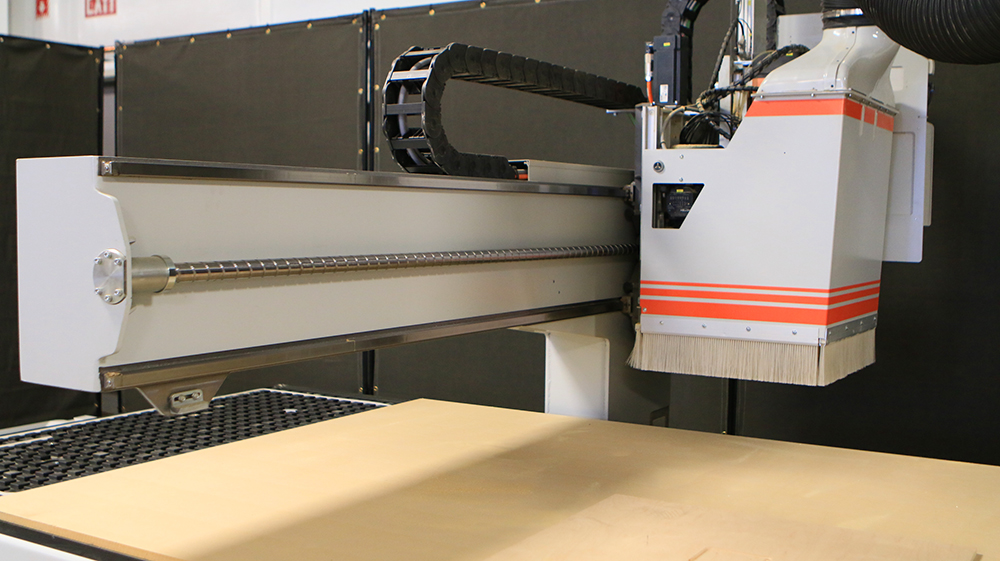

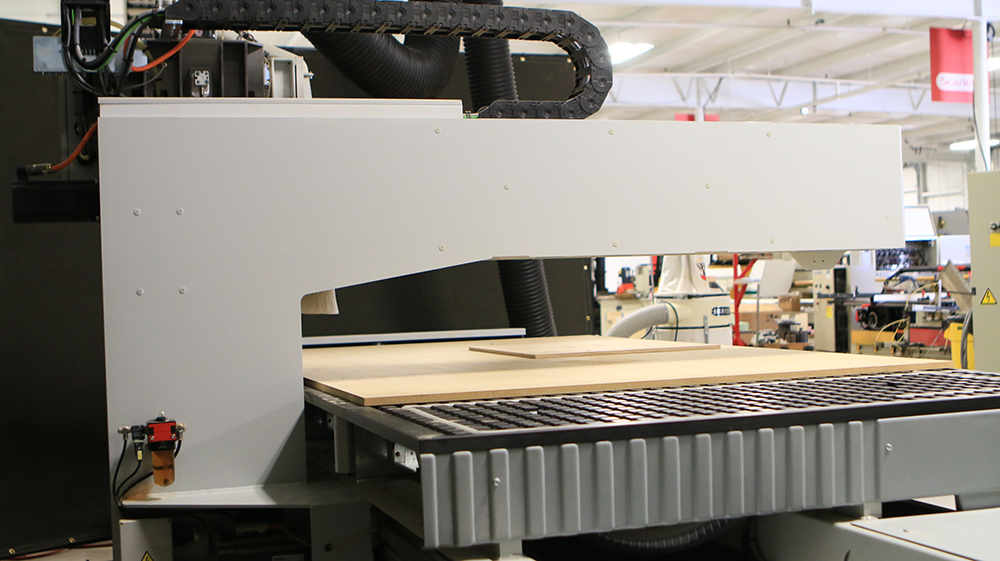

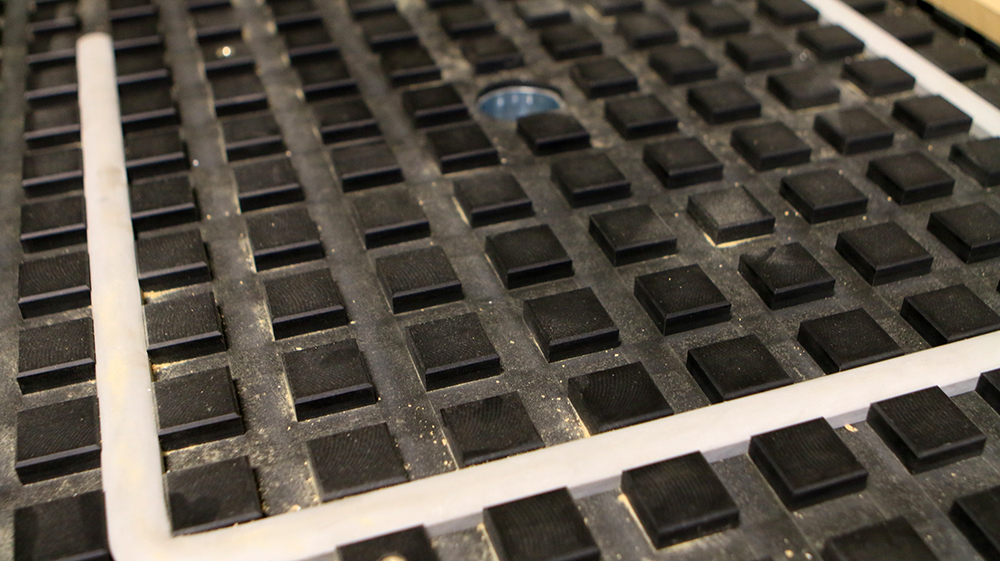

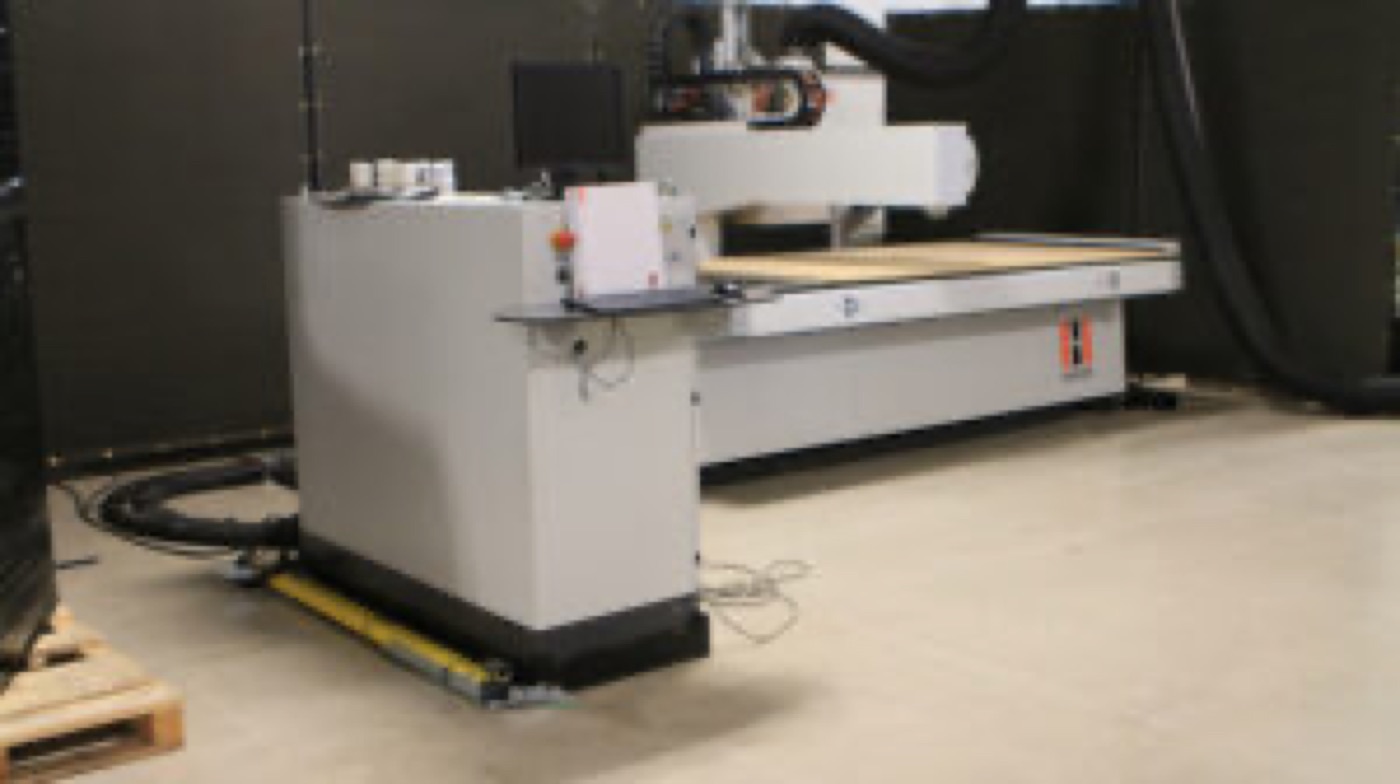

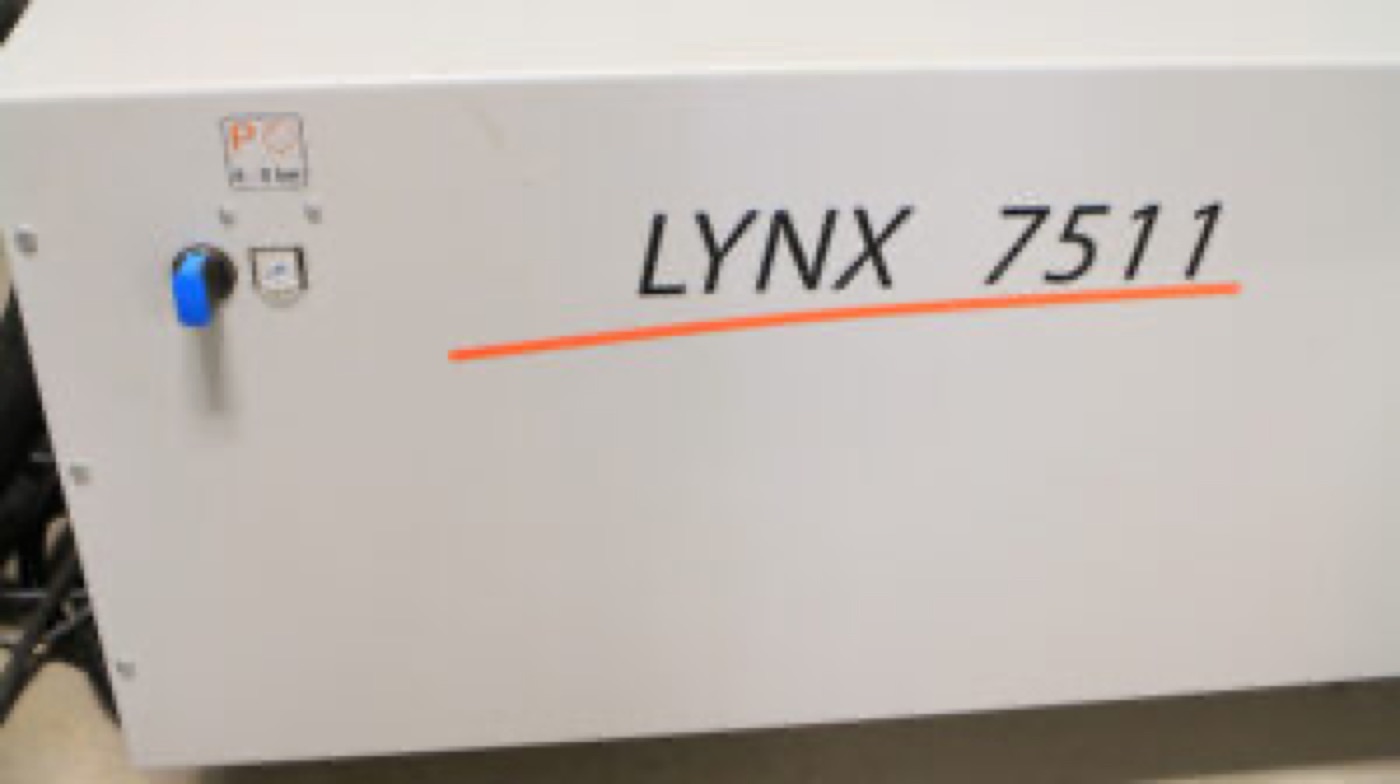

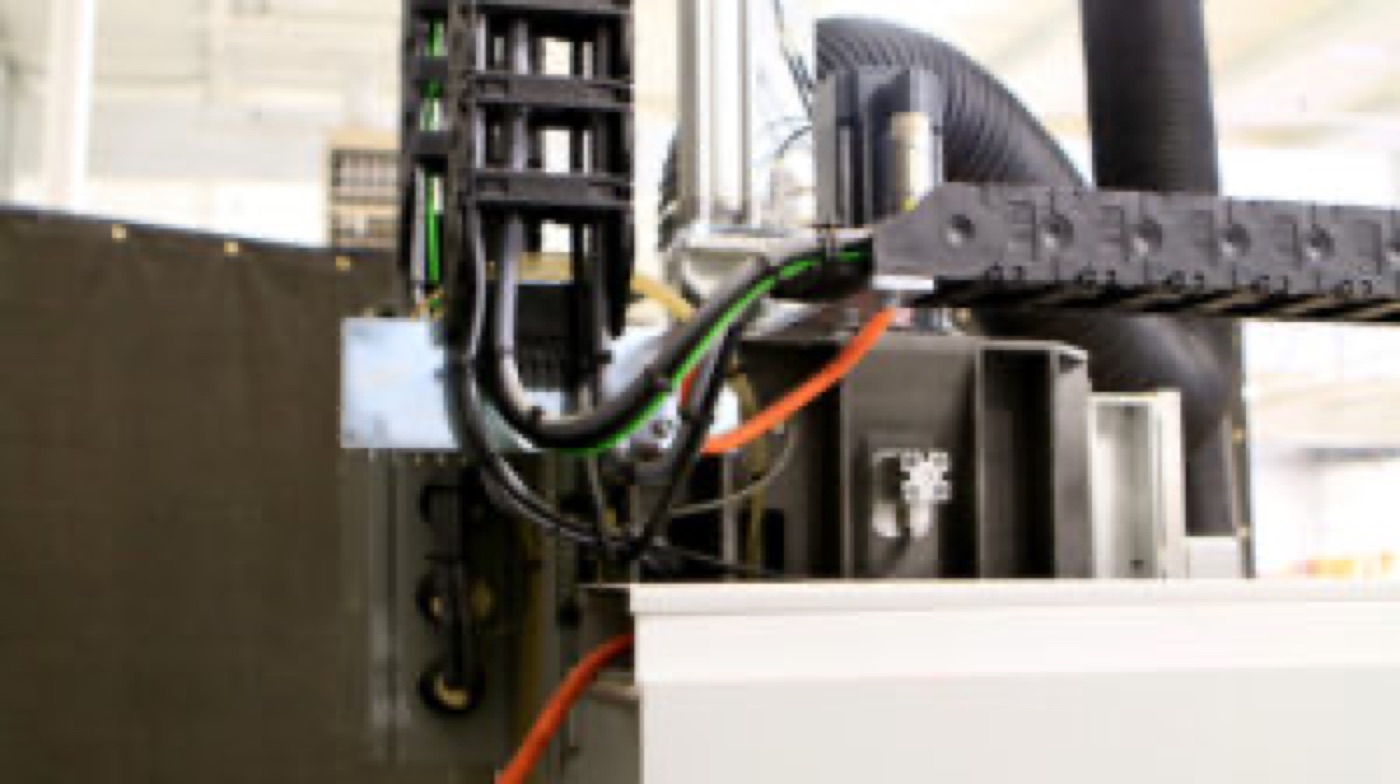

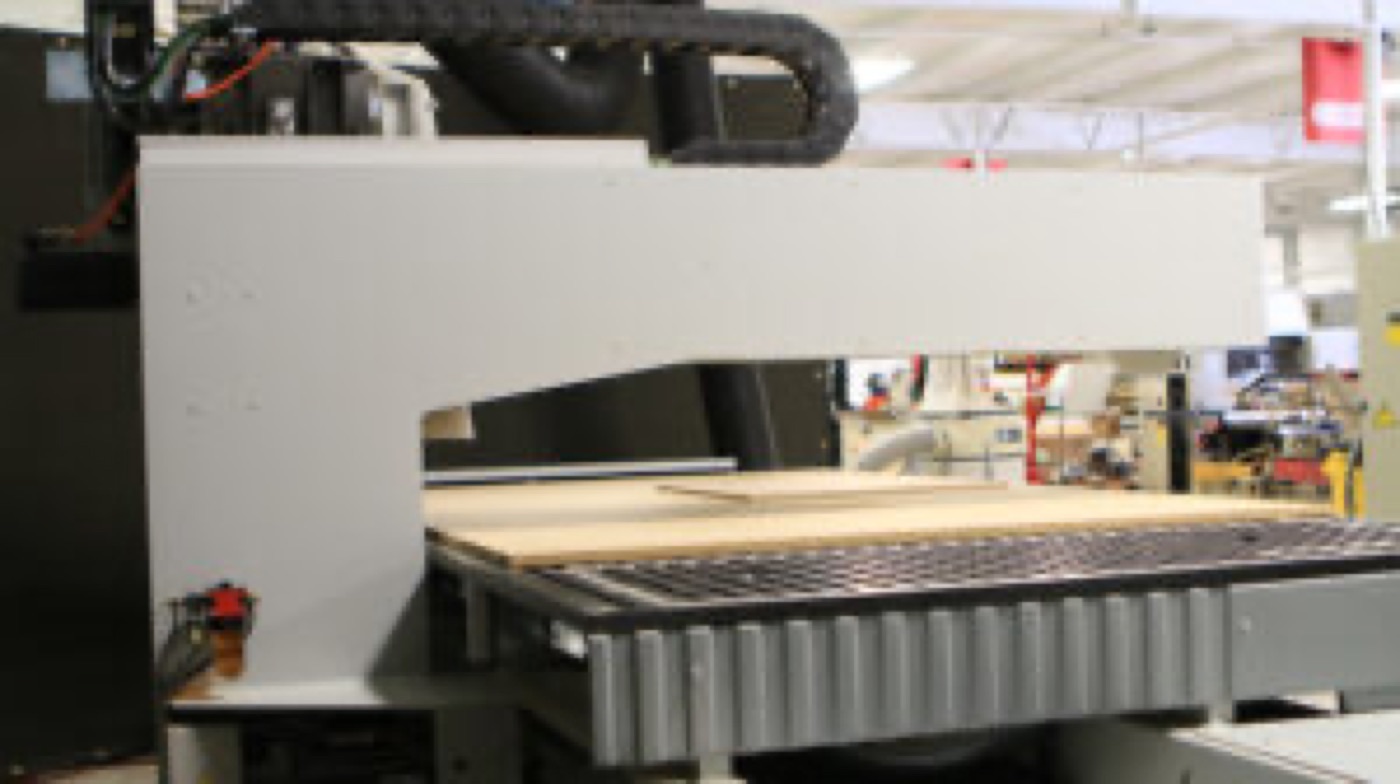

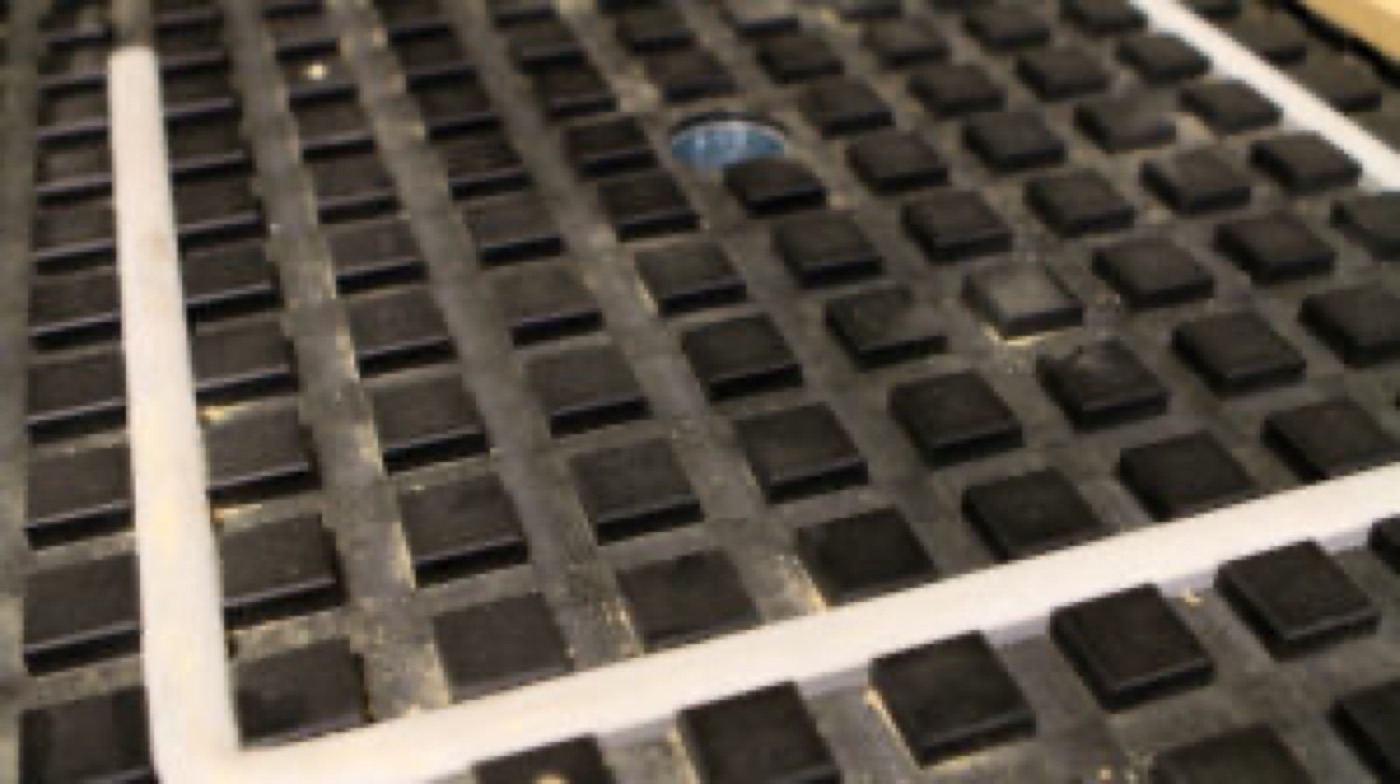

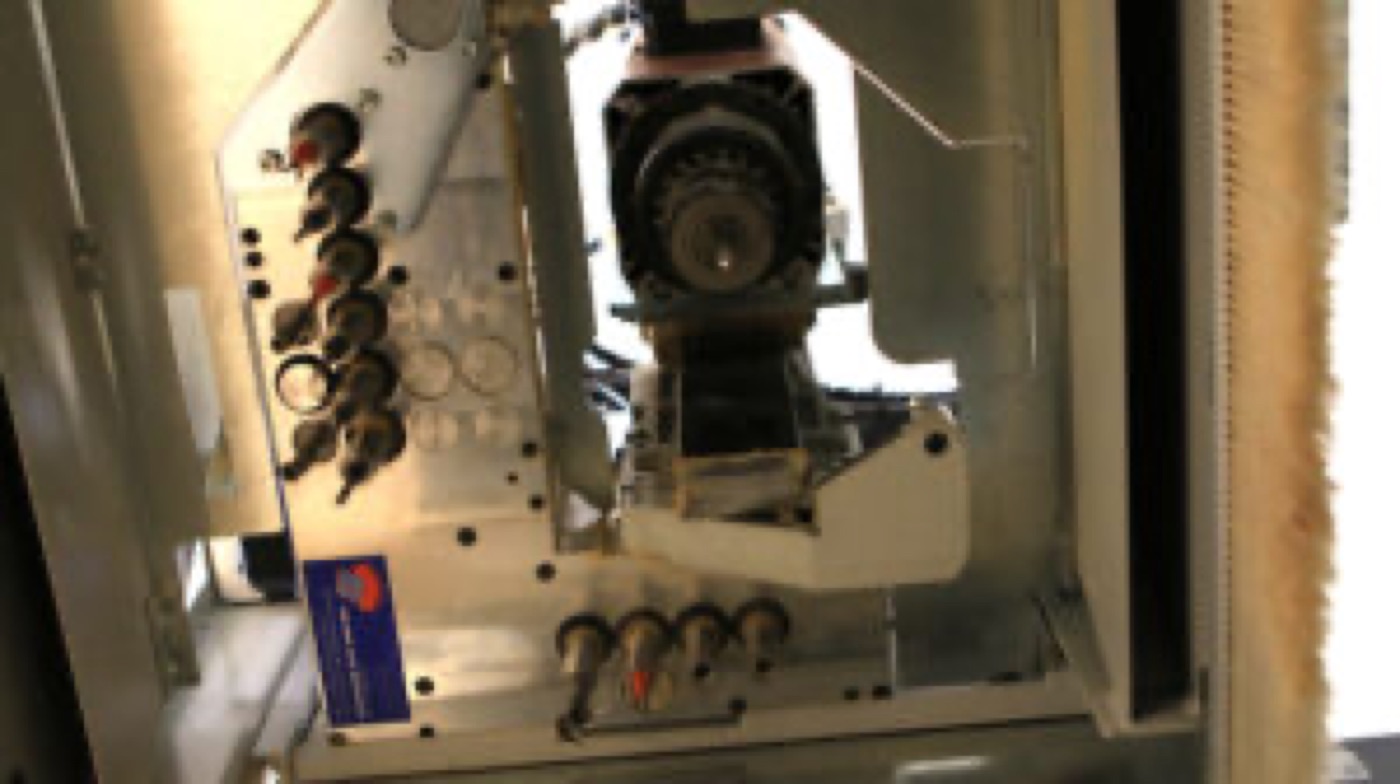

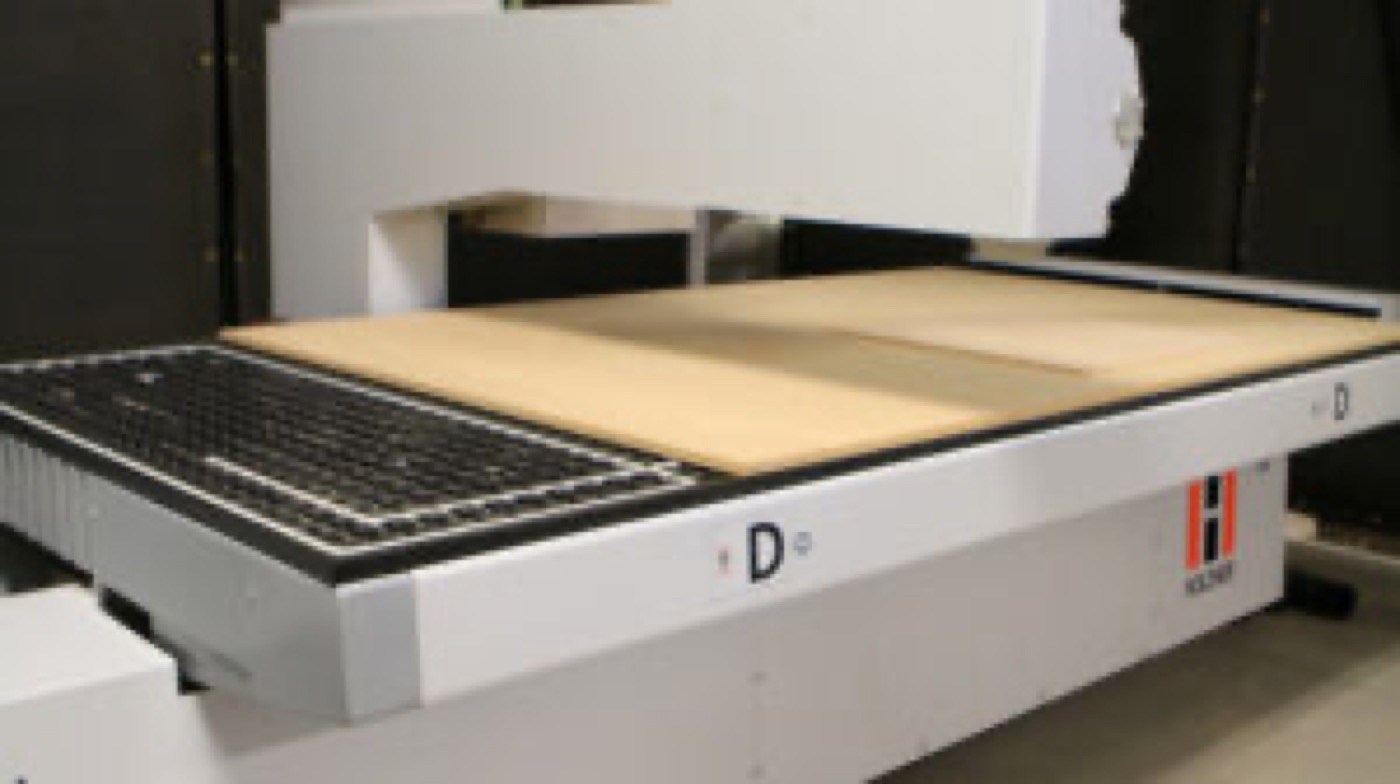

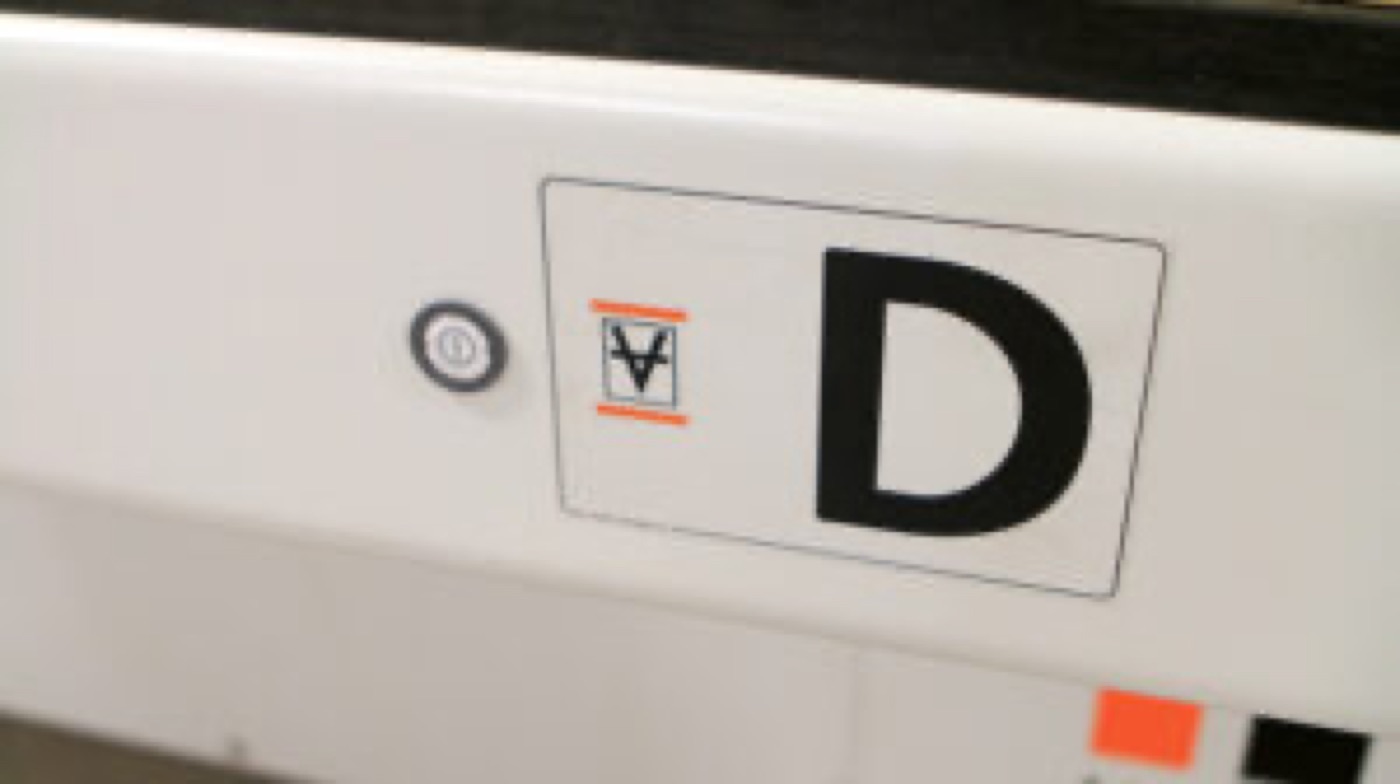

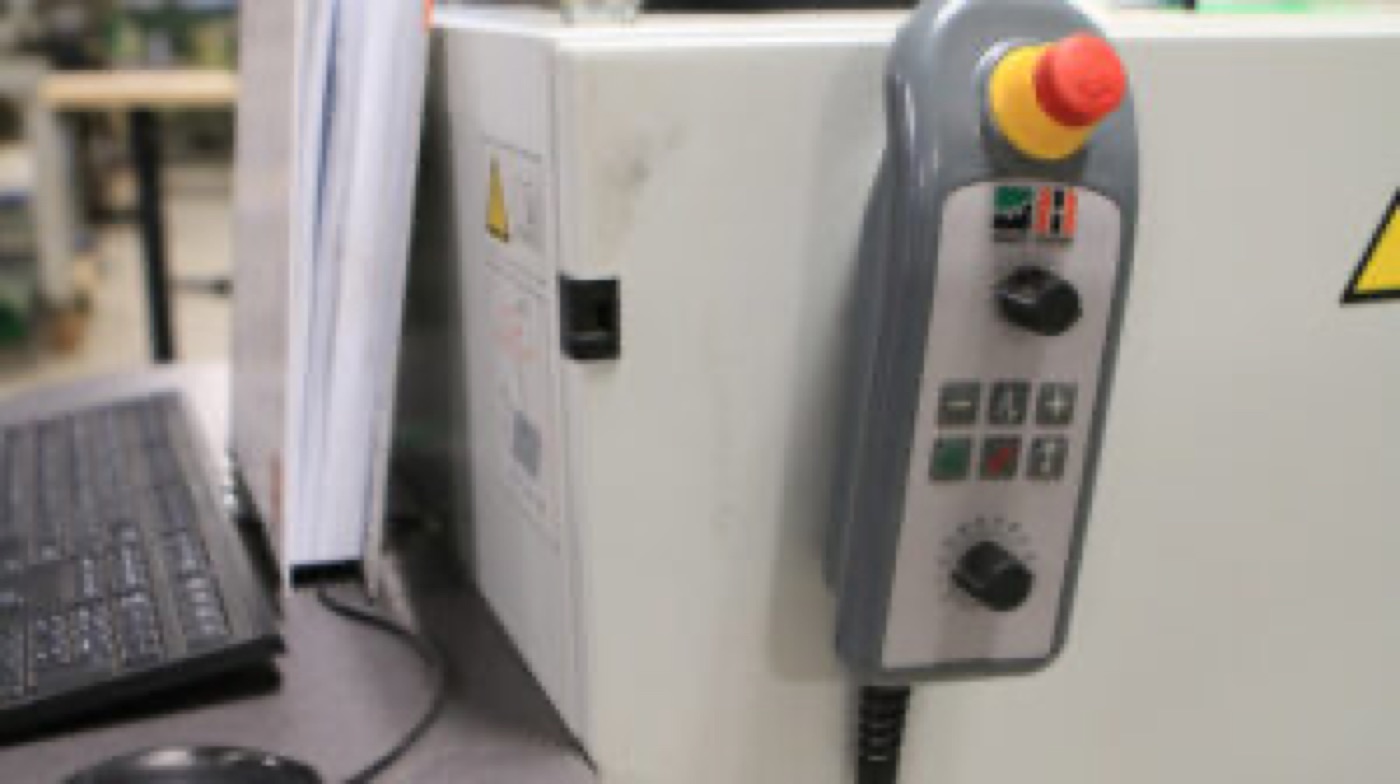

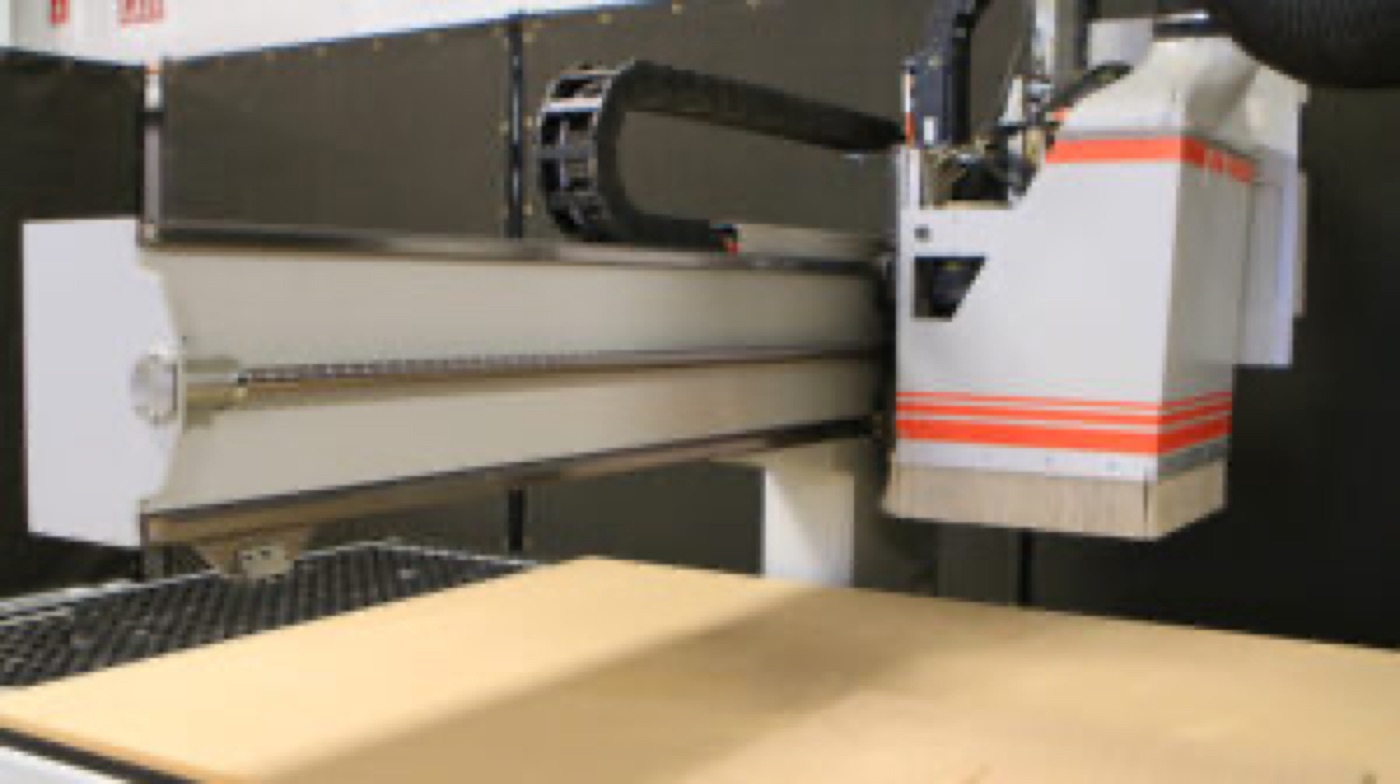

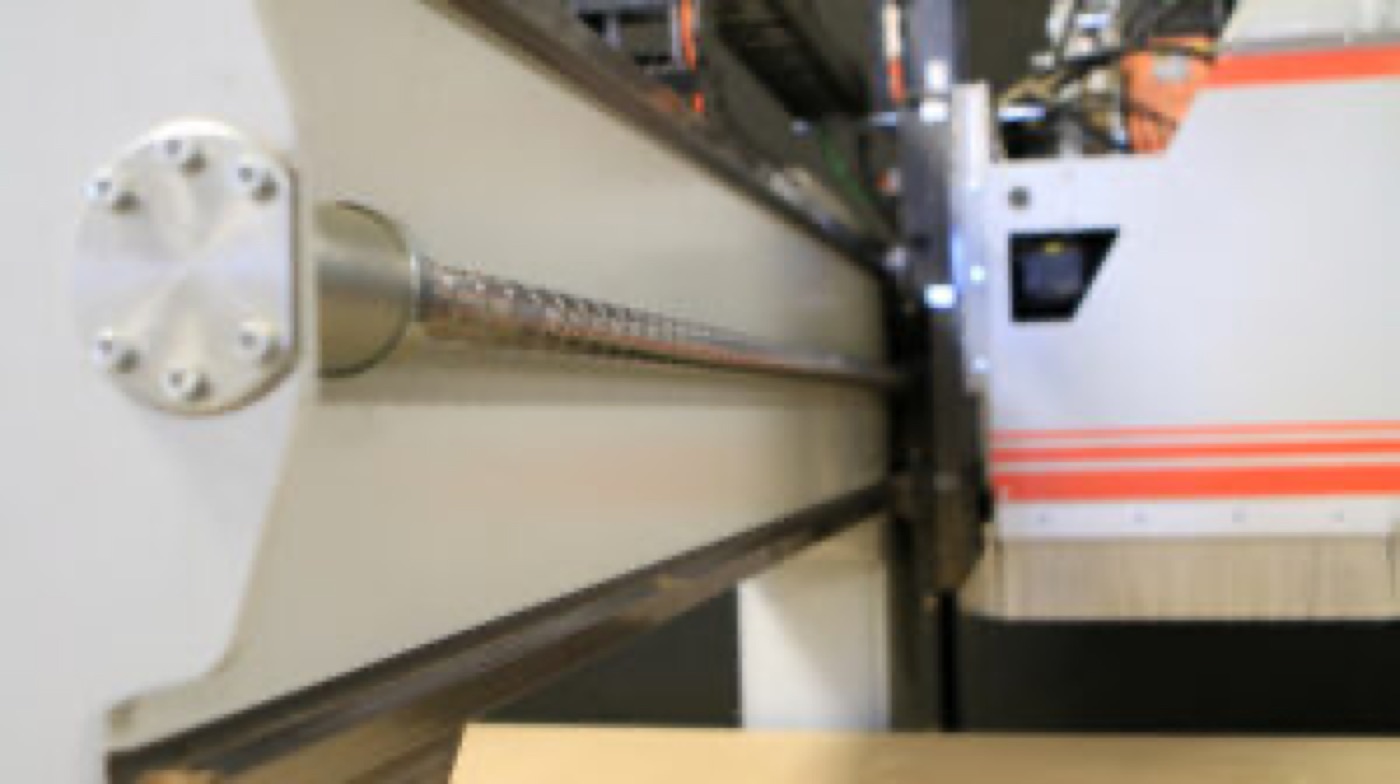

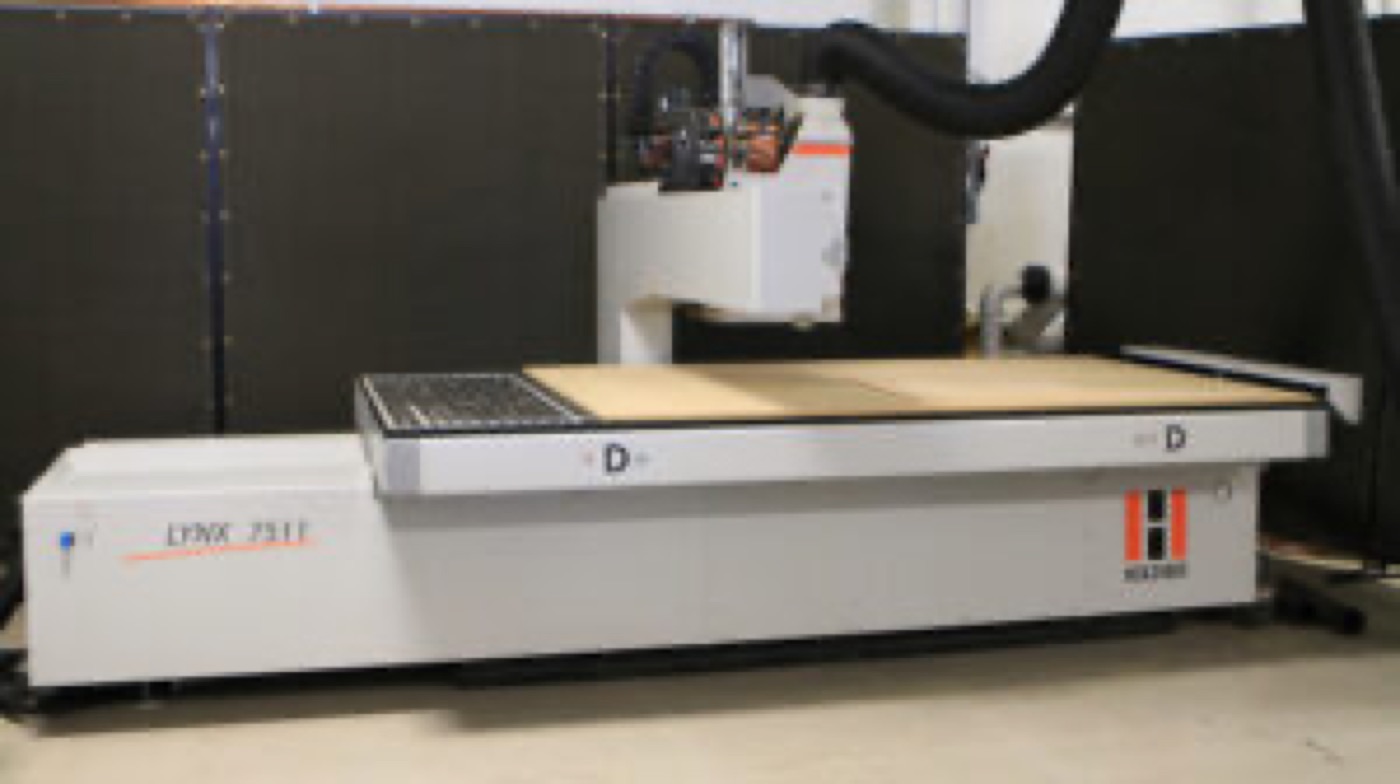

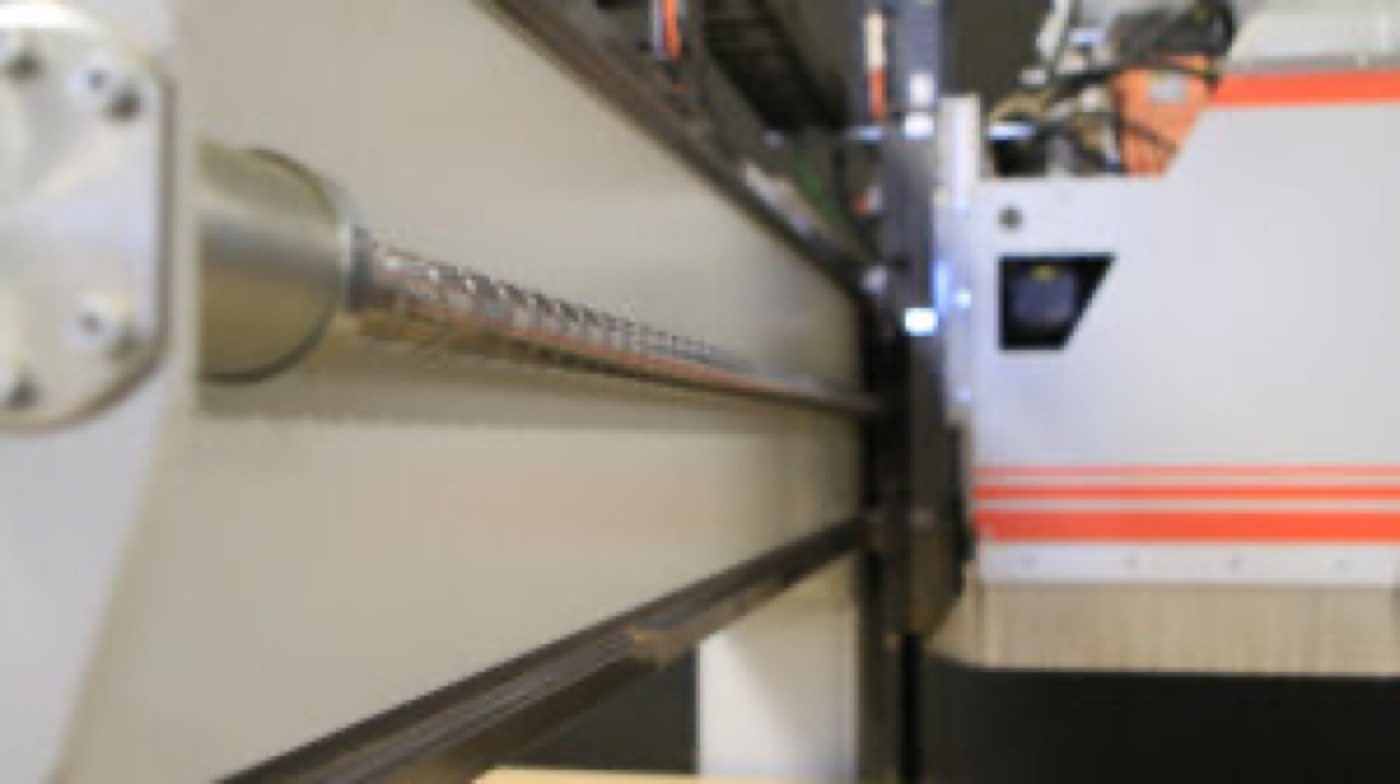

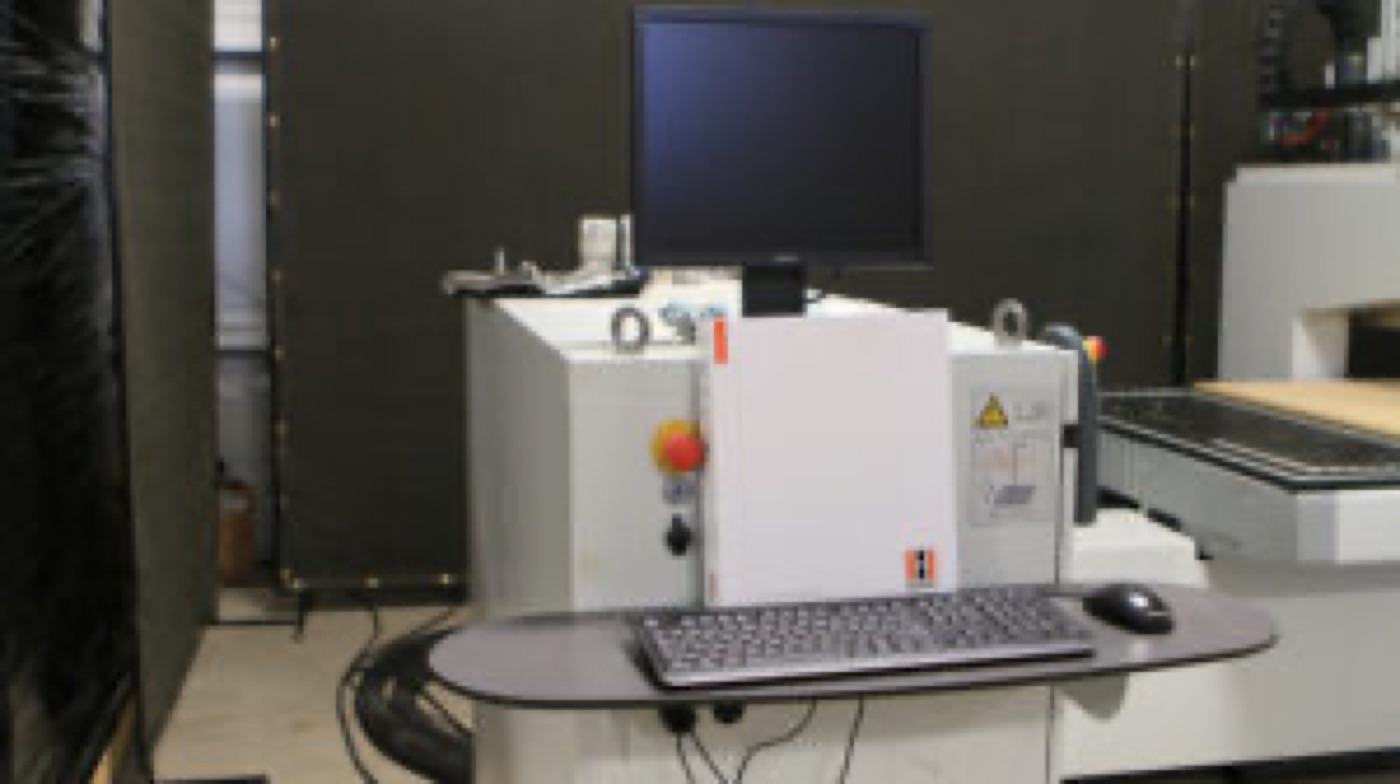

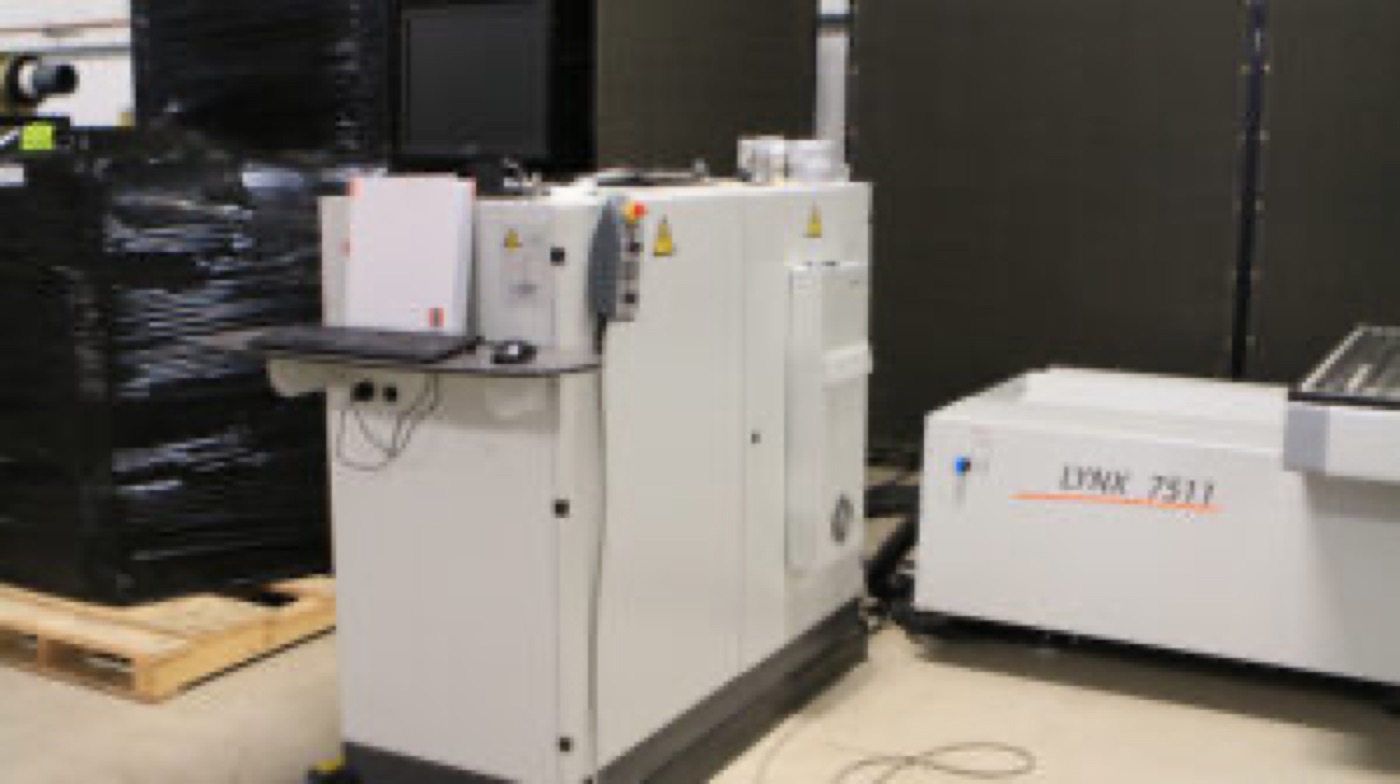

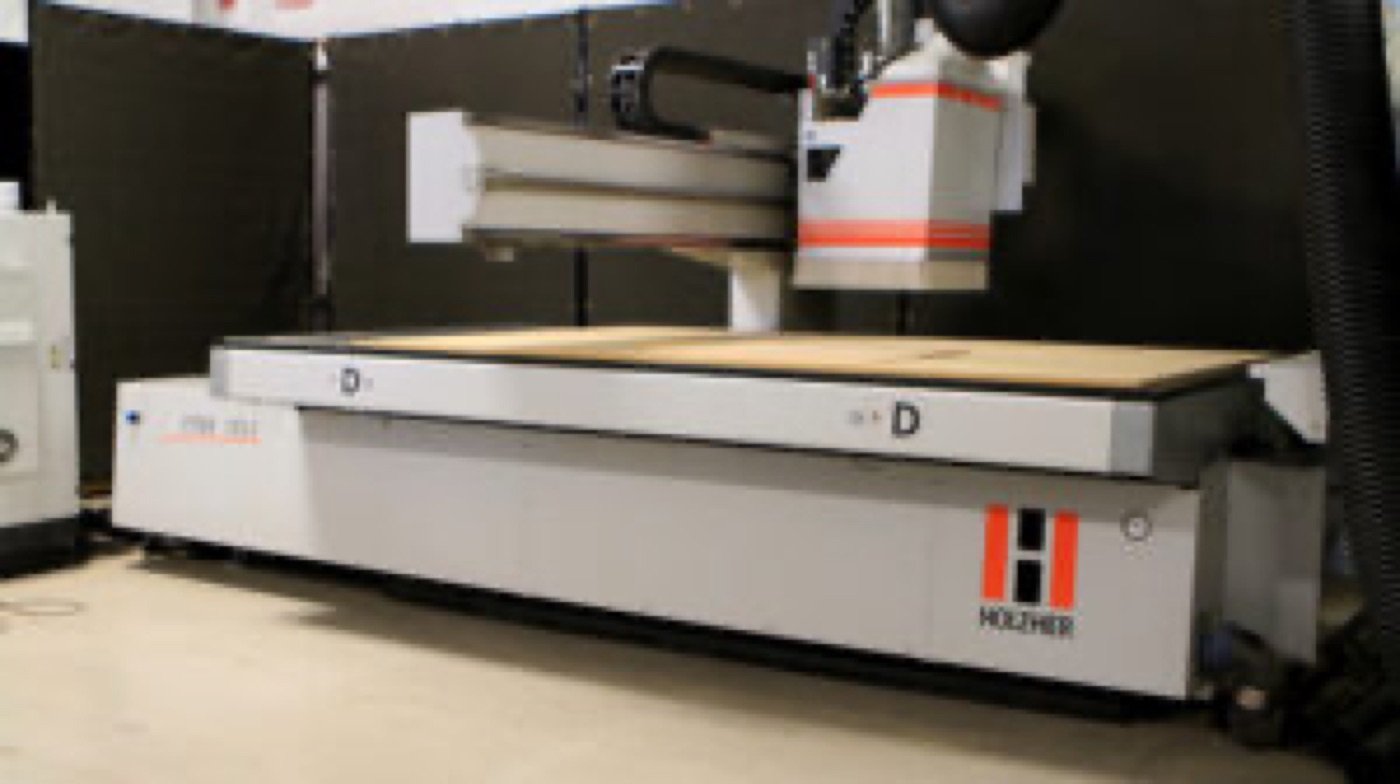

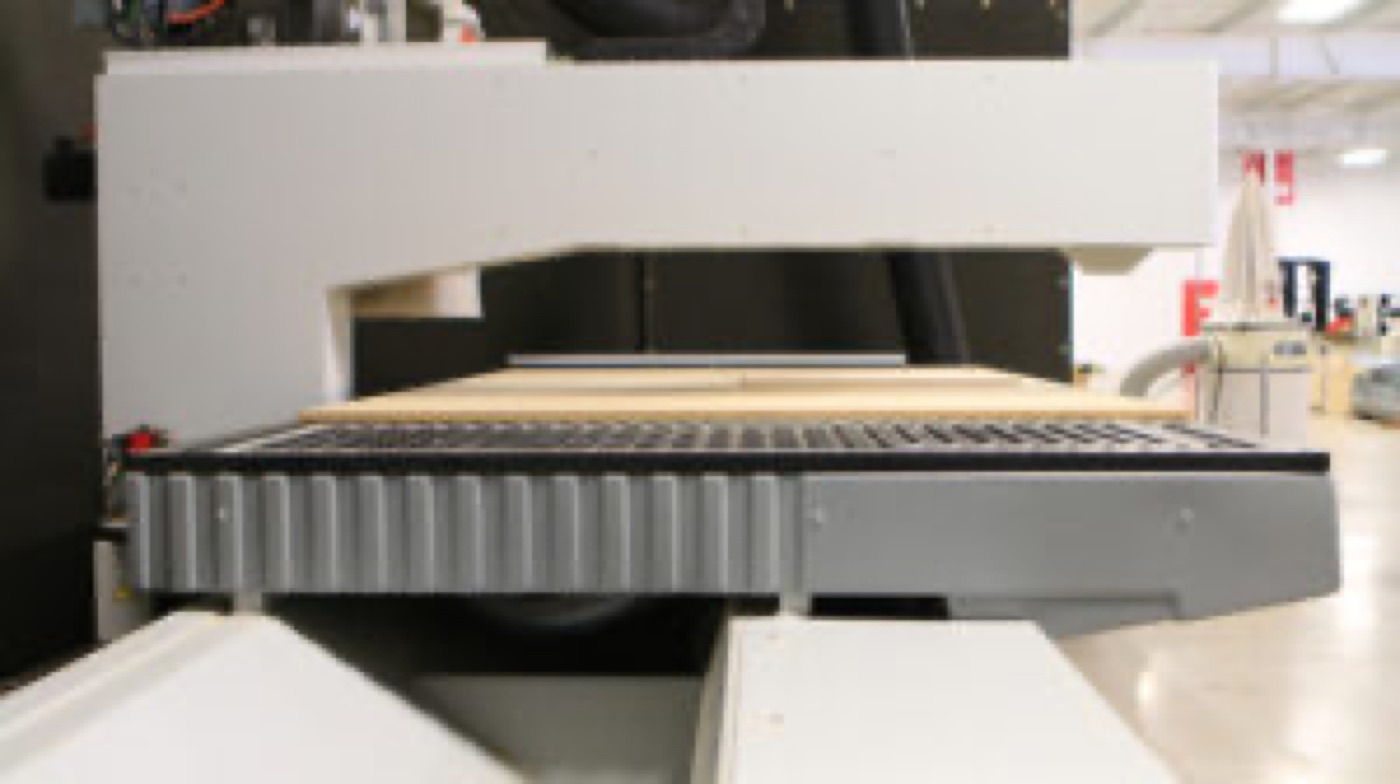

Holz-Her LYNX 7511 CNC router with its stationary support arm over the table LYNX 7511 control cabinet and router seen from the left end Left end of the LYNX 7511 showing the operator station and table LYNX 7511 operator station with monitor, keyboard and emergency stop Holz-Her handheld control unit mounted on the control cabinet LYNX 7511 control cabinet next to the end of the machine base LYNX 7511 model label on the machine base Grid vacuum table and spoil board on the Holz-Her LYNX 7511 Router head on the LYNX 7511 support arm, above the table Underside of the working unit showing vertical boring bits beside the router spindle Cable chains and wiring above the router head carriage Side view of the solid support arm over the vacuum table End view of the solid support arm and vacuum table Ball screw and linear guide along the Y axis support arm Close-up of the Y axis ball screw bearing mount and linear guide Holz-Her LYNX 7511 CNC router, three-quarter view of the table and router head Close-up of the grid vacuum table surface Close-up of a table zone label and push button on the table rail Second underside view of the working unit with boring bits, router spindle and dust brush
