C.R. ONSRUD MODEL F145G15W10 5-Axis Pro Series CNC Machining Center -USED

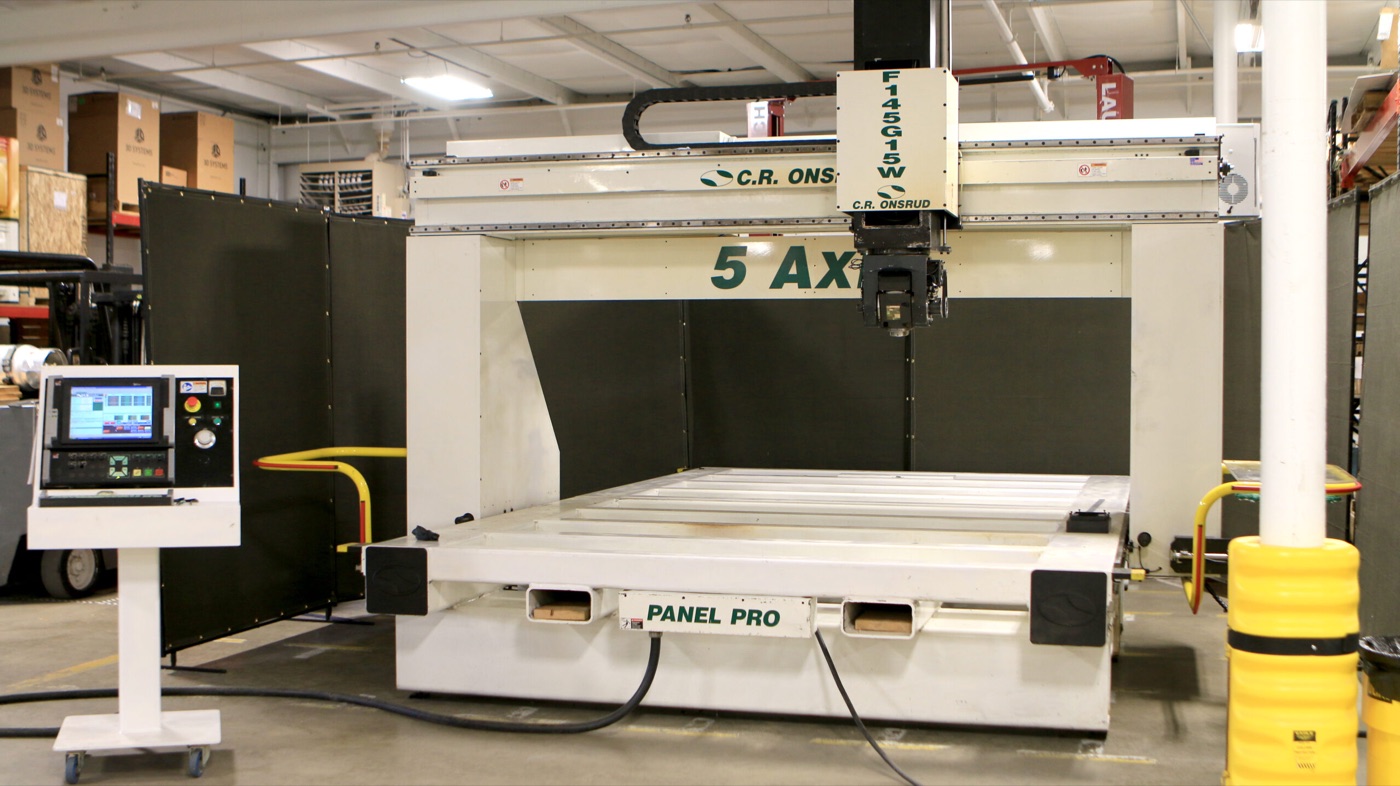

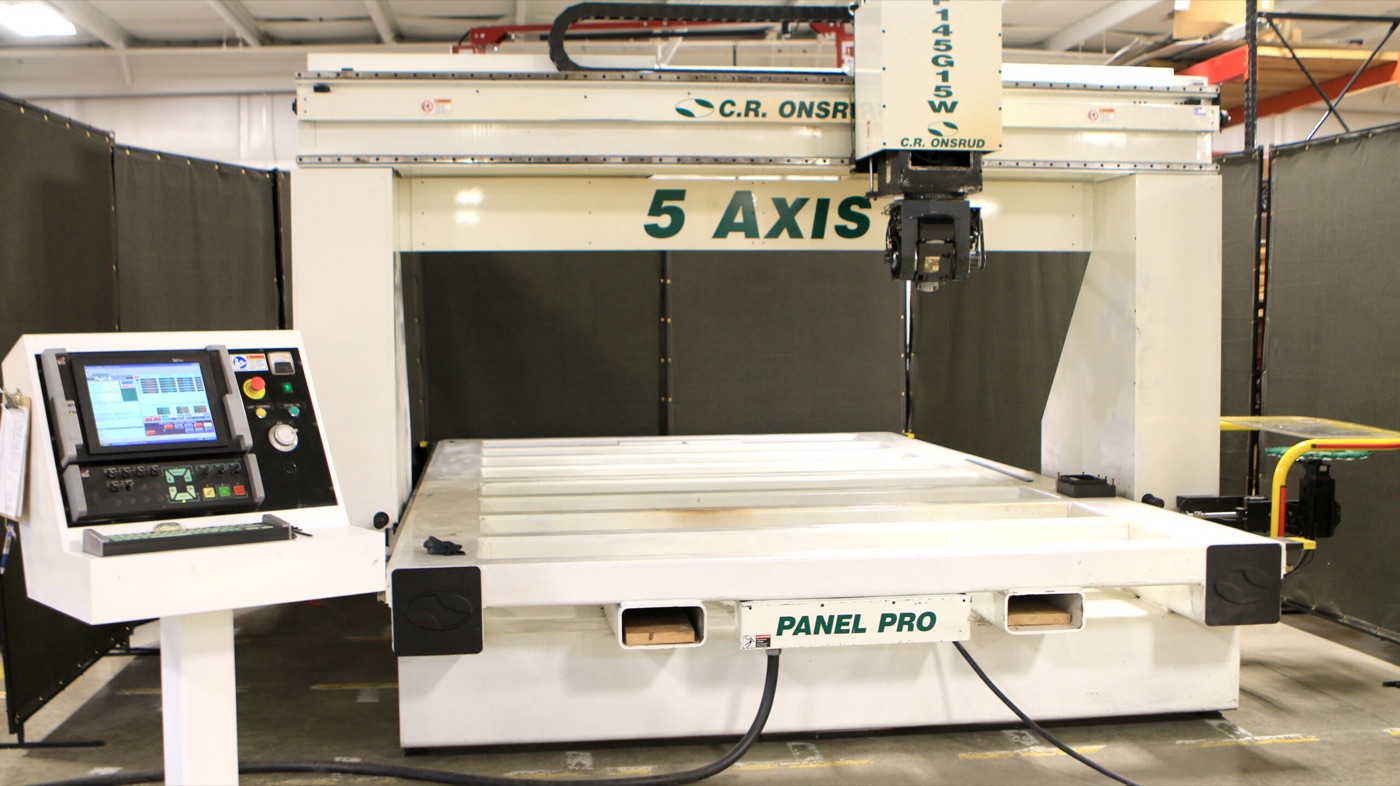

Used C.R. Onsrud F145G15W 5-axis Panel Pro CNC machining center with moving gantry, fixed table and OSAI control pendant

C.R. ONSRUD MODEL F145G15W10 5-Axis Pro Series CNC Machining Center

Large format which is capable of machining 12' long x 10' wide by 41" tall parts.

The entire frame has been thermal heat treated, stress relieved, & normalized, It has a 2 piece steel frame making it easy to transport and fit into a building. The Gantry has Dual Support, Dual drives with dual motors, Moving Gantry, Fixed Table Design with standard 2,000” per minute machining speed, full 3-D capability, precision ball screw drives for Z & Y axis, case-hardened, precision ground, helical rack & pinion drives for X-axis, precision linear profile guide ways, centralized manual lubrication system. SINGLE FIXED TABLE

41-inches of Z stroke - Increases 5-Axis Frame under bridge clearance & Z-stroke 41 inches

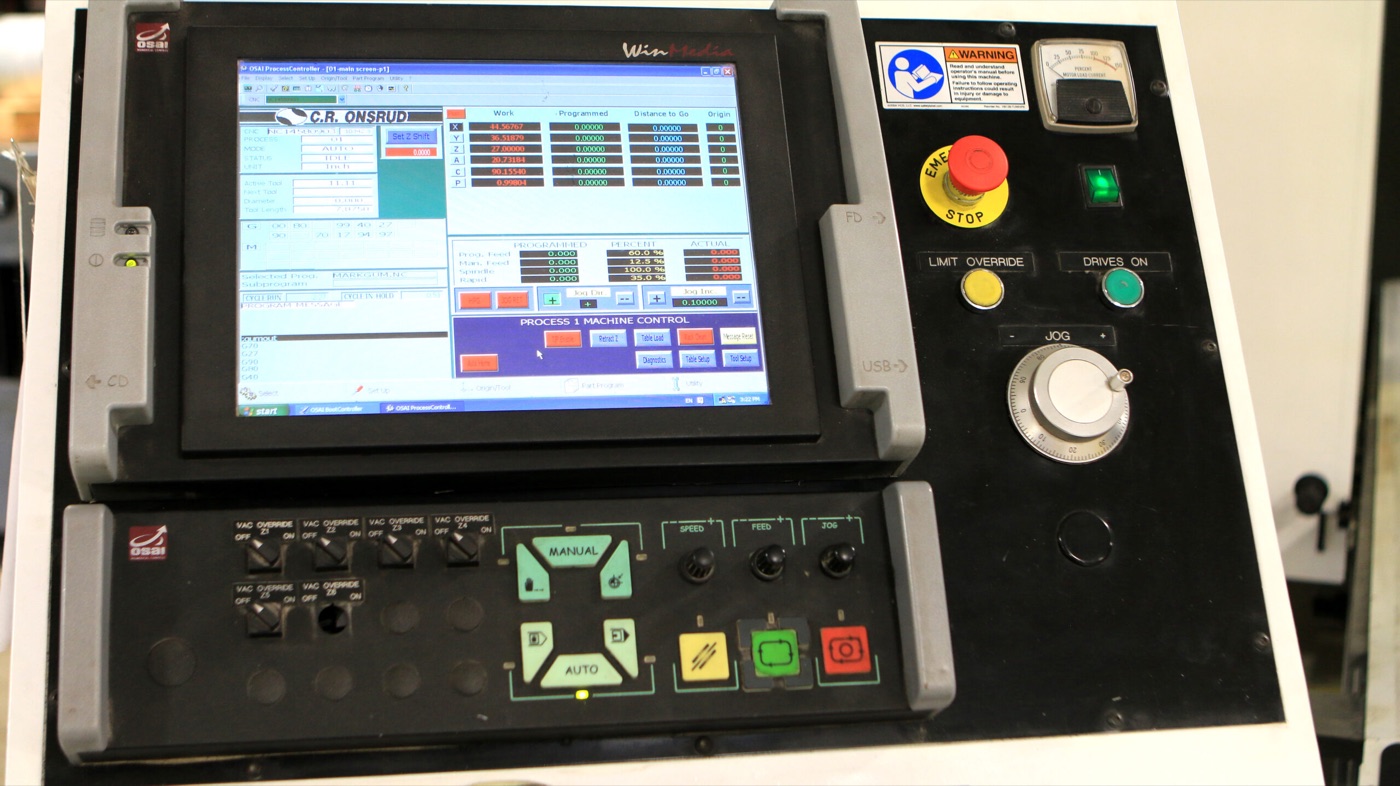

OSAI 10/510 CNC control pendant with C.R. Onsrud touch screen, jog handwheel and emergency stop

OSAI 10/510 Machine Controller System Option With Integrated PC Interface - Industrial CNC Machine Controller with High Res touch screen.

5-Axis 15 HP Short-nose Spindle - 4-Pole, 15HP – 24,000 RPM Double-Armature 5-Axis Spindle w/HSK-F63 Spindle Taper. Fully programmable, variable speed, quick-change spindle, capable of routing & drilling, programmable feed rates with override capability. A-Axis Rotation +/- 120 degrees, C-Axis Rotation + 300 / - 115 degrees.Chiller for Liquid Cooled Spindle Option - Adds a liquid cooling system & chiller in place of the standard fan & compressed air spindle cooling system. (Recommended when machining mostly non-ferrous metals or when using 20HP spindles or larger)

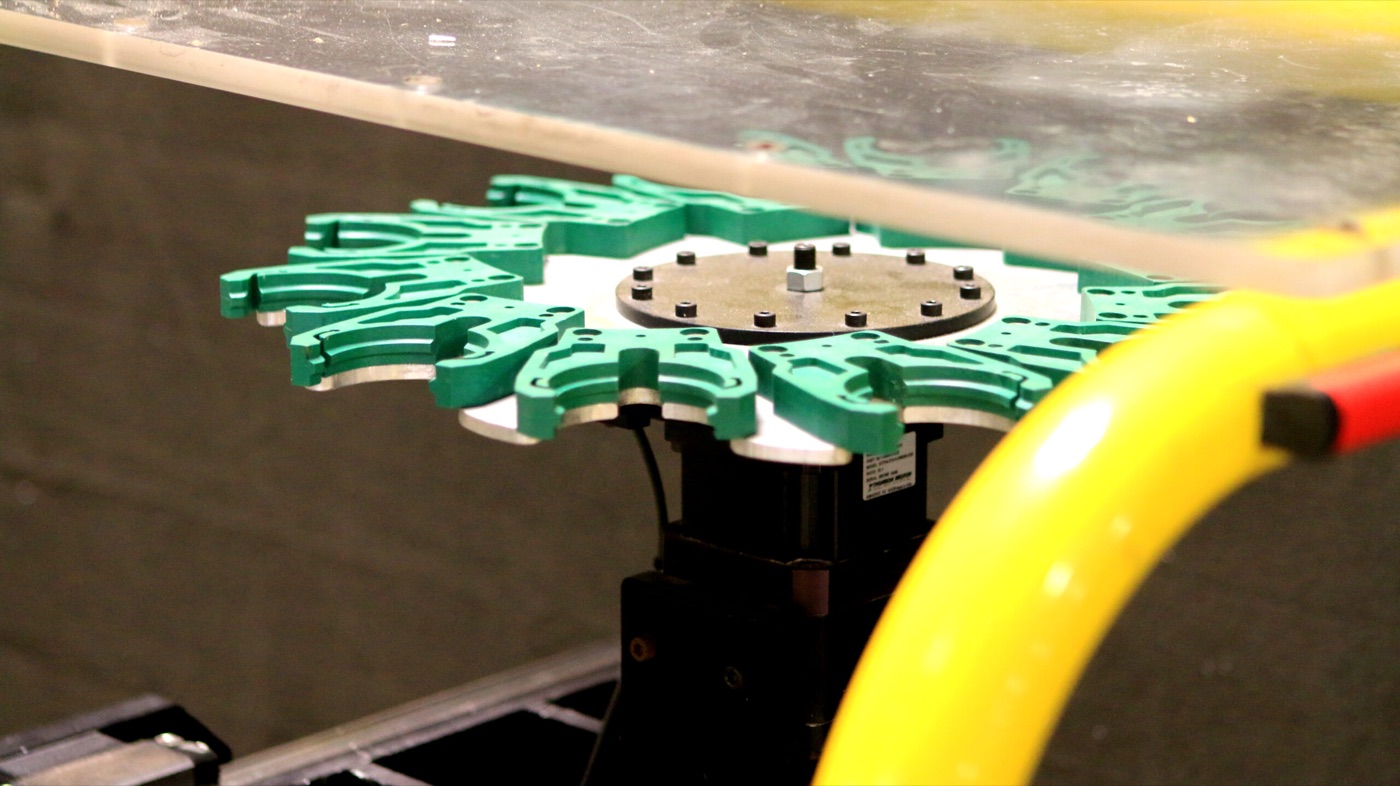

12-position rotary tool changer with green tool holder forks on the C.R. Onsrud 5-axis router

12 Tool - Dynamic Automatic Rotary Tool Changer - Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. The design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. You may require C-Axis or separate Aggregate Tool Changer option to hold some larger or non-standard aggregates.
Air Conditioned Electronics Cabinets - Recommended for extreme environments & some non-temperature controlled workplaces. Option replaces the standard heat exchanger system.
