C.R. ONSRUD 289G18R

C.R ONSRUD MODEL 289G18R “Pro Series” CNC ROUTER

289 – 5×24 – Work Envelope

5’ x 24’ Table – CR ONSRUD Phenolic High-Flow Universal Vacuum Table System Flow-Through Spoil Board – LDF table top to be used as replaceable sacrificial spoil board. Controller

11” Z axis stroke and 15” under bridge clearance

FANUC 0i Machine Controller System with Panel-i HMI

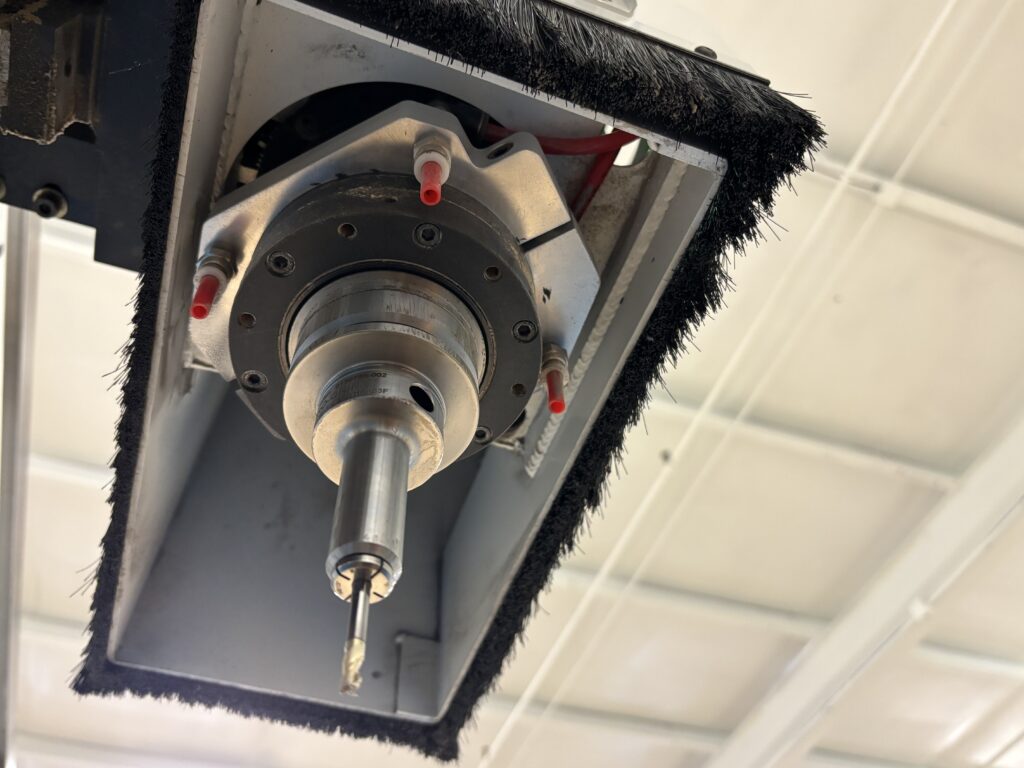

18 HP Spindle – 4-Pole, 13.5Kw, 18HP – 24,000 RPM fully programmable & reversible, variable speed, HSK

63F tool interface, quick-change spindle, capable of routing & drilling, programmable feed rates w/override

capability.

2-Position Integrated Dust Transition System – Integrated Dust Extraction hood pulls chips away from the

spindle’s nose & up a separate chamber & hood to effectively remove chips from the machining process. (8in

dust transition also provided for connecting to your dropped-in flex hose)

Automatic Directional Air Blast – Blows air on tooltip to aid chip or dust evacuation. The direction air blows

changes relative to the path of the machine. Can be turned on / off via M-Code.

Standard Centralized Manual Greased Lubrication Automatic Grease Lubrication System

Roller Hold Down Option – 2 Rollers on each side of the cutting spindles, automatically extend & retract as

rollers roll off cutting table, for holding down warped sheet stock such as low grade plywood. Each roller’s

pressure can be regulated to prevent unnecessarily slamming the rollers into the table & the material. Usually

assists standard vacuum holding, but may be purchased without vacuum.

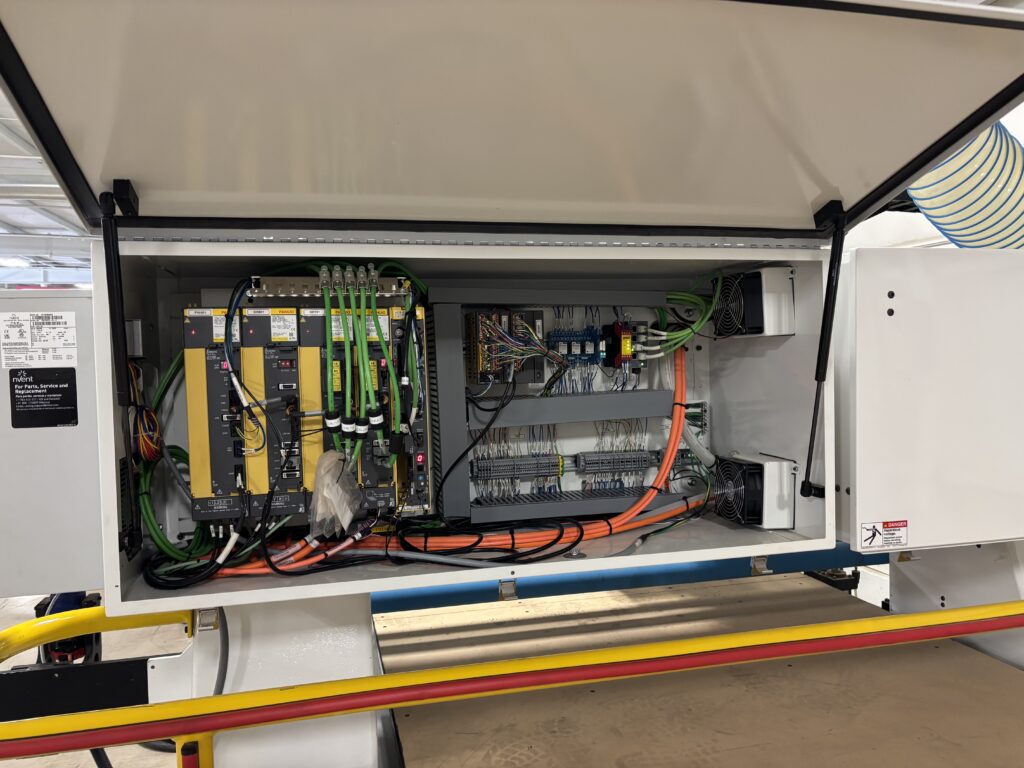

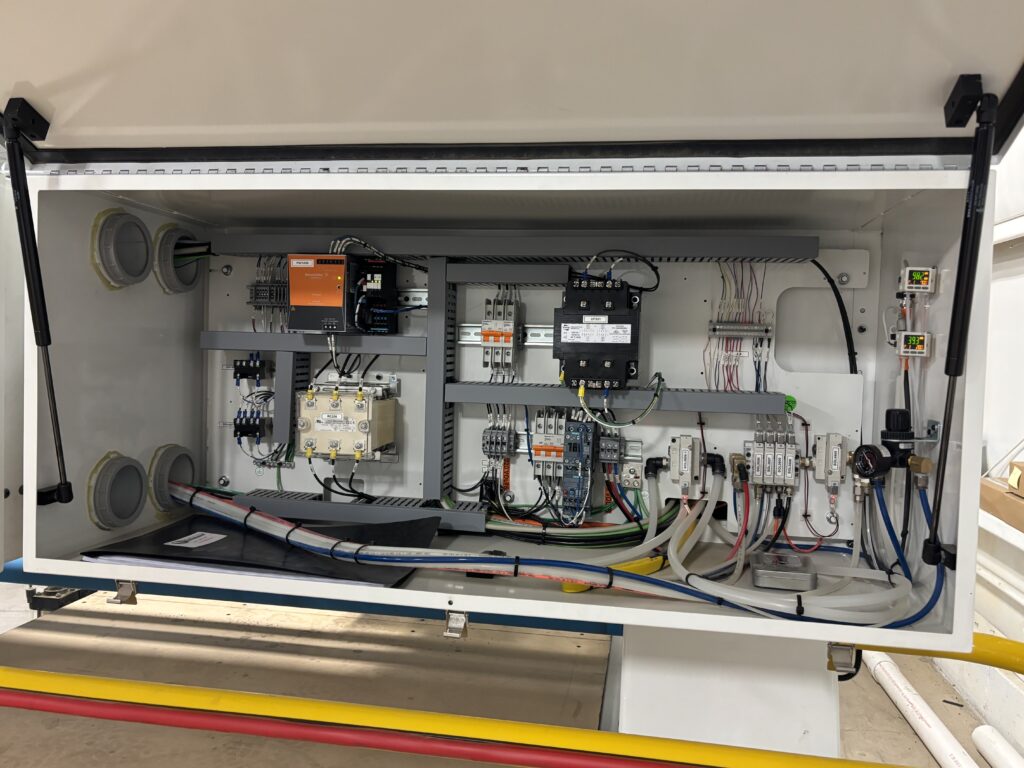

Air Conditioned Electronics Cabinets – Recommended for extreme environments & some non-temperature

controlled workplaces.

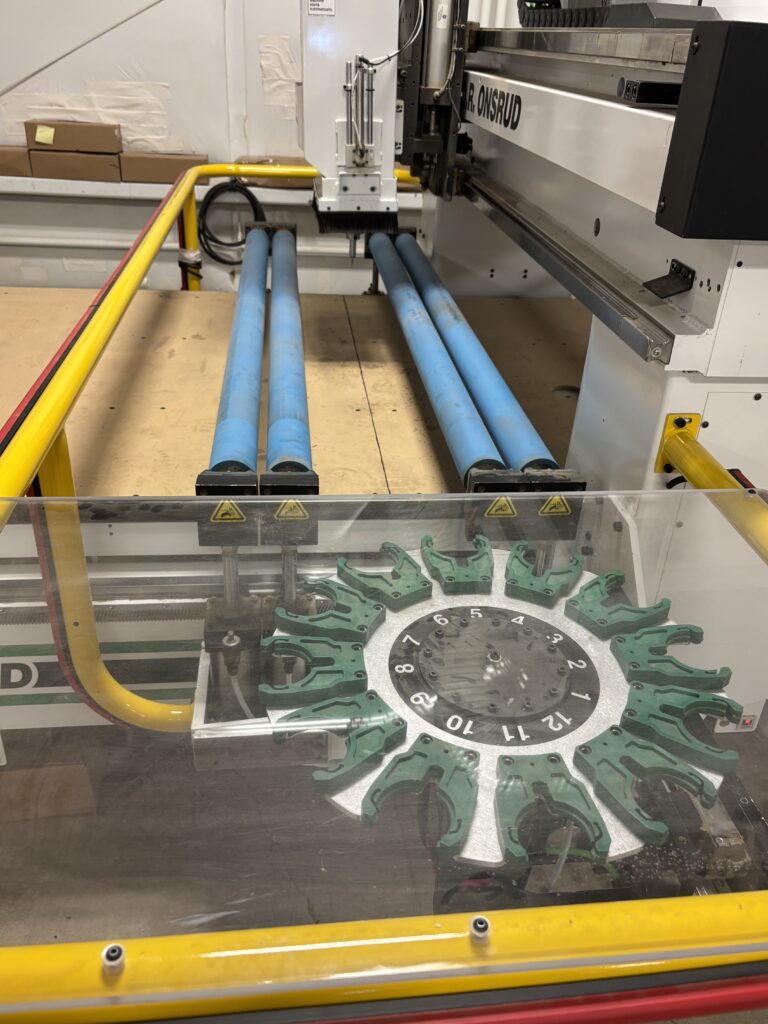

12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled or

Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools.

Pneumatic Controlled Pop-Up Perimeter Positioning Pin – for easier sheet placement Solenoids for Pop-Up Pin Control Tooling Measurement System Options

Auto Tool Length Touchpad Digitizer – Measures tool length and records in machine tool length tables, may

not work with custom or non-standard tooling, or some custom profiles.

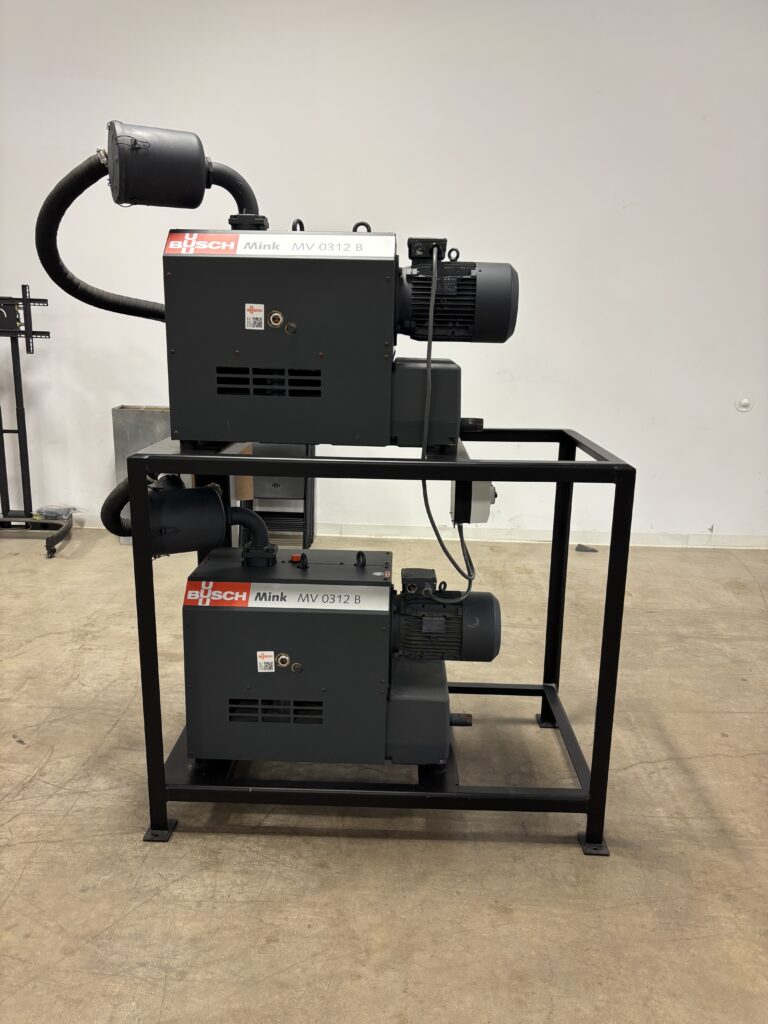

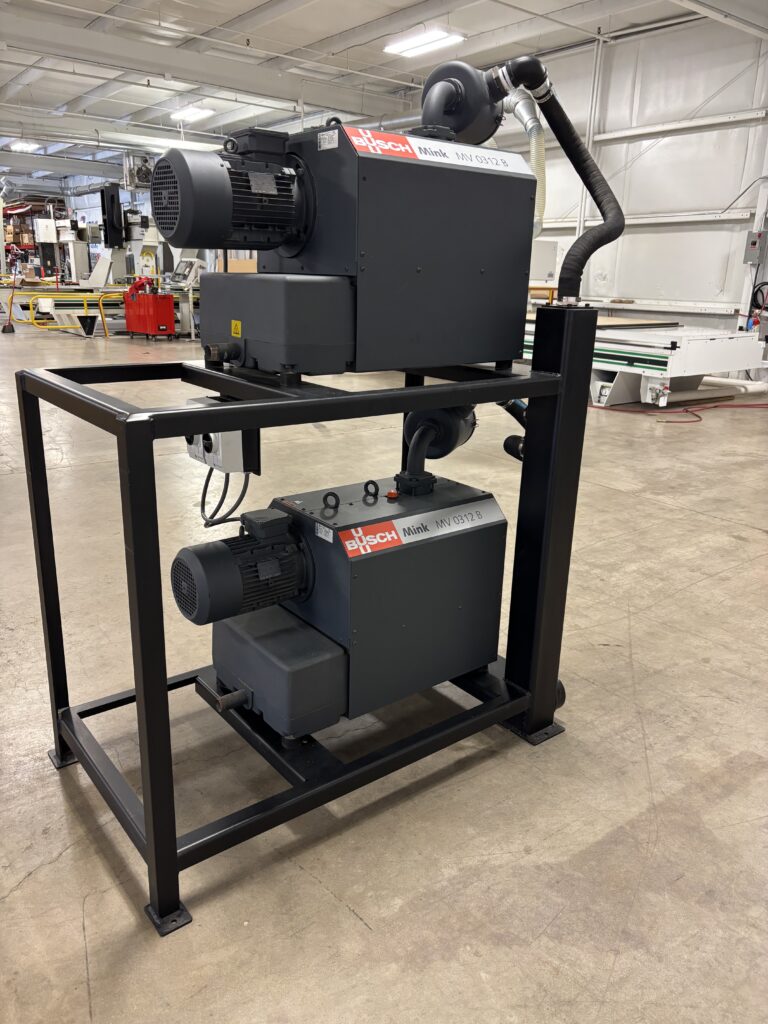

Vacuum Pumps – (2) 10 HP Busch Mink Vac Pumps – Mounted on a rack – 406 CFM total.

2022 Machine has never been run in production!
